Square D HU362AWC - Non-Fusible Disconnect 60A 600V 3P

Square D
Price
Save $2,678
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

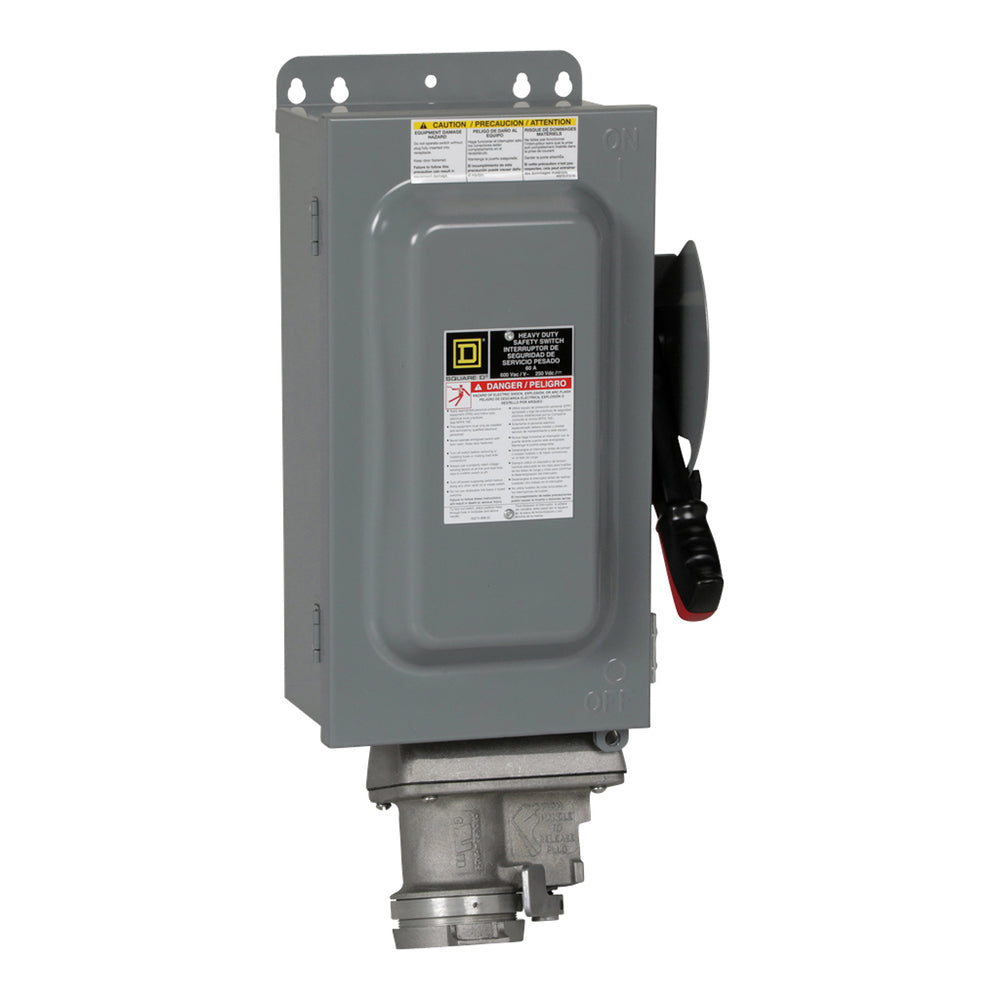

Square D HU362AWC is a non-fusible safety disconnect switch designed for providing a visible break and isolation in three-phase industrial power circuits. It is rated for 600V AC and 60A, featuring a robust construction with three poles in a single configuration. The enclosure, measuring 419.1 mm H x 266.7 mm W x 177.8 mm D and weighing 24.03 lb, carries a NEMA 3R/12 rating for indoor/outdoor use and is UL listed for safety. With an interrupting rating of 200kA at 600V, it is engineered for reliable service in motor control centers, industrial machinery, and HVAC systems where circuit isolation is required.

Key Features & Specifications
  • Type: Non-Fusible Safety Disconnect Switch, 3-Pole, Single Configuration
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 419.1 mm H x 266.7 mm W x 177.8 mm D (16.5 in x 10.5 in x 7 in)
  • Weight: 24.03 lb
  • Standards: UL Listed
  • Applications: Motor Control Centers, Industrial Machinery, HVAC Systems
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: 3R/12
  • Wire: 3
  • Country of Origin: United States


Product Identification
  • UPC: 78590119563
  • GTIN: 00785901195634
