Square D
Price
Save $100.39
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

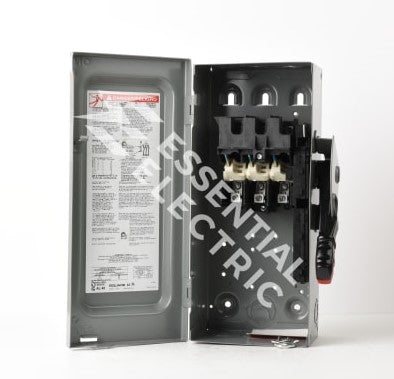

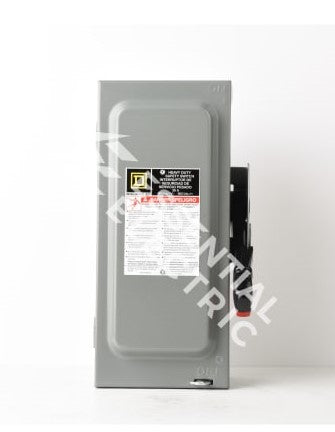

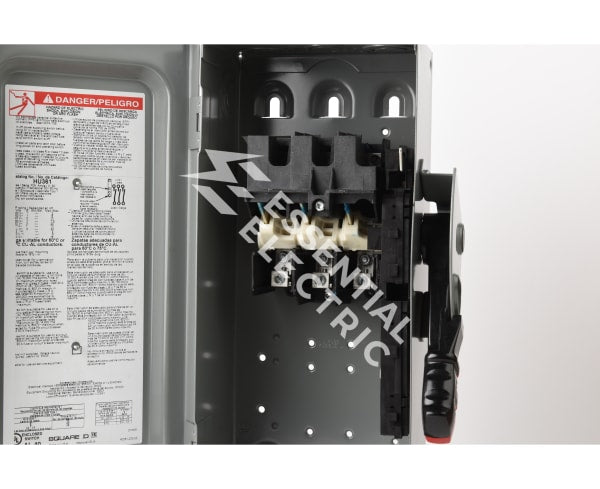

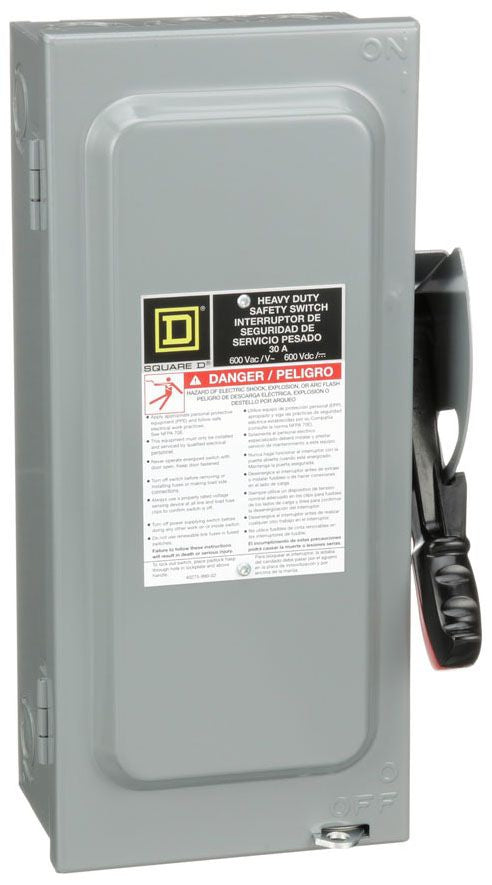

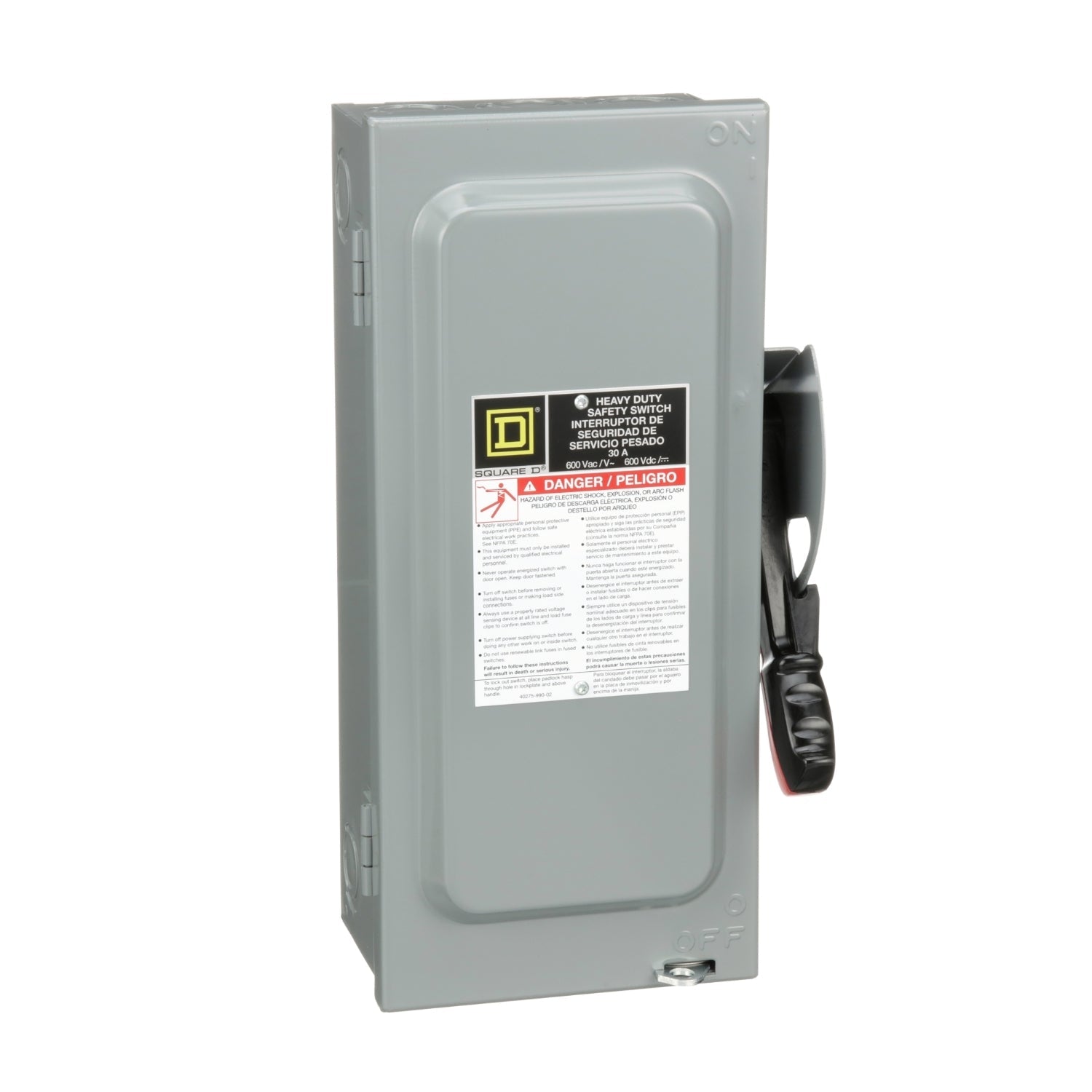

Square D HU361 is a heavy-duty disconnect switch designed for providing a visible break and safe isolation of three-phase electrical circuits. It is rated for 600V AC systems with a 30A current rating and features a robust non-fusible switch style with a 200kA interrupting capacity at 600V. The unit is constructed with a NEMA 1 enclosure, measures 14.6 in (370.8 mm) H x 7.55 in (191.77 mm) W x 4.87 in (123.70 mm) D, and weighs 7.599 lb, supporting wire sizes from AWG 12 to 6 for aluminum and AWG 14 to 6 for copper. As part of the Series E family, it is compatible with MD frames and is engineered for reliable service in industrial power distribution and motor control applications where circuit isolation and safety are paramount.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, Series E, HU Type
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 12 to AWG 6 (Aluminum), AWG 14 to AWG 6 (Copper)
  • NEMA Rating: 1
  • Switch Style: Non-Fusible
  • Compatible Frames: MD
  • Dimensions: 14.6 in (370.8 mm) H x 7.55 in (191.77 mm) W x 4.87 in (123.70 mm) D
  • Weight: 7.599 lb


Product Identification
  • UPC: 785901505723
  • GTIN: 00785901505723
