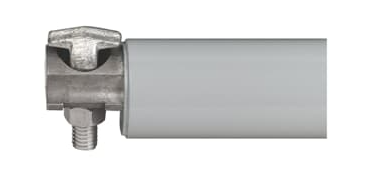

ABB HTDS242035 - Medium Voltage Fuse 35A 15.5kV (50kA AIC Rating)

ABB HTDS242035 is a medium voltage fuse designed for overcurrent protection in high-voltage electrical systems. It features a 15.5kV voltage rating and 35A current rating with a 50kA interrupting capacity at 15.5kV for reliable fault protection. The fuse utilizes a single-barrel construction with special connection terminals and measures 3.25 inches in diameter with a weight of 5.19 lb. As part of the Trans-Guard FX family with OS type classification, it meets industrial standards for medium voltage applications. This fuse is engineered for use in transformer protection, motor circuits, and other critical power distribution systems requiring robust overcurrent protection.

Key Features & Specifications

• Type: Medium Voltage Fuse, Trans-Guard FX Family, OS Type, single-barrel construction
• Voltage Rating: 15,500V AC
• Current Rating: 35A
• Dimensions: 3.25 inches diameter
• Standards: Industrial medium voltage protection standards
• Applications: Transformer protection, motor circuits, power distribution systems
• AIC Rating: [email protected]
• Connection: Special terminals
• Barrels: 1
• Weight: 5.19 lb

Product Identification

• UPC: 78378650941
• GTIN: 00783786509416
