Square D HOMVP9 - Load Center 200A 240V AC
Square D HOMVP9 - Load Center 200A 240V AC

Square D HOMVP9 - Load Center 200A 240V AC

Square D
Price
Save $-579.55
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

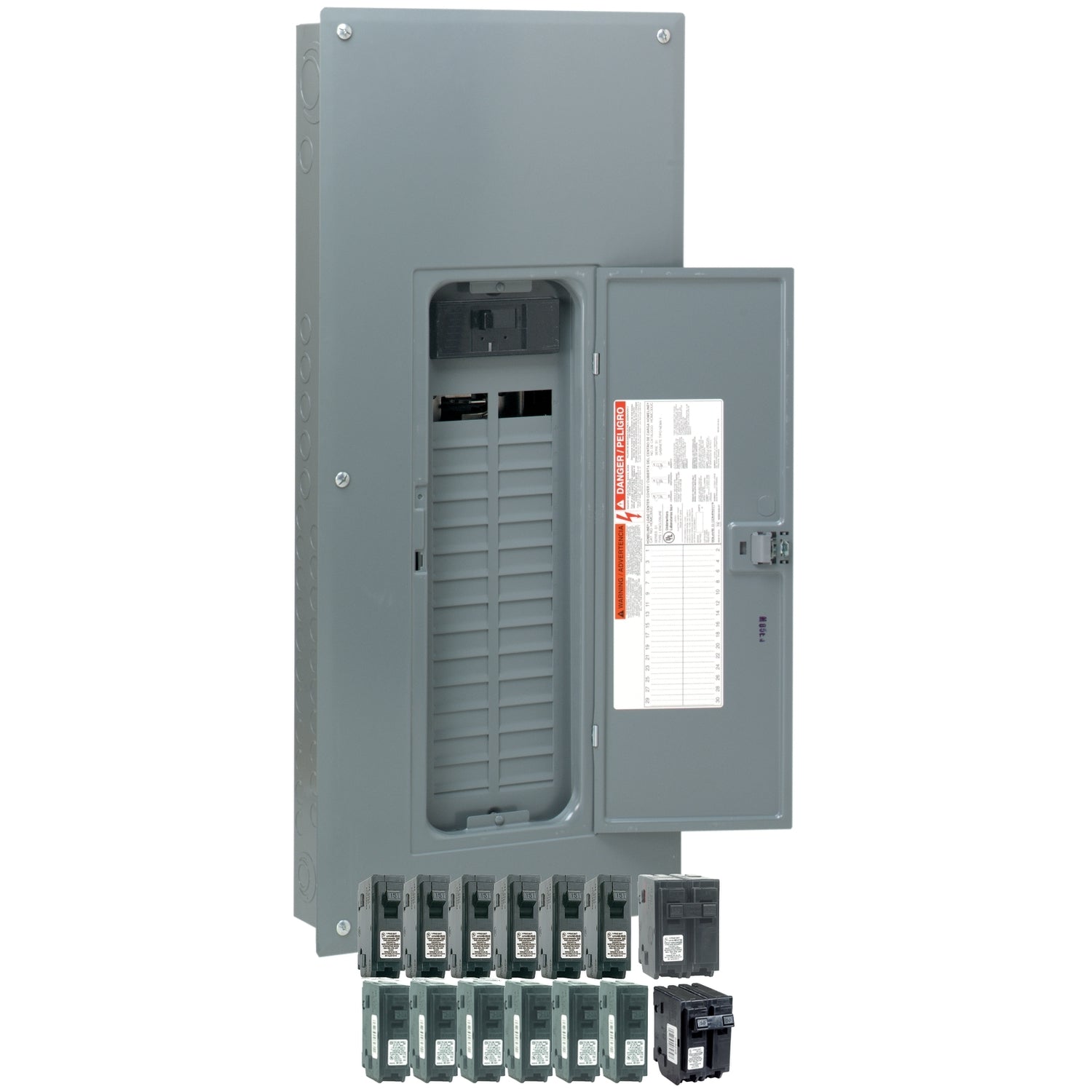

Square D HOMVP9 is a load center designed for residential and light commercial electrical distribution and circuit protection. This unit supports a maximum voltage of 240V AC and a current rating of up to 200A, providing robust overcurrent protection for branch circuits. It measures 33.78 inches in height, 14.25 inches in width, and 3.75 inches in depth, with a weight of 37.399 lb, featuring a durable metal enclosure for indoor installation. The load center complies with UL 67 and NEC standards, ensuring safe and reliable operation in standard electrical systems. It is typically used for main breaker panel applications in homes, small offices, and workshops, accommodating Square D Homeline circuit breakers.

Key Features & Specifications
  • Type: Main breaker load center, metal enclosure, single-phase
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 33.78 in (858.01 mm) x 14.25 in (361.95 mm) x 3.75 in (95.25 mm) (Height x Width x Depth)
  • Weight: 37.399 lb
  • Standards: UL 67, NEC compliant
  • Applications: Residential and light commercial main breaker panels
  • Breaker Type: Homeline
  • Phase: Single-phase
  • Enclosure: Metal, indoor
  • Installation Type: Surface or flush mount
  • Circuit Breaker Mounting Style: Plug-on
  • Terminal Connection: Main lugs or main breaker
  • Frequency Rating: 60 Hz
  • Phase Connection: 1-phase, 3-wire
  • Compatible Frames: Homeline
  • Nema Rating: 1 (indoor)
  • Wire Size: #14-2/0 AWG (branch), #4-300 kcmil (main)
  • Certification: UL listed
  • Item QTY: 1
  • Breaker Frame: HOM
  • Current Rating: 200A
  • Operating Temperature Maximum Celsius: 40°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: 785901893247
  • GTIN: 00785901893247
