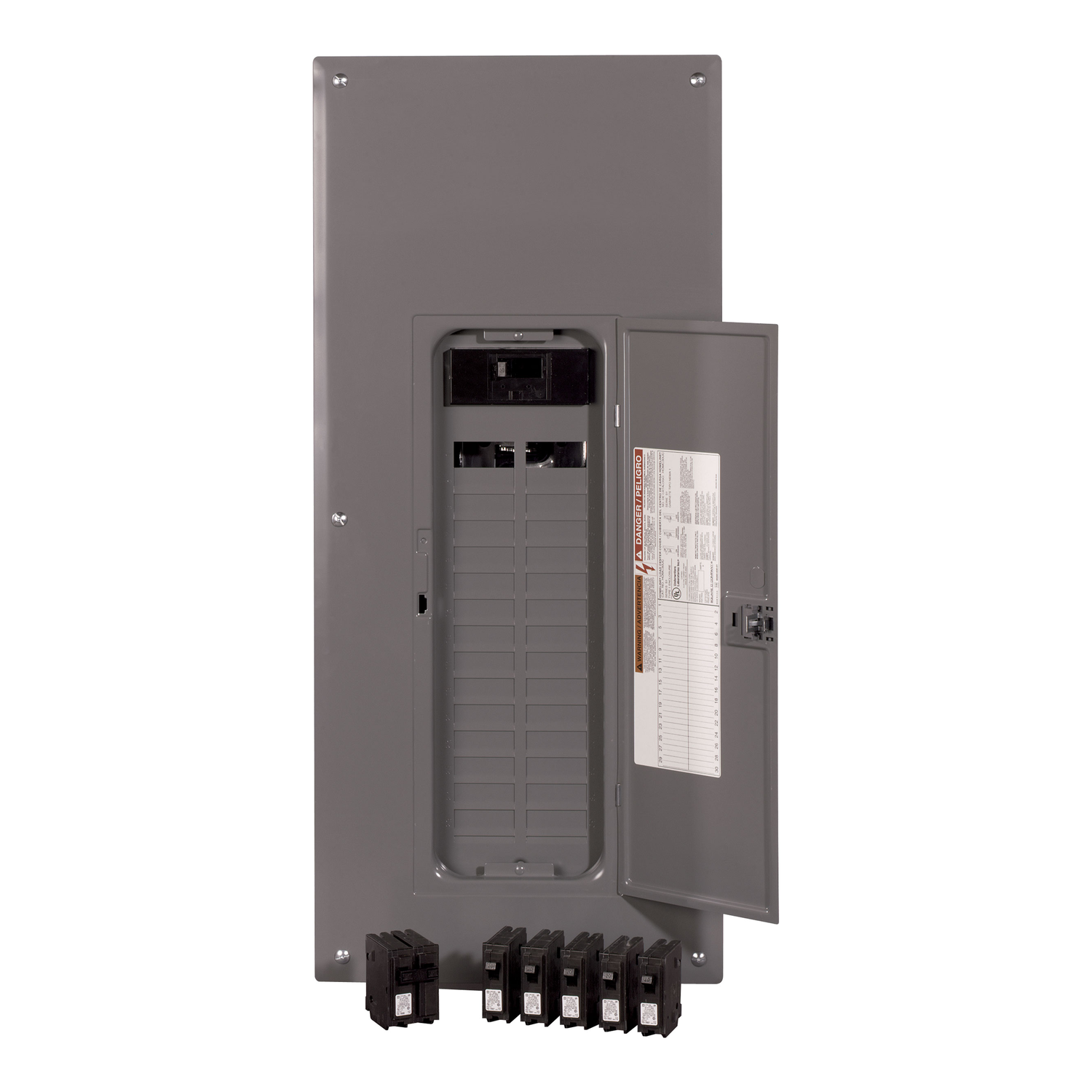

Square D HOMVP12 - Main Breaker Load Center 100A
Square D HOMVP12 - Main Breaker Load Center 100A

Square D HOMVP12 - Main Breaker Load Center 100A

Square D
Price
Save $-624.80
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Square D HOMVP12 is a main breaker load center designed for residential and light commercial electrical distribution and overcurrent protection. It operates at 120/240 VAC with a 100 A continuous current rating and a 22 kAIC interrupting capacity. The unit measures 33.78 in (858.01 mm) in height, 14.25 in (361.95 mm) in width, and 3.75 in (95.25 mm) in depth, weighing 34.231 lb, and features a single-phase, 3-wire configuration with a NEMA 1 enclosure for indoor installation. This load center complies with UL 67 and CSA standards, ensuring reliable performance in branch circuit protection. It is typically used in residential service entrance panels and light commercial subpanels for distributing power to branch circuits.

Key Features & Specifications
  • Type: Main breaker load center, single-phase, 3-wire, NEMA 1 indoor enclosure
  • Voltage Rating: 120/240 VAC
  • Current Rating: 100 A
  • AIC Rating: 22 kAIC
  • Dimensions: 33.78 in (858.01 mm) x 14.25 in (361.95 mm) x 3.75 in (95.25 mm) (Height x Width x Depth)
  • Weight: 34.231 lb
  • Phase: Single-phase
  • Connection: 3-wire (Line, Neutral, Ground)
  • Poles: 1-pole and 2-pole branch circuits
  • Protection: Overcurrent and short-circuit protection
  • Panel Type: Load center
  • Breaker Type: HOM (plug-on)
  • Enclosure: NEMA 1
  • Mounting: Surface or flush mount
  • Hz: 60 Hz
  • Standards: UL 67, CSA
  • Installation Type: Indoor
  • Circuit Breaker Mounting Style: Plug-on
  • Terminal Connection: Aluminum/copper rated
  • Frequency Rating: 60 Hz
  • Phase Connection: Single-phase
  • Compatible Frames: HOM
  • Manufacturer: Schneider Electric
  • Country of Origin: United States


Product Identification
  • UPC:
  • GTIN:
