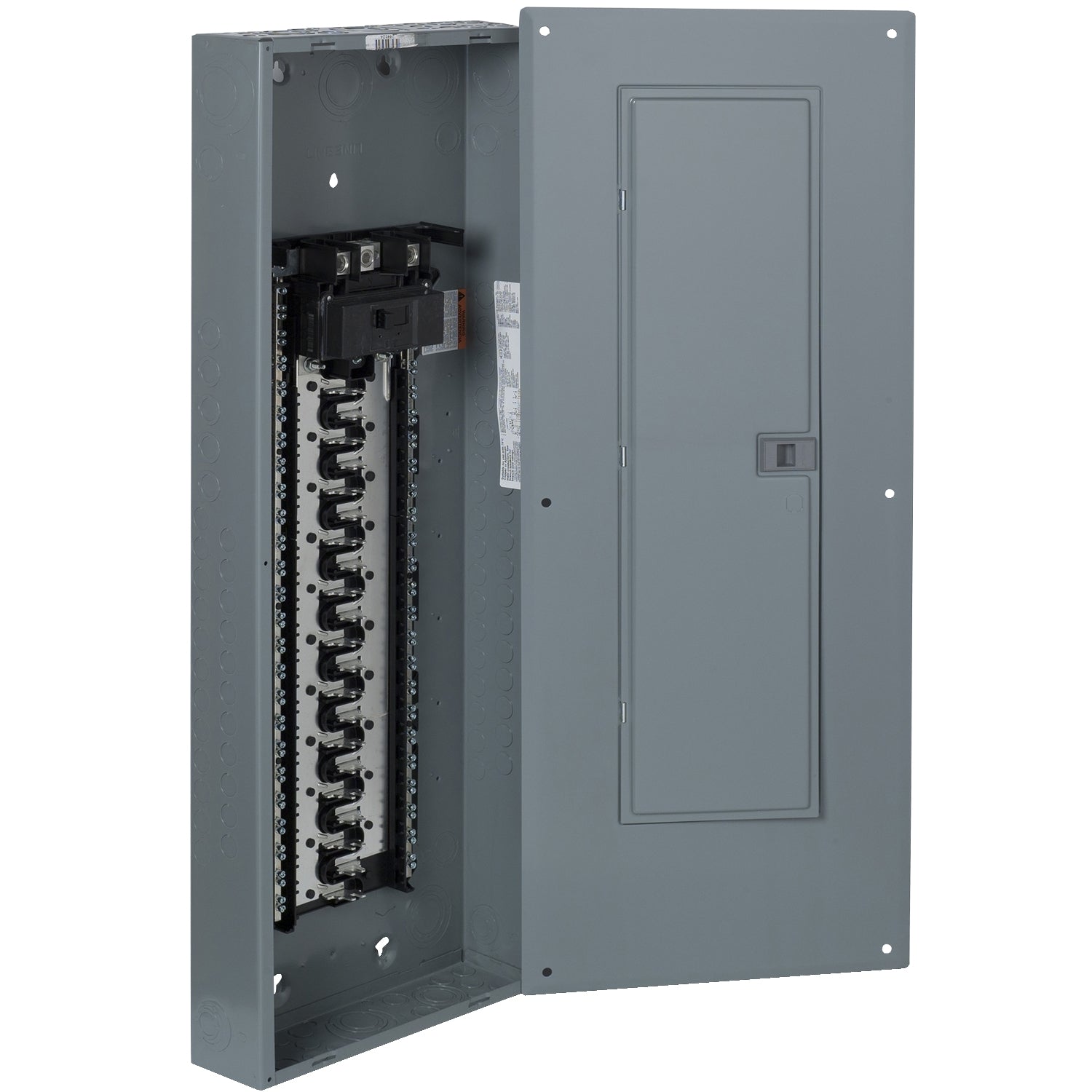

The Square D HOM4252M200C is a main breaker load center designed for primary electrical distribution and overcurrent protection in residential and light commercial applications. This unit is rated for 200A at 240V AC, single-phase, with a 42-space, 52-circuit configuration housed in a NEMA 1 indoor enclosure measuring 39.4 inches in height, 14.3 inches in width, and 3.7 inches in depth, constructed with a galvanized steel panel and a tin-plated copper bus. It complies with UL 67 and UL 414 standards, ensuring safe and reliable operation for branch circuit protection in new construction, renovations, and service upgrades.

Key Features & Specifications
  • Type: Main breaker load center, indoor NEMA 1 enclosure, galvanized steel construction with tin-plated copper bus
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 39.4 in (1000 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
  • Standards: UL 67, UL 414
  • Applications: Residential and light commercial electrical distribution, branch circuit protection
  • Phase: Single-phase
  • Amperage: 200A
  • Poles: 1, 2
  • Protection: Overcurrent and short-circuit
  • Panel Type: Main breaker load center
  • Breaker Type: HOM (plug-on)
  • Panel Style: Indoor
  • Bus Type: Tin-plated copper
  • Mounting: Surface or flush
  • Hz: 60 Hz
  • Enclosure: NEMA 1 indoor
  • Circuit Breaker Mounting Style: Plug-on
  • Terminal Connection: Main lugs
  • Frequency Rating: 60 Hz
  • Phase Connection: Single-phase
  • Standards: UL 67, UL 414
  • Installation Type: Indoor
  • Item QTY: 1
  • Breaker Frame: HOM
  • Current Rating: 200A
  • Weight: 38.001 lb
  • Country of Origin: United States


Product Identification
  • UPC: 785901307675
