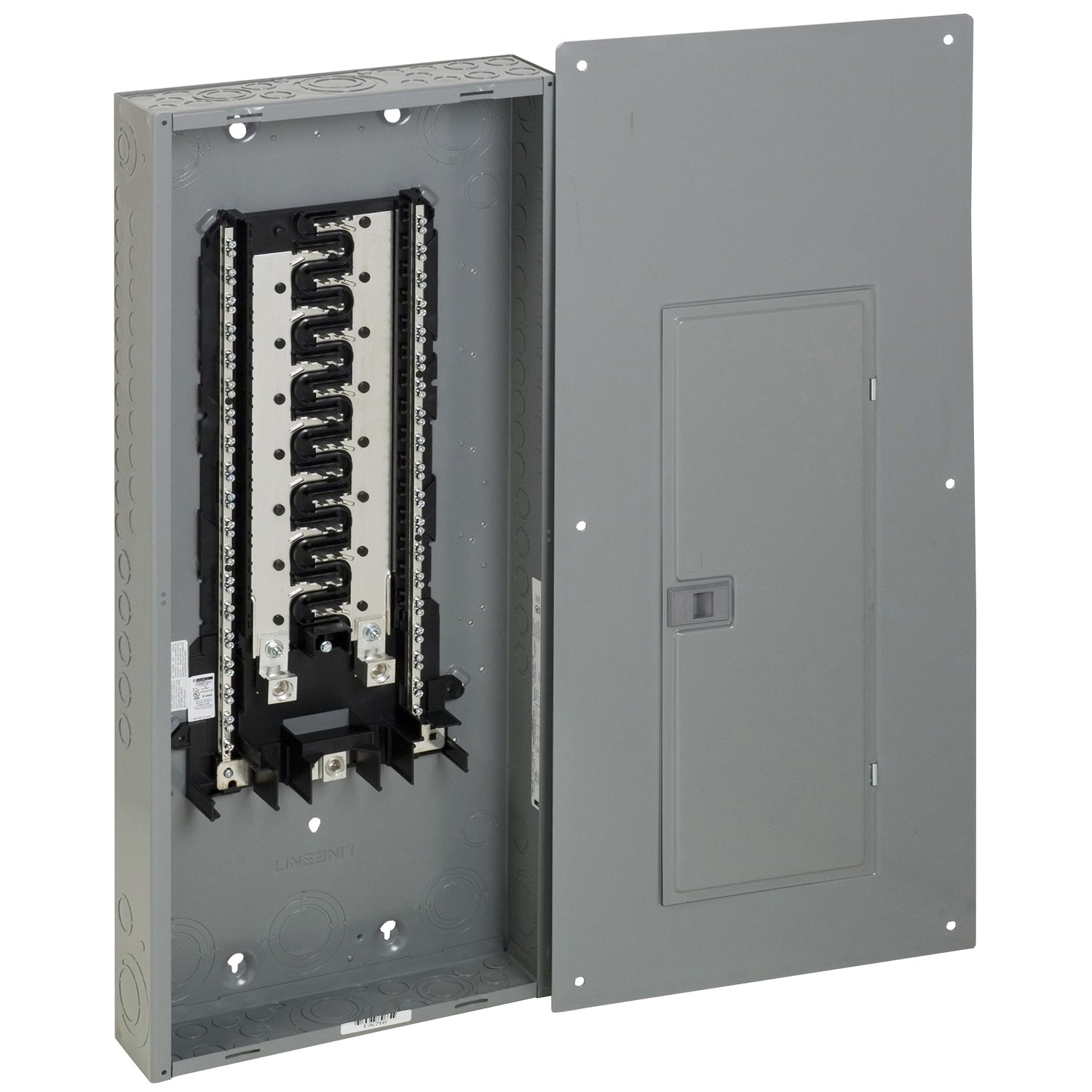

Square D HOM30L200C is a 200A main breaker load center enclosure designed for residential and light commercial branch circuit protection. It is rated for 240V AC and 200A continuous current, providing a maximum interrupting capacity of 10kA at 240V. The enclosure measures 33.8 in (858 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) and weighs 29.93 lb, constructed with a NEMA 1 indoor-rated steel housing. It complies with UL 67 standards and is manufactured in the United States by Schneider Electric. This unit is typically used as a main service panel in single-family homes, multi-family dwellings, and small commercial buildings.

Key Features & Specifications
  • Type: Main breaker load center enclosure, steel construction, single-phase, 3-wire
  • Voltage Rating: 240V AC
  • Current Rating: 200A
  • Dimensions: 33.8 in (858 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
  • Standards: UL 67, NEMA 1
  • Applications: Residential and light commercial branch circuit protection
  • Switch Type: Main breaker
  • Configuration: Single-phase, 3-wire
  • Phase: Single
  • Voltage: 240V
  • Amperage: 200A
  • AIC rating: 10kA at 240V
  • Connection: Main lugs
  • Poles: 2
  • Protection: Overcurrent and short-circuit
  • Functions: Main service disconnect
  • Frame Size: 30
  • Trip Type: Thermal-magnetic
  • Panel Type: Main breaker
  • Breaker Type: QOM compatible
  • Metal Type: Steel
  • Panel Style: Indoor
  • Bus Type: Tin-plated aluminum
  • Mounting: Surface or flush
  • Hz: 60
  • Horse Power: Not applicable
  • Enclosure: NEMA 1
  • Circuit Breaker Mounting Style: Bolt-on
  • Terminal Connection: Copper/aluminum rated
  • Frequency Rating: 60 Hz
  • Phase Connection: Single-phase
  • Standards: UL 67
  • Compatible Frames: QOM
  • Installation Type: Surface or flush
  • Item QTY: 1
  • Breaker Frame: 30
  • Current Rating: 200A
  • Operating Temperature Maximum Celsius: 40°C


Product Identification
  • GTIN: 785901061274
