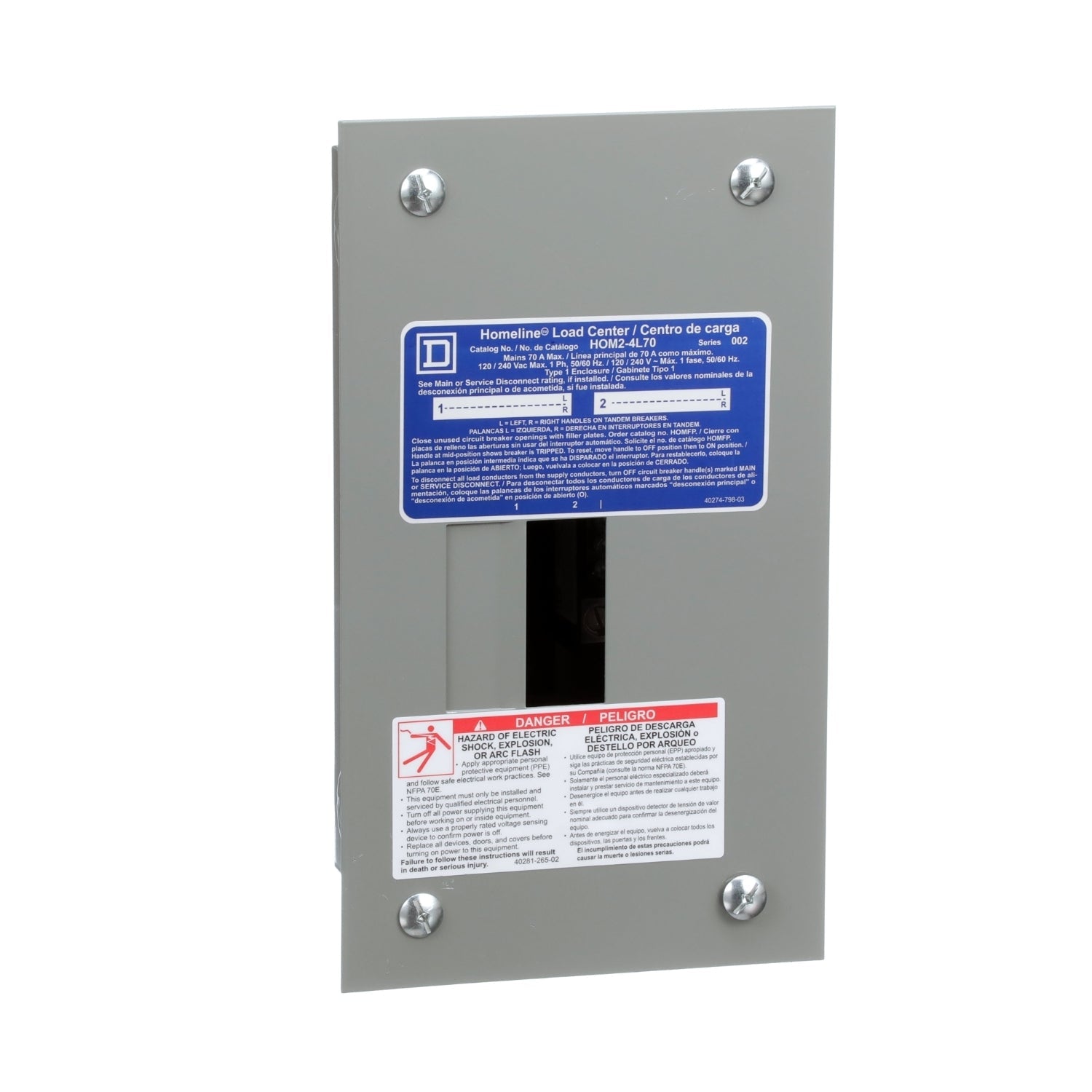

Schneider Electric Homeline HOM24L70F is a 70A, 240V load center enclosure designed to protect electrical circuits in residential and light commercial applications. This enclosure provides a main lug configuration with a 24-space capacity, accommodating up to 24 circuits, and is rated for 70A continuous current at 240V AC. Constructed with a durable metal enclosure measuring 9.3 inches in height, 4.8 inches in width, and 3.2 inches in depth, it weighs 3.68 lb and is manufactured in Mexico. The unit complies with UL standards for safety and performance, making it suitable for use as a main distribution panel in single-phase systems. Typical applications include branch circuit protection in homes, small offices, and workshops, where it serves as a central point for wiring and overcurrent protection.

Key Features & Specifications
  • Type: Main lug load center enclosure for Homeline circuit breakers
  • Voltage Rating: 240V AC
  • Current Rating: 70A
  • Dimensions: 9.3 in (236 mm) x 4.8 in (122 mm) x 3.2 in (81 mm) (Height x Width x Depth)
  • Weight: 3.68 lb
  • Standards: UL listed
  • Applications: Residential and light commercial branch circuit protection
  • Switch Type: Main lug only (no main breaker)
  • Configuration: Single-phase, 3-wire
  • Phase: Single-phase
  • Voltage: 240V
  • Amperage: 70A
  • Poles: 1 or 2-pole compatible (breakers sold separately)
  • Protection: Overcurrent protection via Homeline breakers (not included)
  • Frame Size: 24-space
  • Panel Type: Load center
  • Breaker Type: Homeline (plug-on)
  • Mounting: Surface or flush mount
  • Hz: 60 Hz
  • Enclosure: NEMA 1 indoor rated
  • Circuit Breaker Mounting Style: Plug-on
  • Terminal Connection: Main lug
  • Frequency Rating: 60 Hz
  • Phase Connection: Single-phase
  • Standards: UL 67
  • Installation Type: Indoor
  • Item QTY: 1
  • Current Rating: 70A
  • Operating Temperature Maximum Celsius: 40°C
  • Country of Origin: Mexico


Product Identification
  • UPC: 078590106115
  • GTIN: 00785901061151
