Square D HOM12M100RB - Load Center 100A 12-Space
Square D HOM12M100RB - Load Center 100A 12-Space

Square D HOM12M100RB - Load Center 100A 12-Space

Square D
Price
Save $-20.39
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

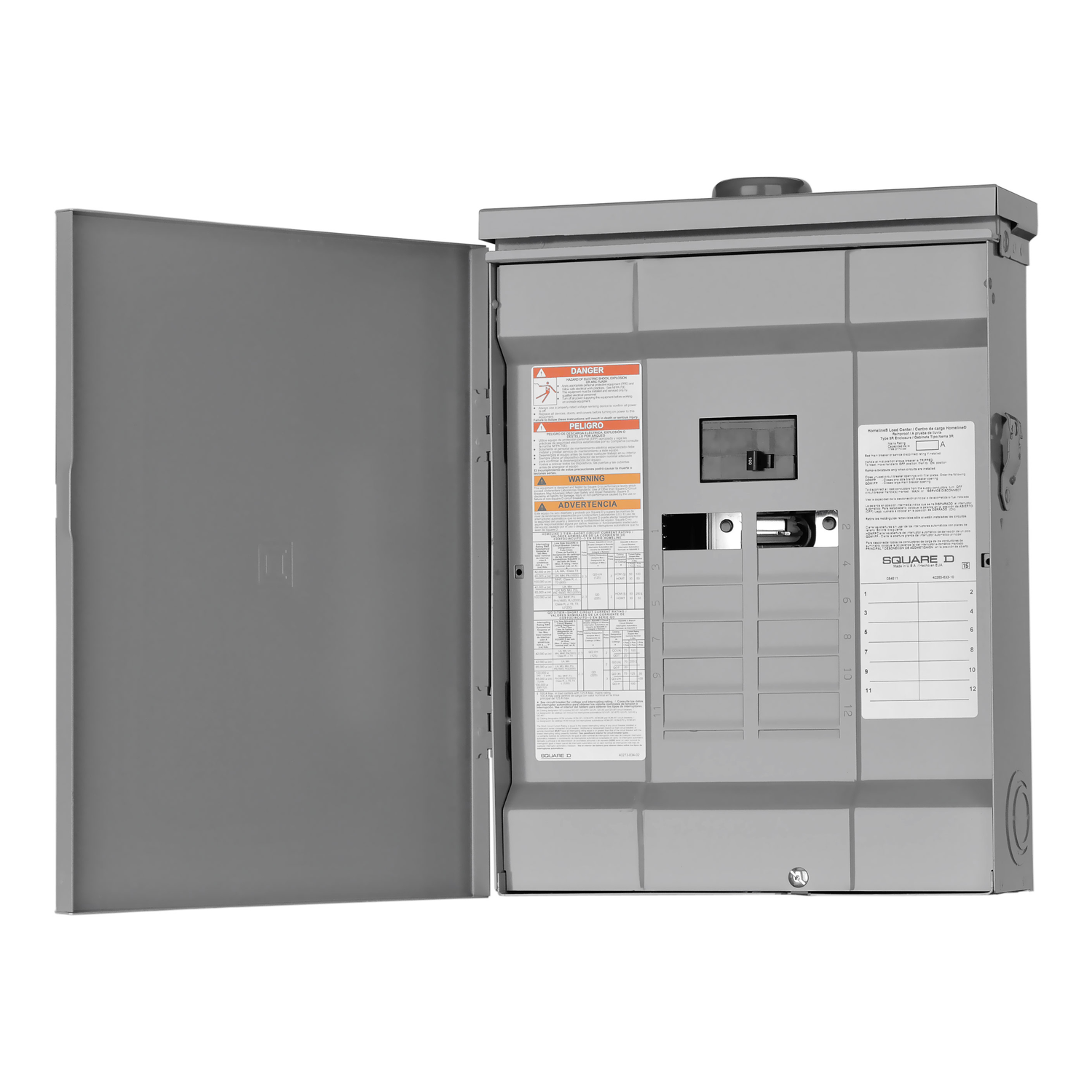

Square D HOM12M100RB is a Homeline 100A load center designed for power distribution and circuit protection in single-phase applications. It is rated for 240V AC and 100A, providing a 12-space, 12-circuit configuration with a convertible main breaker for flexible installation. The unit features a NEMA 3R-rated aluminum enclosure measuring 18.9 in (481 mm) x 14.8 in (375 mm) x 4.5 in (115 mm) and weighing 21.45 lb, built for outdoor and indoor use. It is UL Listed and compatible with QOM frame circuit breakers, which must be purchased separately. This load center is suitable for residential and commercial electrical systems requiring reliable power distribution.

Key Features & Specifications
  • Type: Load Center
  • Manufacturer: Schneider Electric
  • Amperage: 100A
  • Voltage: 240V AC
  • Spaces: 12
  • Circuits: 12
  • Phases: 1-Phase
  • Mounting Type: Convertible Main Breaker
  • Enclosure: NEMA 3R
  • Interrupt Rating: 10kA
  • Series/Frame: Homeline
  • Compatible Frames: QOM
  • Certifications: UL Listed
  • Dimensions: 18.9 in (481 mm) x 14.8 in (375 mm) x 4.5 in (115 mm) (Height x Width x Depth)
  • Weight: 21.45 lb
  • Country of Origin: United States


Part Number: HOM12M100RB
