Square D HOM12M100C - NEMA 1 Enclosure 100A 240V
Square D HOM12M100C - NEMA 1 Enclosure 100A 240V

Square D HOM12M100C - NEMA 1 Enclosure 100A 240V

Square D
Price
Save $13.45
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

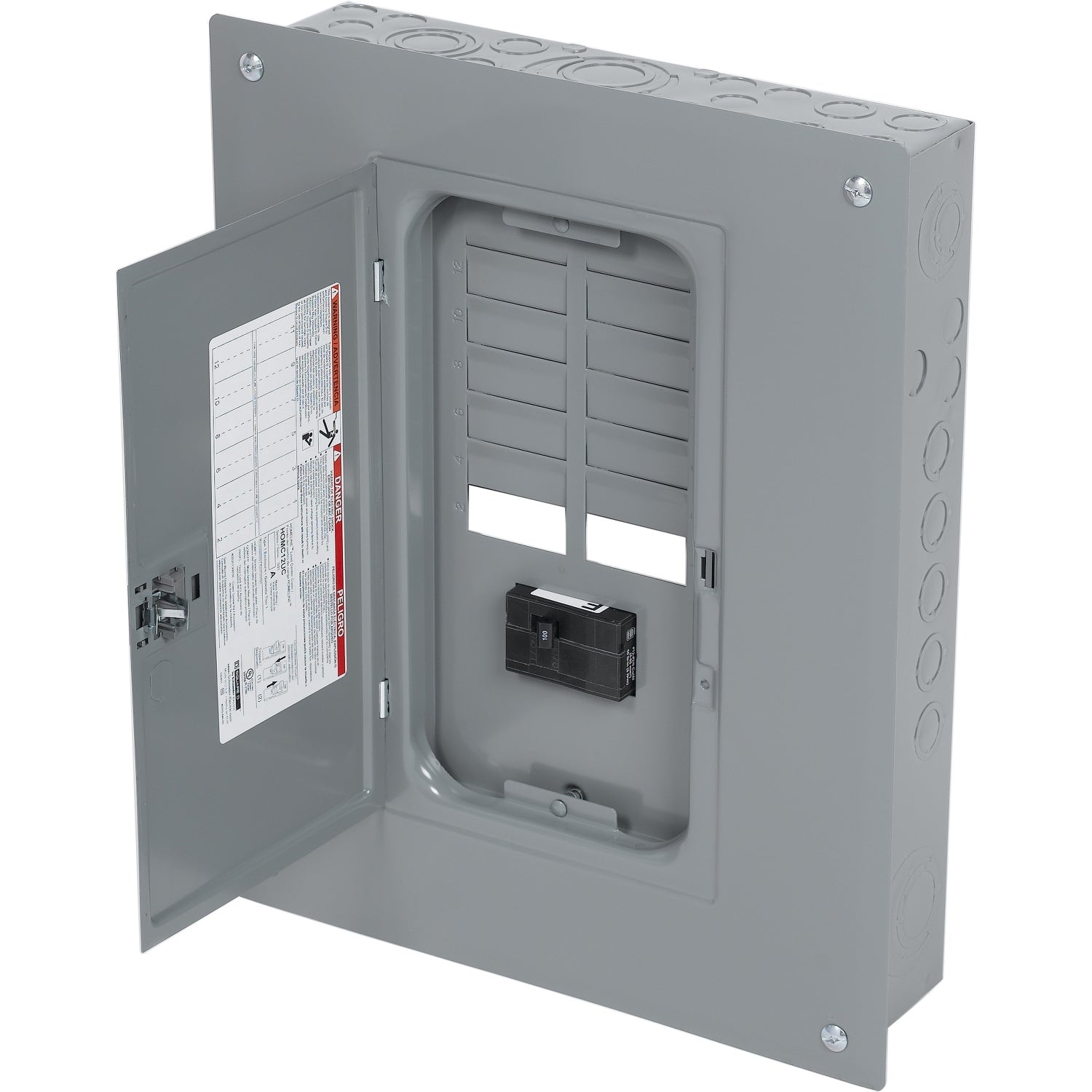

The Square D HOM12M100C is a NEMA 1 enclosure designed to house a main breaker load center for residential and light commercial power distribution. It is rated for 240V and 100A, providing a robust platform for branch circuit protection. The enclosure measures 17.9 inches in height, 14.3 inches in width, and 3.7 inches in depth, weighing 18.589 lb, and is constructed for surface mounting. It is compatible with QOM main breaker frames and meets industry standards for safe installation. This enclosure is typically used for service entrance or sub-panel applications where a dedicated main disconnect is required.

Key Features & Specifications
  • Type: NEMA 1 enclosure for main breaker load center
  • Voltage Rating: 240V
  • Current Rating: 100A
  • Dimensions: 17.9 in (455 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
  • Weight: 18.589 lb
  • Nema Rating: 1
  • Compatible Frames: QOM
  • Installation Type: Surface mount
  • Additional Info: Circuit breakers are not included and must be purchased separately.


Product Identification
  • UPC: 78590186354
  • GTIN: 00785901061335
