Square D HOM1224M100TC - Enclosure 100A 240V NEMA 1
Square D HOM1224M100TC - Enclosure 100A 240V NEMA 1

Square D HOM1224M100TC - Enclosure 100A 240V NEMA 1

Square D
Price
Save $153.32
/
Condition
  • Low stock - 5 items left
  • Backordered, shipping soon
Call for Price

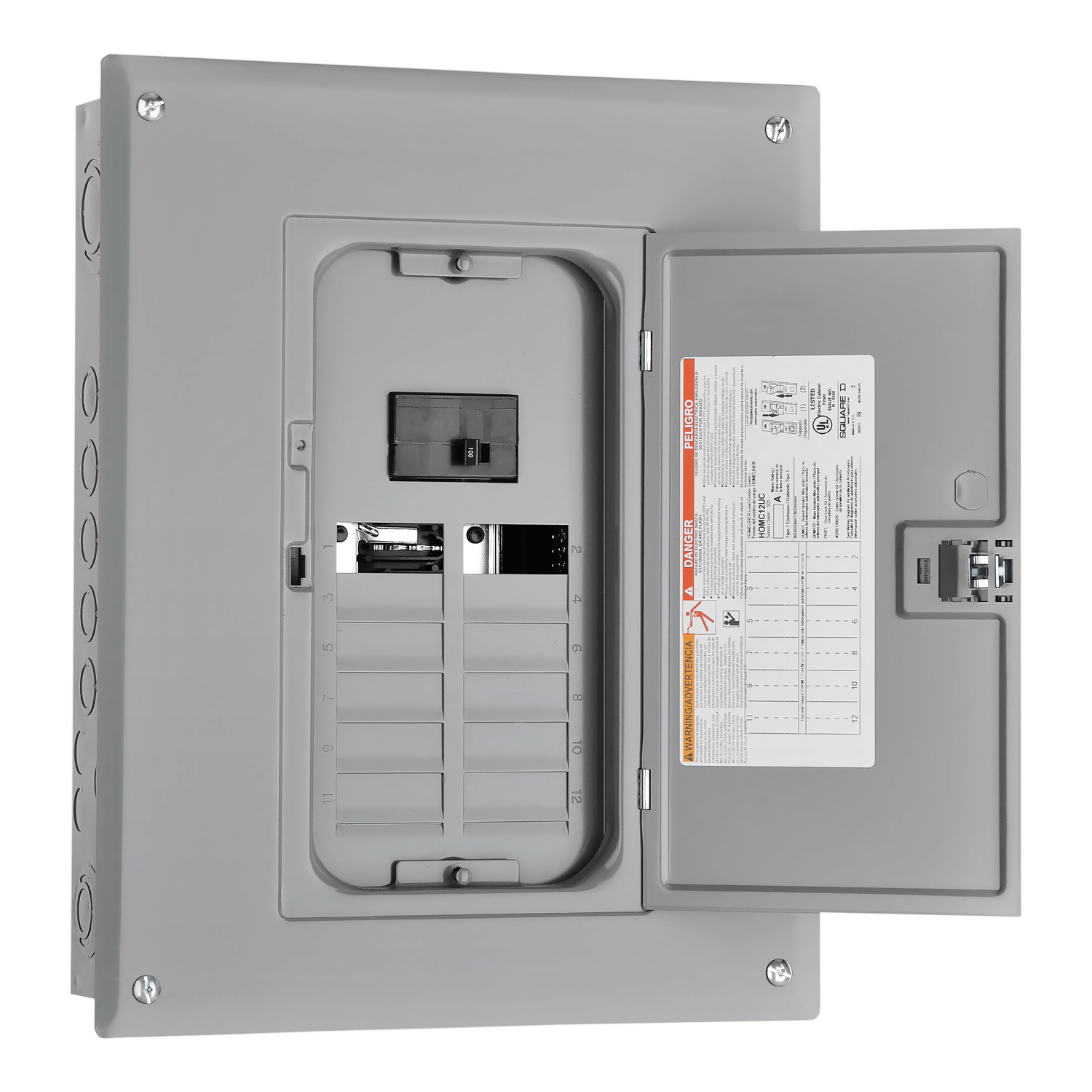

Square D HOM1224M100TC is a 100A indoor load center enclosure designed for residential and light commercial branch circuit protection. This NEMA 1 enclosure, manufactured by Schneider Electric in the United States, accommodates QOM main breaker frames and provides a 240V AC rated distribution point for up to 12 circuits. The unit measures 17.9 inches in height, 14.3 inches in width, and 3.7 inches in depth, with a weight of 18.27 lb, and is constructed for surface mounting. It complies with applicable UL standards for safety and performance. This enclosure is intended for use in new construction or retrofit applications where a main lug or main breaker configuration is required, though circuit breakers must be purchased separately.

Key Features & Specifications
  • Type: Load center enclosure, NEMA 1 indoor
  • Voltage Rating: 240V AC
  • Current Rating: 100A
  • Dimensions: 17.9 in (455 mm) x 14.3 in (362 mm) x 3.7 in (95 mm) (Height x Width x Depth)
  • Standards: UL listed
  • Applications: Residential and light commercial branch circuit protection
  • Nema Rating: 1
  • Compatible Frames: QOM
  • Country of Origin: United States
  • Weight: 18.27 lb


Product Identification
  • GTIN: 00785901075158
