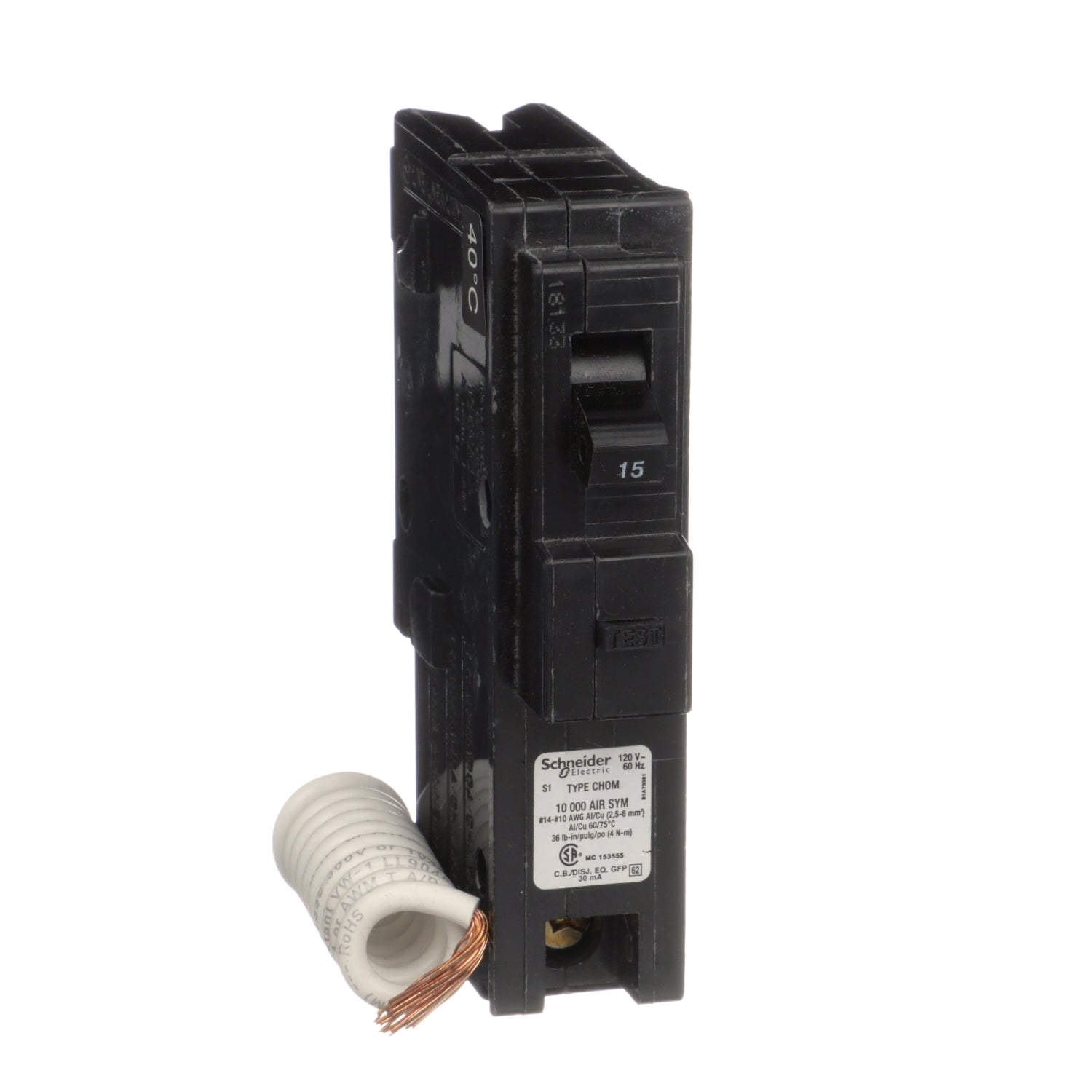

Square D HOM115EPD - Circuit Breaker 15A 1-Pole 120V (10kA AIC)
Square D HOM115EPD - Circuit Breaker 15A 1-Pole 120V (10kA AIC)

Square D HOM115EPD - Circuit Breaker 15A 1-Pole 120V (10kA AIC)

Square D
Price
Save $382.65
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HOM115EPD is a single-pole, plug-in circuit breaker designed to provide reliable overcurrent protection for 120V AC branch circuits in residential and light commercial load centers. It features a 15A thermal-magnetic trip mechanism with long-time and instantaneous functions, ensuring protection against both overloads and short circuits within its 10kA interrupting rating. The UL-listed breaker is constructed for durability with a compact, molded case design measuring 454.5 mm in length and weighing 0.659 lb, and it operates reliably across a temperature range of -25 to 70 °C. Its plug-in connection simplifies installation and is compatible with copper or aluminum conductors from AWG 14 to AWG 8, making it a standard component for safeguarding lighting and appliance circuits.

Key Features & Specifications
  • Type: Single-pole, thermal-magnetic molded case circuit breaker
  • Voltage Rating: 120V AC
  • Current Rating: 15A
  • Interrupting Rating (AIC): 10kA @ 120V
  • Connection: Plug-In
  • Poles: 1
  • Phase: 1
  • Protection: Thermal Magnetic with Long Time and Instantaneous Trip
  • Wire Size Compatibility: AWG 14 to AWG 8 (Aluminum/Copper)
  • Operating Temperature: -25 to 70 °C (-13 to 158 °F)
  • Dimensions: 454.5 mm (17.89 in) Length
  • Weight: 0.659 lb
  • Certification: UL Listed
  • Standards: Compliant with UL 489
  • Family: HOMELINE
  • Frame Type: HOM


Product Identification
  • UPC: 785901944102
  • GTIN: 00785901944102
