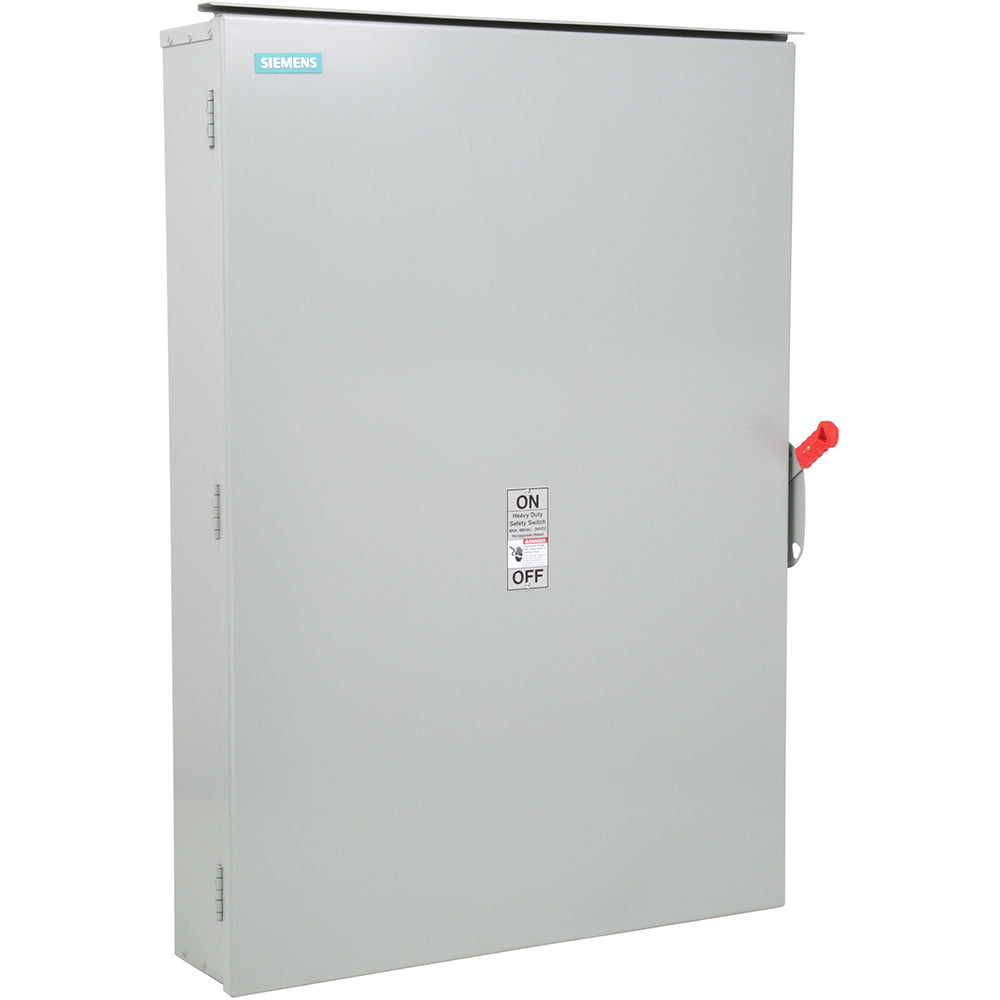

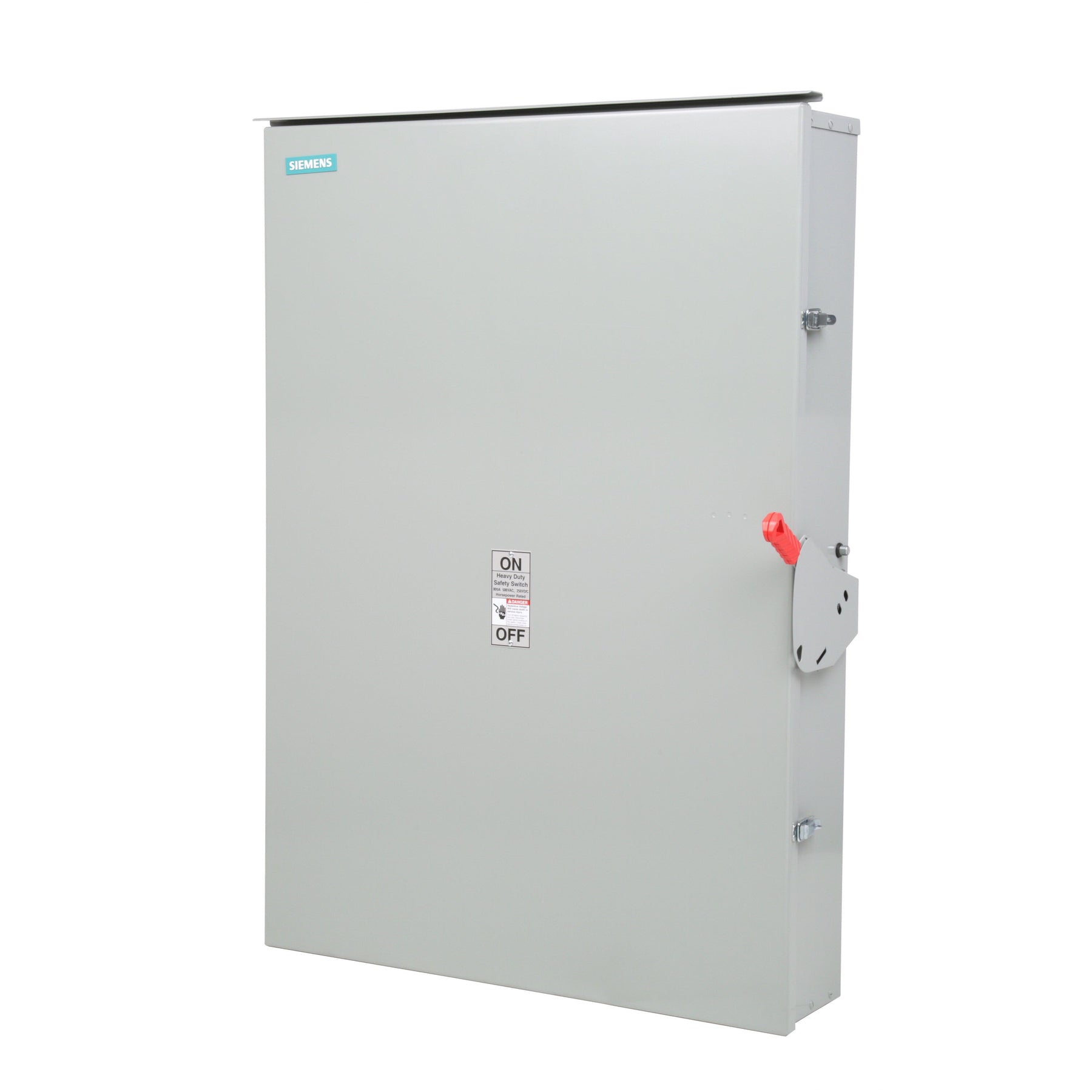

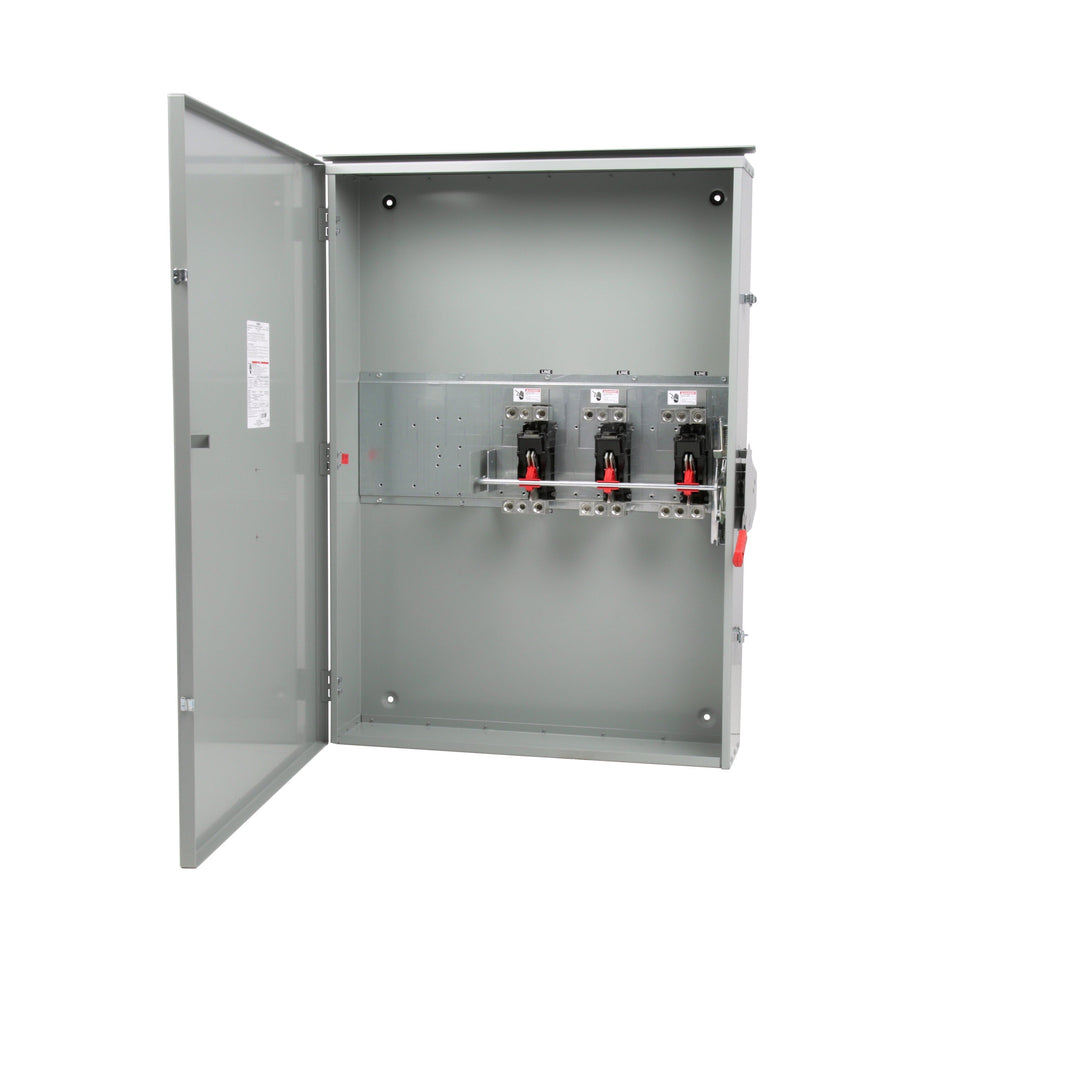

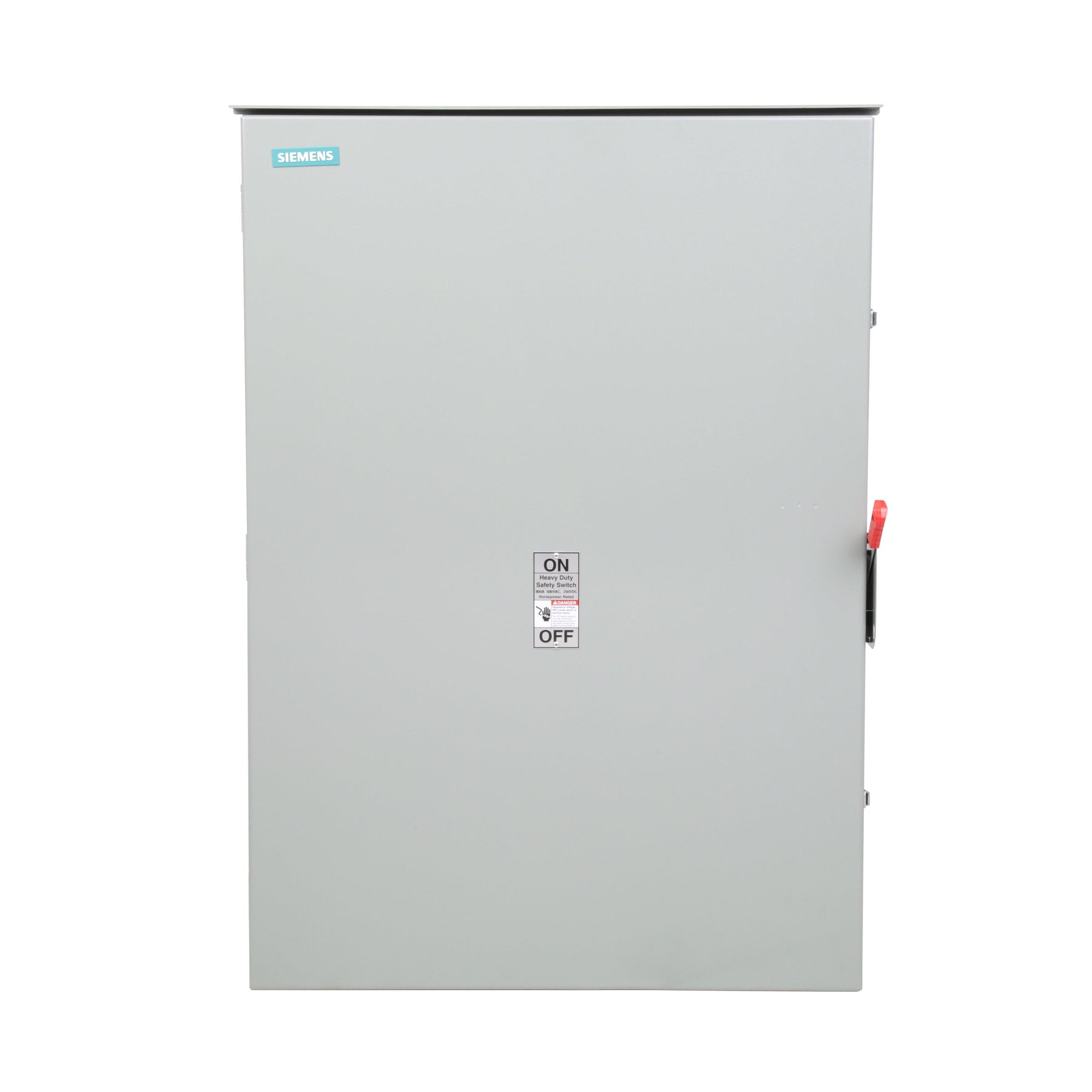

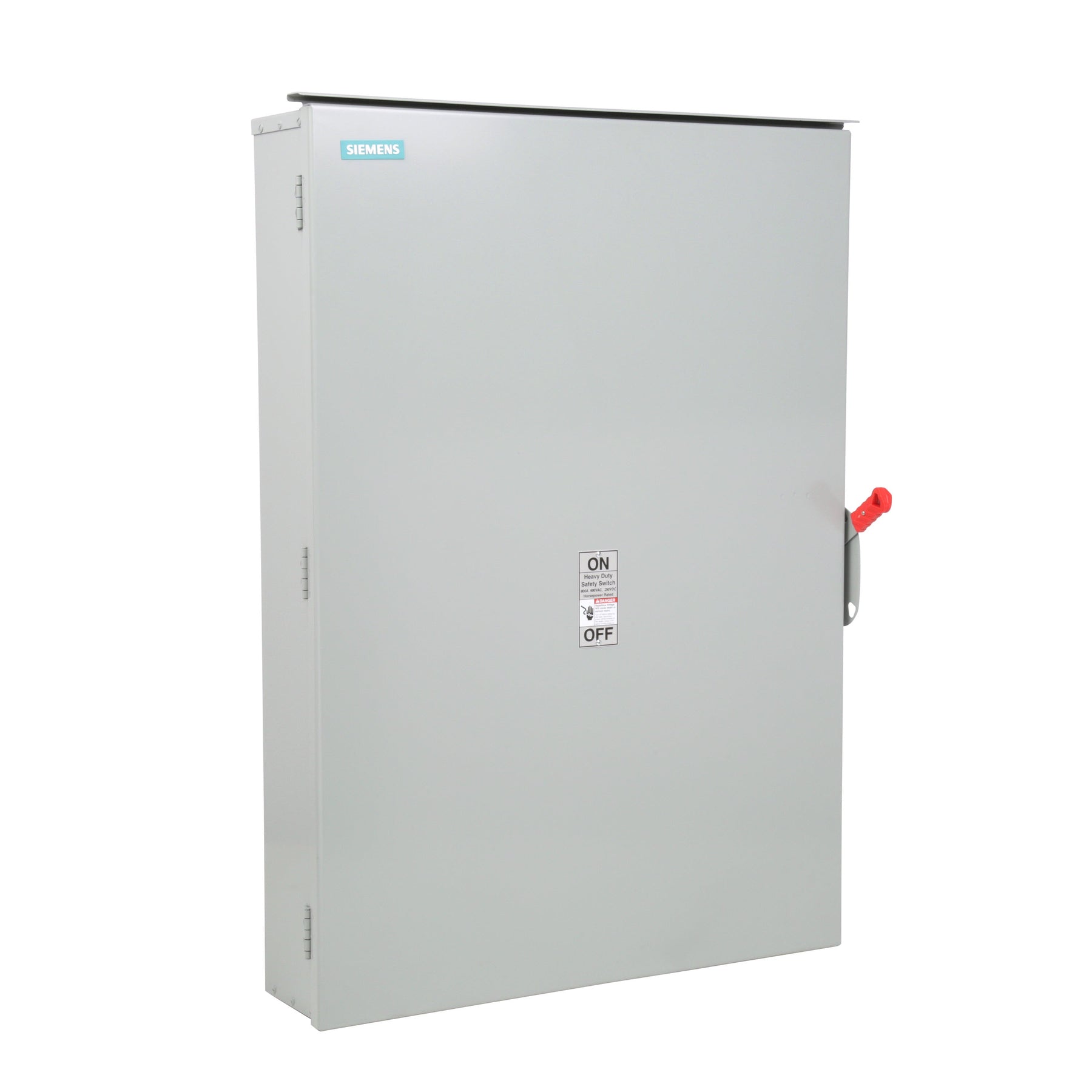

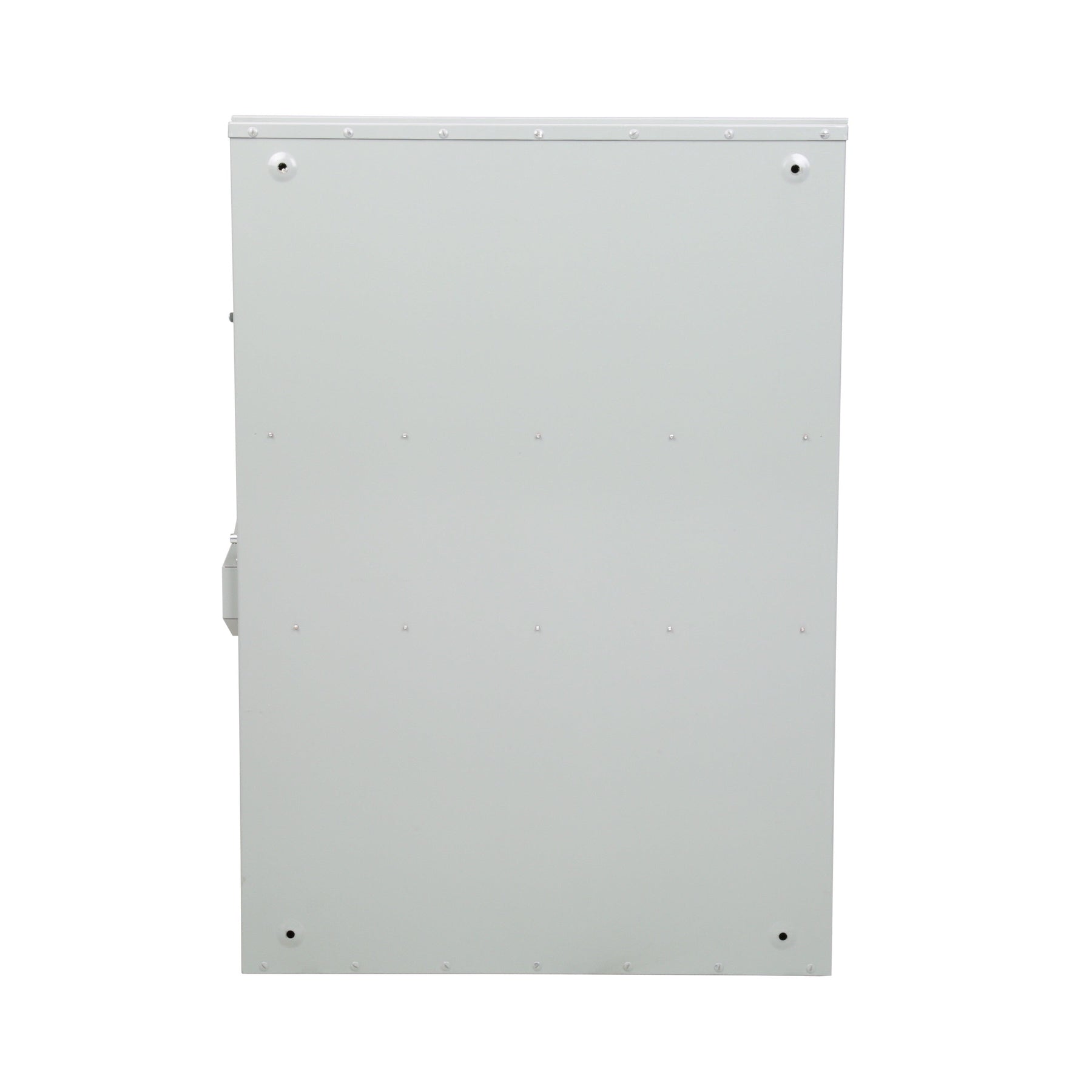

Siemens HNF367R - Non-Fusible Disconnect Switch 800A 600V

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HNF367R is a non-fusible disconnect switch designed for providing a visible break and safe isolation in three-phase industrial power circuits. It is rated for 800A at 600V AC, featuring a robust three-pole, single-configuration design within the VBII Series. The switch is housed in a NEMA 3R enclosure measuring 72.835" x 42.913" x 11.811" and weighing 270.573 lb, constructed for durability. It is UL listed and offers an interrupting capacity of 200kA at 600V, ensuring reliable protection. This unit is typically applied in industrial distribution panels and motor control centers, compatible with PGP frames for integrated system installation.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, VBII Series
  • Voltage Rating: 600V AC
  • Current Rating: 800A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: NEMA 3R
  • Dimensions: 72.835" H x 42.913" W x 11.811" D
  • Weight: 270.573 lb
  • Certification: UL Listed
  • Compatible Frames: PGP
  • Switch Style: Non-Fusible
  • Wire: 3
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643151796
  • GTIN: 0783643151796
