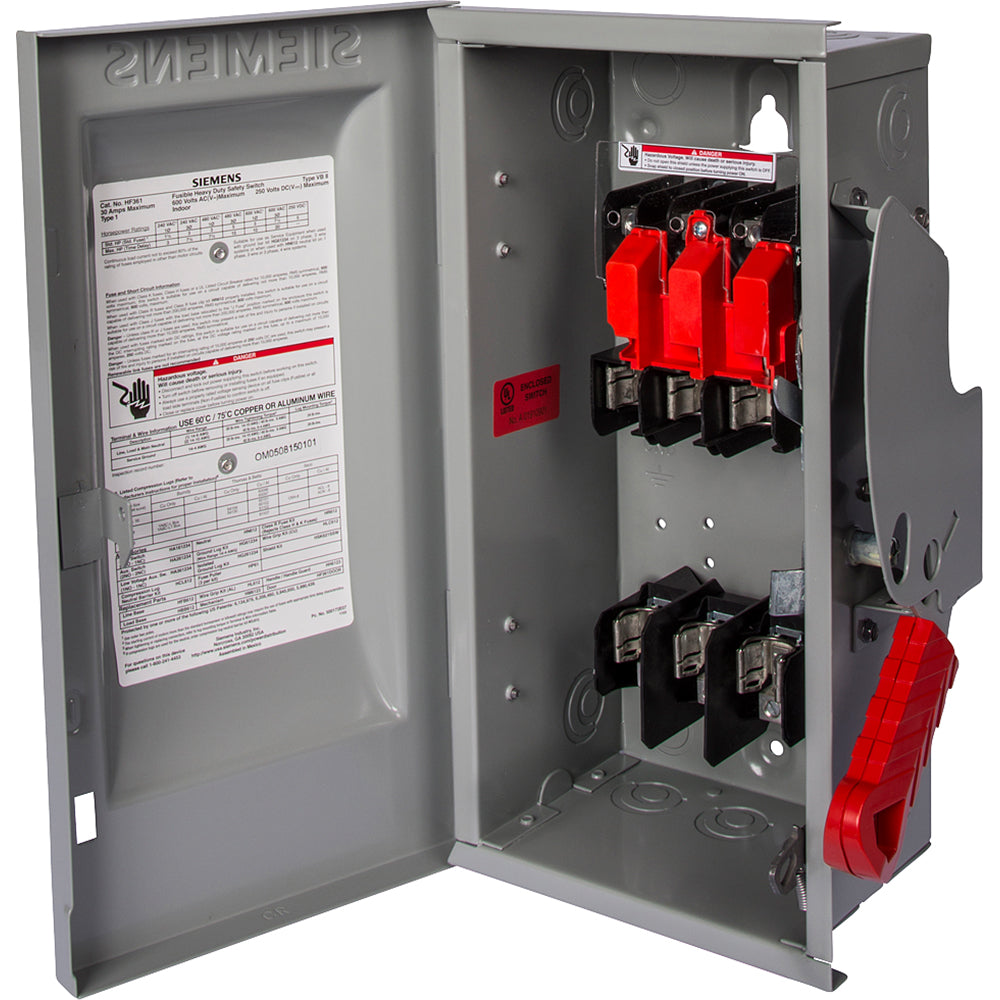

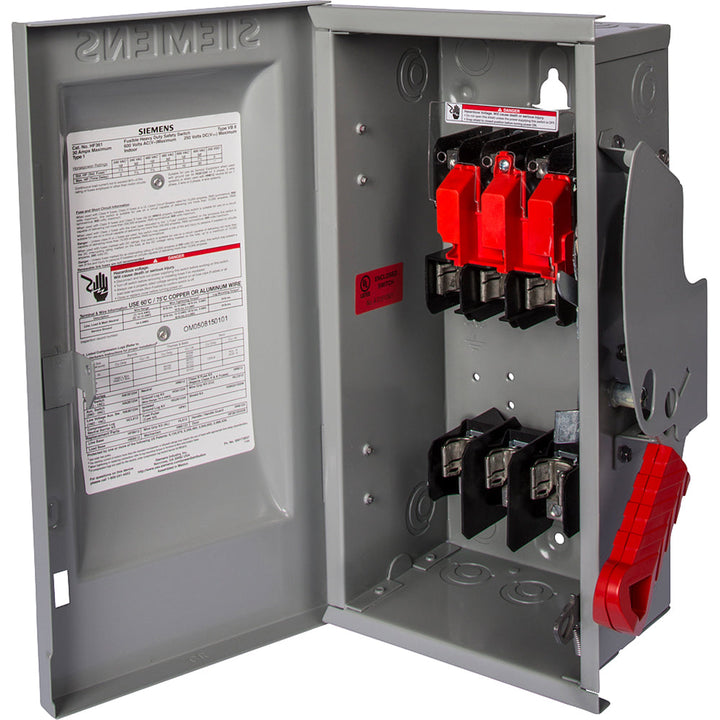

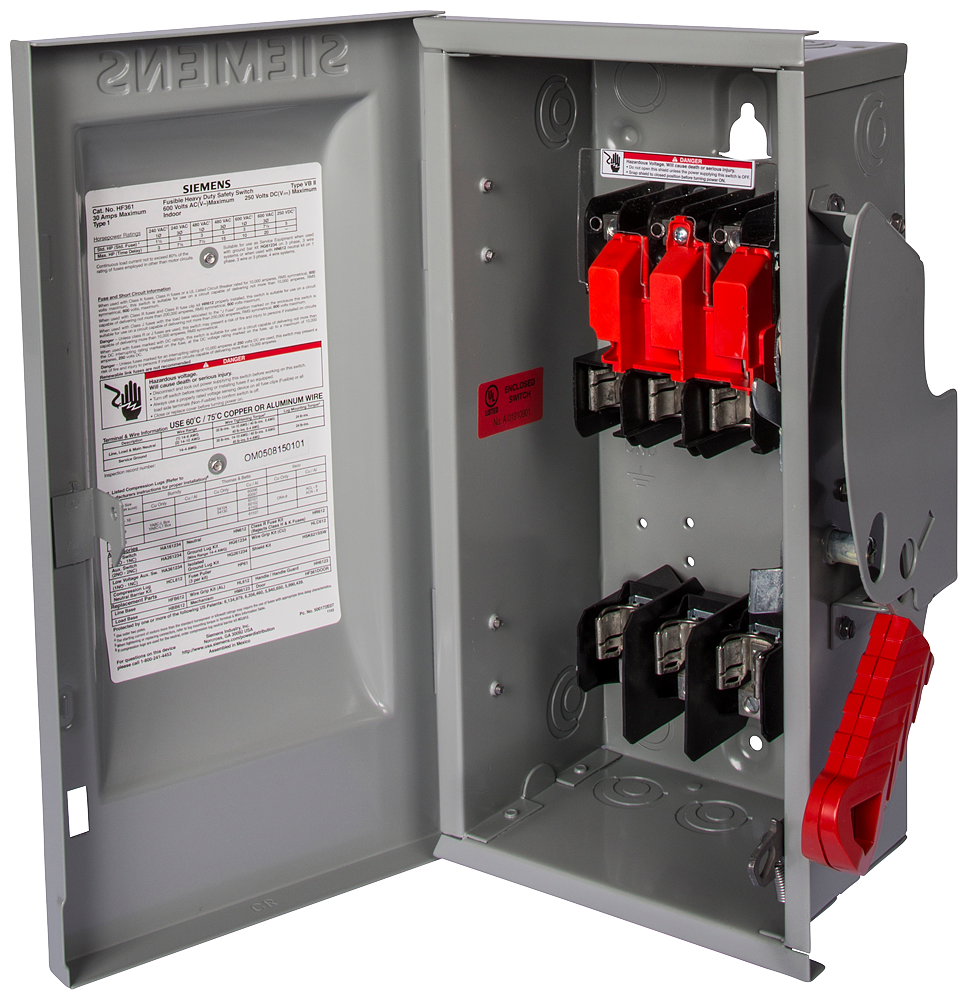

Siemens HNF366SA - Non-Fusible Disconnect Switch 600A 600V (NEMA 4X, 200kA AIC)

Siemens HNF366SA is a heavy-duty non-fusible disconnect switch designed for reliable power isolation and circuit protection in demanding industrial environments. This 600VAC-rated switch handles up to 600A continuous current and features a robust 3-pole, single-configuration design with an impressive 200kA interrupting capacity at 600V. Constructed with durable materials, the unit measures 22.047" x 7.087" x 33.465" and weighs 75.16 lb, housed in a NEMA 4X enclosure for superior protection against corrosion, moisture, and environmental contaminants. The switch complies with rigorous industrial standards for safety and performance, making it suitable for main power distribution, motor control centers, and heavy machinery applications where dependable disconnecting means are critical.

Key Features & Specifications

• Type: Non-Fusible Disconnect Switch, VBII Series
• Voltage Rating: 600V AC
• Current Rating: 600A
• Dimensions: 22.047" x 7.087" x 33.465"
• Standards: NEMA 4X
• Applications: Main power distribution, motor control centers, heavy machinery
• Switch Type: Non-Fusible
• Configuration: Single
• Poles: 3
• AIC Rating: 200kA@600V
• NEMA Rating: NEMA 4X
• Phase: 3
• Weight: 75.16 lb
• Enclosure: NEMA 4X
• Family: VBII Series
• Country of Origin: Mexico

Product Identification

• UPC: 887621872748
• GTIN: 00887621872748
