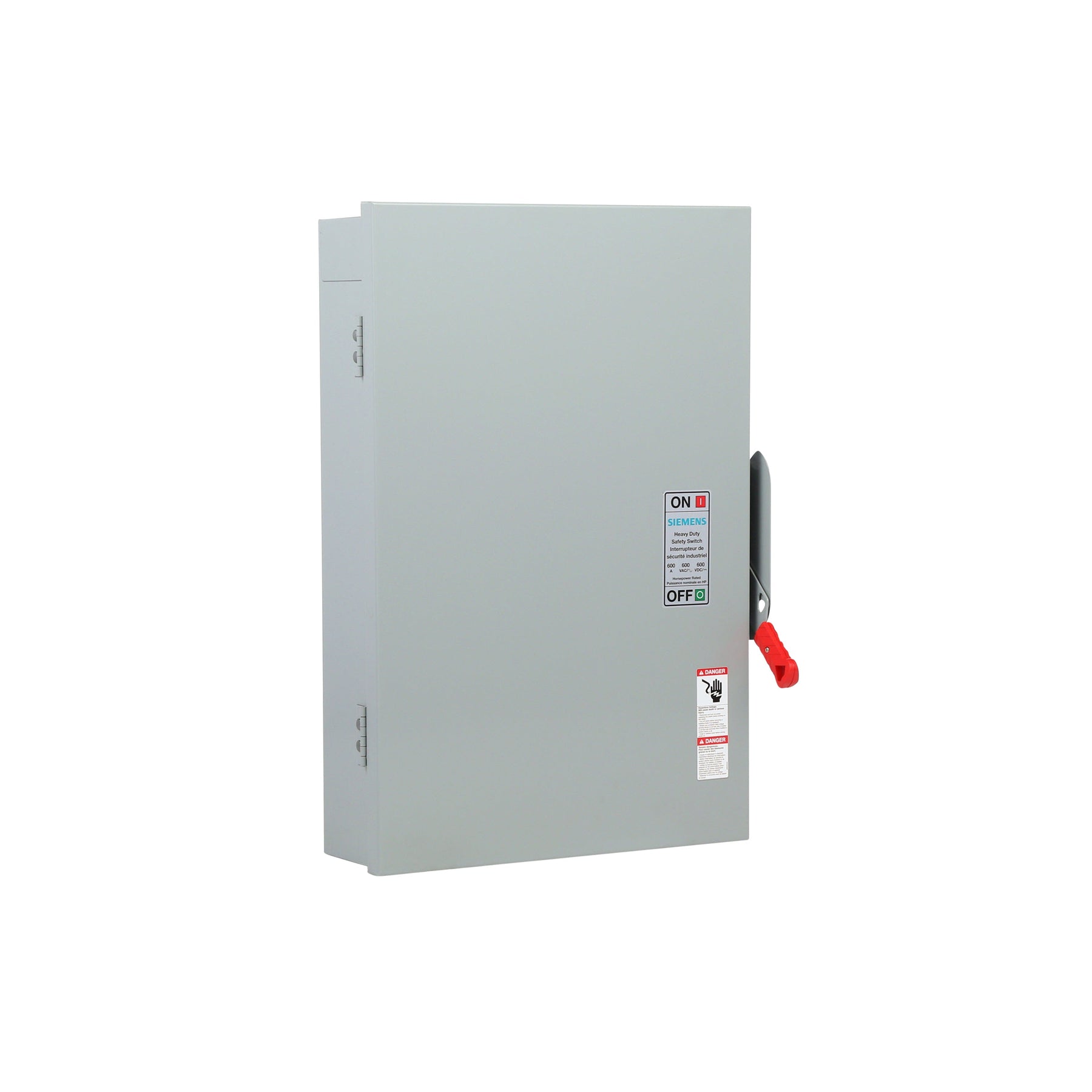

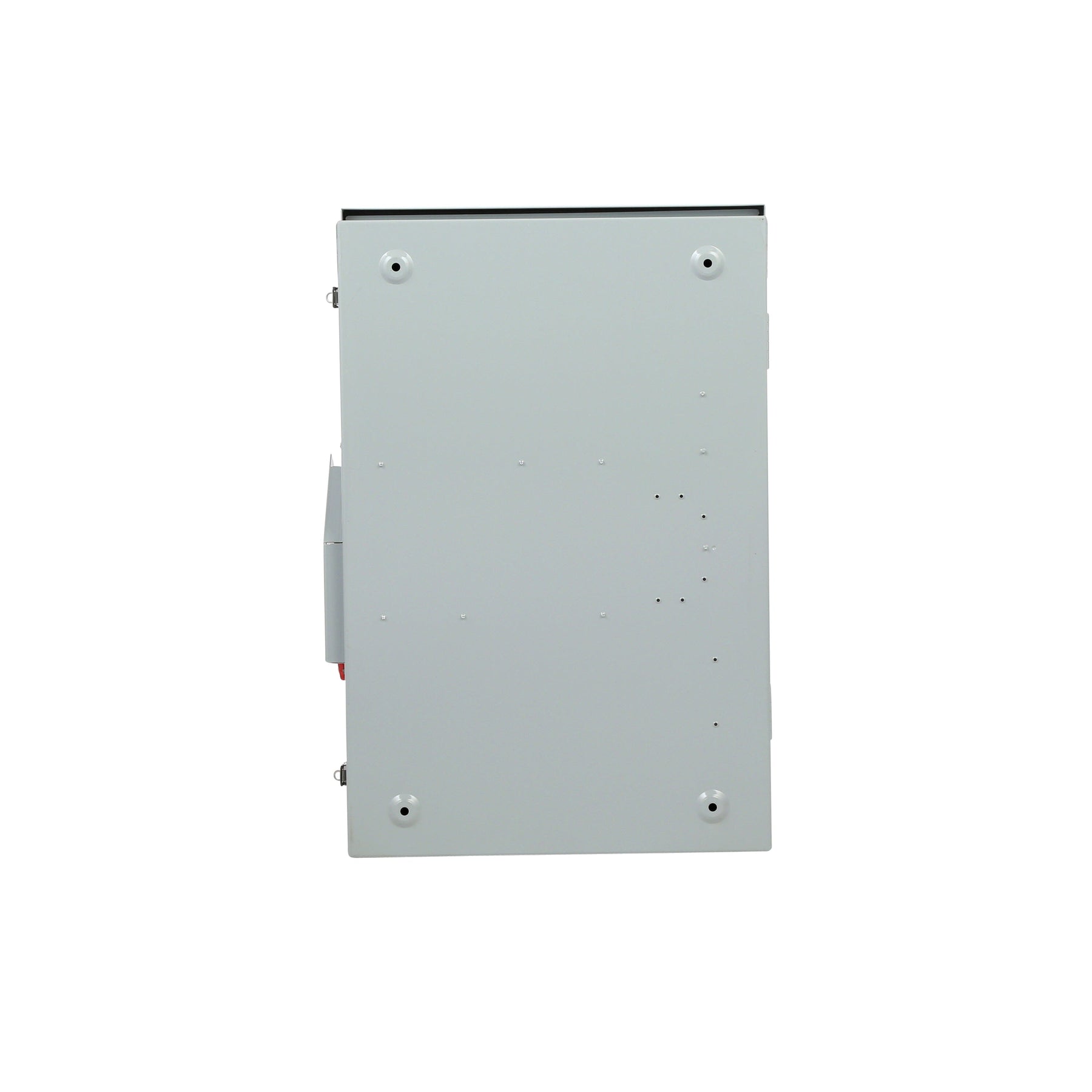

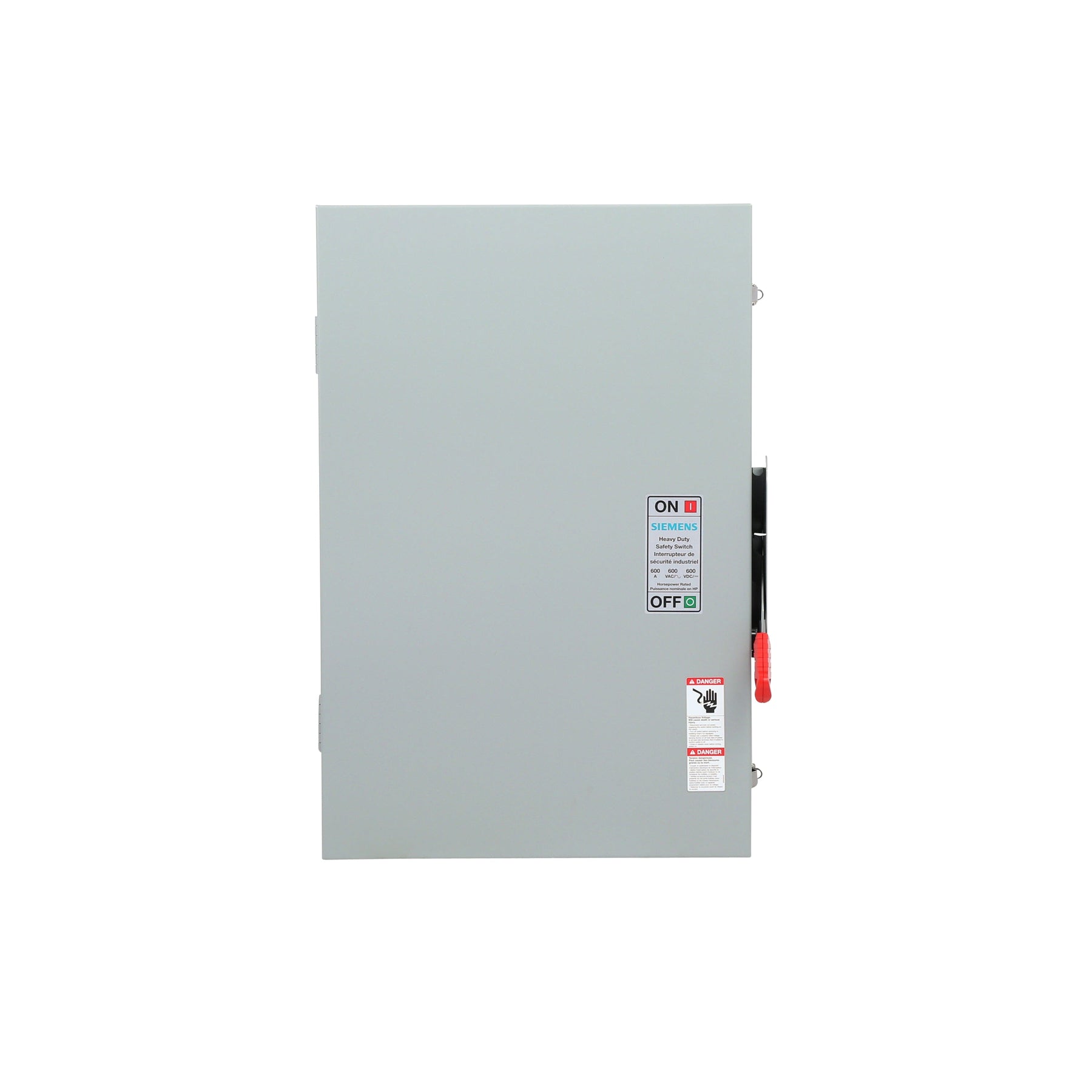

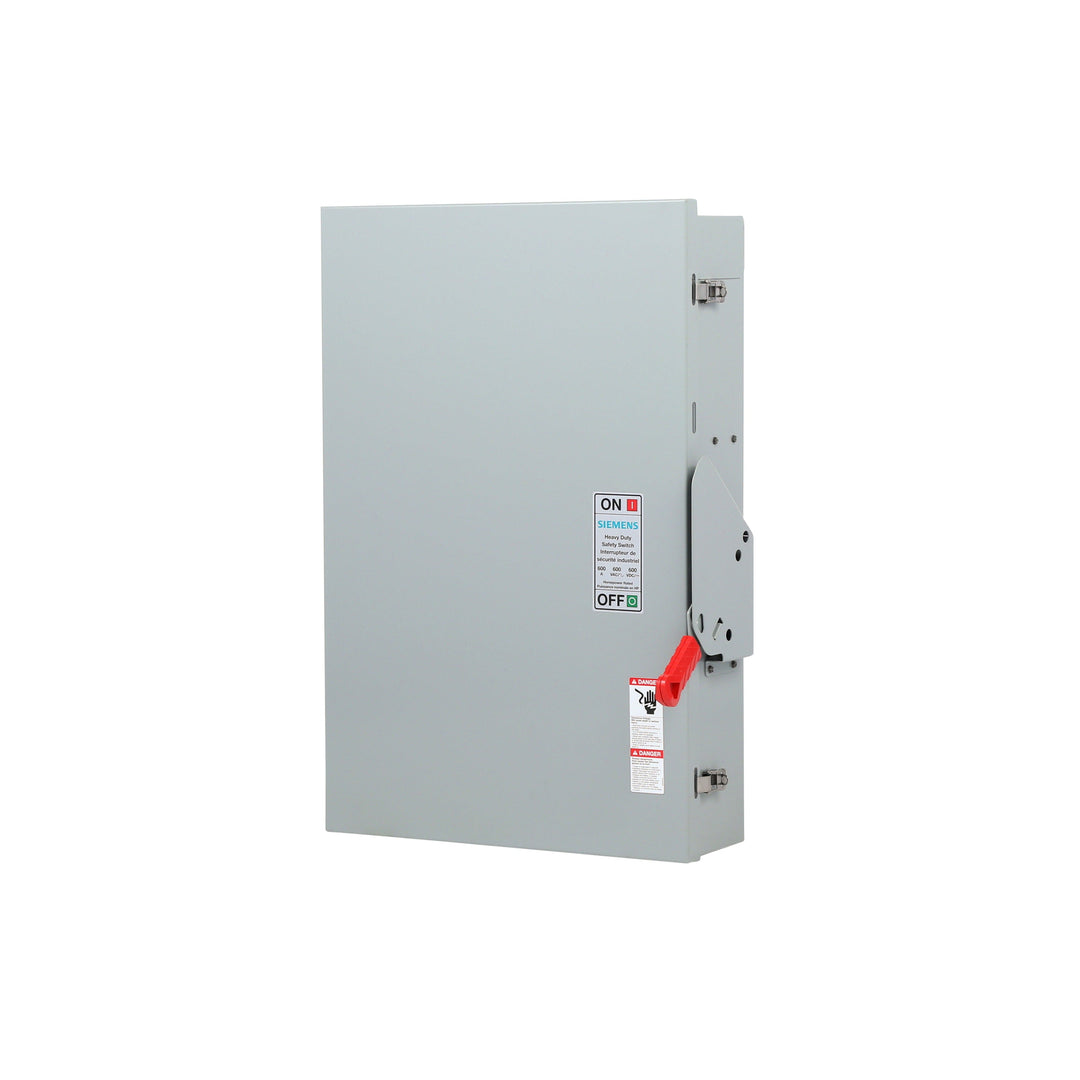

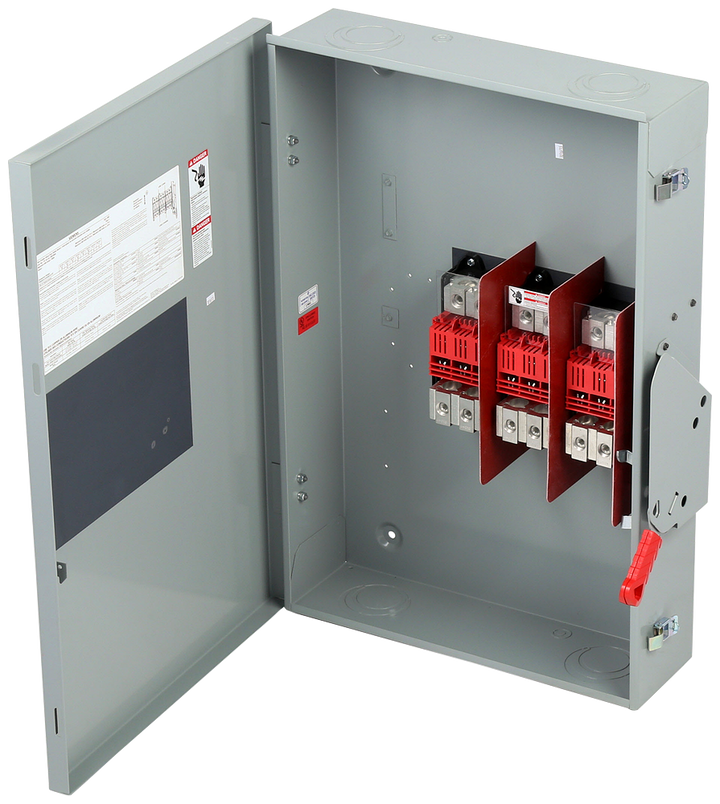

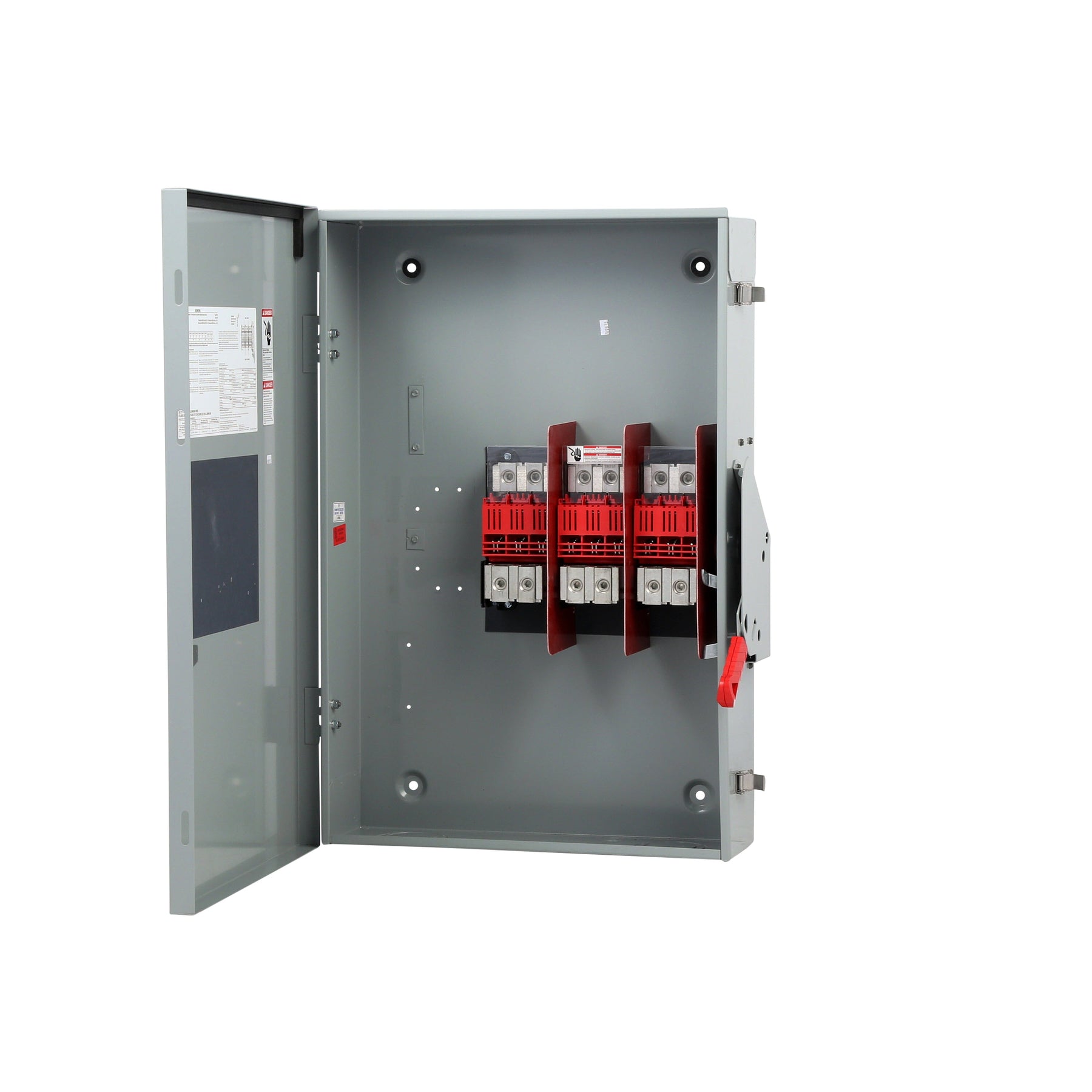

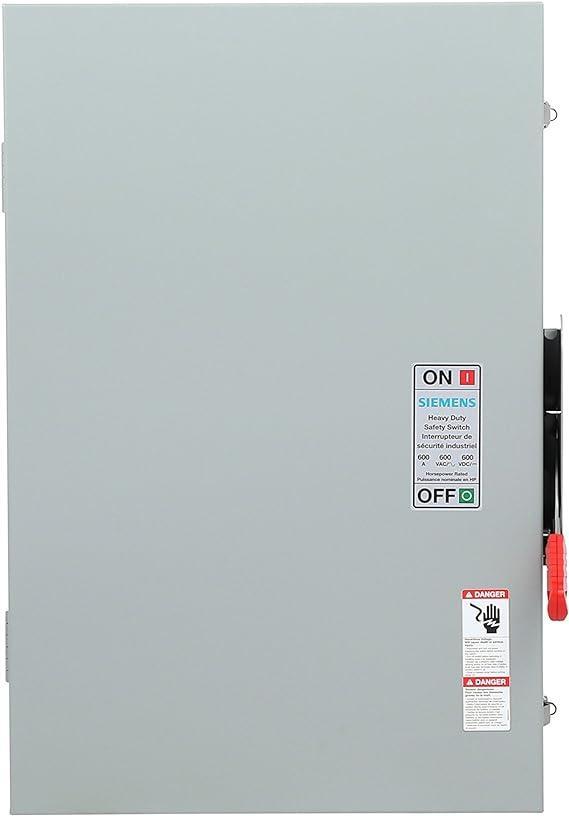

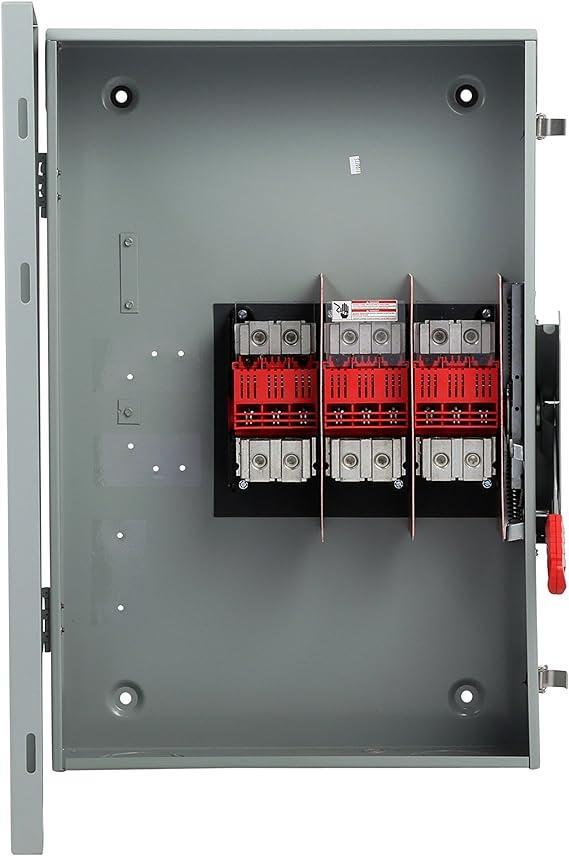

Siemens HNF366RA is a non-fusible disconnect switch designed for providing a visible break and safe isolation in three-phase industrial power circuits. It is rated for 600A at 600V AC, featuring a robust construction with three poles in a single configuration and an interrupting capacity of 200kA at 600V. The unit is housed in a NEMA 3R enclosure measuring 6.693" x 22.047" x 33.465" and weighing 76.988 lb, ensuring durability for outdoor use where exposed to rain. It is UL listed and is compatible with Siemens PGP frames, making it suitable for service entrance, motor control centers, and main distribution panel isolation.
Key Features & Specifications
Type: Non-Fusible Disconnect Switch, HNF type, VBII Series
Voltage Rating: 600V AC
Current Rating: 600A
Configuration: Single
Poles: 3
Phase: 3
AIC Rating: 200kA @ 600V
Switch Style: Non-Fusible
NEMA Rating: NEMA 3R
Dimensions: 6.693" W x 22.047" H x 33.465" D
Weight: 76.988 lb
Standards: UL Listed
Compatible Frames: PGP
Applications: Service entrance, main distribution isolation, motor control centers
