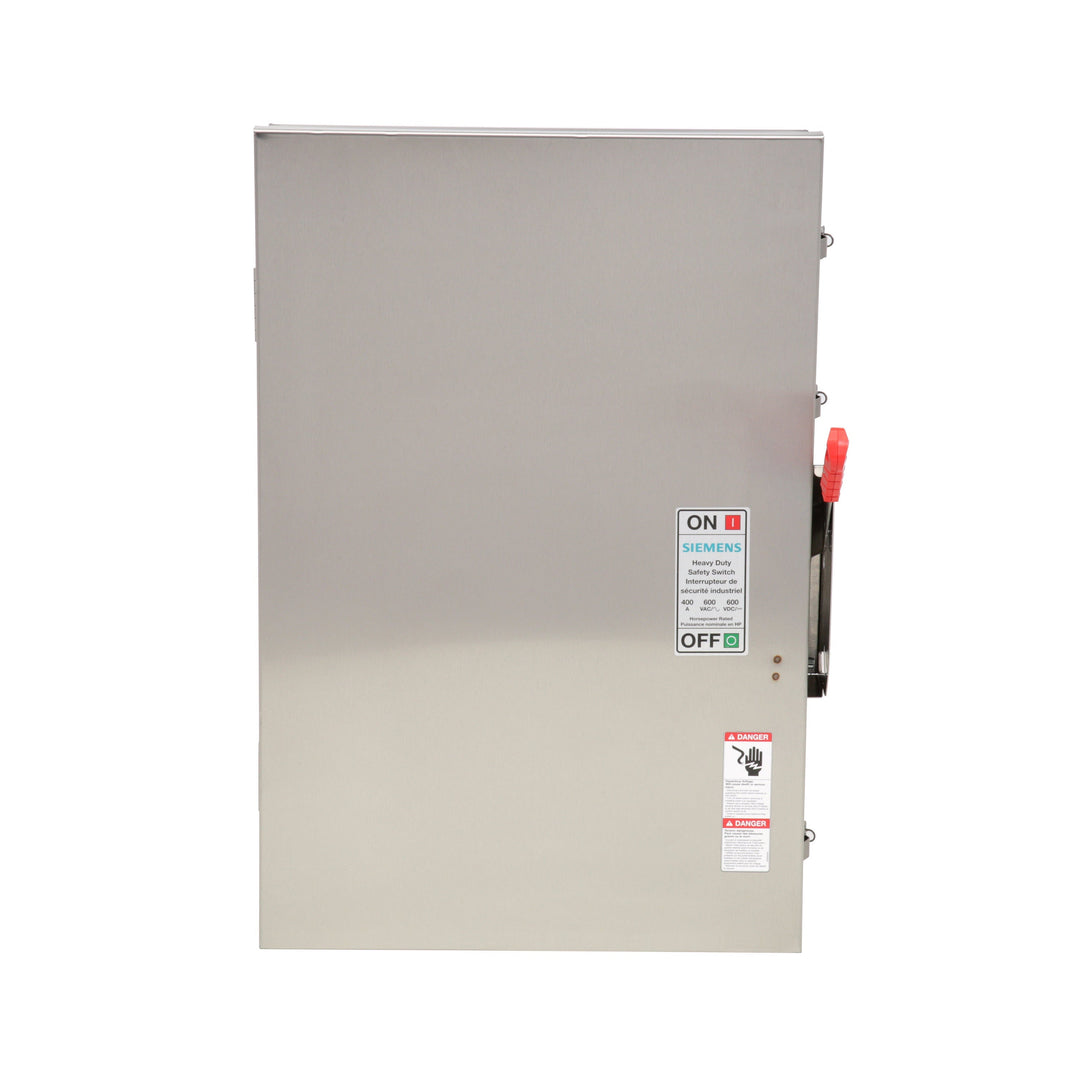

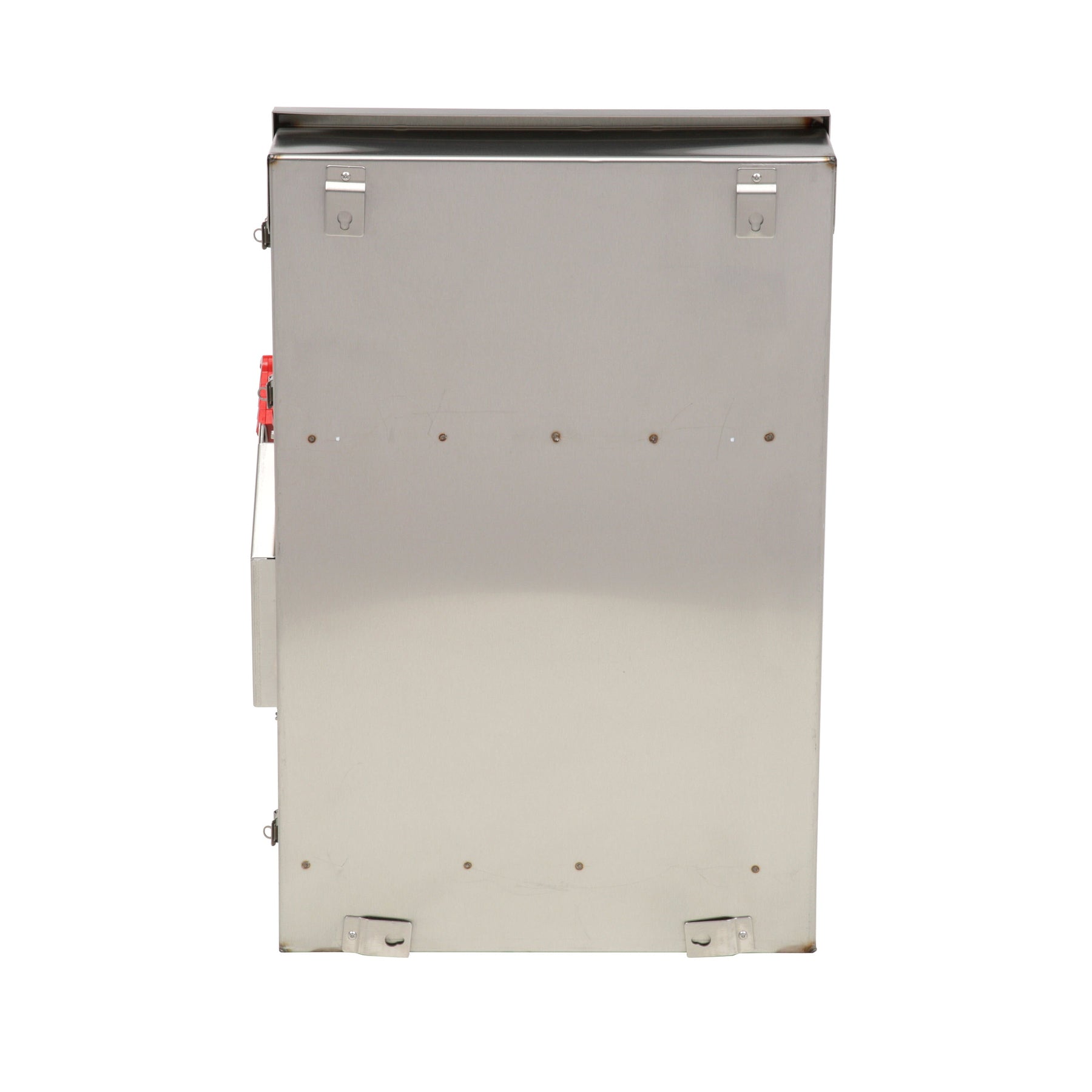

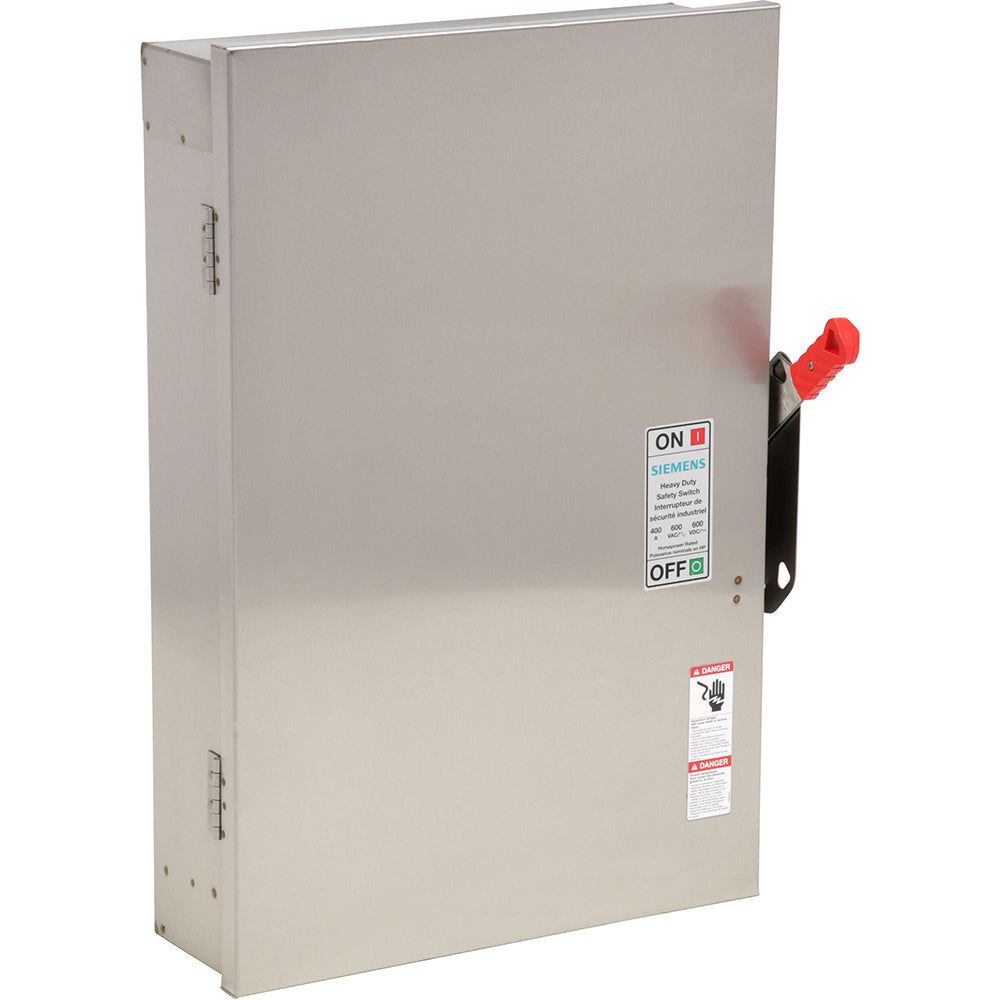

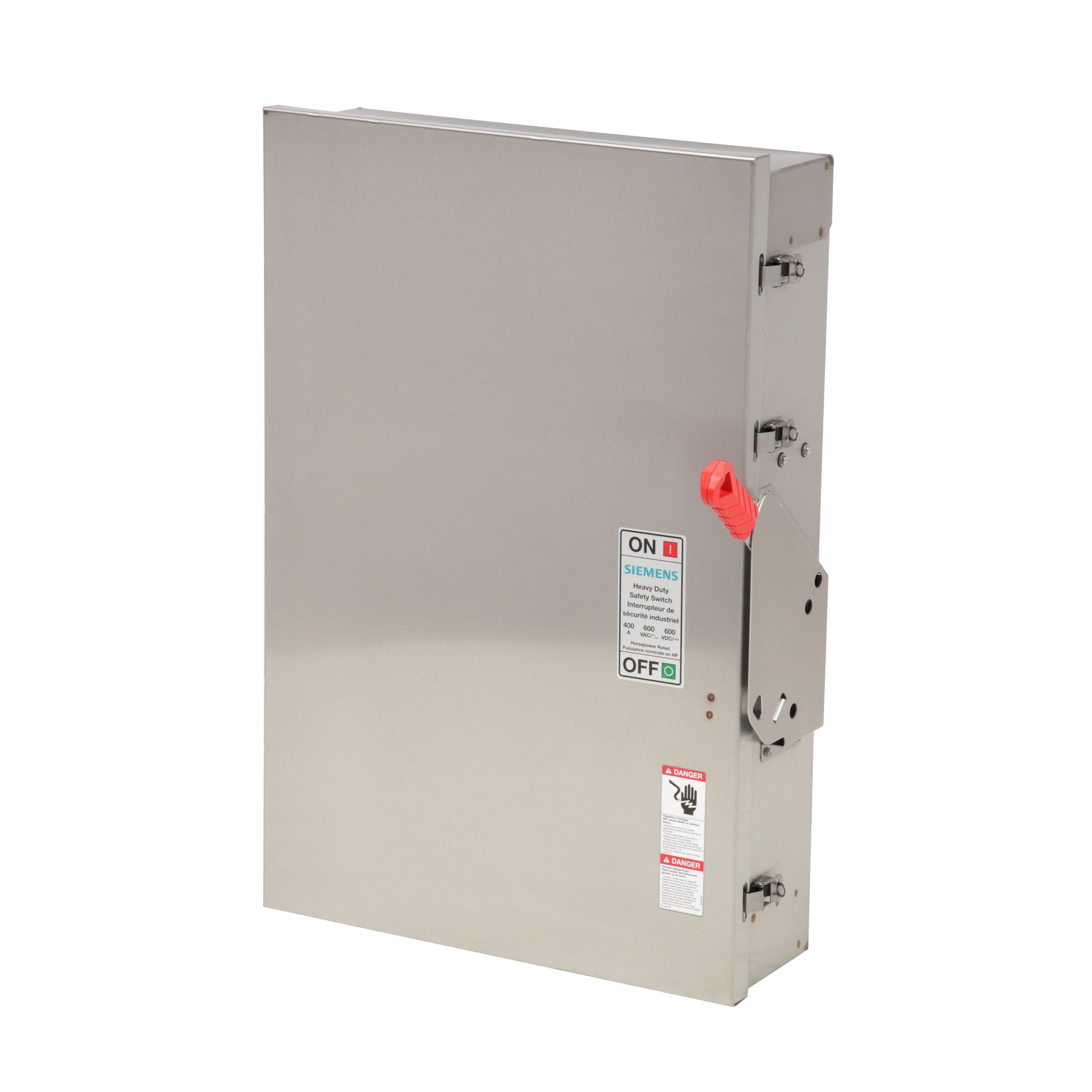

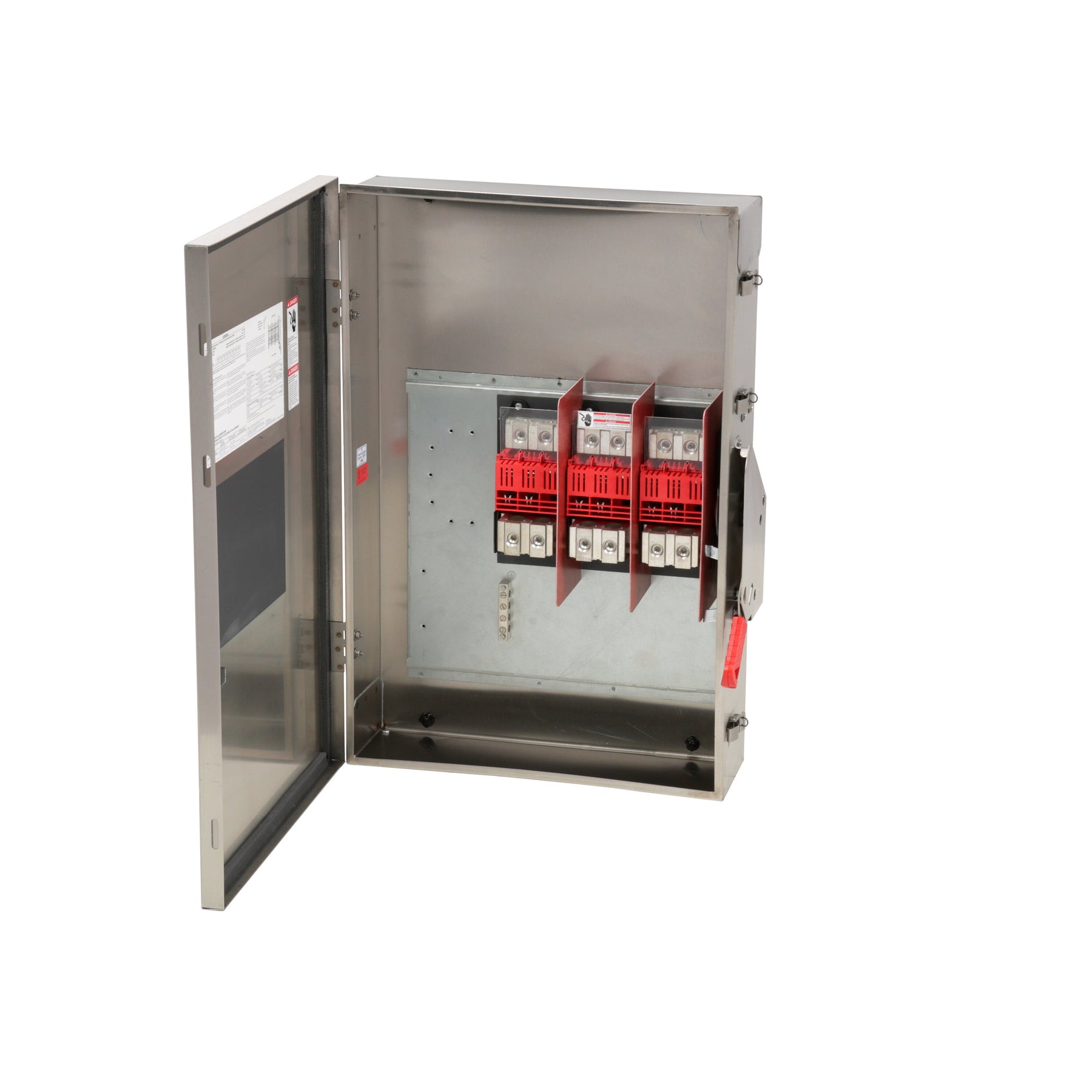

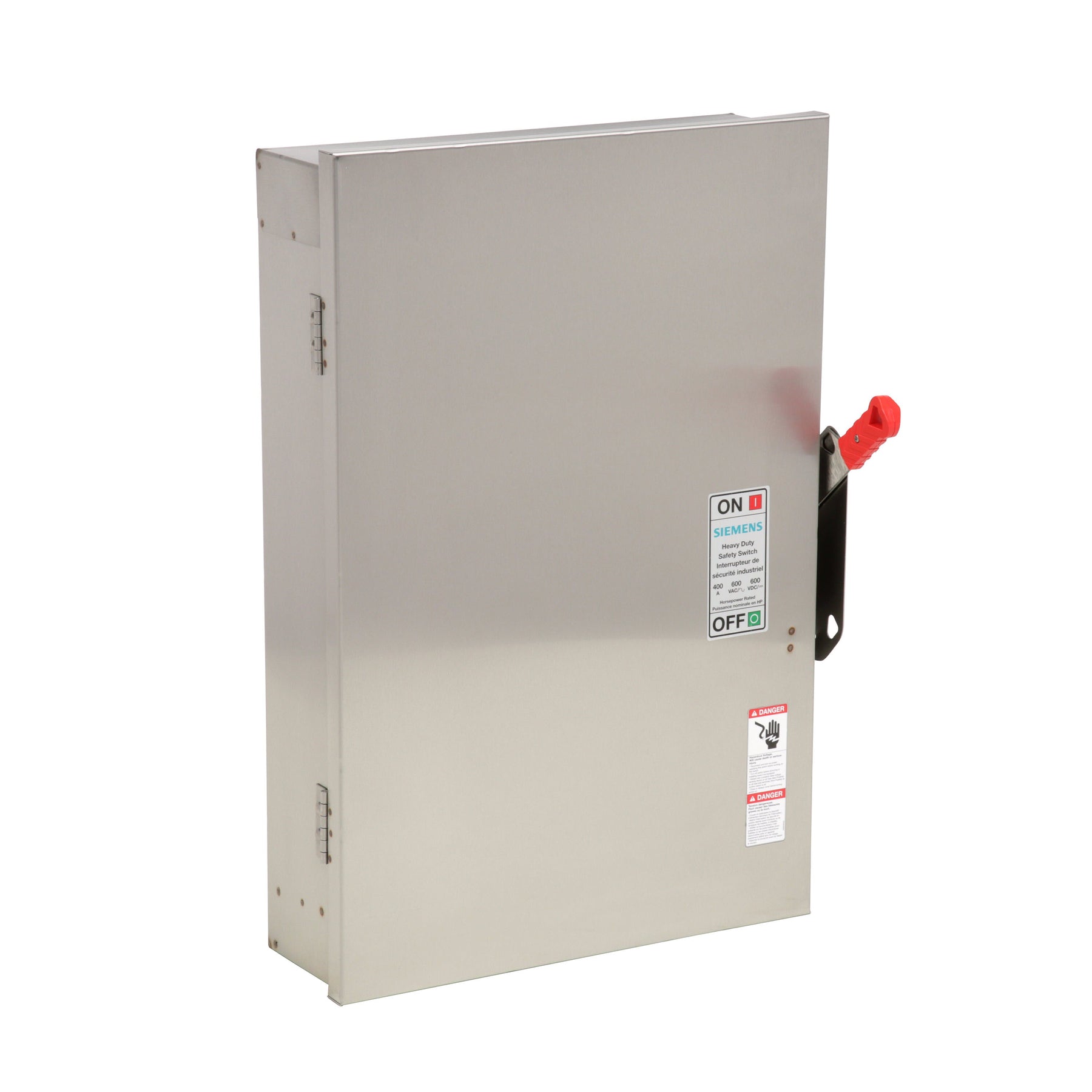

Siemens HNF365SA - Non-Fusible Disconnect Switch, 400A 600V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HNF365SA is a non-fusible disconnect switch designed for providing a visible break and safe isolation in three-phase industrial power circuits. It is rated for 600V AC systems with a continuous current capacity of 400A and features a high interrupting rating of 200kA at 600V for robust short-circuit protection. The switch is constructed within a durable NEMA 4X enclosure measuring 7.087" x 22.047" x 33.465" (180mm x 560mm x 850mm) and weighing 75.156 lb, ensuring protection against corrosion and weather for outdoor or harsh indoor use. It is UL listed and operates reliably across a wide temperature range from -25°C to 70°C (-13°F to 158°F). This device is typically applied in industrial control panels, motor control centers, and as a main disconnect for machinery and heavy equipment.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, VBII Series, HNF type, manual operation
  • Voltage Rating: 600V AC
  • Current Rating: 400A
  • Dimensions: 7.087" W x 22.047" H x 33.465" D (180mm x 560mm x 850mm)
  • Standards: UL Listed, NEMA 4X Enclosure Rating
  • Applications: Industrial power isolation, motor control centers, main disconnects for machinery
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Enclosure: NEMA 4X
  • Weight: 75.156 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 887621872694
  • GTIN: 0887621872694
