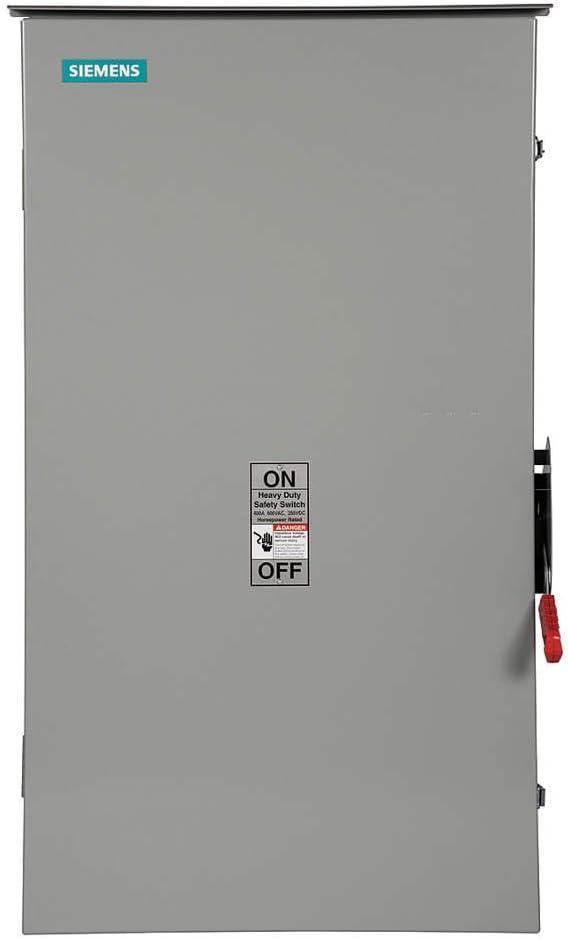

Siemens HNF365R - Non-Fusible Disconnect Switch 400A 600V
SIemens HNF365R Disconnect Switch (Non-Fusible) - Essential Electric Supply
Siemens HNF365R - Non-Fusible Disconnect Switch 400A 600V

Siemens HNF365R - Non-Fusible Disconnect Switch 400A 600V

Siemens
Price
Save $3,968.70
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HNF365R is a non-fusible disconnect switch designed for providing a visible break and safe isolation of three-phase electrical circuits in industrial power distribution. It is rated for 600V AC operation with a continuous current rating of 400A and an interrupting capacity of 200kA at 600V. The switch features a robust, single-unit configuration with three poles and is housed in a NEMA 3R rated enclosure for outdoor durability. It is UL listed and is compatible with Siemens PGP panelboards, ensuring compliance with industry standards for safety and integration in demanding applications such as motor control centers and main service disconnects.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HNF type, VBII Series
  • Voltage Rating: 600V AC
  • Current Rating: 400A
  • Configuration: Single unit
  • Poles: 3
  • Phase: 3-phase
  • AIC Rating: 200kA @ 600V
  • Switch Style: Non-Fusible
  • NEMA Rating: NEMA 3R
  • Enclosure: NEMA 3R
  • Standards: UL Listed
  • Compatible Frames: PGP panelboards
  • Mounting: Panelboard mount
  • Country of Origin: Mexico
  • Weight: 114.045 lb


Product Identification
  • GTIN: 0783164001495
