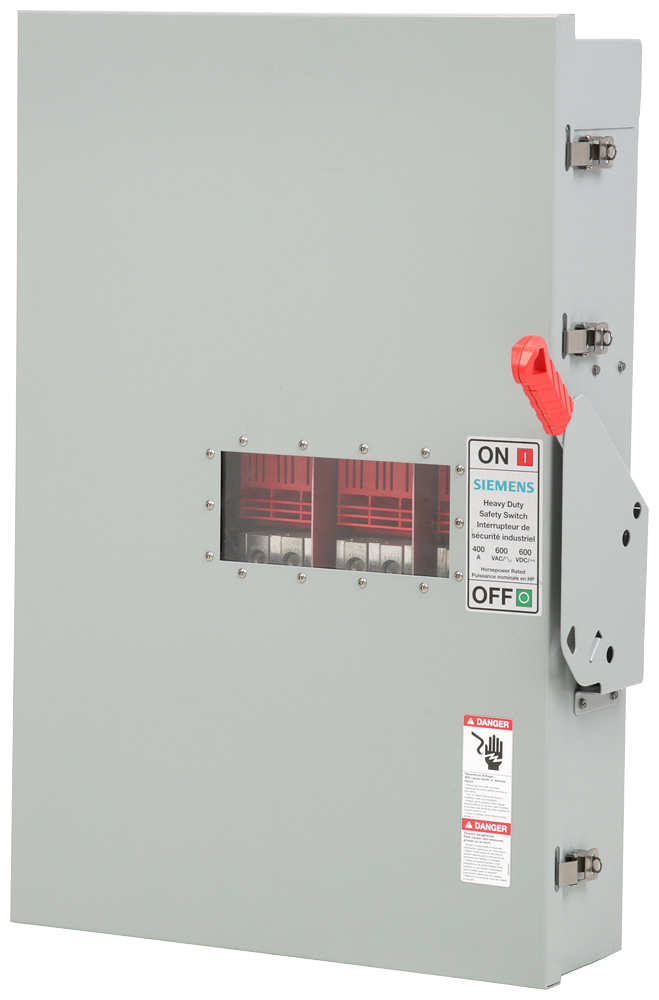

Siemens HNF365JWA - Non-Fusible Disconnect Switch 400A@600V (200kA AIC)

Siemens HNF365JWA is a heavy-duty non-fusible disconnect switch designed for industrial power distribution systems, providing reliable circuit isolation and load-breaking capabilities. This 600V-rated switch handles up to 400A continuous current with a 200kA interrupting capacity at 600V, featuring a rugged NEMA 12-rated enclosure for dust-tight operation. The three-pole single-configuration unit weighs 130 lb with solid copper contacts and mechanical quick-make/quick-break operation, complying with UL 98 and CSA C22.2 standards. It's commonly deployed in manufacturing plants, data centers, and utility substations for main feeder disconnects and motor control center isolation.

Key Features & Specifications

• Type: Non-fusible disconnect switch, HNF series, mechanical quick-break operation
• Voltage Rating: 600V AC
• Current Rating: 400A
• Configuration: Single
• Poles: 3
• AIC Rating: 200kA@600V
• NEMA Rating: NEMA 12 (dust-tight)
• Phase: 3-phase
• Switch Type: Non-Fusible
• Weight: 130 lb
• Standards: UL 98, CSA C22.2
• Applications: Industrial power distribution, MCC isolation, feeder disconnects

Product Identification

• UPC: 887621872854
• Family: VBII Series
• Country of Origin: Mexico
