Siemens HNF365A - Non-Fusible Disconnect Switch 400A 600V

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

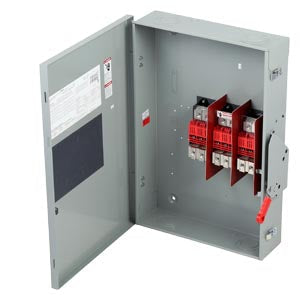

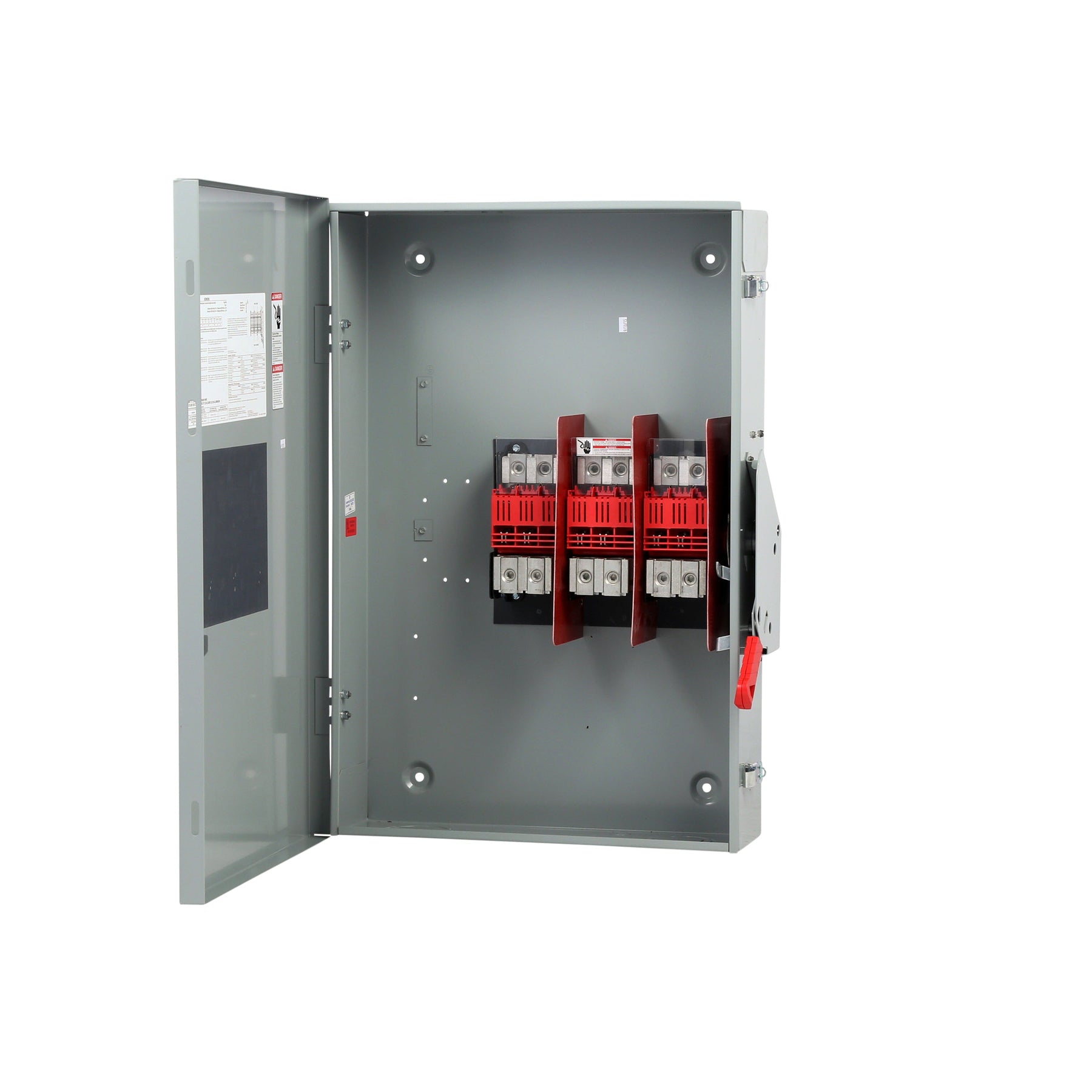

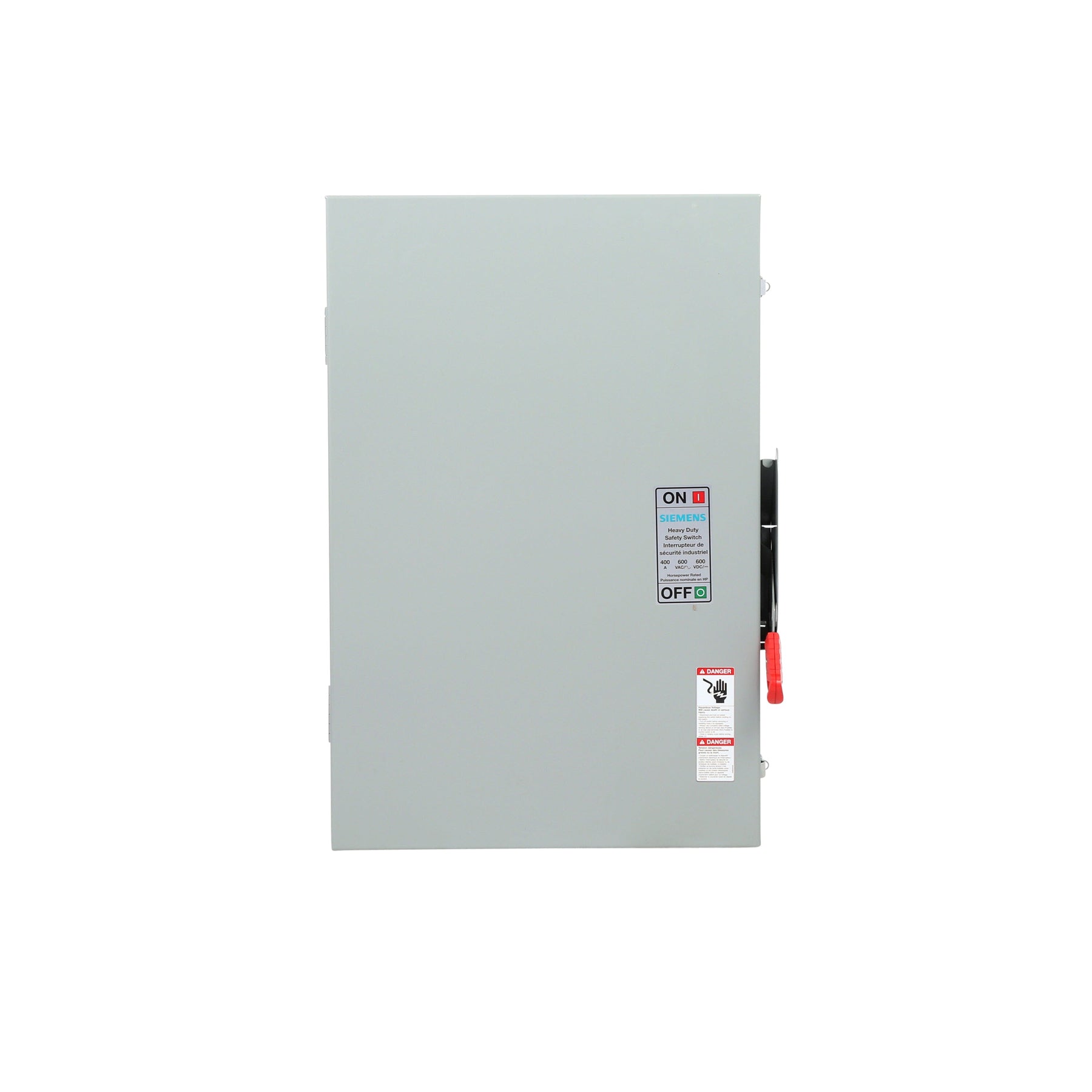

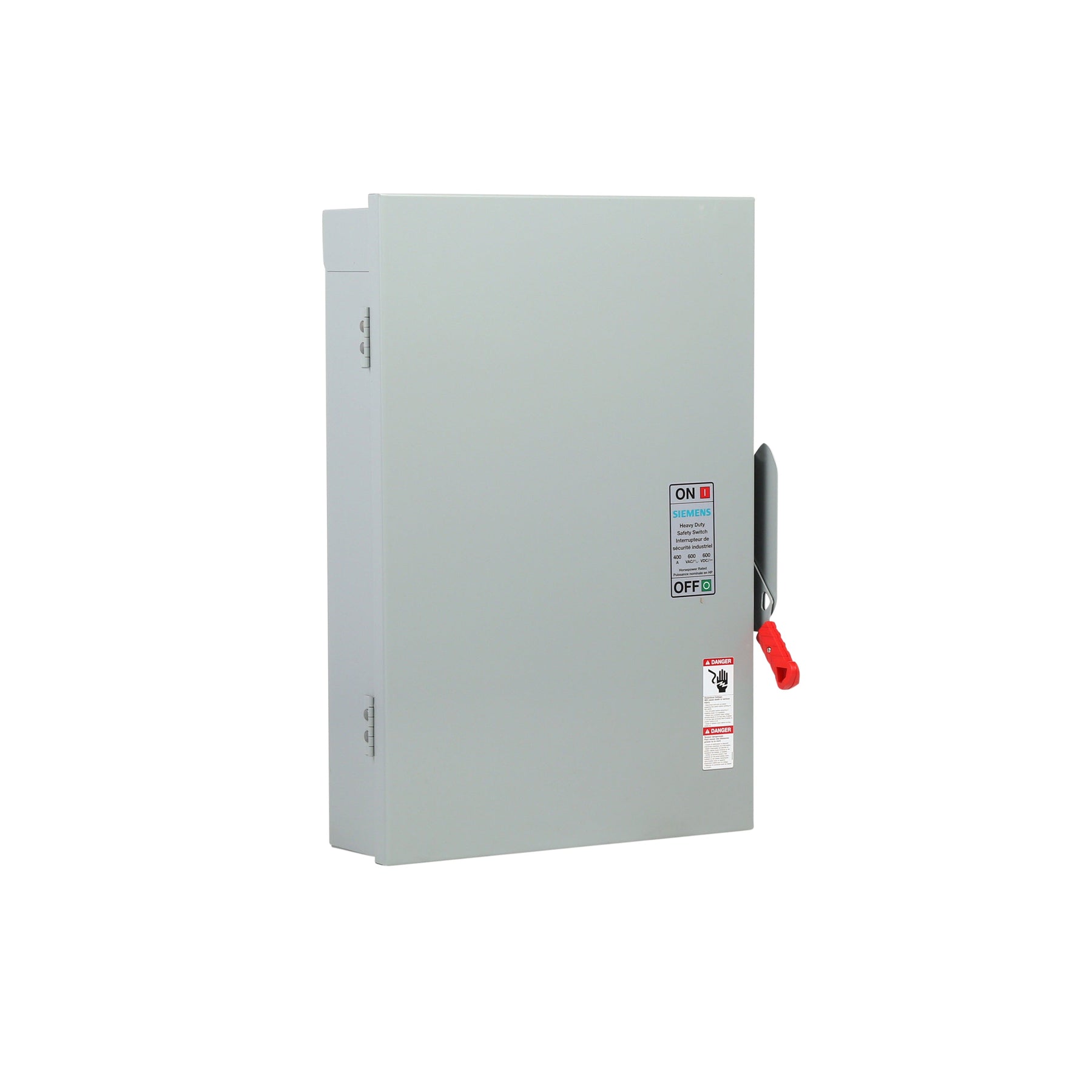

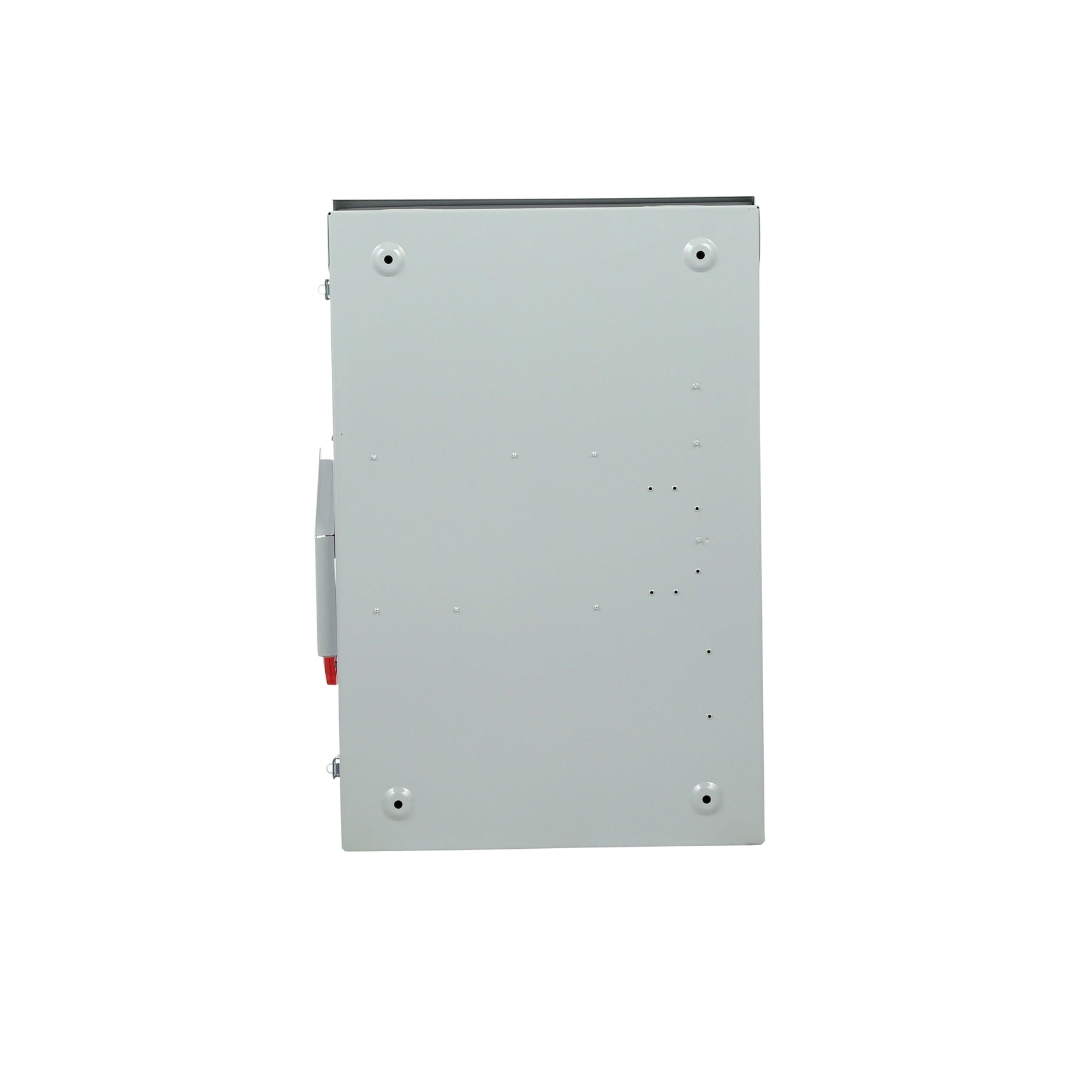

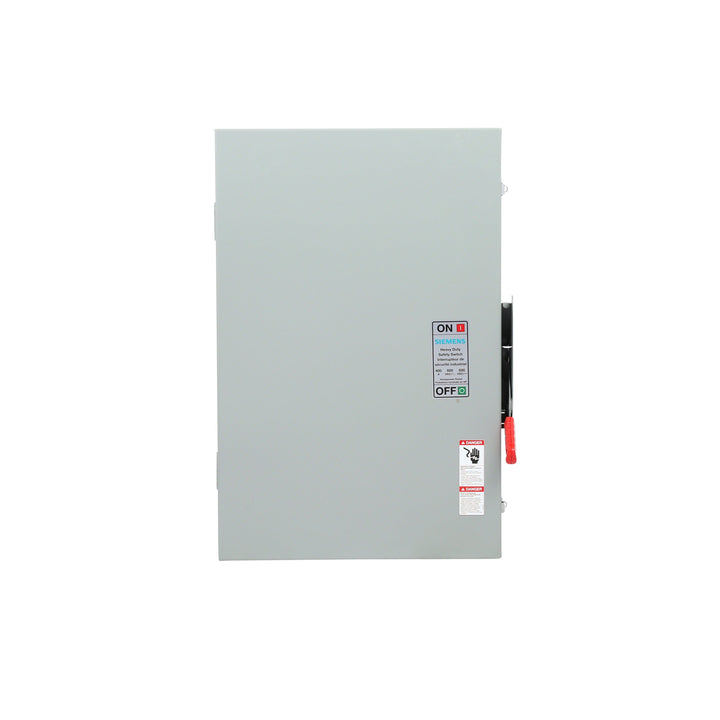

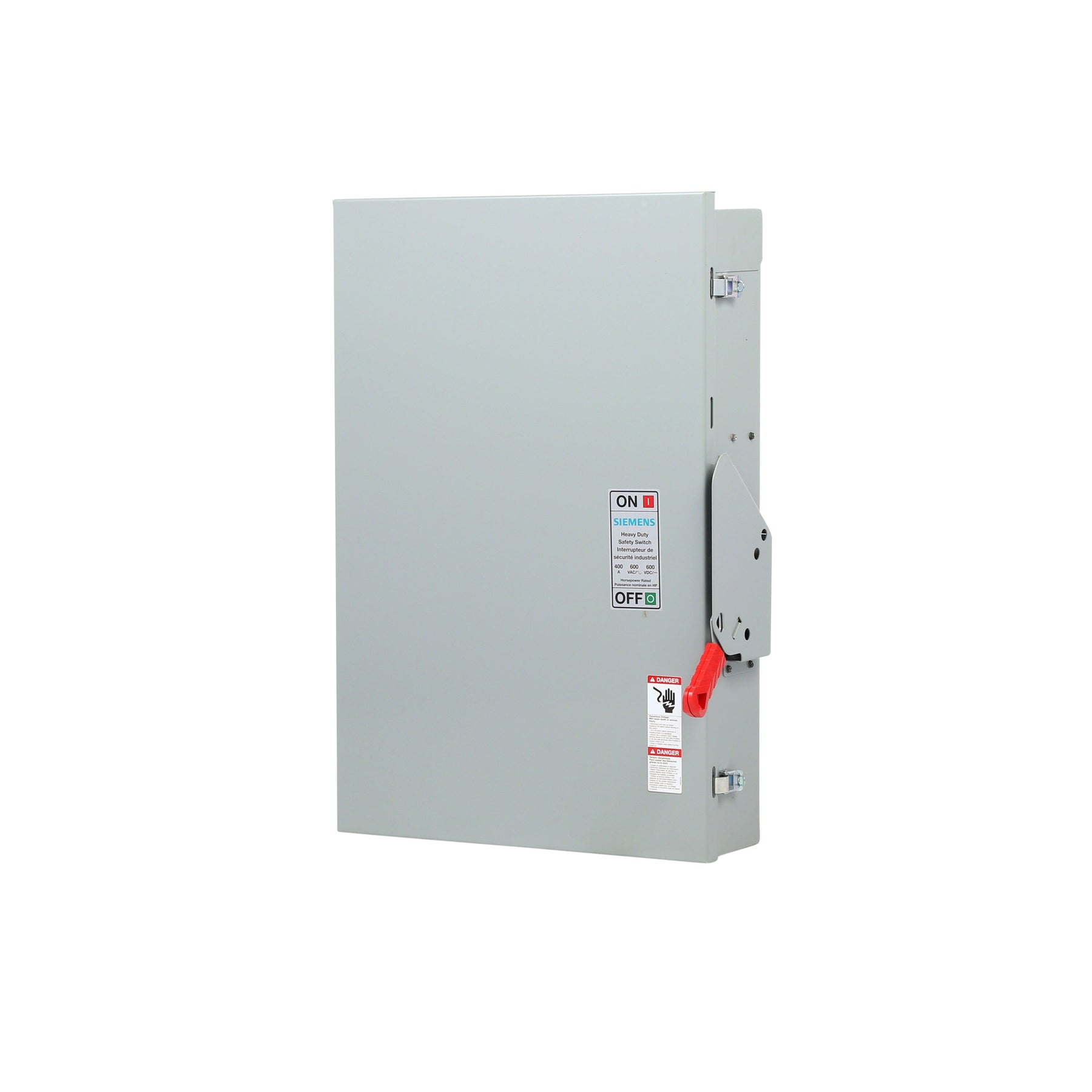

Siemens HNF365A is a non-fusible disconnect switch designed for providing a visible break and safe isolation of three-phase electrical circuits up to 400A. It is rated for 600V AC systems and features a robust 200kA interrupting capacity at 600V, housed within a NEMA 1 enclosure measuring 6.693" x 22.047" x 33.465" and weighing 75.156 lb. This UL-listed switch, part of the VBII series and compatible with PGP frames, is constructed for durability and reliable service in industrial power distribution and motor control applications.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HNF Type, Single Configuration
  • Voltage Rating: 600V AC
  • Current Rating: 400A
  • Dimensions: 6.693 x 22.047 x 33.465 inch
  • Standards: UL listed
  • Applications: Industrial power isolation and motor control
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC rating: 200kA@600V
  • Nema Rating: NEMA 1
  • Compatible Frames: PGP
  • Family: VBII Series
  • Weight: 75.156 lb


Product Identification
  • UPC: 887621872472
  • GTIN: 0887621872472
