Siemens HNF363SS - Non-Fusible Disconnect Switch, 100A 600V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

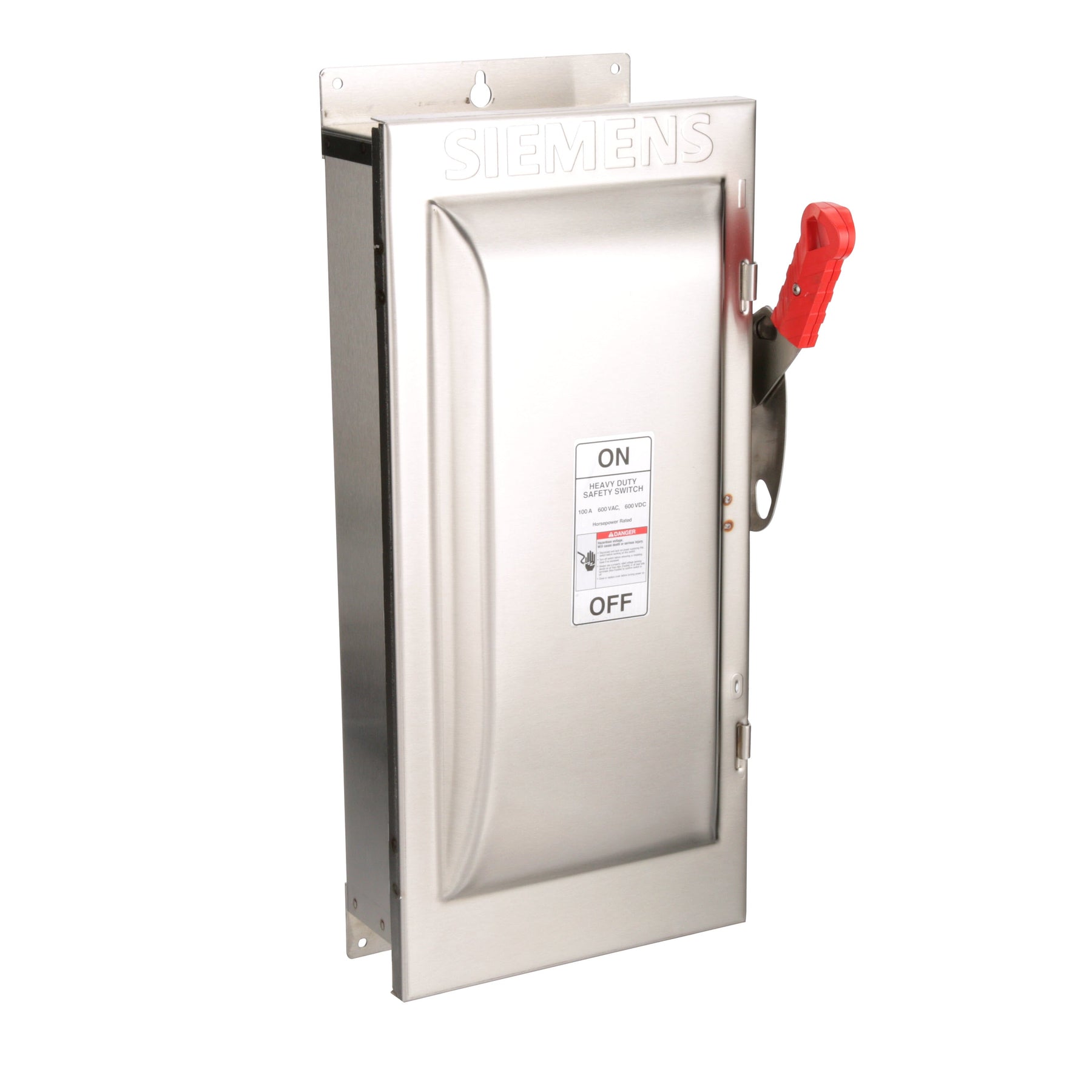

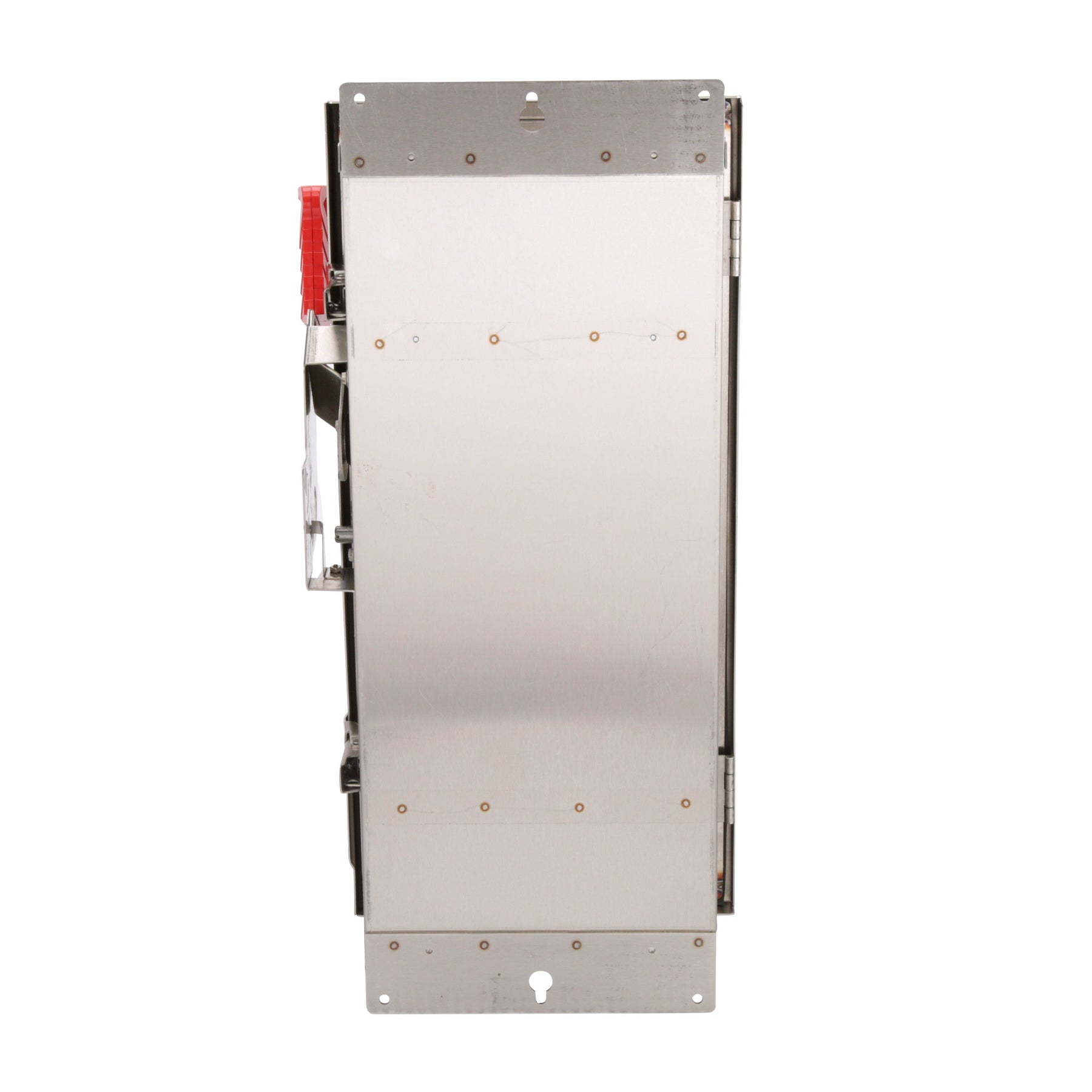

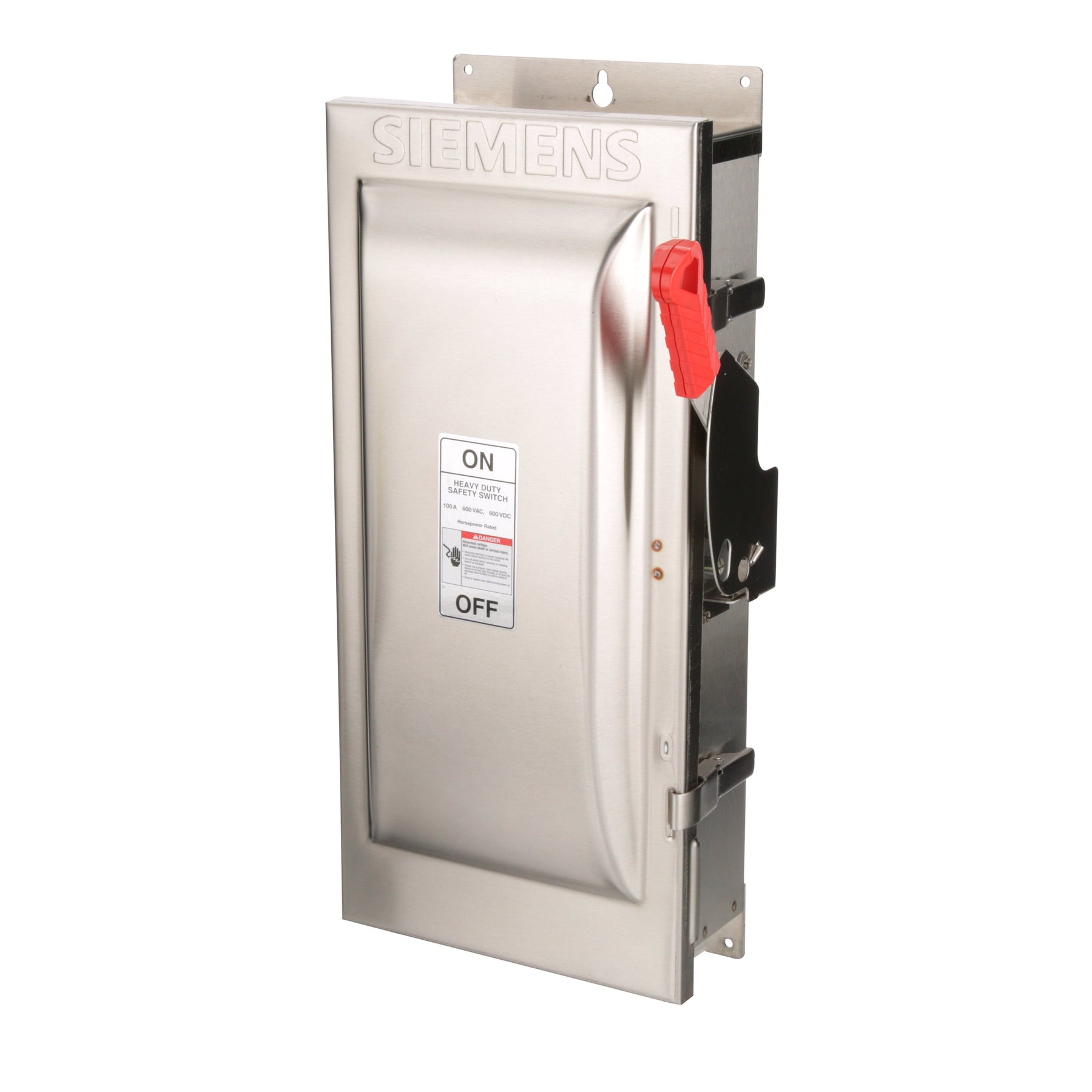

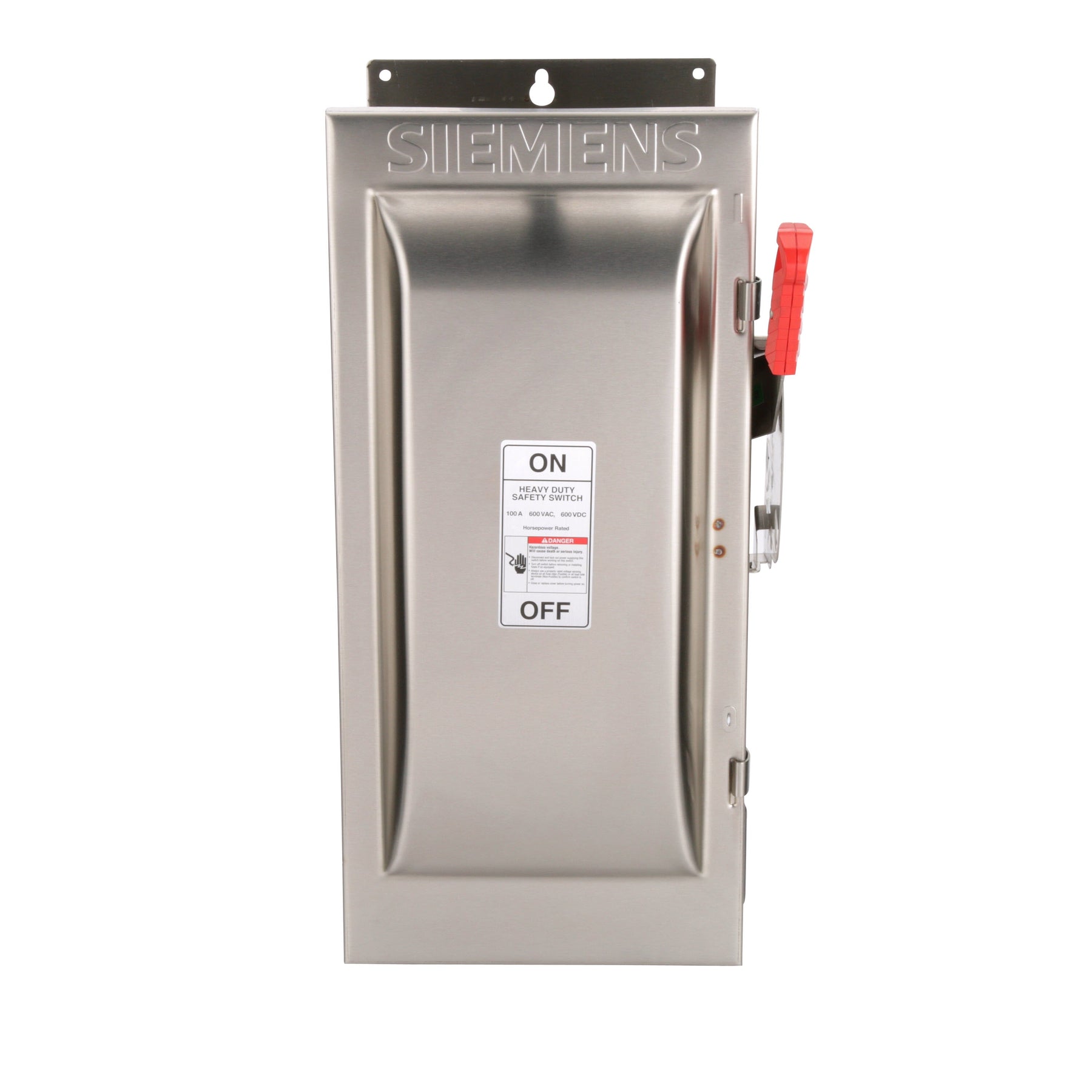

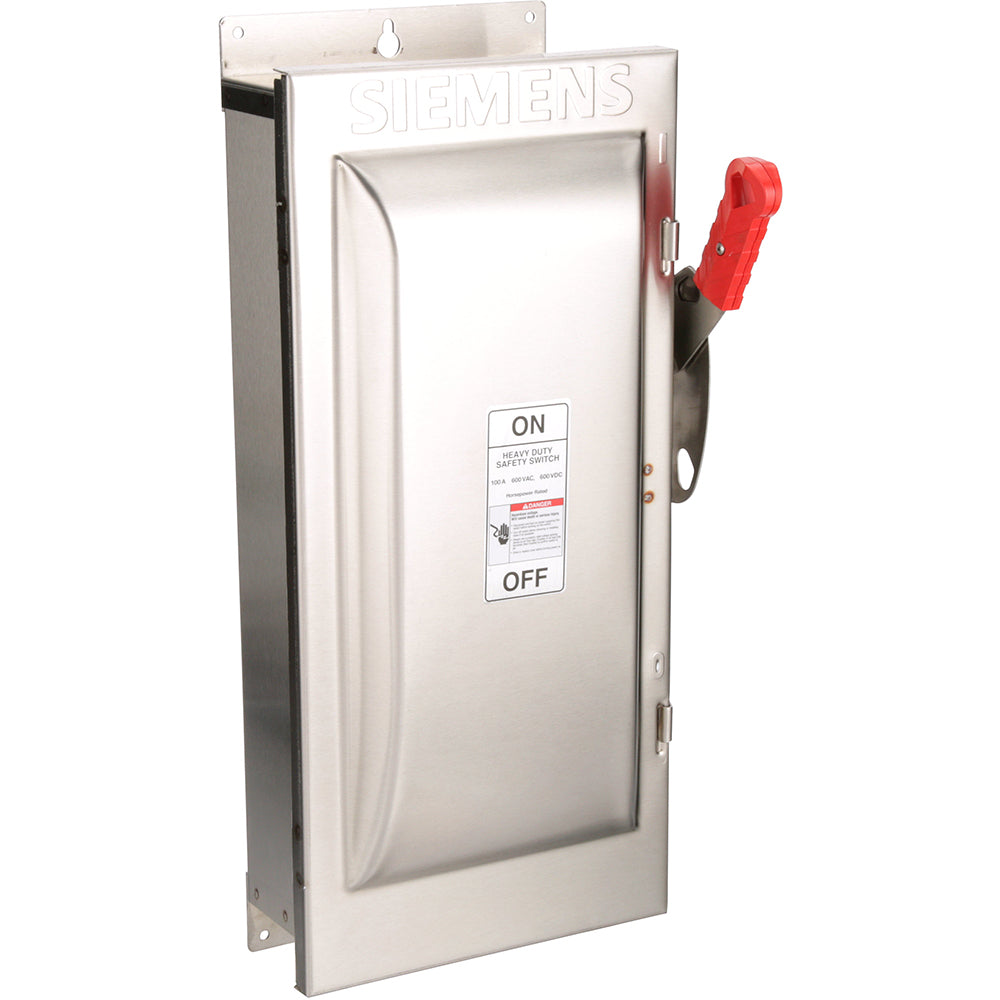

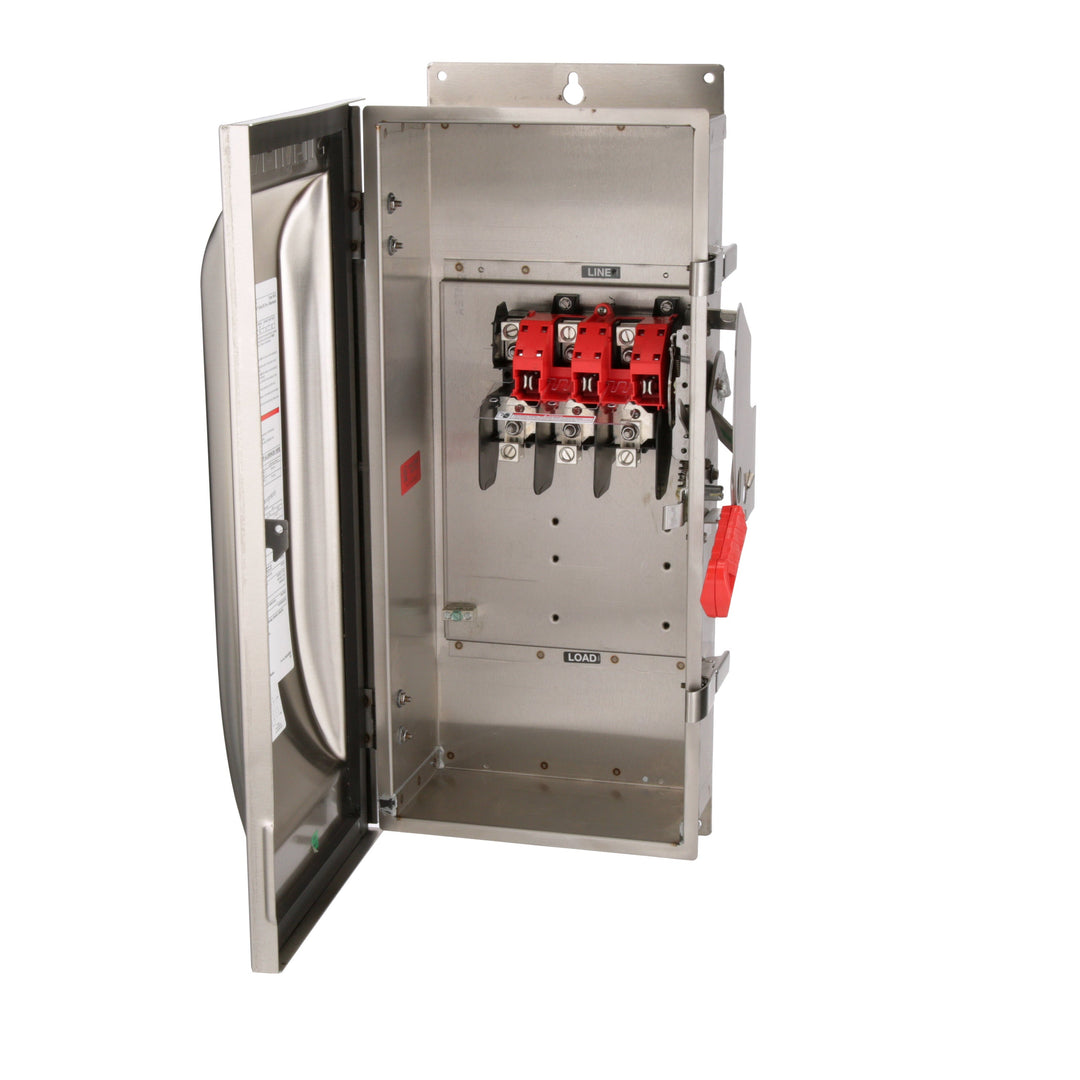

Siemens HNF363SS is a non-fusible disconnect switch designed for the safe isolation of three-phase electrical circuits in industrial environments. It provides a visible break for maintenance with a voltage rating of 600V AC and a continuous current rating of 100A, featuring a high interrupting capacity of 200kA at 600V. The switch is constructed within a robust NEMA 4X enclosure measuring 22.047" x 14.173" x 7.874" (560mm x 360mm x 200mm) and weighing 23.656 lb, rated for operation from -25°C to 70°C (-13°F to 158°F). It is UL listed and complies with relevant industry standards for safety and performance. Typical applications include motor control centers, industrial machinery, and power distribution panels where reliable circuit isolation is required.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, VBII Series, HNF Type
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Configuration: Single, 3-Pole
  • AIC Rating: 200kA @ 600V
  • Enclosure Rating: NEMA 4X
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 22.047" x 14.173" x 7.874" (560mm x 360mm x 200mm)
  • Weight: 23.656 lb
  • Standards: UL Listed
  • Phase: 3
  • Country of Origin: Mexico


Product Identification
  • UPC: 040892169157
  • GTIN: 0040892169157
