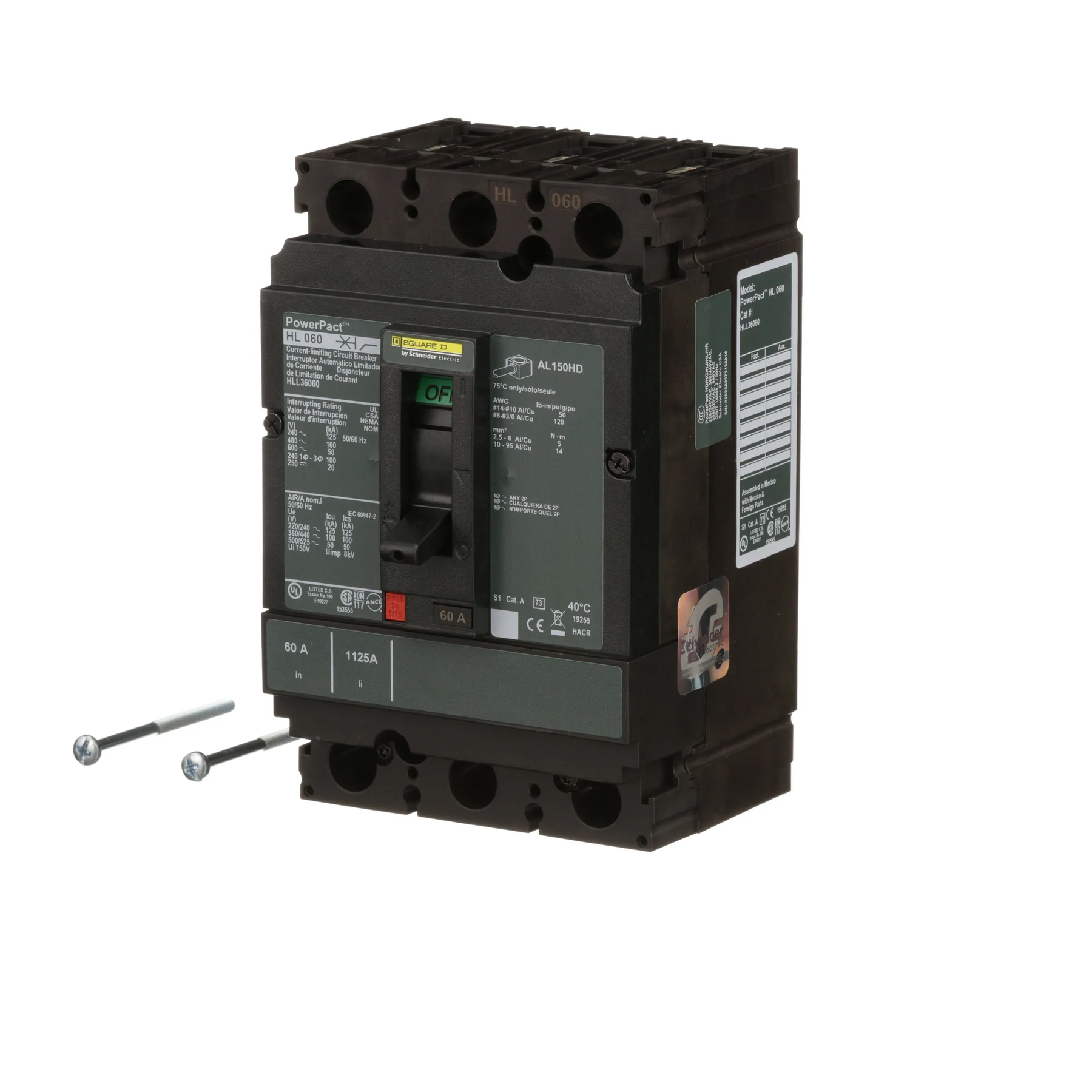

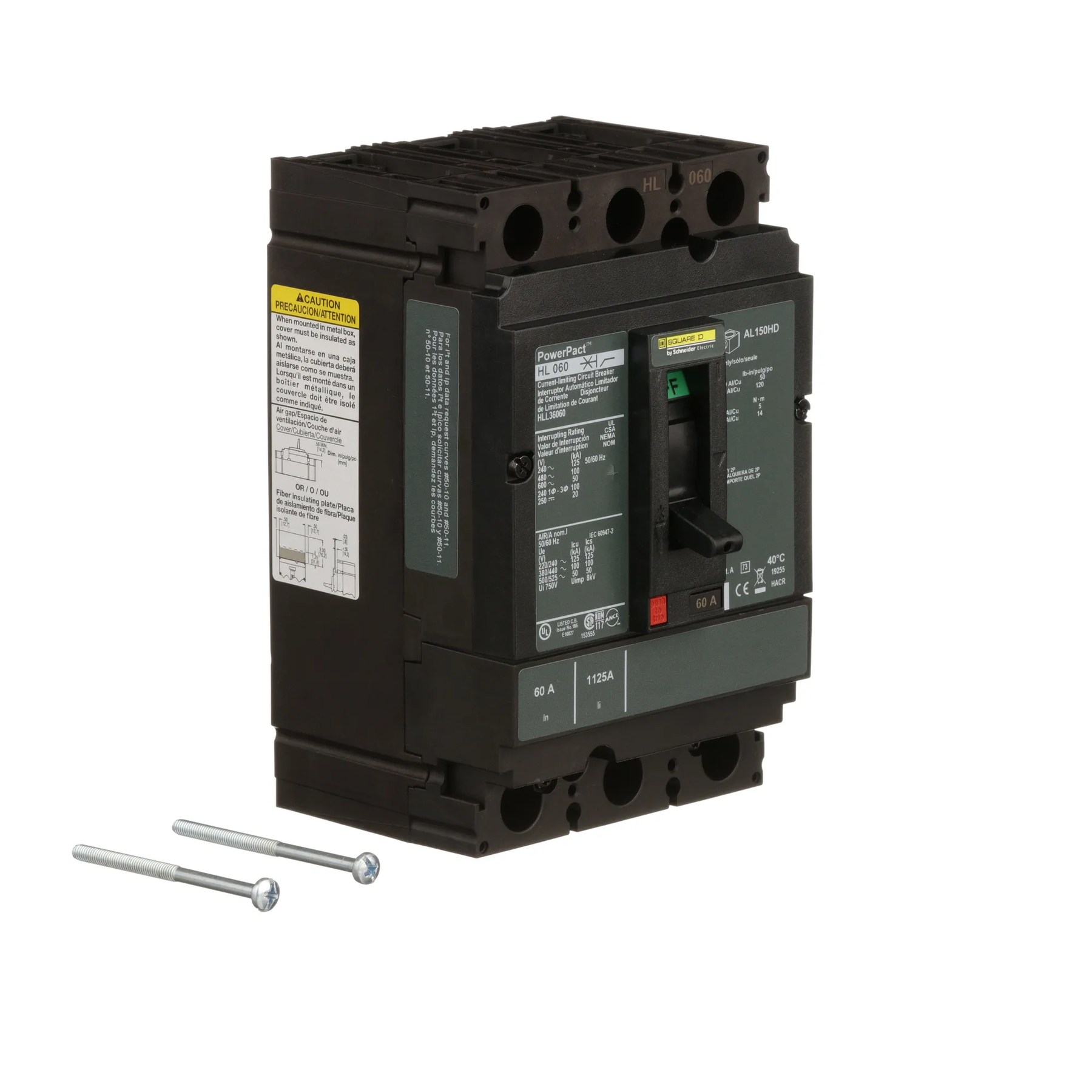

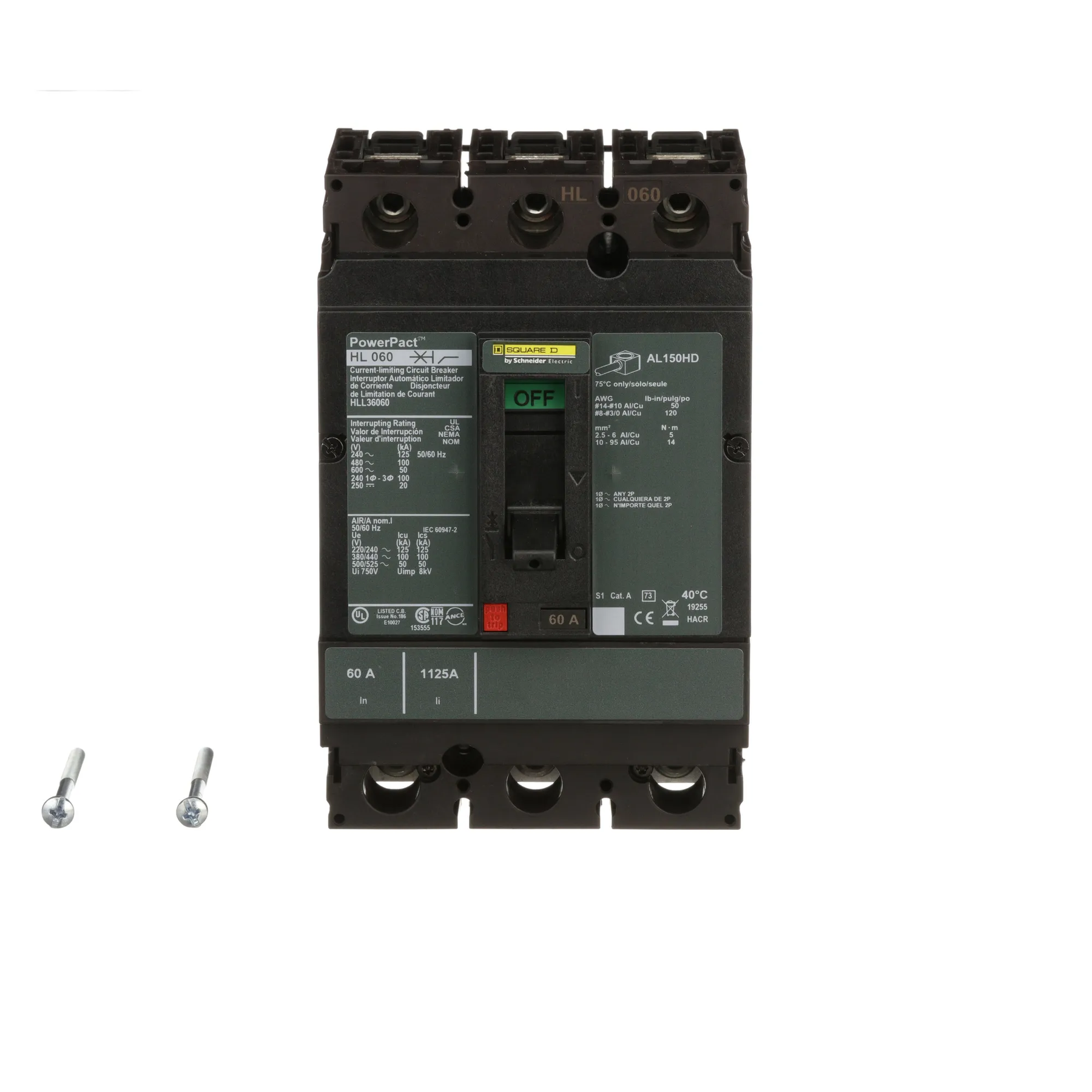

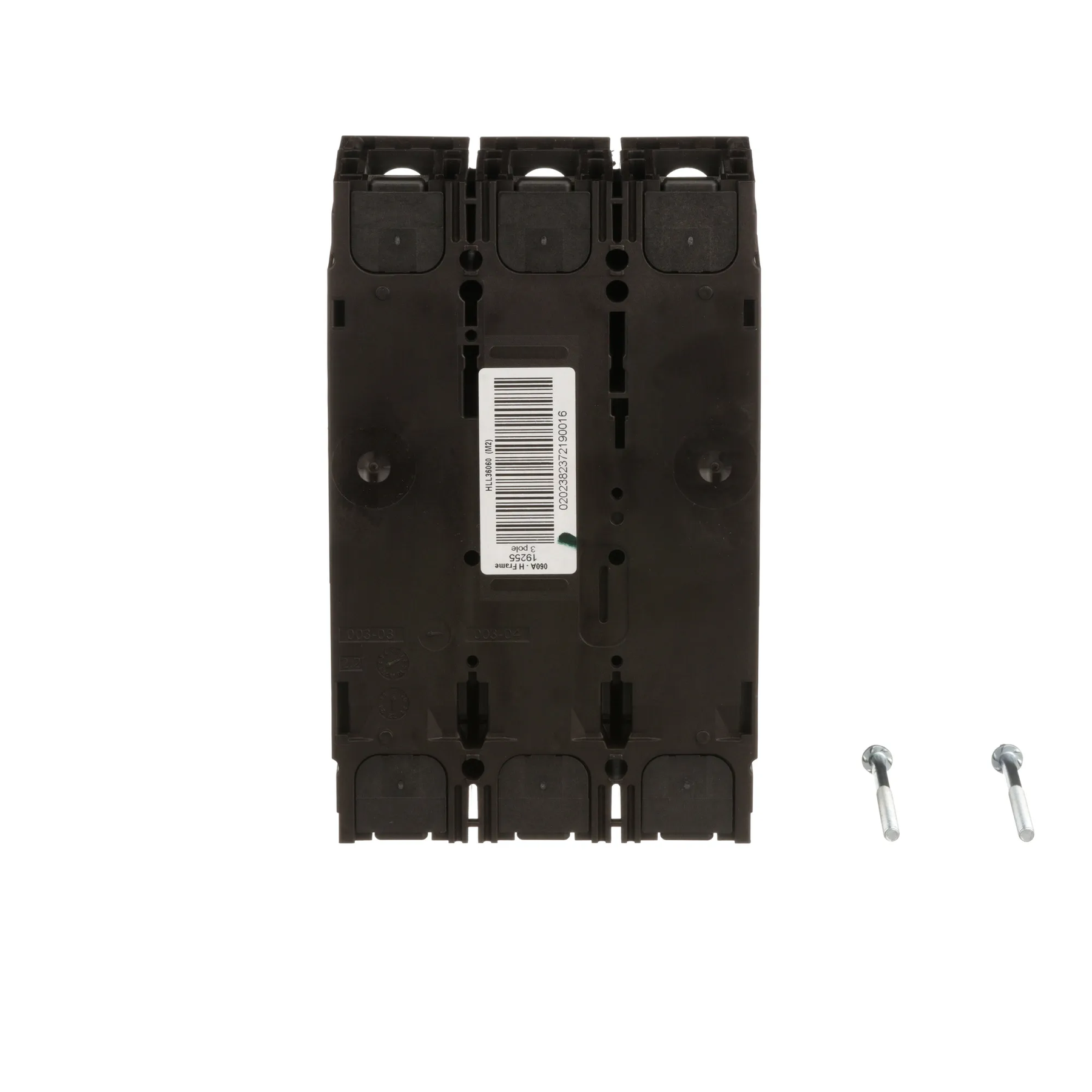

Square D HLL36060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 600V AC voltage rating and a 60A current rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.149 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards. Its feed-thru lug connection and wide operating temperature range of -25 to 70 °C make it suitable for demanding applications such as panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: HLL Series Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 60A

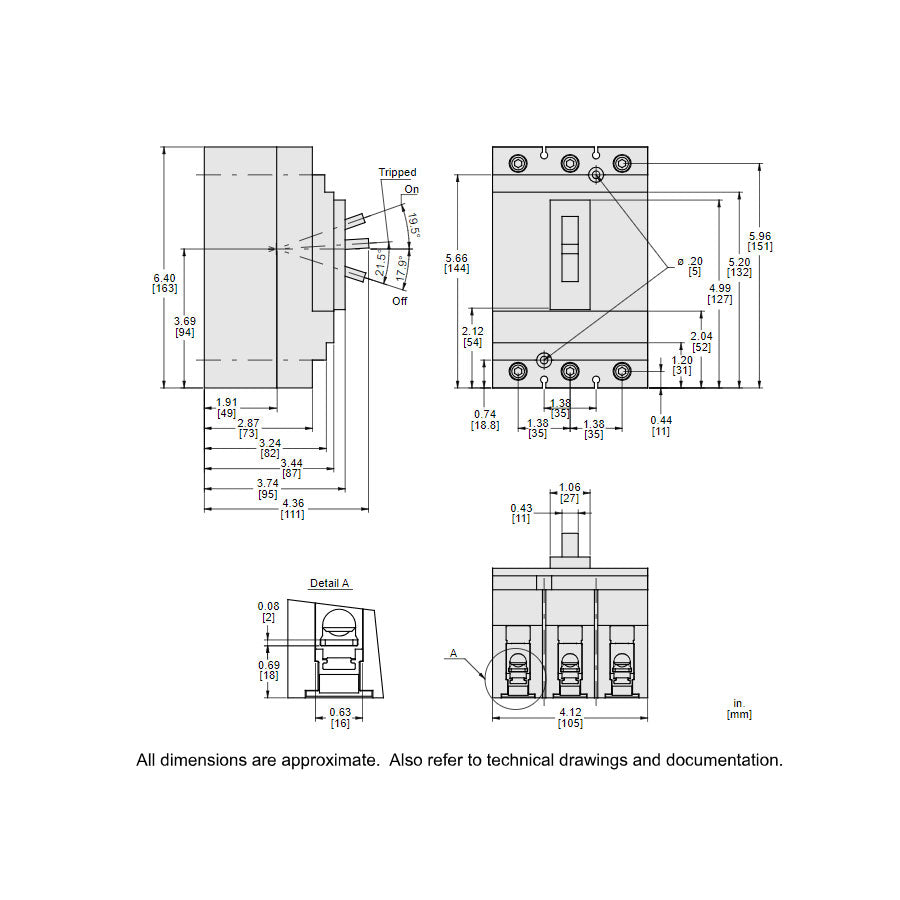

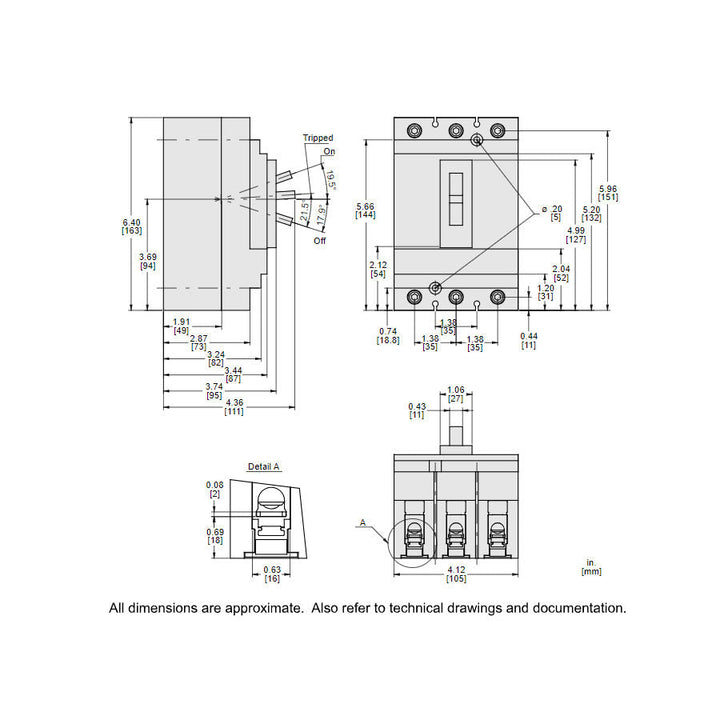

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards, Motor Control Centers
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 60A
  • AIC Rating: 100kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: H
  • Trip Type: Thermal-Magnetic
  • Terminal Connection: Lug
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Certification: UL, CSA, NOM
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Mounting: Fixed
  • Hz: 50/60 Hz
  • Enclosure: Molded Case
  • Item QTY: 1
  • Breaker Frame: H
  • Operating Temperature Maximum Celsius: 70 °C


Product Identification
  • UPC: 785901883692
  • GTIN: 00785901883692
