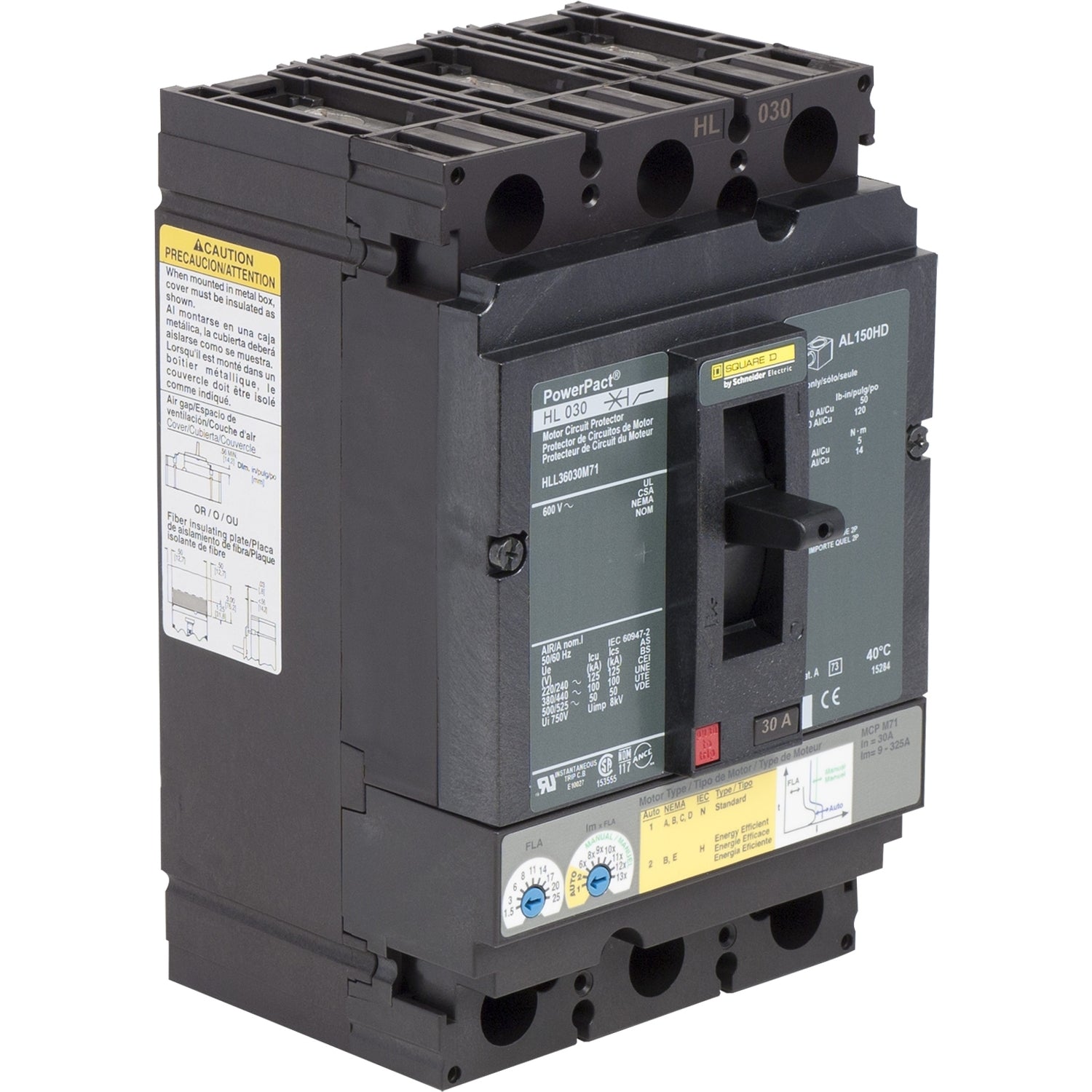

Square D HLL36030M71 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 30A current rating and a 600V AC voltage rating, housed within a compact L-frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.29 lb. This magnetic-only protection device with long-time and instantaneous trip functions is constructed for feed-thru connection with lug terminals, accepting wire sizes from 14 AWG to 3/0 AWG for both copper and aluminum conductors. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, ensuring suitability for a wide range of commercial and industrial applications where a 100kA interrupting capacity at 480V is required within an operating temperature range of -2 to 70 °C.

Key Features & Specifications
  • Type: HLL Series Molded Case Circuit Breaker, Magnetic-Only Protection with Long Time and Instantaneous Trip
  • Voltage Rating: 600V AC
  • Current Rating: 30A

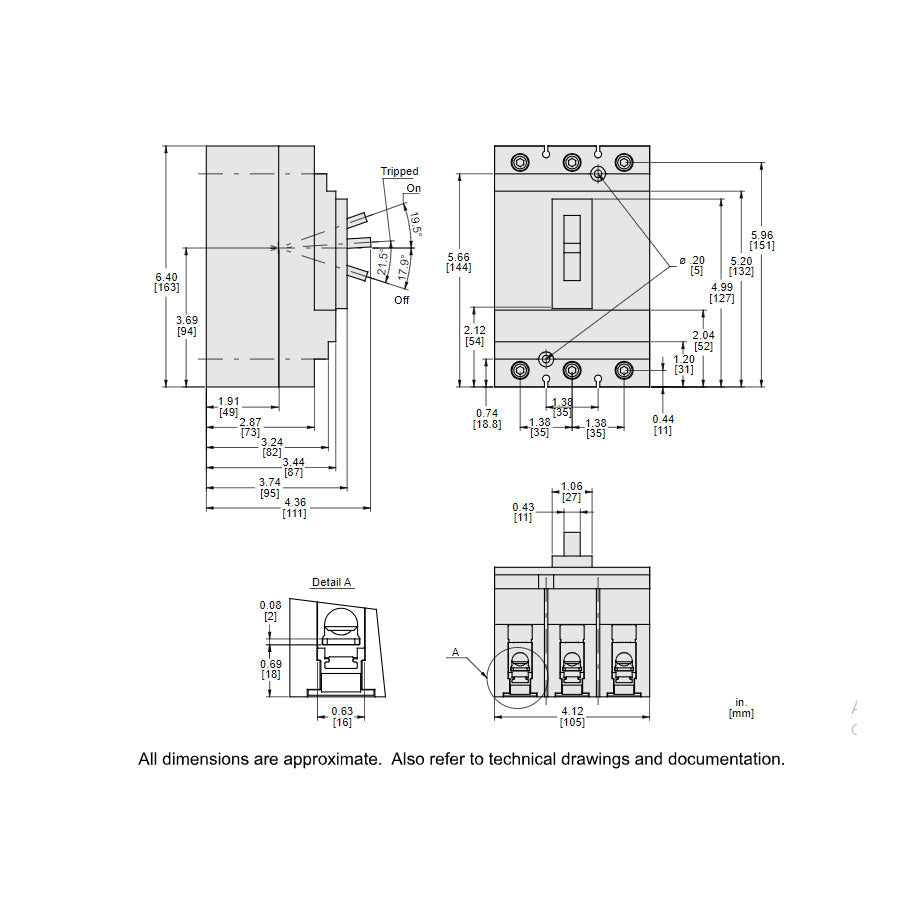

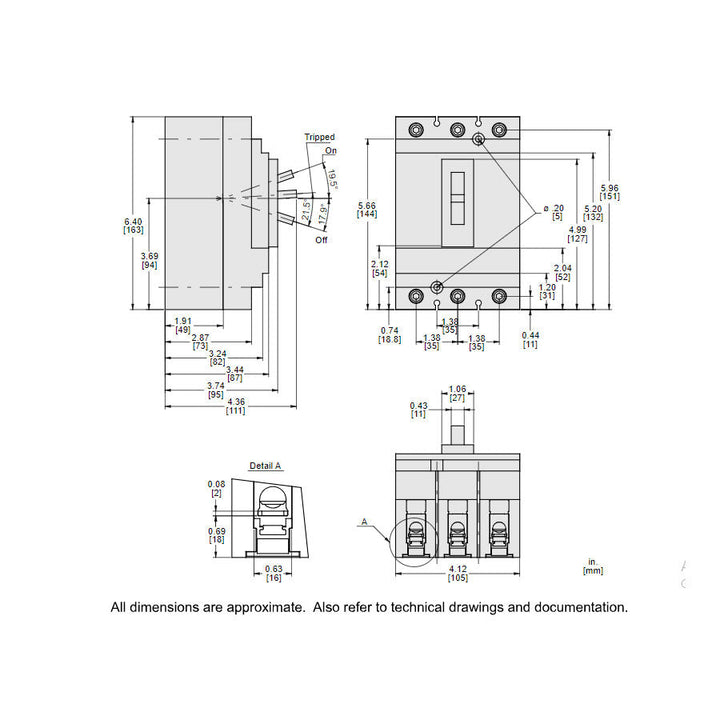

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial three-phase power distribution and protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Amperage: 30A
  • AIC rating: 100kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Magnetic Only
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: L
  • Trip Type: Magnetic
  • Terminal Connection: Lug
  • Wire Size: 14 AWG to 3/0 AWG (Cu/Al)
  • Certification: UL, CSA, NOM
  • Temp Rating: 28-158 °F (-2-70 °C)
  • Weight: 4.29 lb
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901632139
  • GTIN: 00785901632139
