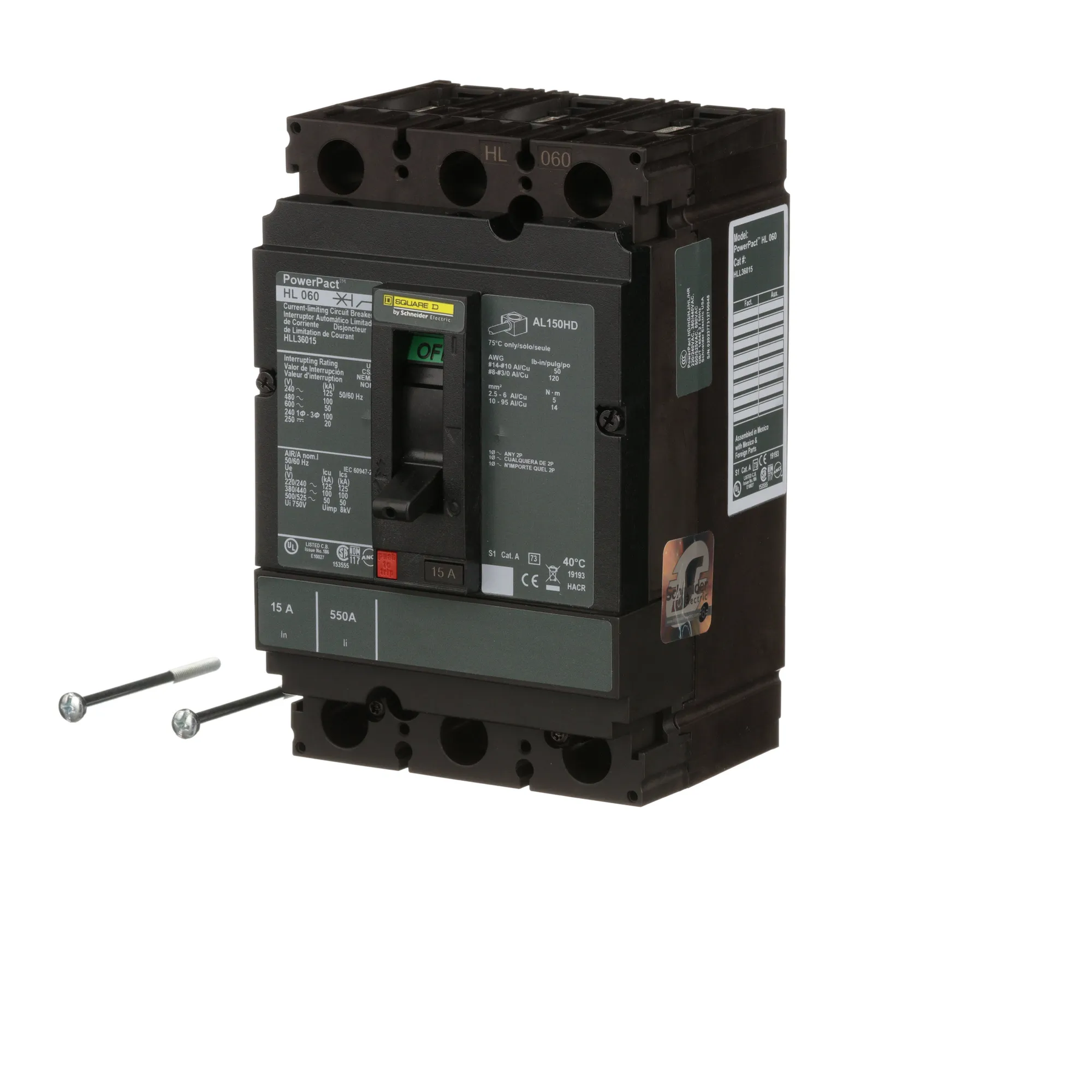

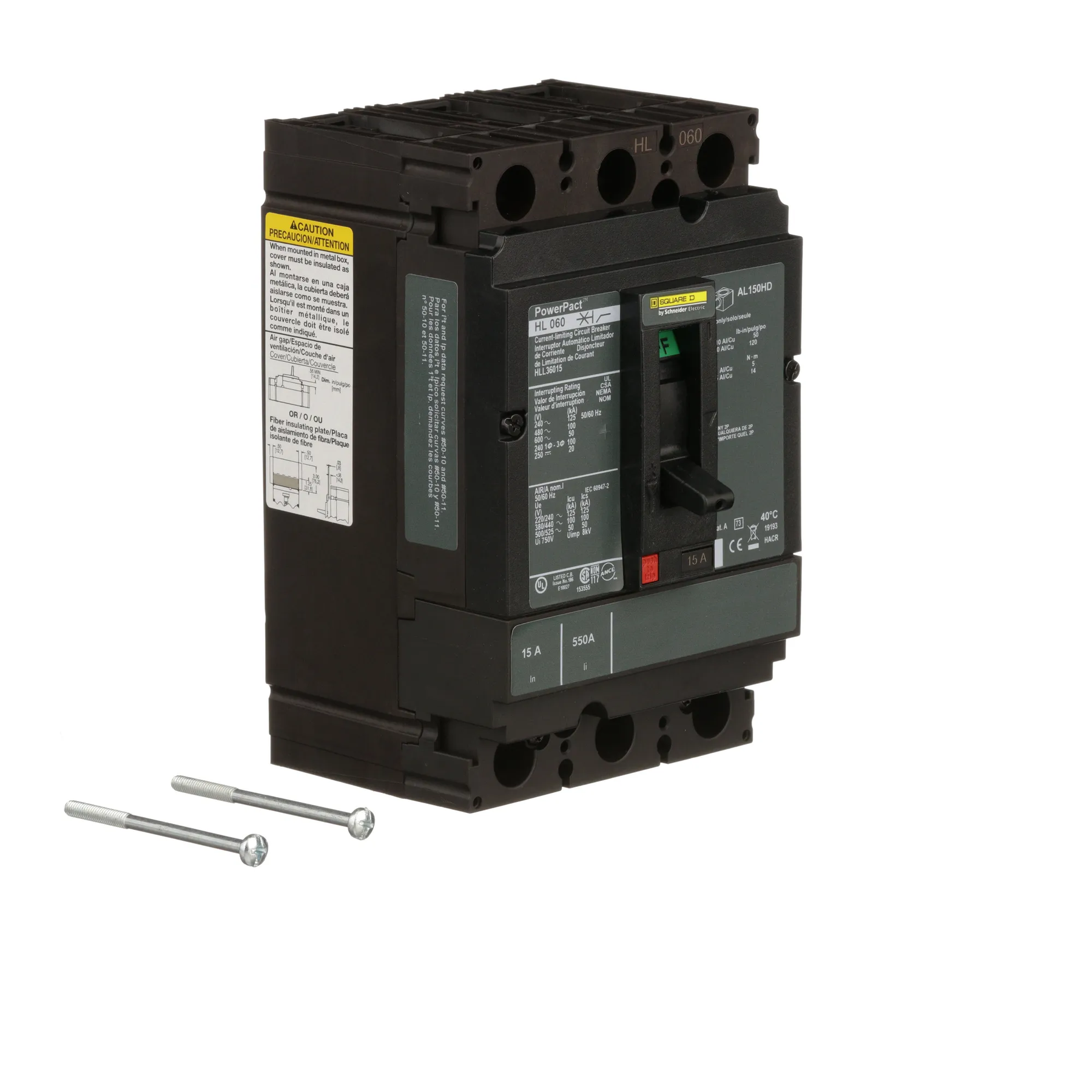

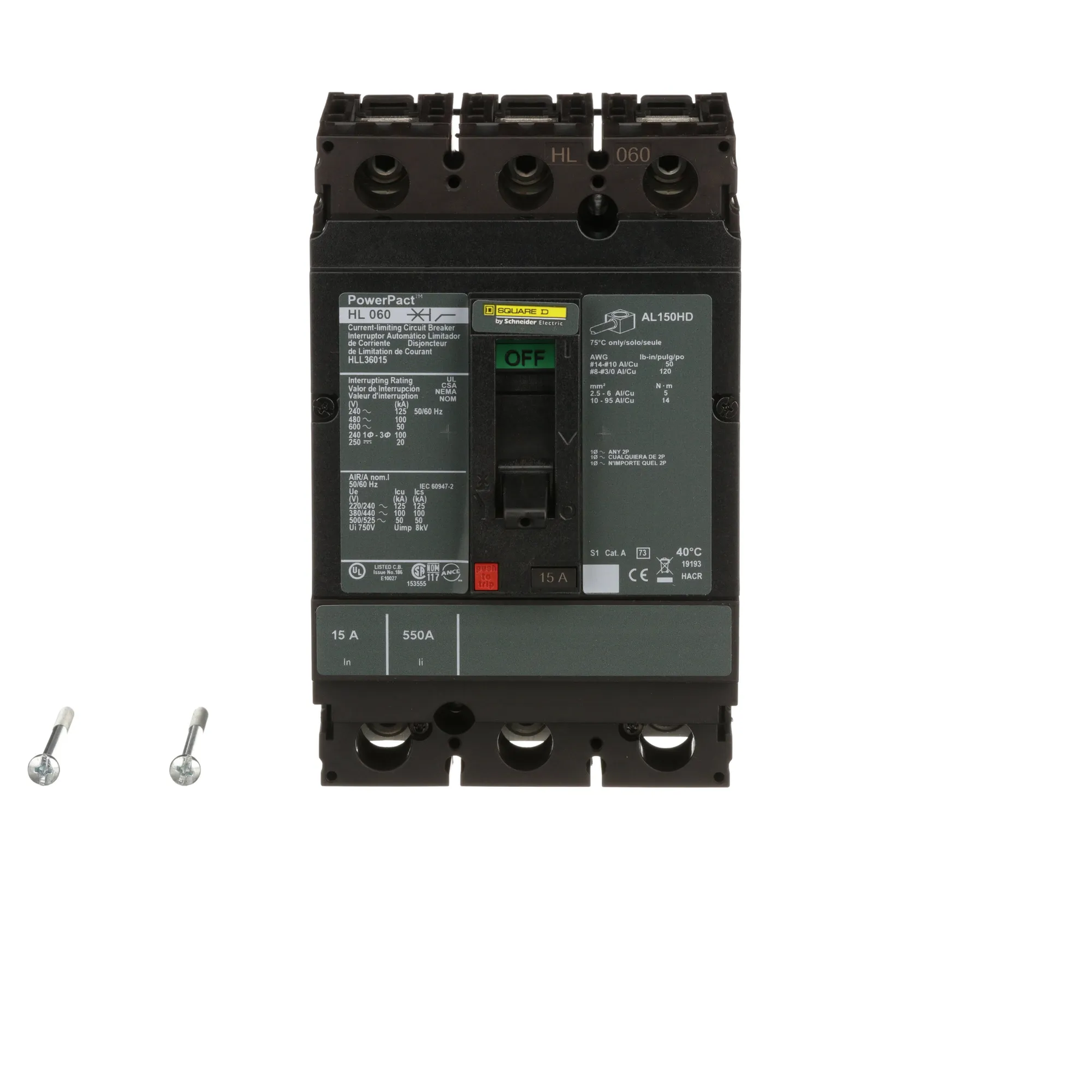

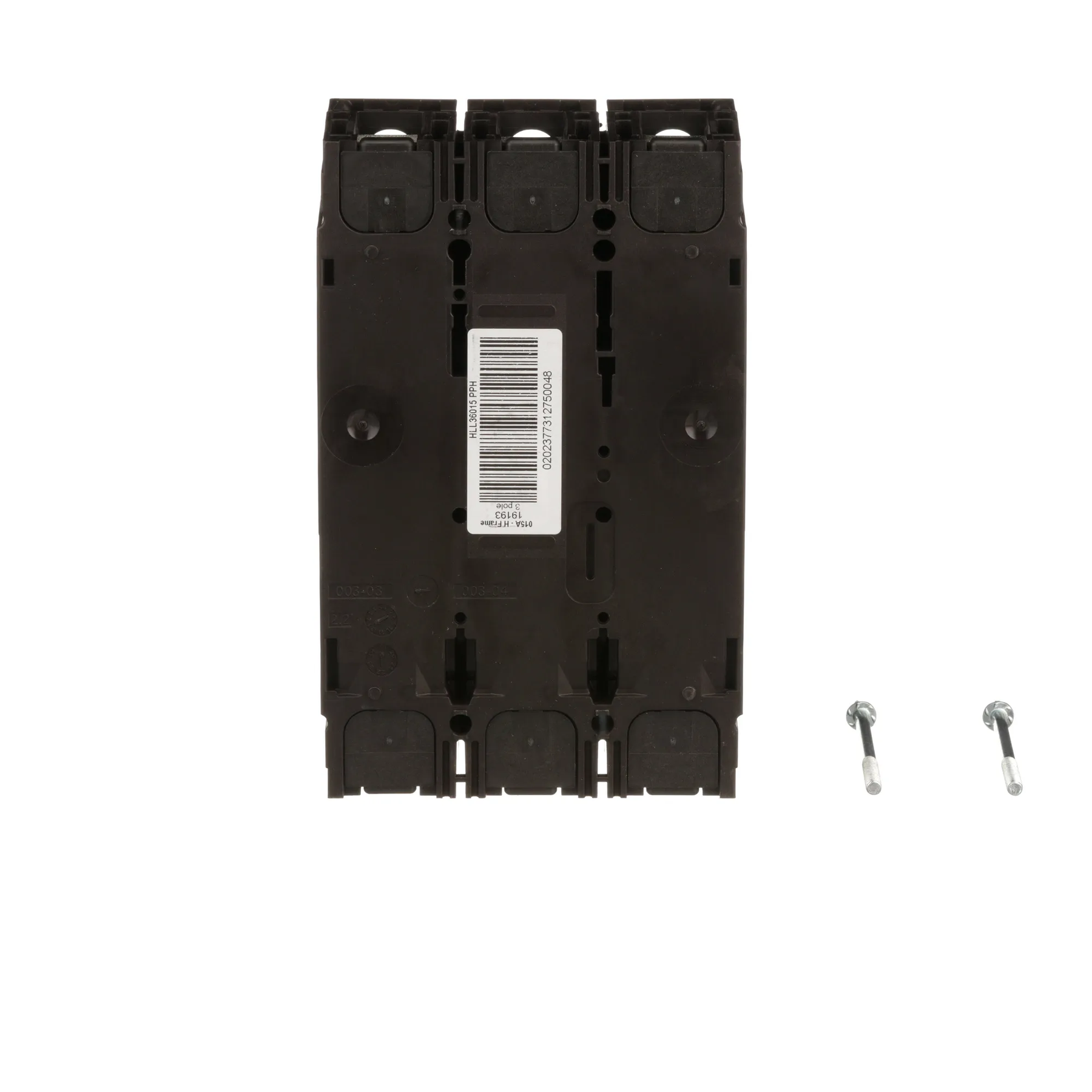

Square D HLL36015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 15A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.112 lb. This thermal-magnetic breaker is constructed with lug terminals for feed-thru connection and is engineered to comply with UL, CSA, NEMA, NOM, and IEC 60947-2 standards. Its 100kA interrupting capacity at 480V and three-pole design make it suitable for protecting three-phase motor circuits and panelboards in demanding commercial and industrial environments.

Key Features & Specifications
  • Type: HLL Series Molded Case Circuit Breaker, Thermal-Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 15A

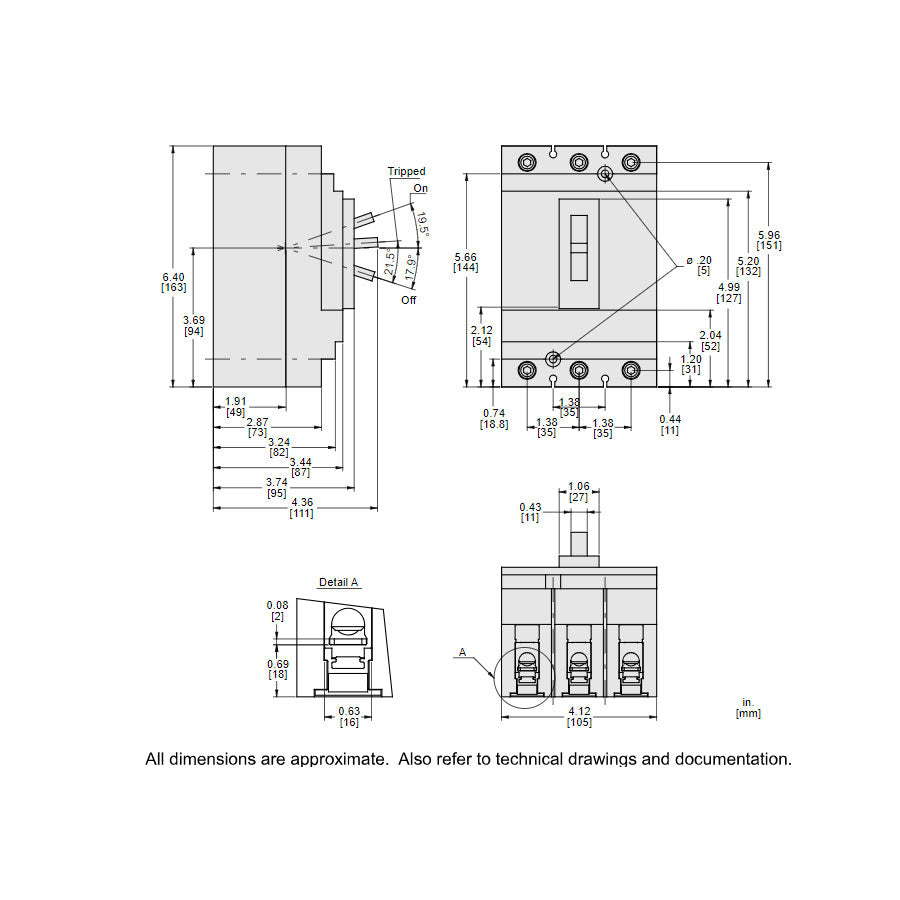

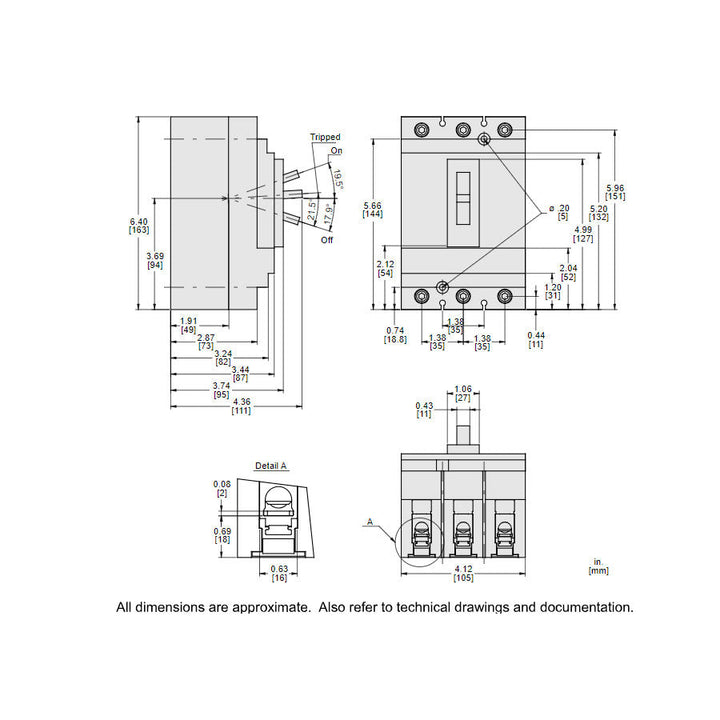

  • Dimensions: 6.4 in H (163 mm) x 4.09 in W (104 mm) x 3.4 in D (86 mm)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial three-phase power distribution, motor circuit protection, panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Phase: 3
  • AIC Rating: 100kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: H
  • Terminal Connection: Lug
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901598879
  • GTIN: 00785901598879
