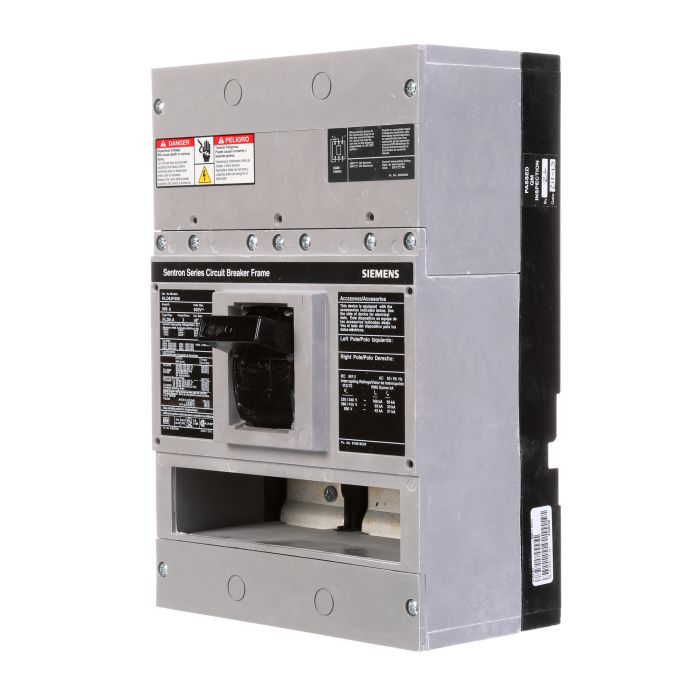

Siemens HLD63F600 - Molded Case Breaker 600A 65kA@480V
Siemens HLD63F600 - Molded Case Breaker 600A 65kA@480V

Siemens HLD63F600 - Molded Case Breaker 600A 65kA@480V

Siemens
Price
Save $19,629.93
/
Condition
  • Low stock - 4 items left
  • Backordered, shipping soon
Call for Price
Siemens HLD63F600 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 600V AC voltage rating and a 600A continuous current rating, housed within a robust LD frame with a bolt-on connection for secure installation. This thermal magnetic breaker offers both long-time and instantaneous trip functions and is constructed to accept copper conductors from AWG 3/0 to 500 KCMIL or aluminum from AWG 4/0 to 500 KCMIL. It complies with relevant industry standards and is typically applied in panelboards, switchboards, and industrial control panels where a 65kA interrupting capacity at 480V is required for system protection.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long Time and Instantaneous Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 600A
  • Frame Size: LD Frame
  • Poles: 3
  • Connection: Bolt-On
  • Phase: 3-Phase
  • AIC Rating: 65kA @ 480V
  • Wire Size: AWG 3/0 to 500 KCMIL (Copper), AWG 4/0 to 500 KCMIL (Aluminum)
  • Weight: 15.801 lb
  • Additional Info: Frame only; trip unit and lugs not included.


Product Identification
  • UPC: 783643214118
  • GTIN: 00783643214118
