Square D
Price
Save $4,023.09
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

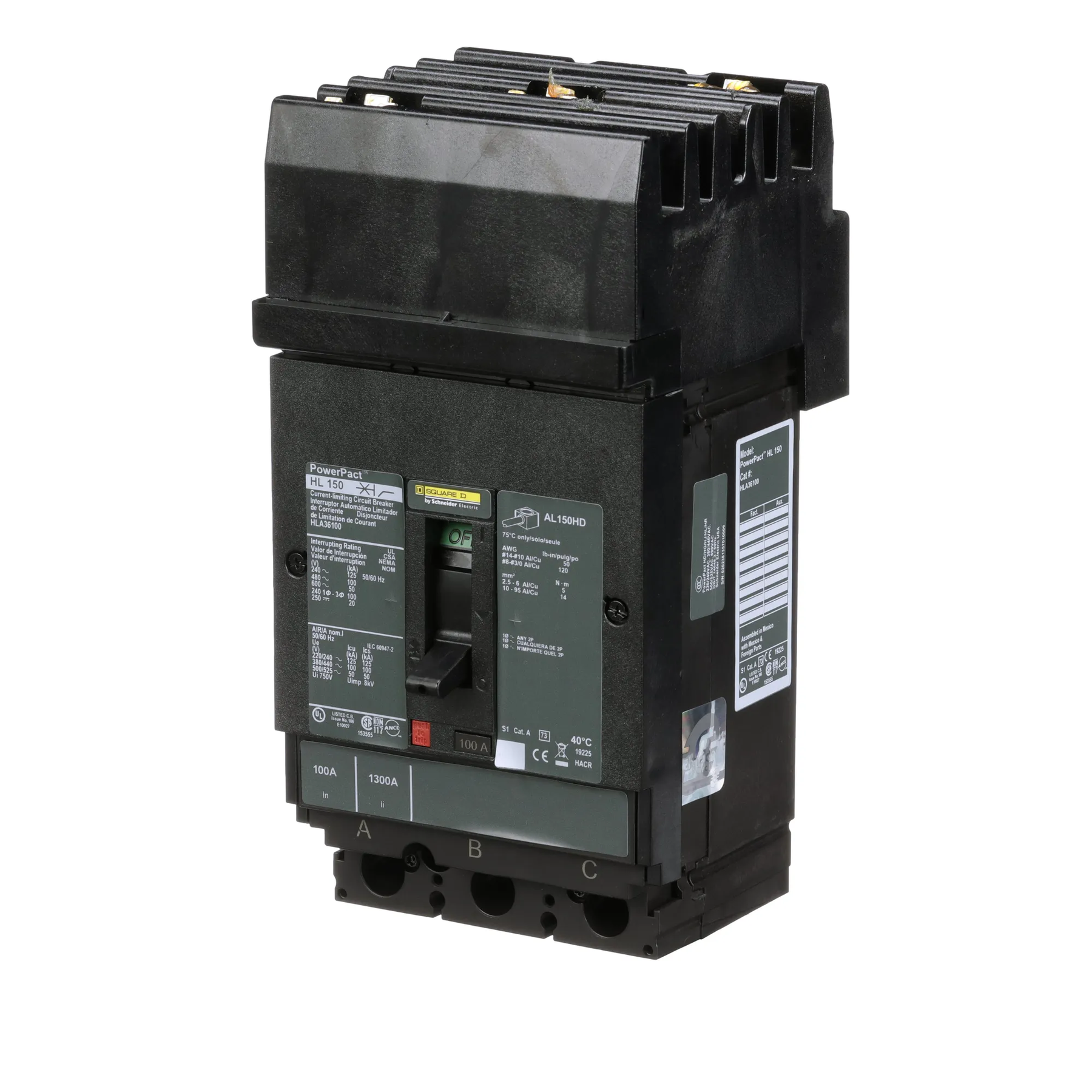

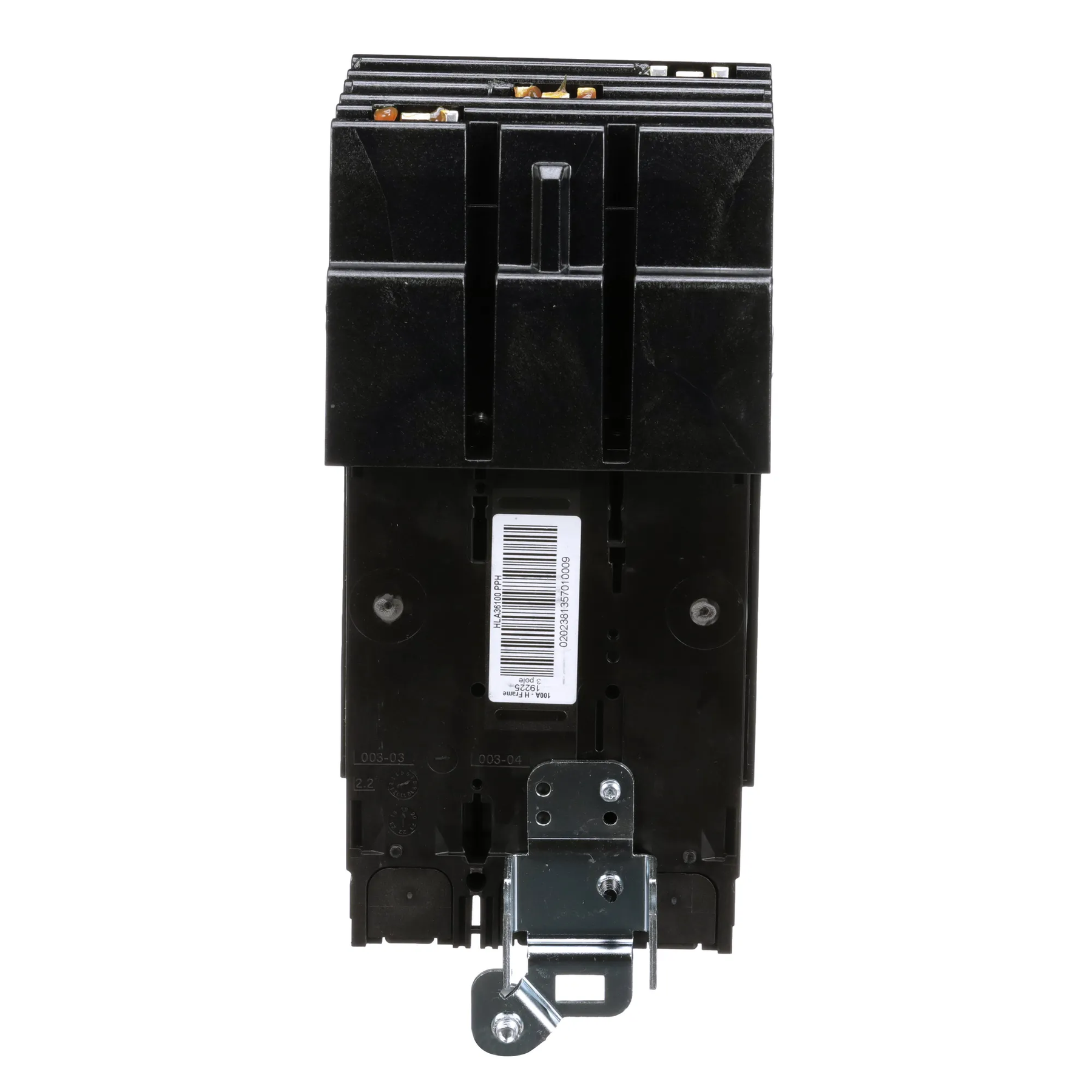

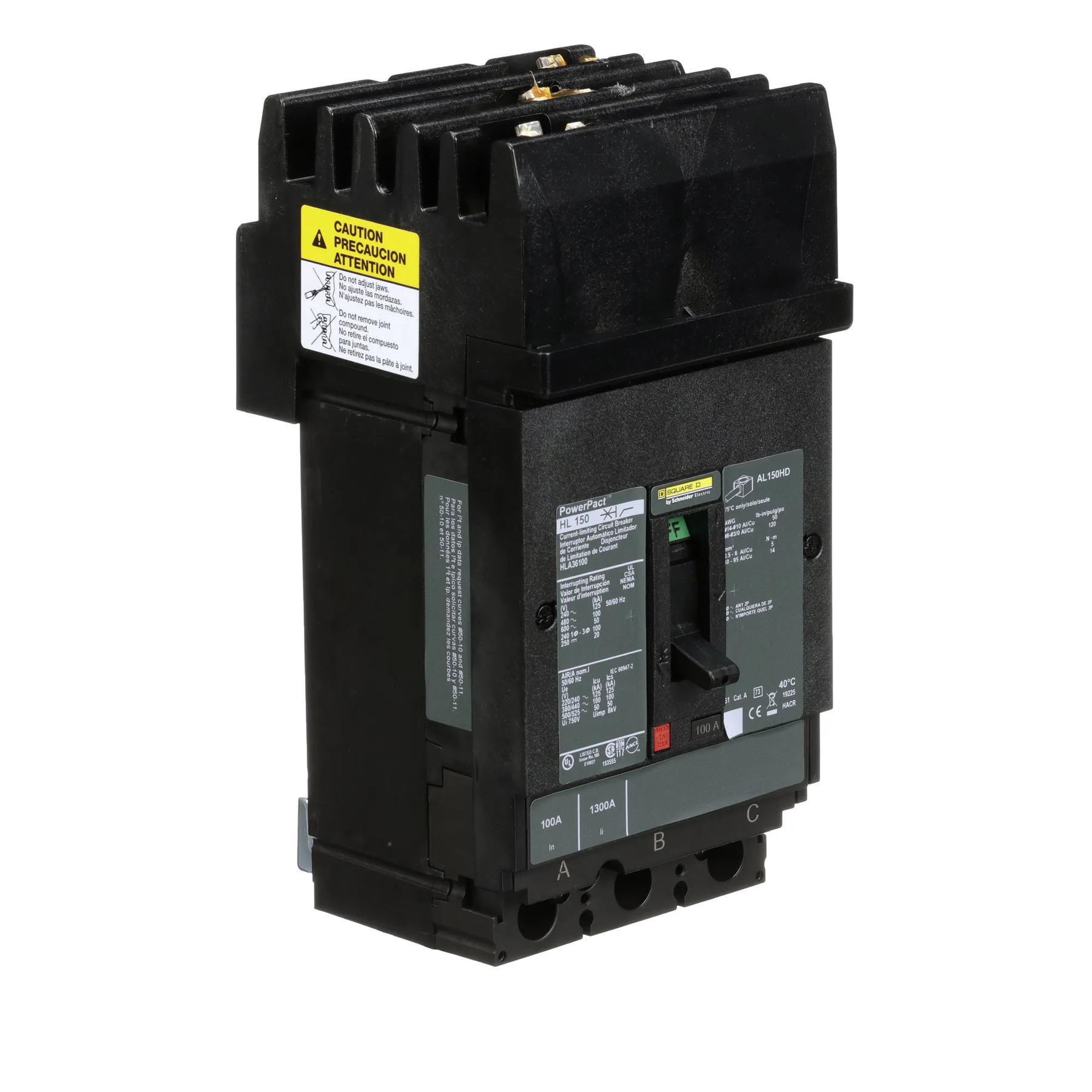

The Square D HLA36150 is a Powerpact H-frame molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for three-phase industrial power distribution systems. It features a 150A current rating and a 600V AC voltage rating, with a compact physical footprint of 163 mm H x 104 mm W x 86 mm D and a weight of 5.842 lb. The unit utilizes a thermal-magnetic trip mechanism for long-time and instantaneous (LI) protection, offers a 100kA interrupting capacity at 480V, and is constructed for operation in ambient temperatures from -2°C to 70°C. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring suitability for a wide range of commercial and industrial panelboard and switchboard applications where robust protection is required.

Key Features & Specifications
  • Type: HLA Series, Molded Case, Thermal-Magnetic Protection, I-Line Style Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: 28-158 °F (-2-70 °C)
  • Phase: 3
  • AIC rating: 100kA@480V
  • Connection: I-Line, Lug
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: H
  • Wire Size: AWG 14...AWG 3/0 aluminium/copper terminal
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • MCM Size: Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 3/0 AWG (Cu/Al)
  • Terminal Connection: I-Line, Lug
  • Family: Powerpact
  • Country of Origin: United States
  • Weight: 5.842 lb


Product Identification
  • UPC: 785901422334
  • GTIN: 00785901422334
