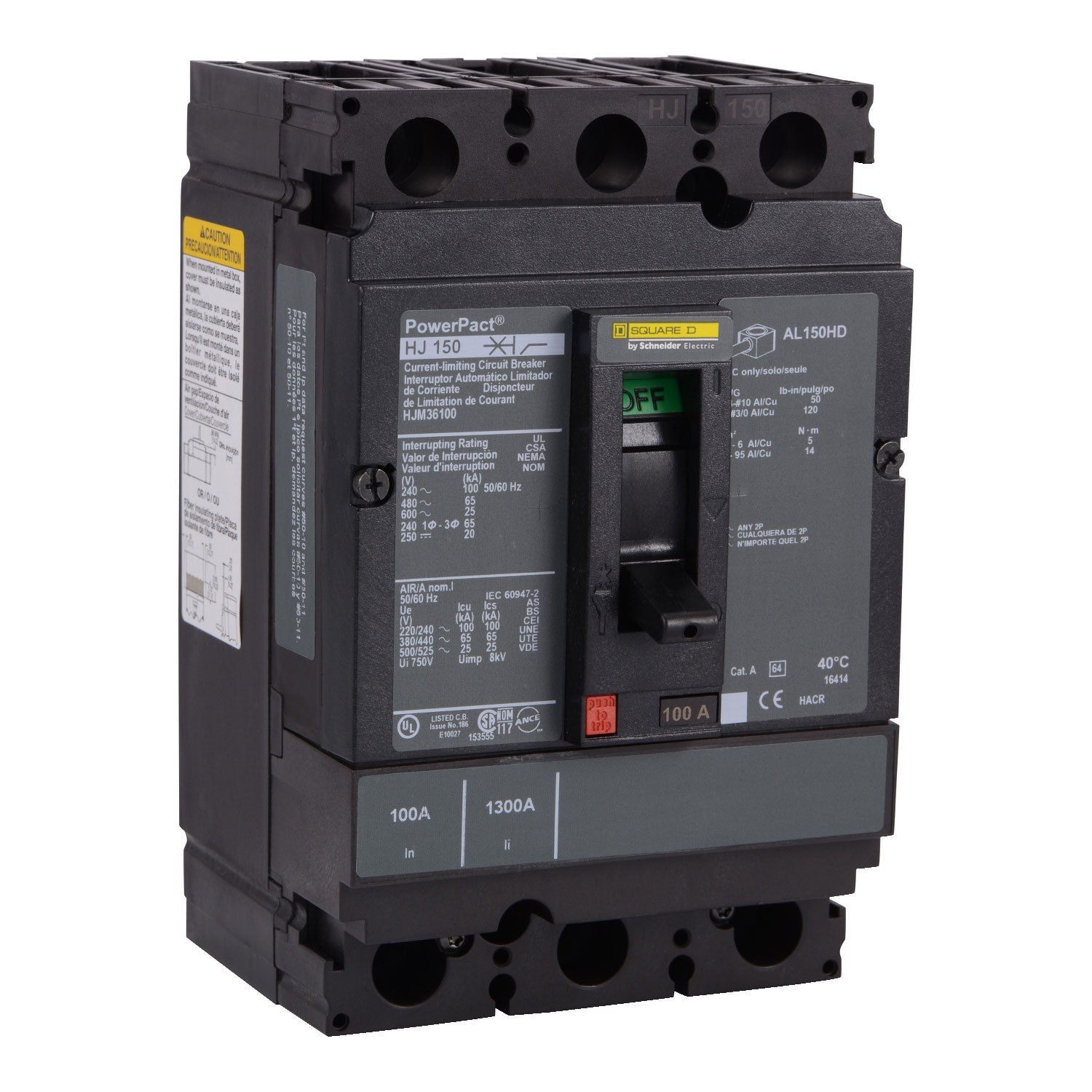

Square D HJM36100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 5 lb. The breaker utilizes a thermal-magnetic trip unit for both long-time and instantaneous protection, is constructed with bolt-on connections for secure installation, and complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards. Its 65kA interrupting capacity at 480V and an operational temperature range of -25°C to 70°C make it suitable for a variety of demanding industrial and commercial applications, including panelboards and switchgear.

Key Features & Specifications
  • Type: HJM Series Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchgear
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous
  • Frame Size: H Frame
  • AIC Rating: 65kA @ 480V
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: AWG 14 to AWG 3/0 (Aluminium/Copper Terminal)
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico
  • Weight: 5 lb


Product Identification
  • UPC: 785901636663
  • GTIN: 00785901636663
