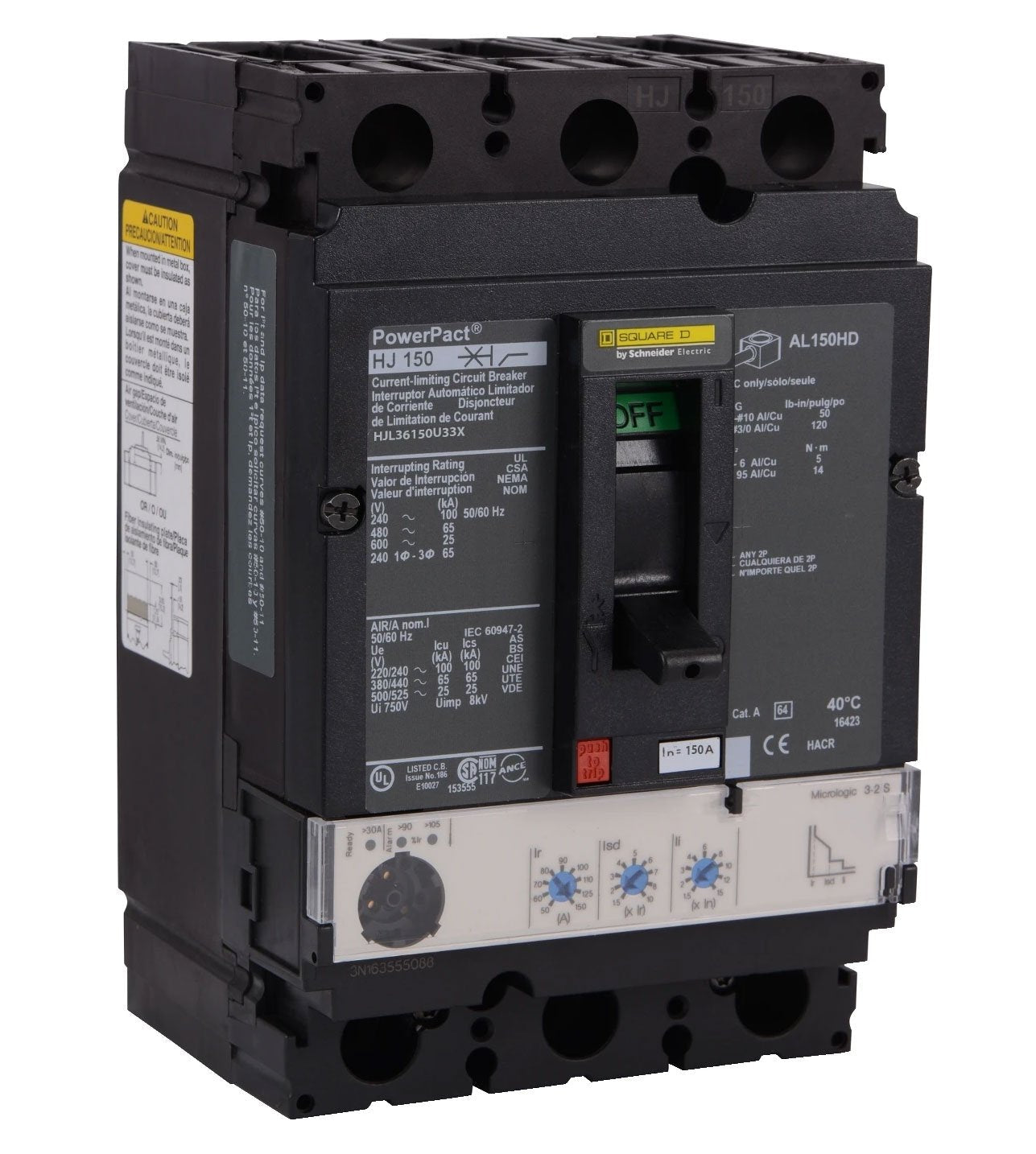

Square D HJL36150U33X is a molded case circuit breaker designed for providing comprehensive overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 150A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 5 lb. The breaker utilizes solid-state LSI (Long-Time, Short-Time, Instantaneous) protection technology and is certified to UL, CSA, NOM, and IEC 60947-2 standards for reliable operation in temperatures from -2 to 70 °C. Its feed-thru lug connection and compatibility with wire sizes from 14 AWG to 3/0 AWG make it suitable for main feeder and branch circuit protection in industrial panels and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Solid-State Protection (LSI)
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Main Feeders, Branch Circuits
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Poles: 3
  • Phase: 3
  • AIC Rating: 65kA @ 480V
  • Connection: Feed-Thru
  • Terminal Connection: Lug
  • Protection: Overcurrent, Short-Circuit
  • Functions: Long-Time, Short-Time, Instantaneous (LSI)
  • Frame Size: H
  • Trip Type: Solid State
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Temp Rating: 28-158 °F (-2-70 °C)
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: United States


Product Identification
  • UPC: 785901324508
  • GTIN: 00785901324508
