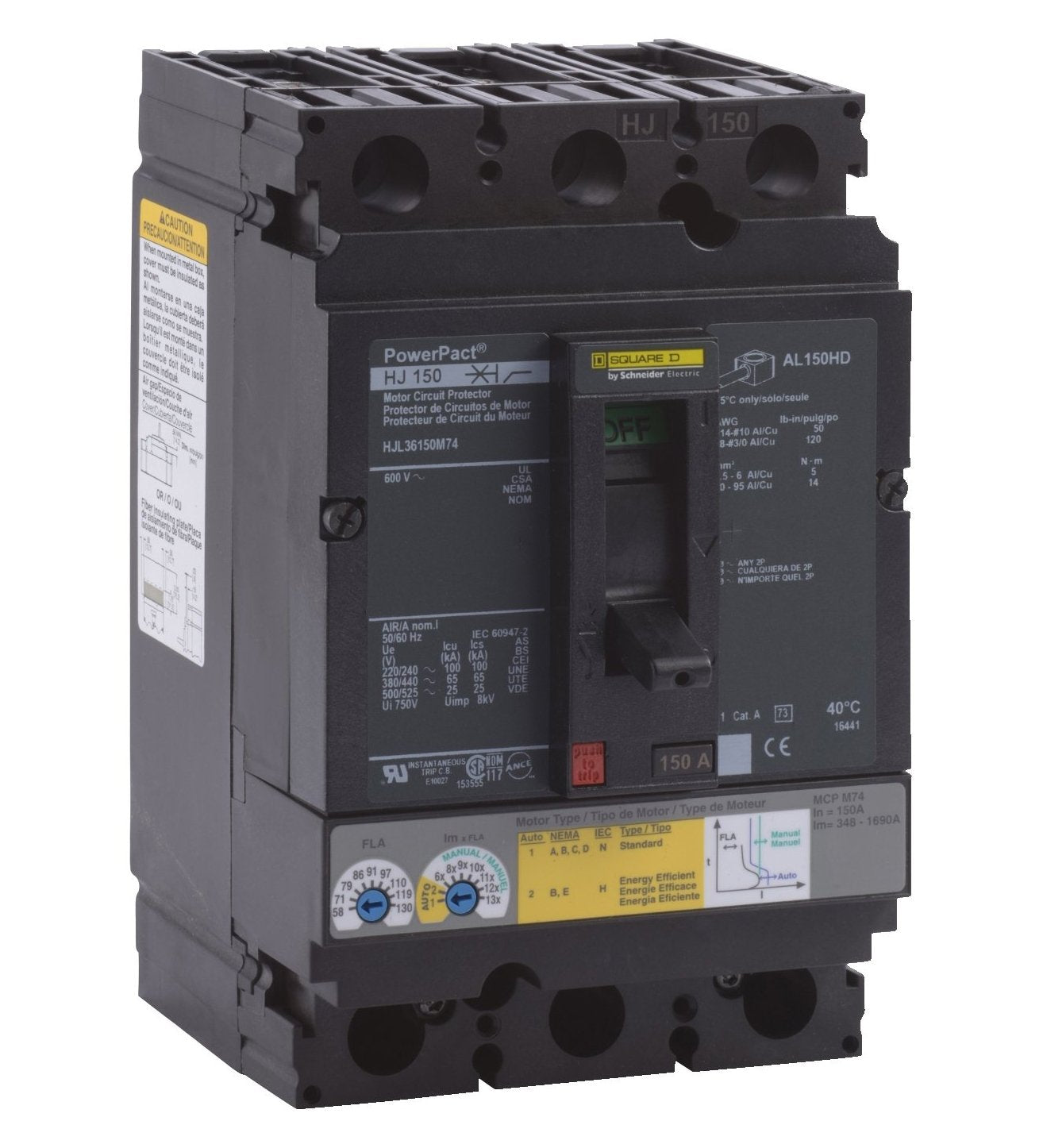

Square D HJL36150M74 - Molded Case Circuit Breaker 150A 600V 3P
Square D HJL36150M74 - Molded Case Circuit Breaker 150A 600V 3P

Square D HJL36150M74 - Molded Case Circuit Breaker 150A 600V 3P

Square D
Price
Save $910.03
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HJL36150M74 is a molded case circuit breaker designed for motor circuit protection in industrial applications. It provides magnetic-only protection with long-time and instantaneous trip functions, rated for 150A at 600V in a three-phase configuration. The breaker features a compact J-frame construction measuring 163 mm x 104 mm x 86 mm (HxWxD) with feed-thru lug terminals compatible with wire sizes from 14 AWG to 3/0 AWG. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is rated for operation from -25 to 70 °C. This unit is typically applied in industrial control panels and motor starter combinations where a 65kA interrupting capacity at 480V is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Motor Circuit Protector (MCP)
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial motor protection, control panels
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • AIC Rating: 65kA @ 480V
  • Connection: Feed-Thru
  • Protection: Magnetic Only
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: J
  • Trip Type: Magnetic
  • Breaker Type: Motor Circuit Protector
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Terminal Connection: Lug
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)
  • Certification: UL, CSA, NOM
  • Weight: 4.32 lb
  • Country of Origin: United States


Product Identification
  • UPC: 785901486602
  • GTIN: 00785901486602
