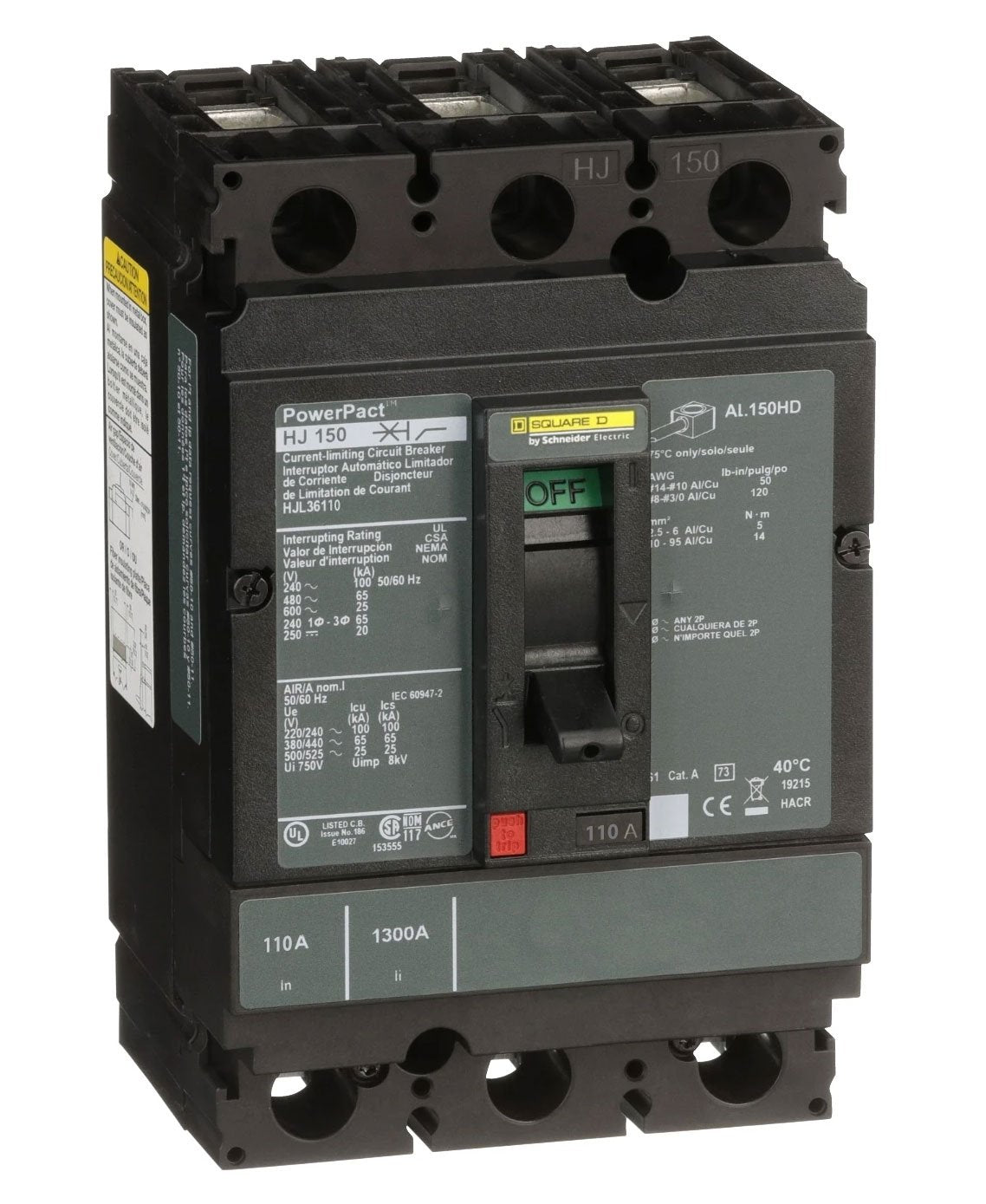

Square D HJL36110 - Molded Case Circuit Breaker 110A 600V 3P
Square D HJL36110 - Molded Case Circuit Breaker 110A 600V 3P

Square D HJL36110 - Molded Case Circuit Breaker 110A 600V 3P

Square D
Price
Save $2,898.75
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HJL36110 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 110A current rating and a 600V voltage rating, housed within a compact H-frame construction measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.169 lb. The breaker is built to comply with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring robust performance. Its thermal-magnetic protection with long-time and instantaneous (LI) tripping functions makes it suitable for main feeder and branch circuit applications in commercial and industrial facilities.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Feed-Thru Connection
  • Voltage Rating: 600V AC
  • Current Rating: 110A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, main feeders, branch circuits
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • AIC Rating: 65kA at 480V
  • Connection: Lug Terminal
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: H
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • Certification: UL, CSA, NOM
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901623229
  • GTIN: 00785901623229
