Square D
Price
Save $1,002.29
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

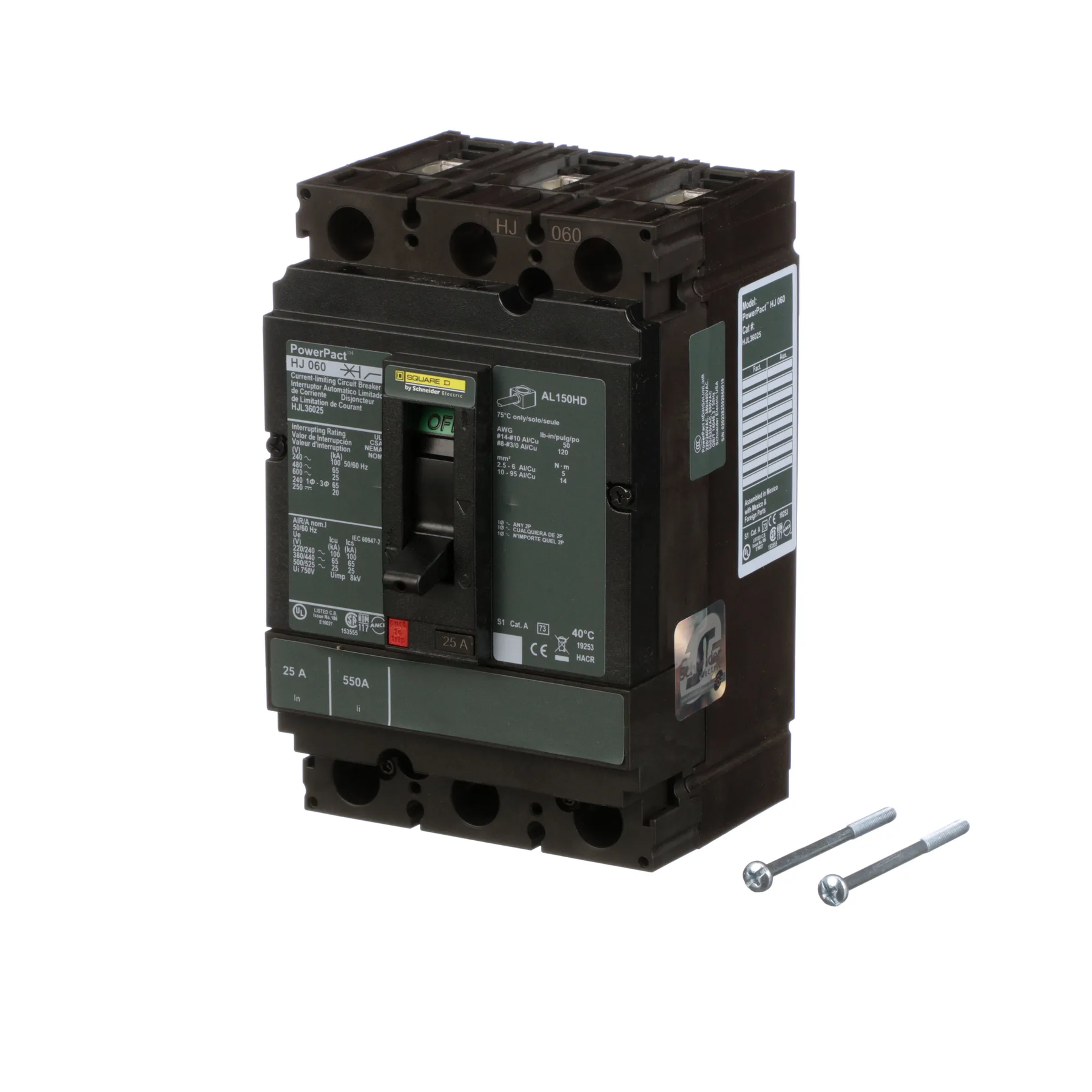

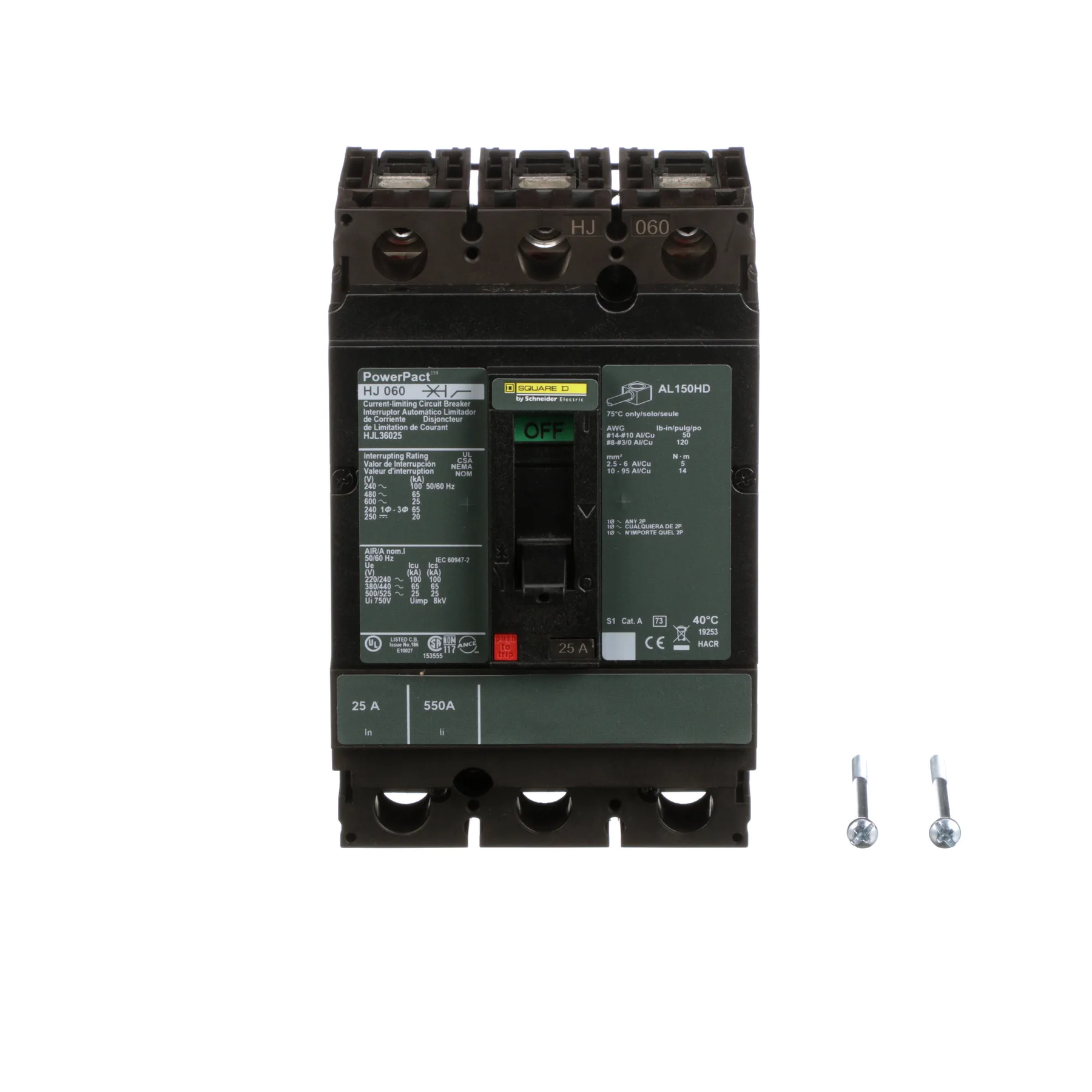

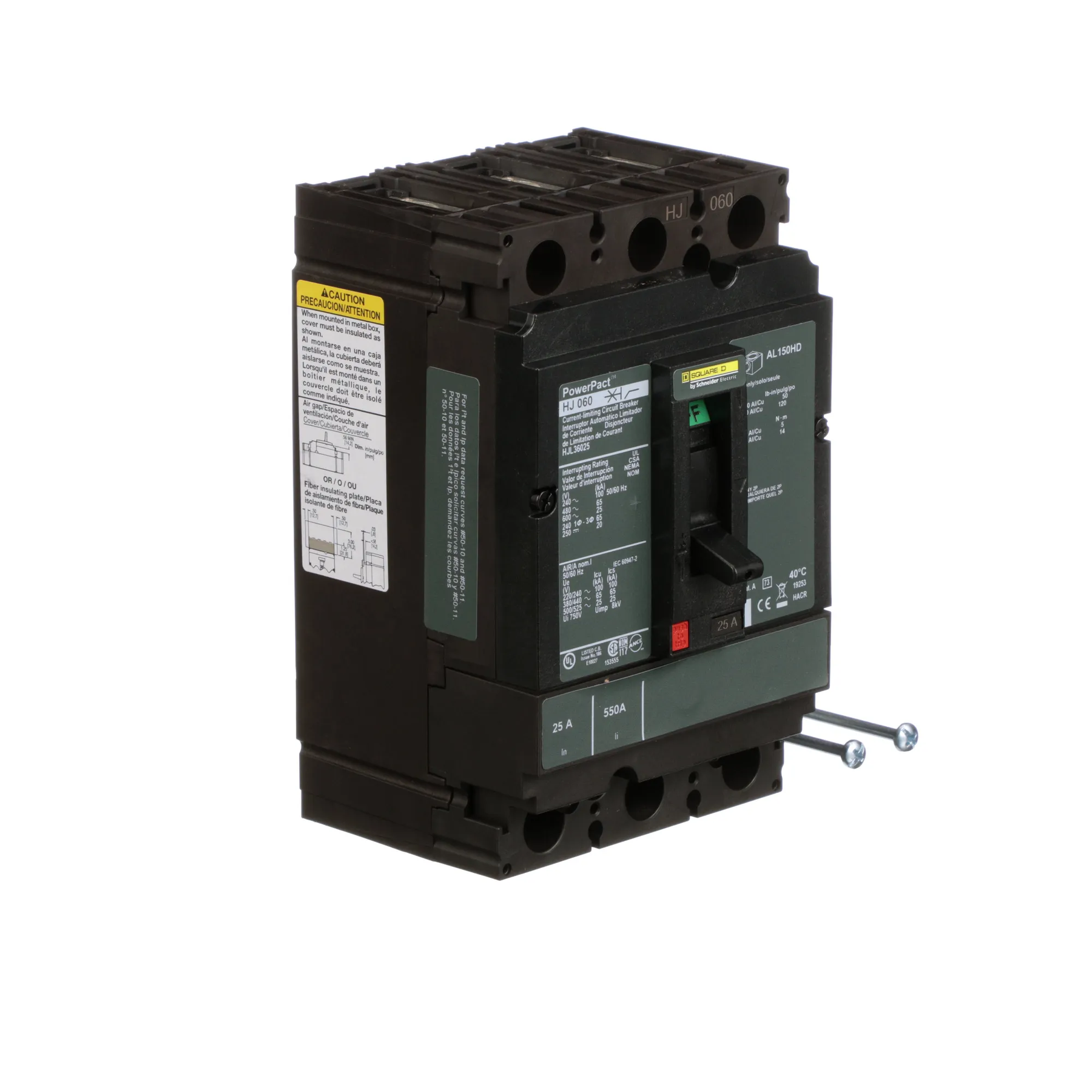

Square D HJL36025 is a three-pole molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 25A current rating and a 600V voltage rating, housed within a compact H-frame construction measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.06 lb. The breaker is engineered for compliance with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring robust performance. Its thermal-magnetic trip unit provides long-time and instantaneous protection, making it suitable for a wide range of commercial and industrial applications, including panelboards and switchboards, within an operating temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Three-pole, thermal-magnetic, molded case circuit breaker with feed-thru connection and lug terminals
  • Voltage Rating: 600V AC
  • Current Rating: 25A
  • Frame Size: H
  • AIC Rating: 65kA at 480V AC
  • Phase: 3
  • Protection: Thermal-magnetic with long-time and instantaneous functions
  • Connection: Feed-thru
  • Terminal Connection: Lug
  • Wire Size Range: 14 AWG to 3/0 AWG (copper or aluminum)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)

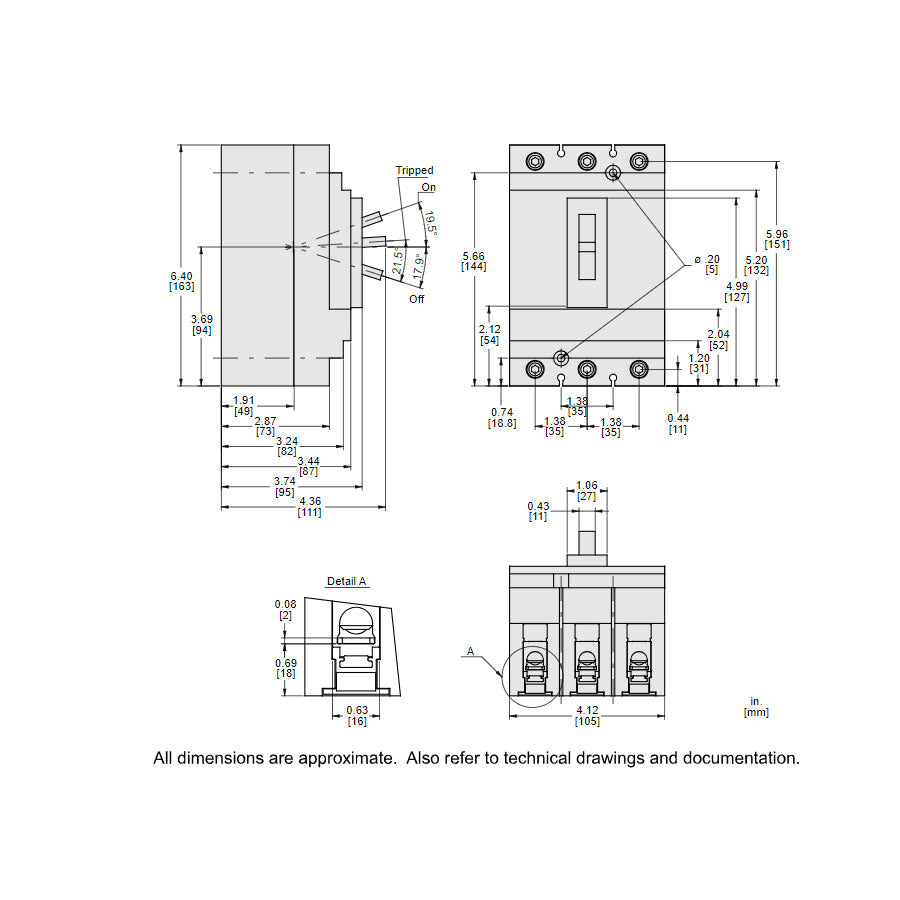

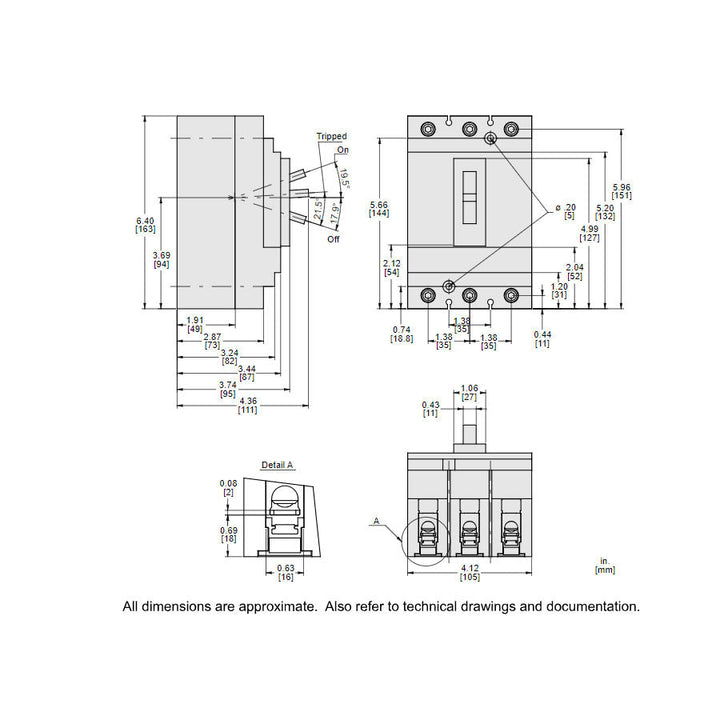

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4.06 lb


Product Identification
  • UPC: 785901706717
  • GTIN: 00785901706717
