Square D HJA36150SA - Molded Case Breaker 150A 600V 3P
Square D HJA36150SA - Molded Case Breaker 150A 600V 3P

Square D HJA36150SA - Molded Case Breaker 150A 600V 3P

Square D
Price
Save $4,137.28
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

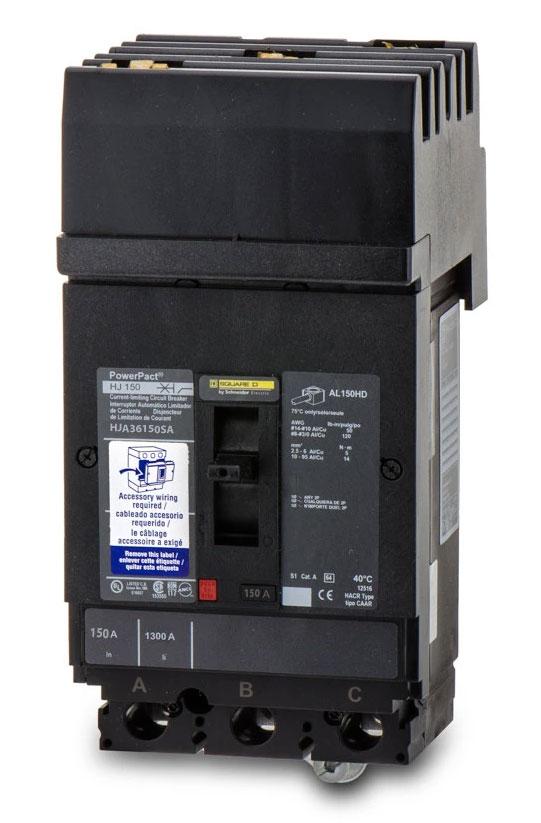

Square D HJA36150SA is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 150A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (H x W x D) and weighing 6.001 lb. The breaker is constructed for robust performance, utilizing a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions and an I-Line style plug-in connection with lug terminals compatible with wire sizes from 14 AWG to 3/0 AWG. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is rated for an interrupting capacity of 65kA at 480V AC, with an operational temperature range of -25 to 70 °C. This unit is typically applied in industrial panelboards and switchboards and includes an integrated 120V AC shunt trip for remote tripping capability.

Key Features & Specifications
  • Type: HJA Series Molded Case Circuit Breaker, Thermal-Magnetic Trip, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Coil Voltage Maximum: 120V AC (Shunt Trip)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: As Product Dimensions
  • Phase: 3
  • Voltage: 600V AC
  • Amperage: 150A
  • AIC rating: 65kA @ 480V AC
  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: H
  • Trip Type: Thermal-Magnetic
  • Panel Type: Compatible with I-Line Panelboards
  • Breaker Type: Molded Case
  • Control Voltage Minimum: 120V AC (Shunt Trip)
  • Control Voltage Maximum: 120V AC (Shunt Trip)
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Metal Type: Not Specified
  • Panel Style: I-Line
  • Bus Type: I-Line
  • Fuse Class: Not Applicable
  • Insulation Temperature: Standard for Molded Case
  • Inductance: Not Specified
  • Impedance: Not Specified
  • Barrels: Not Applicable
  • Class Rating: Not Specified
  • Diameter: Not Applicable
  • Velocity: Not Applicable
  • Clip Center: Not Applicable
  • Class: Not Specified
  • Mounting: Plug-In
  • Hz: 50/60 Hz
  • Coil Material: Not Specified
  • Horse Power: Not Specified
  • Aux Contacts: Not Specified
  • CPT: Not Specified
  • Full Load Amps: Not Specified
  • Dist Voltage: 600V AC
  • Bucket Size: Not Applicable
  • Bucket Style: Not Applicable
  • Bucket Type: Not Applicable
  • Full Load Amp Maximum: 150A
  • Full Load Amp Minimum: Not Specified
  • Enclosure: Molded Case
  • Relay Style: Not Applicable
  • Coil Voltage Minimum: 120V AC (Shunt Trip)
  • Wire: Copper or Aluminium
  • Amperage Maximum: 150A
  • Amperage Minimum: Not Specified
  • Nema Rating: Standard
  • Switch Style: Circuit Breaker
  • Wire Size: 14 AWG to 3/0 AWG
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: Lug
  • Frequency Rating: 50/60 Hz
  • Phase Connection: ABC
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Compatible Frames: H-Frame I-Line
  • Installation Type: Plug-In
  • Item QTY: 1
  • Nema Starter Size: Not Applicable
  • Breaker Frame: H
  • Current Rating: 150A
  • Reverse Standoff Voltage: Not Applicable
  • Watts: Not Specified
  • Peak Pulse Current: Not Applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not Applicable
  • Breakdown Voltage (VBR@IT) (V): Not Applicable
  • Polarity: Not Applicable
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not Applicable
  • On-State Current: Not Applicable


Product Identification
  • UPC: 785901699323
  • GTIN: 00785901699323
