Square D HJA36100SA - 100A 3-Pole Molded Case Circuit Breaker
Square D HJA36100SA - 100A 3-Pole Molded Case Circuit Breaker

Square D HJA36100SA - 100A 3-Pole Molded Case Circuit Breaker

Square D
Price
Save $1,157.47
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

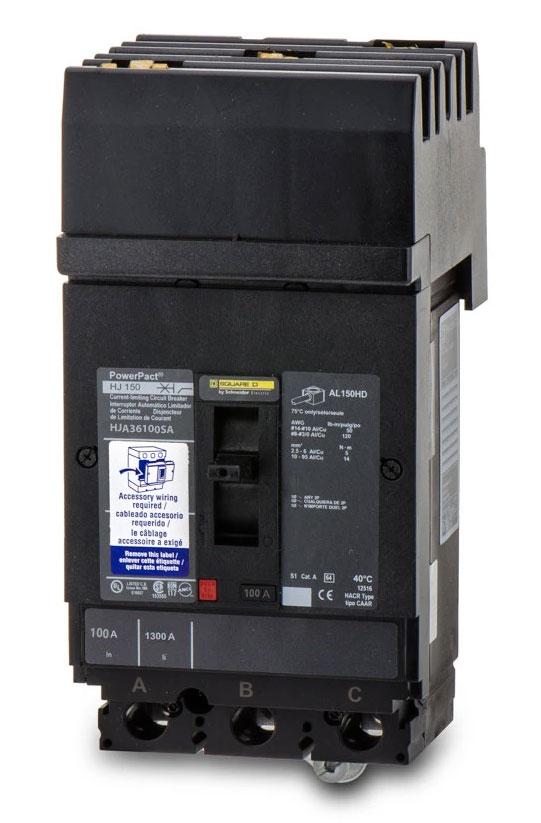

Square D HJA36100SA is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact H-frame design measuring 163 mm H x 104 mm W x 86 mm D and weighing 6.001 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, offers a 65kA interrupting capacity at 480V, and is factory-equipped with a 120V AC shunt trip. It is constructed for I-Line style plug-in connection, accepts wire sizes from AWG 14 to 3/0, and complies with UL, CSA, NEMA, and IEC 60947-2 standards for operation in temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: HJA Series, Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Coil Voltage Maximum: 120V AC (Shunt Trip)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: As Product Dimensions
  • Phase: 3-Phase
  • Voltage: 600V AC
  • Amperage: 100A
  • AIC rating: 65kA @ 480V AC
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: H Frame
  • Trip Type: Thermal-Magnetic
  • Panel Type: Compatible with I-Line Panelboards
  • Breaker Type: Molded Case
  • Control Voltage Minimum: N/A for Shunt Trip
  • Control Voltage Maximum: 120V AC
  • Wire Size: AWG 14 to AWG 3/0 (Aluminium/Copper Terminal)
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Plug-In
  • Terminal Connection: Screw Terminal
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Standards: UL 489, CSA C22.2 No. 5, IEC 60947-2
  • Compatible Frames: H-Frame
  • Installation Type: Plug-In Mount
  • Breaker Frame: H Frame
  • Current Rating: 100A
  • Operating Temperature Maximum Celsius: 70°C


Product Identification
  • UPC: 785901428473
  • GTIN: 00785901428473
