Square D
Price
Save $1,385.23
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HJA36070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 70A current rating and a 600V voltage rating, housed within a compact H-frame construction measuring 163 mm x 104 mm x 86 mm (6.4 in x 4.09 in x 3.4 in) and weighing 5.45 lb. The breaker complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is built for operation in temperatures from -25°C to 70°C (-13°F to 158°F). Its typical applications include protecting feeders and branch circuits in industrial panels and switchboards, utilizing an I-Line style plug-in connection for simplified installation.

Key Features & Specifications
  • Type: HJA Molded Case Circuit Breaker, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 70A

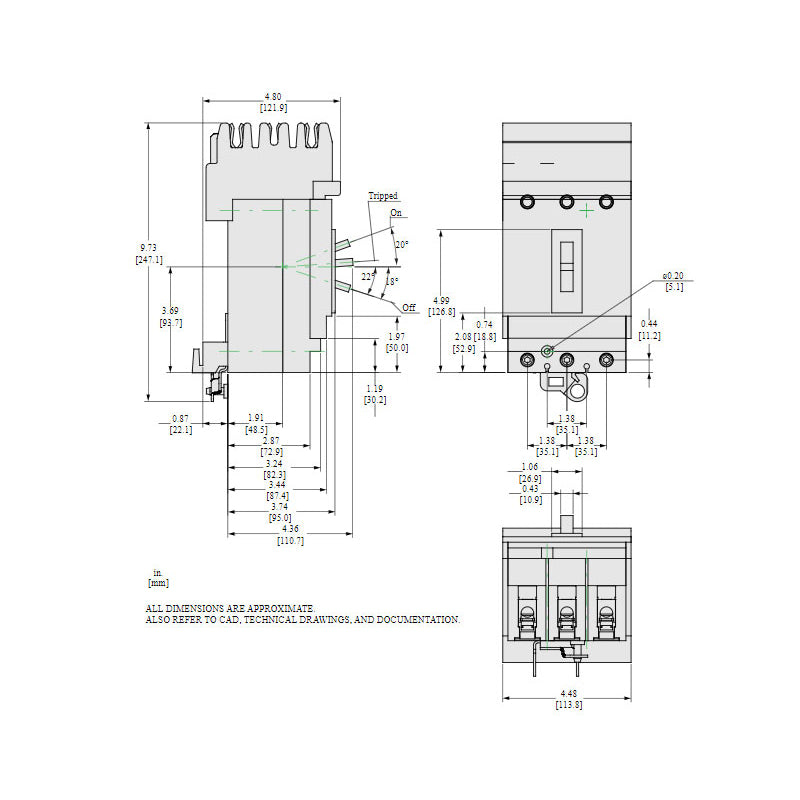

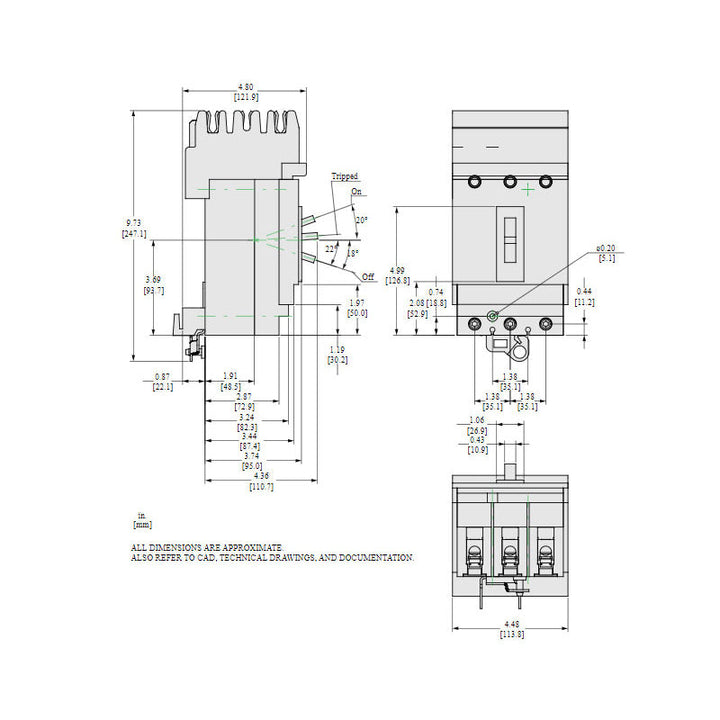

  • Dimensions: 163 mm (H) x 104 mm (W) x 86 mm (D) / 6.4 in x 4.09 in x 3.4 in
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution for feeders and branch circuits
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 65kA at 480V
  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: H
  • Wire Size: Accepts AWG 14 to 3/0 aluminium or copper conductors
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Weight: 5.45 lb
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901700661
  • GTIN: 00785901700661
