Square D
Price
Save $1,352.72
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

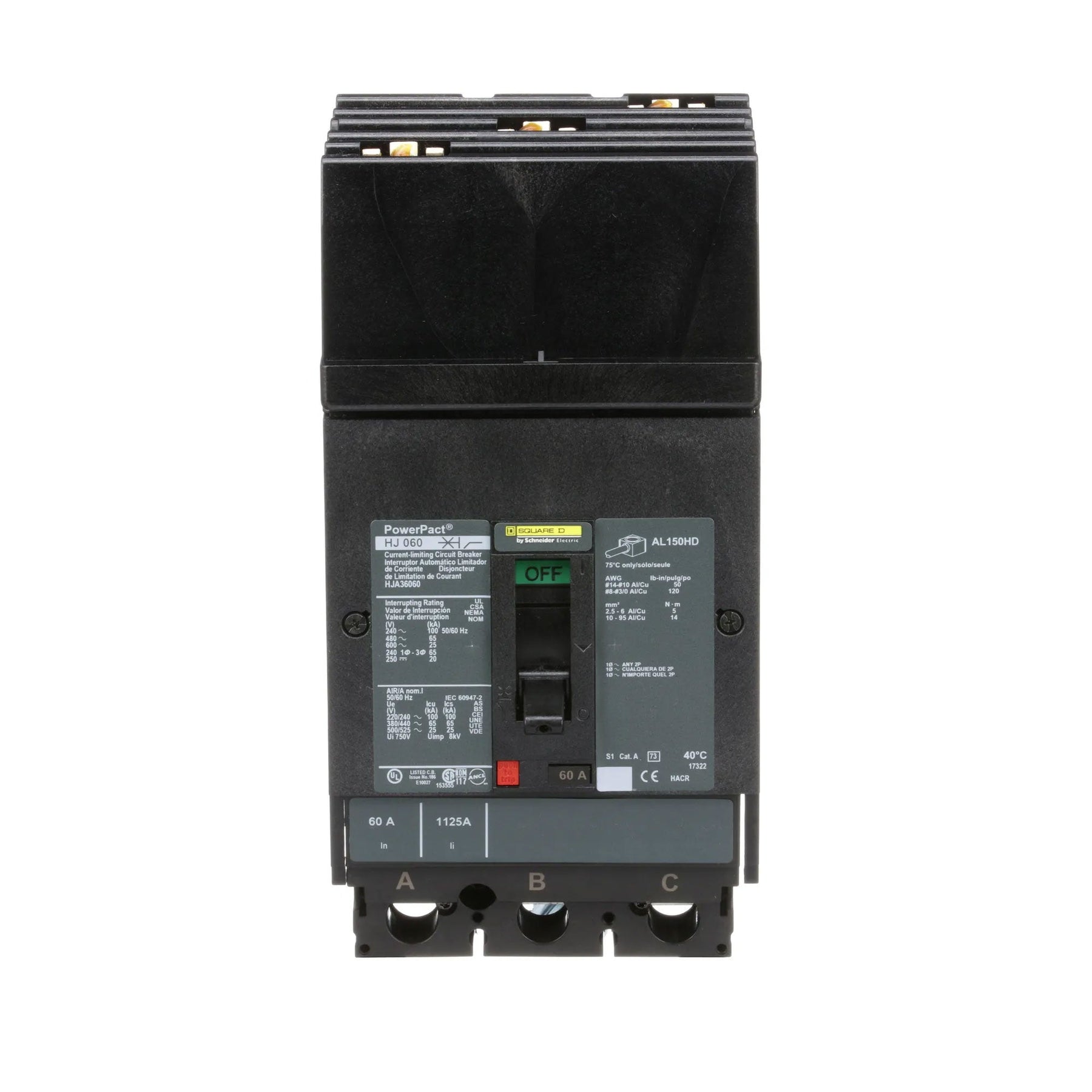

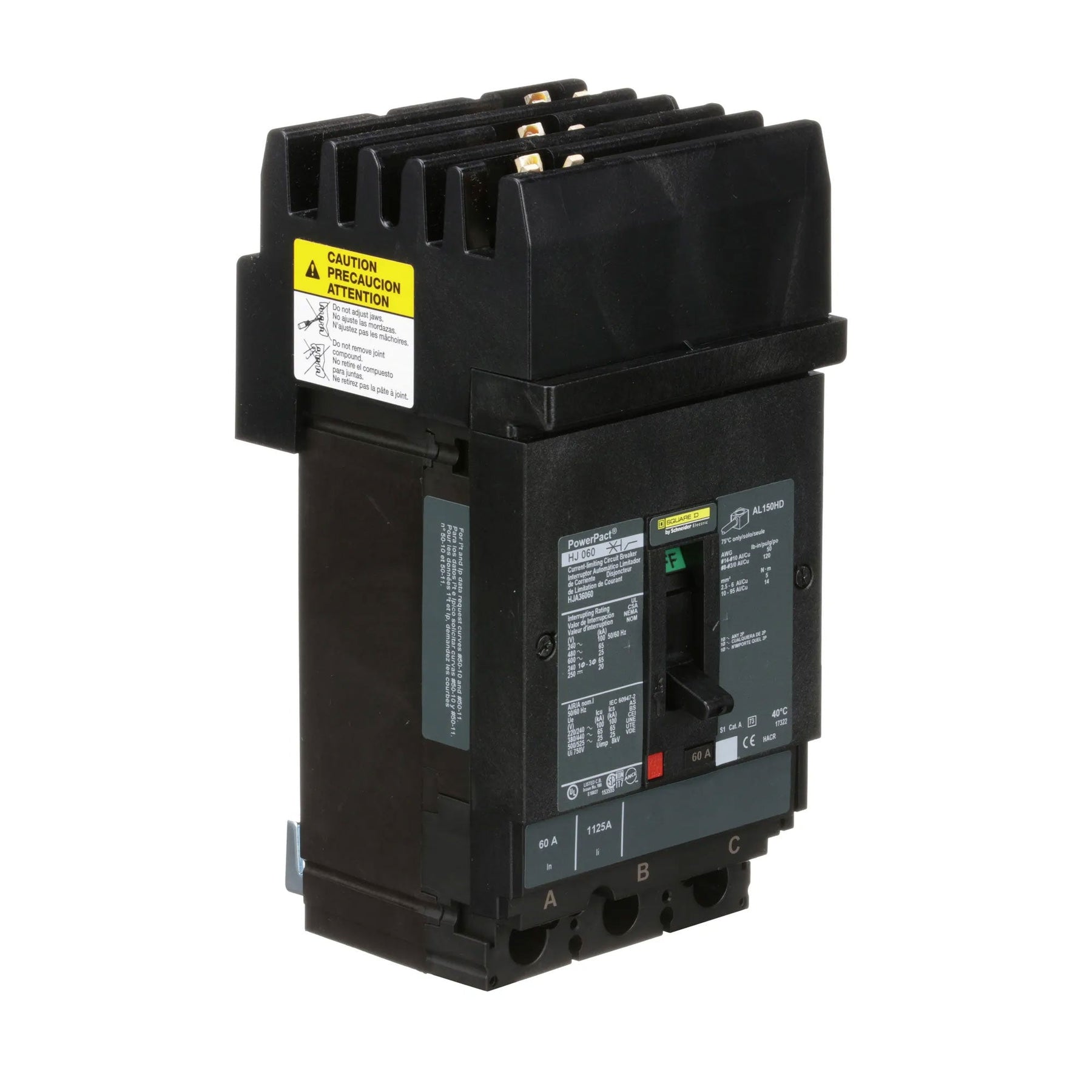

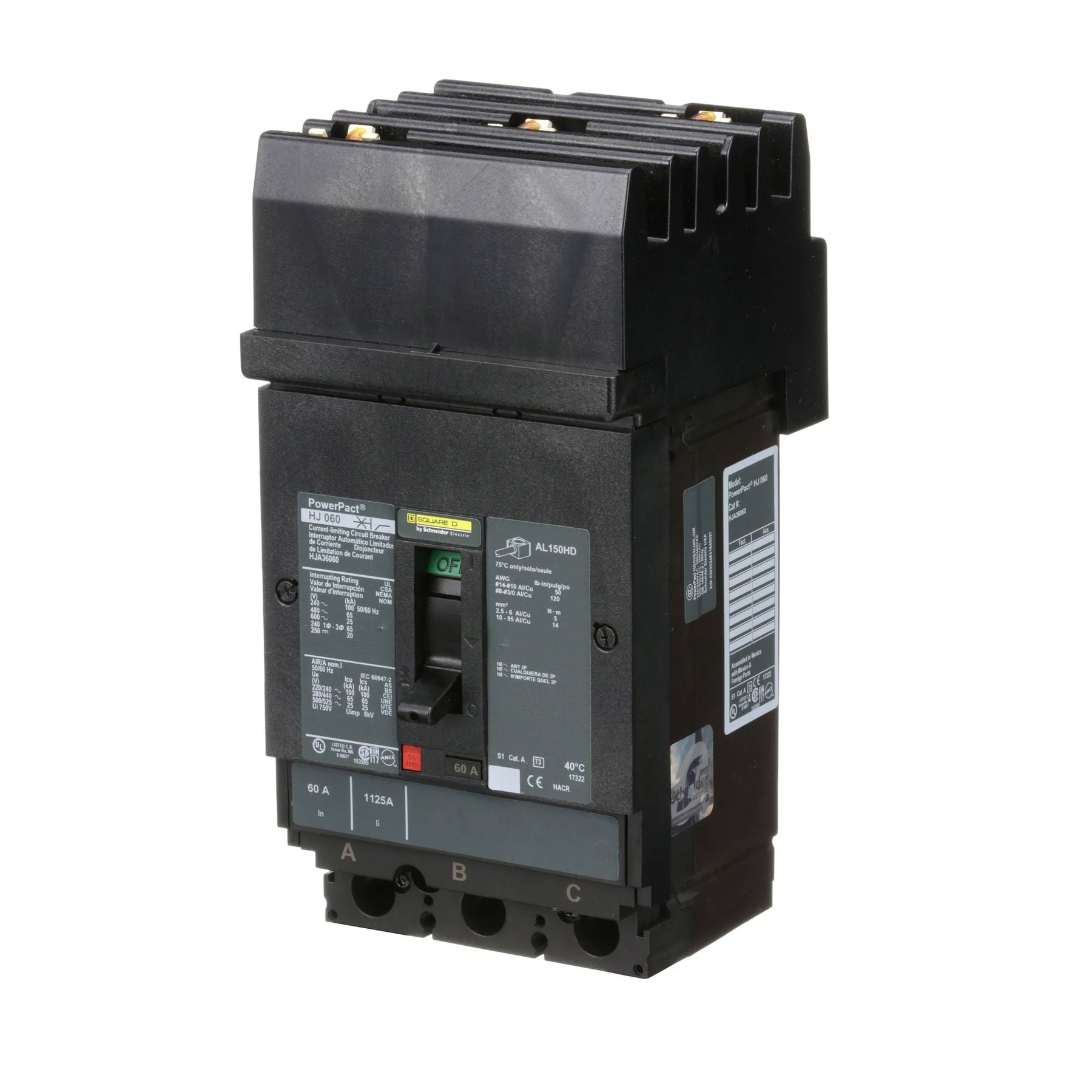

Square D HJA36060 is a three-pole molded case circuit breaker designed for providing reliable overcurrent protection in industrial power distribution systems. It features a 60A current rating and a 600V AC voltage rating, with a compact physical footprint of 163 mm H x 104 mm W x 86 mm D and a weight of 5.351 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection and is constructed for plug-in connection to I-Line panelboards with lug terminals, accepting conductors from 14 AWG to 3/0 AWG. It complies with UL, CSA, NEMA, and IEC 60947-2 standards and is rated for an interrupting capacity of 65kA at 480V AC, making it suitable for a wide range of commercial and industrial applications including motor control centers and main distribution panels.

Key Features & Specifications
  • Type: HJA Series, Molded Case, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 60A

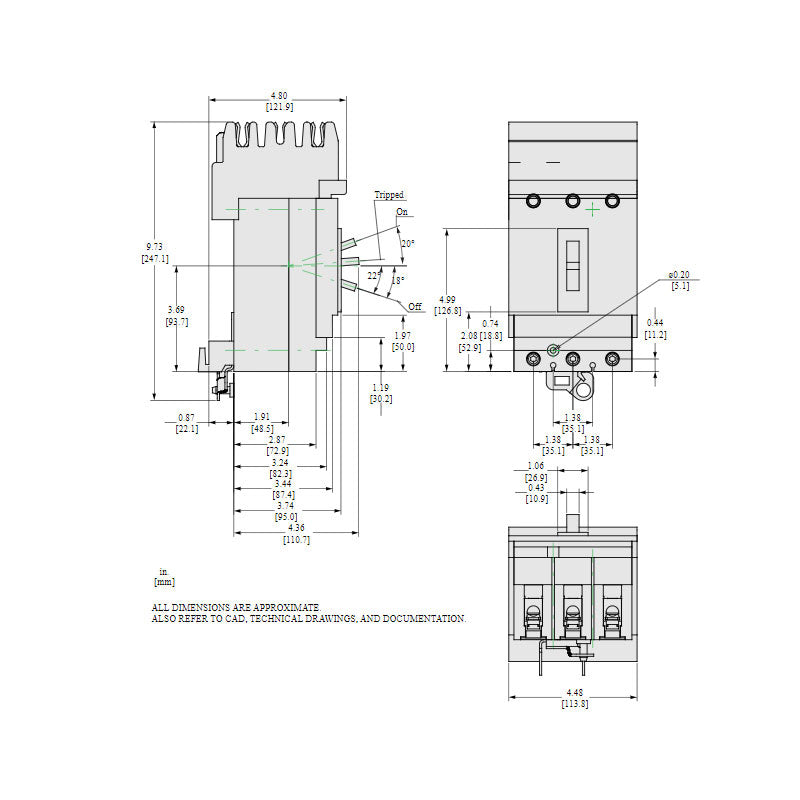

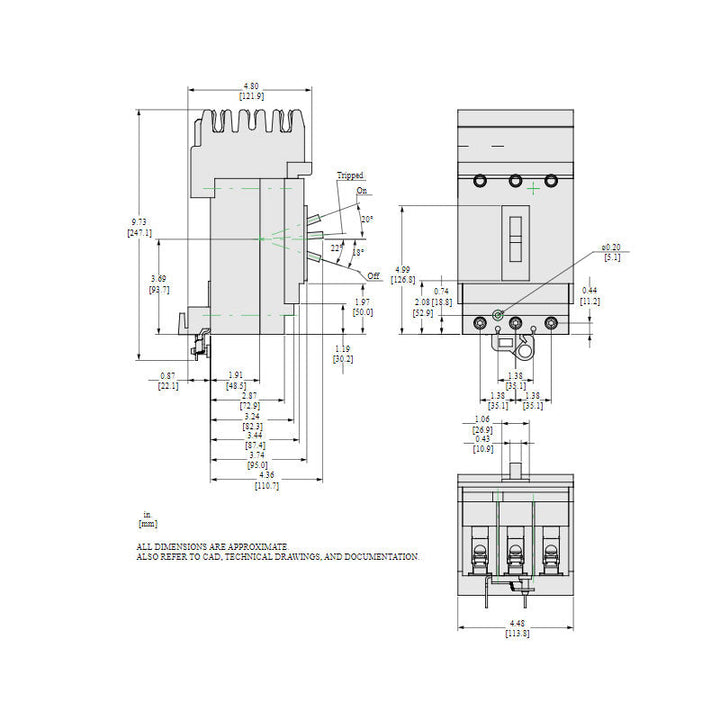

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Motor Control Centers, Panelboards
  • Phase: 3
  • Poles: 3
  • AIC Rating: 65kA @ 480V AC

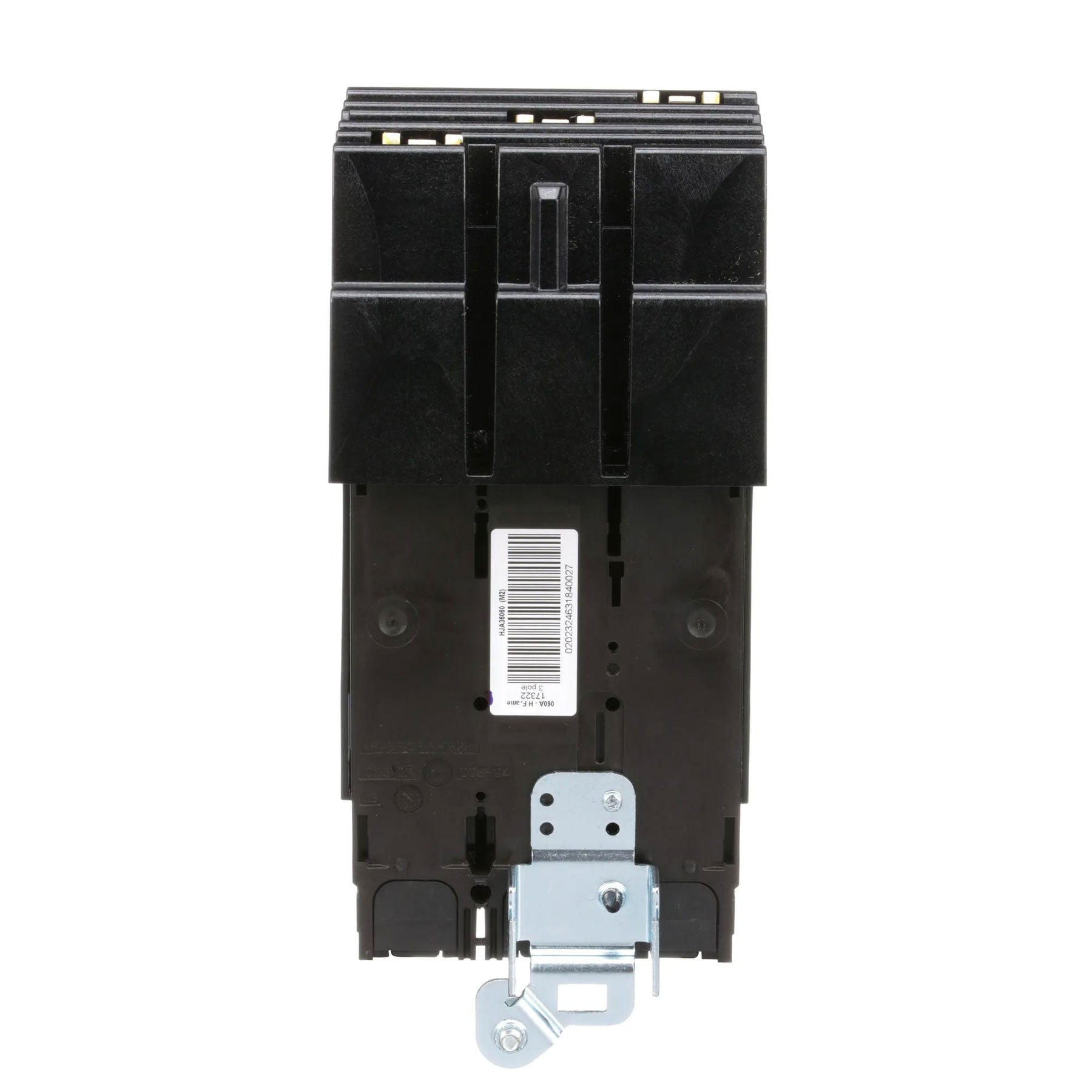

  • Connection: I-Line Style Plug-In, Lug Terminal
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Weight: 5.351 lb


Product Identification
  • UPC: 785901600961
  • GTIN: 00785901600961
