Square D
Price
Save $1,345.74
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

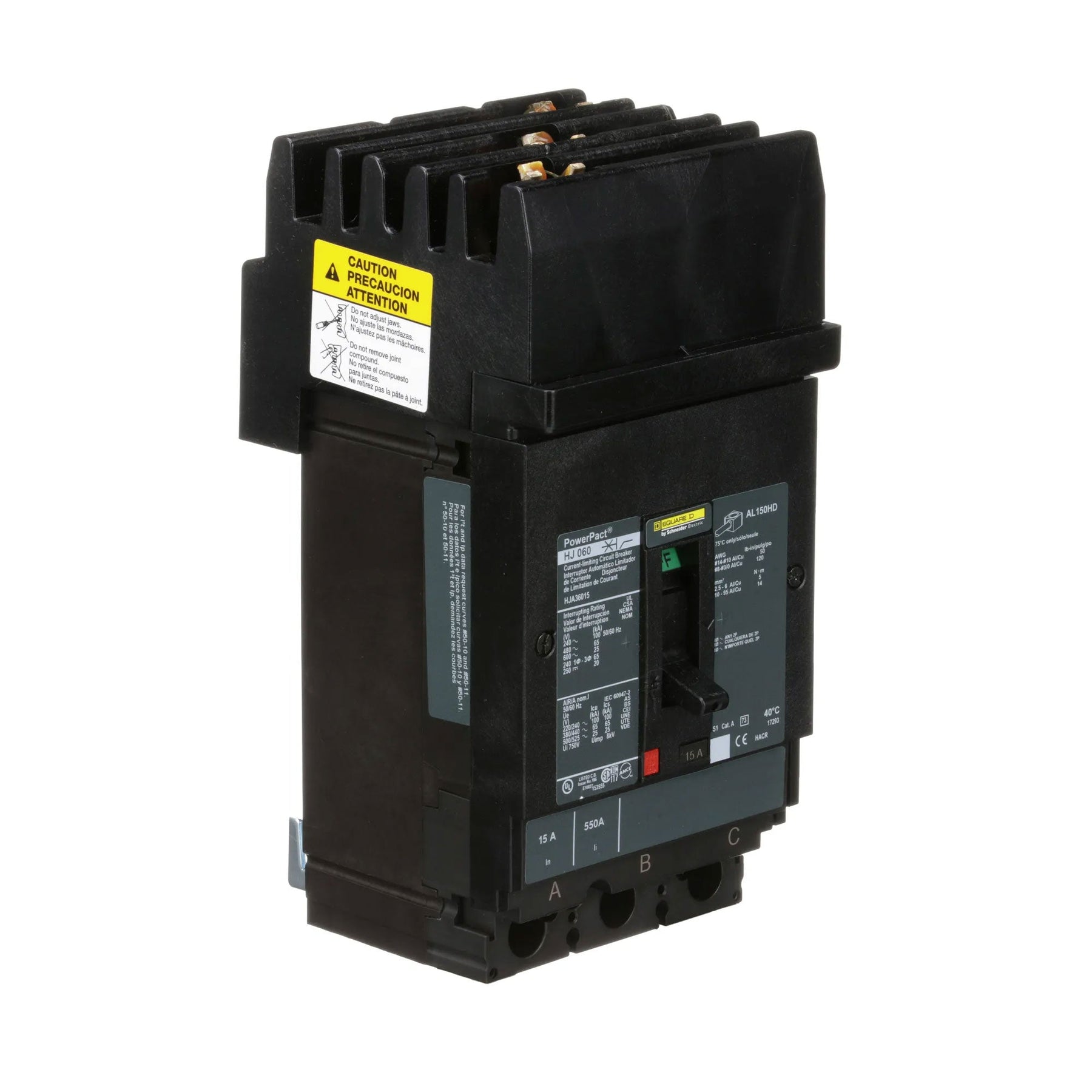

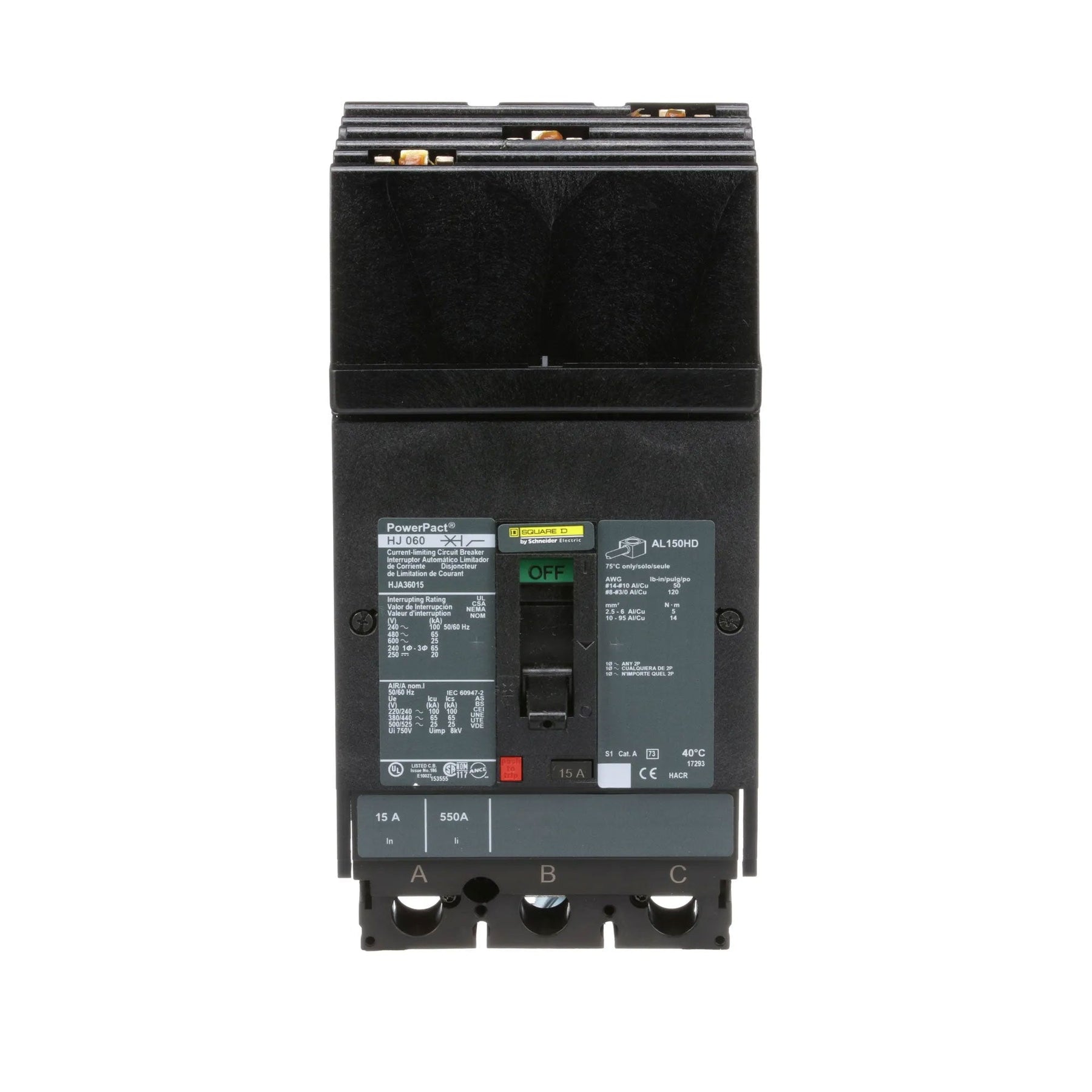

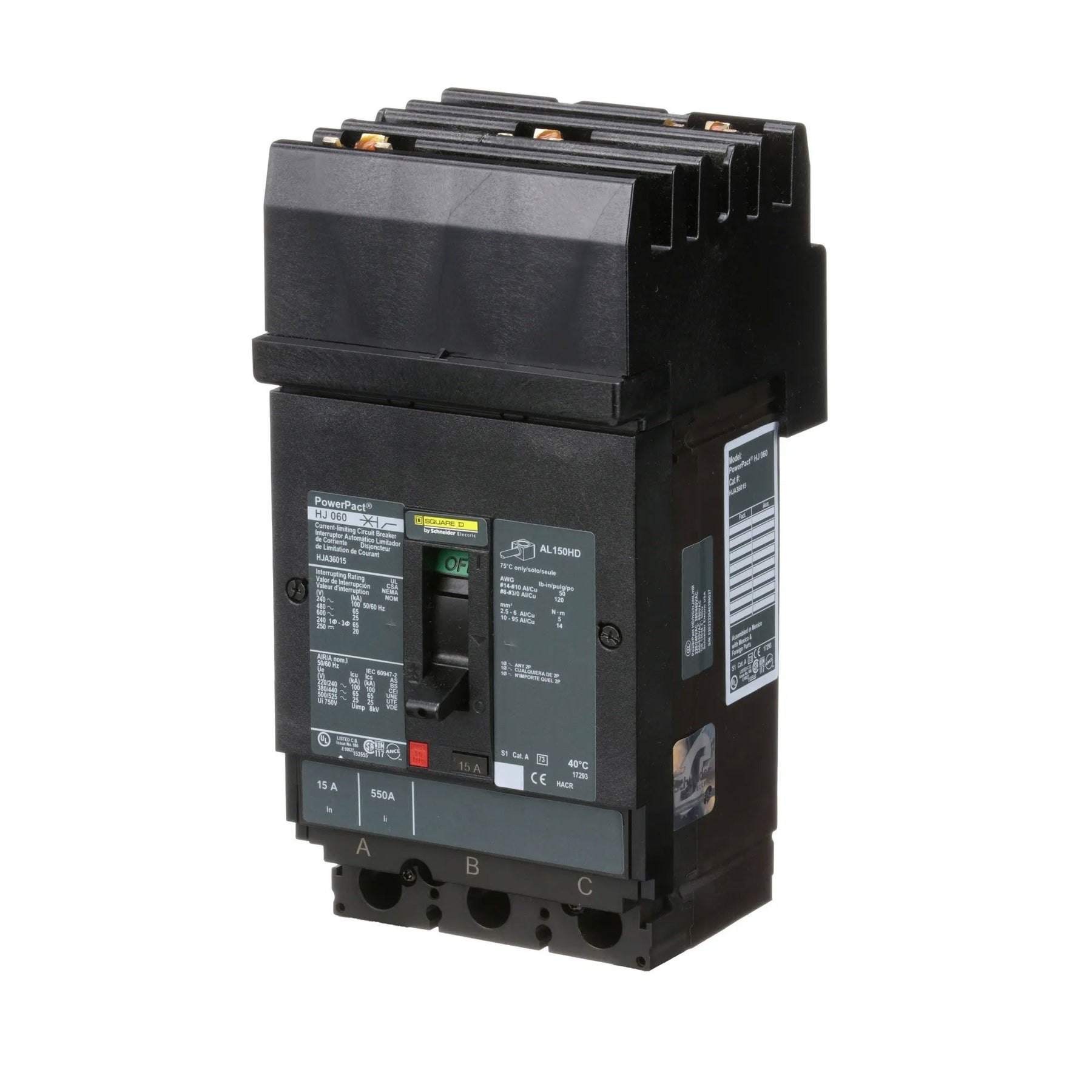

Square D HJA36015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 15A current rating and a 600V AC voltage rating, housed within a compact H-frame construction measuring 163 mm H x 104 mm W x 86 mm D and weighing 5.351 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, offers a 65kA interrupting capacity at 480V, and is designed for I-Line style plug-in connection with lug terminals compatible with 14 AWG to 3/0 AWG copper or aluminum conductors. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards for safety and performance, making it suitable for use in panelboards, switchboards, and industrial control panels operating within a temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: HJA Series, Molded Case, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 15A

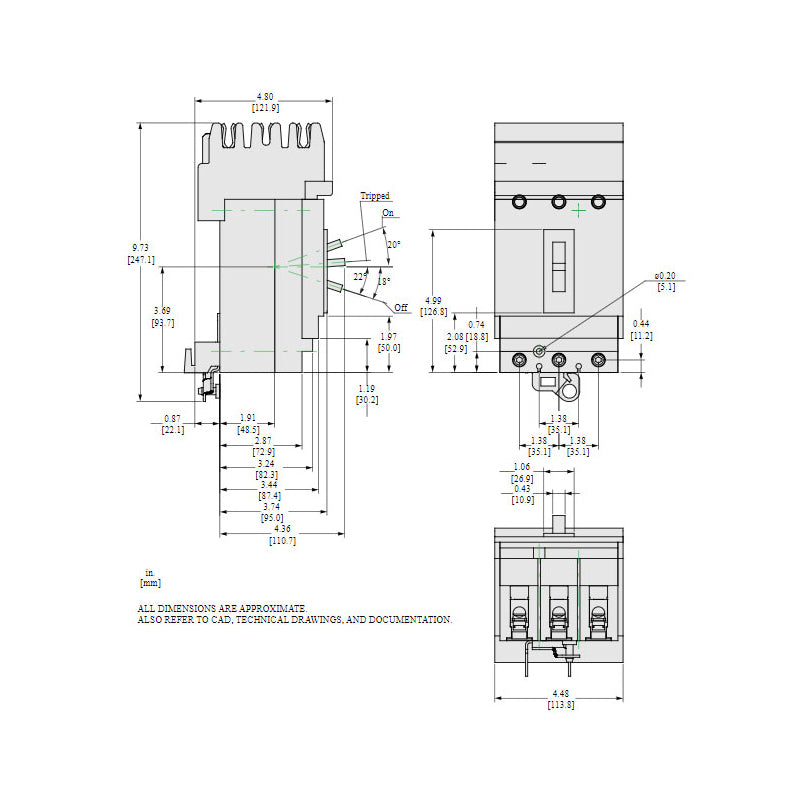

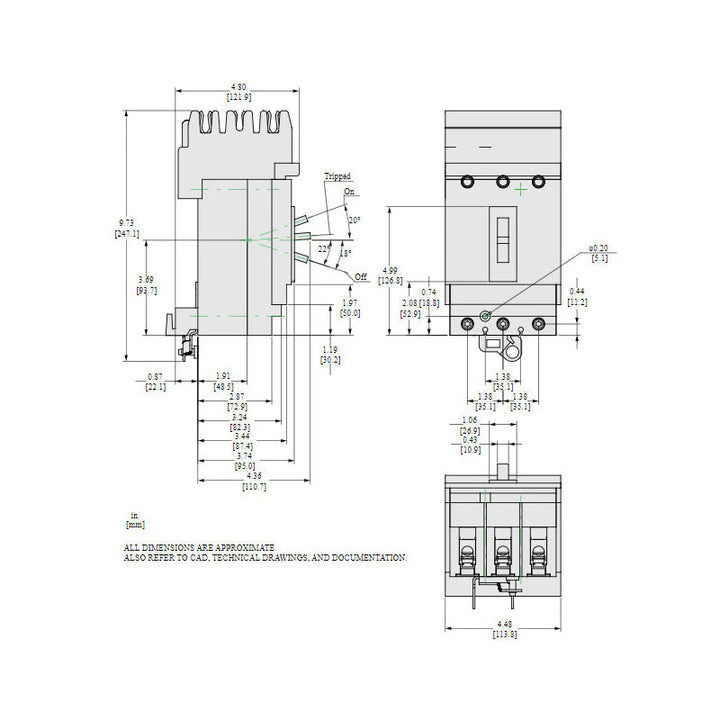

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 5.351 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Phase: 3
  • Poles: 3
  • AIC Rating: 65kA @ 480V

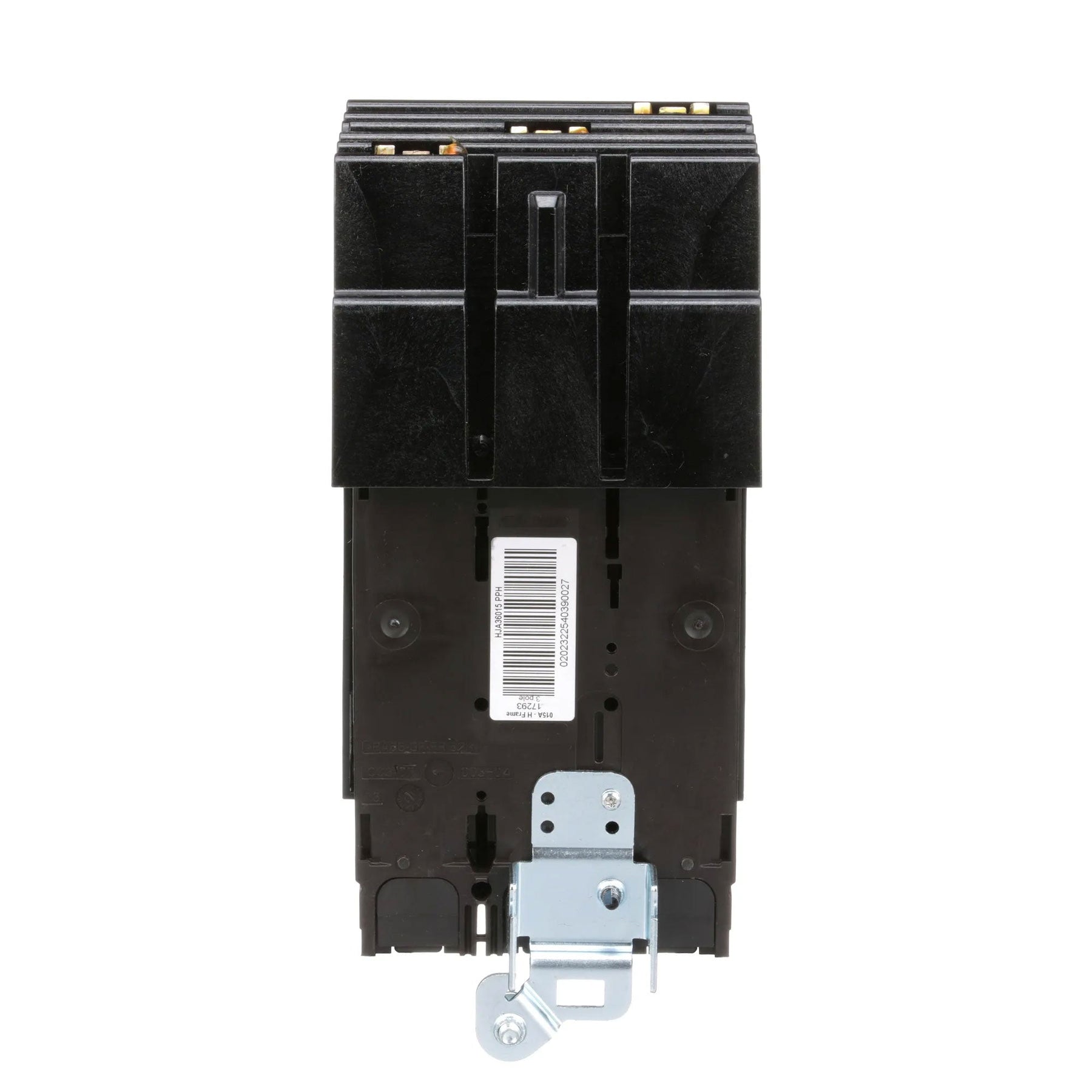

  • Connection: I-Line Style Plug-In, Lug Terminal
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: H
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Manufacturer: Schneider Electric
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901419044
  • GTIN: 00785901419044
