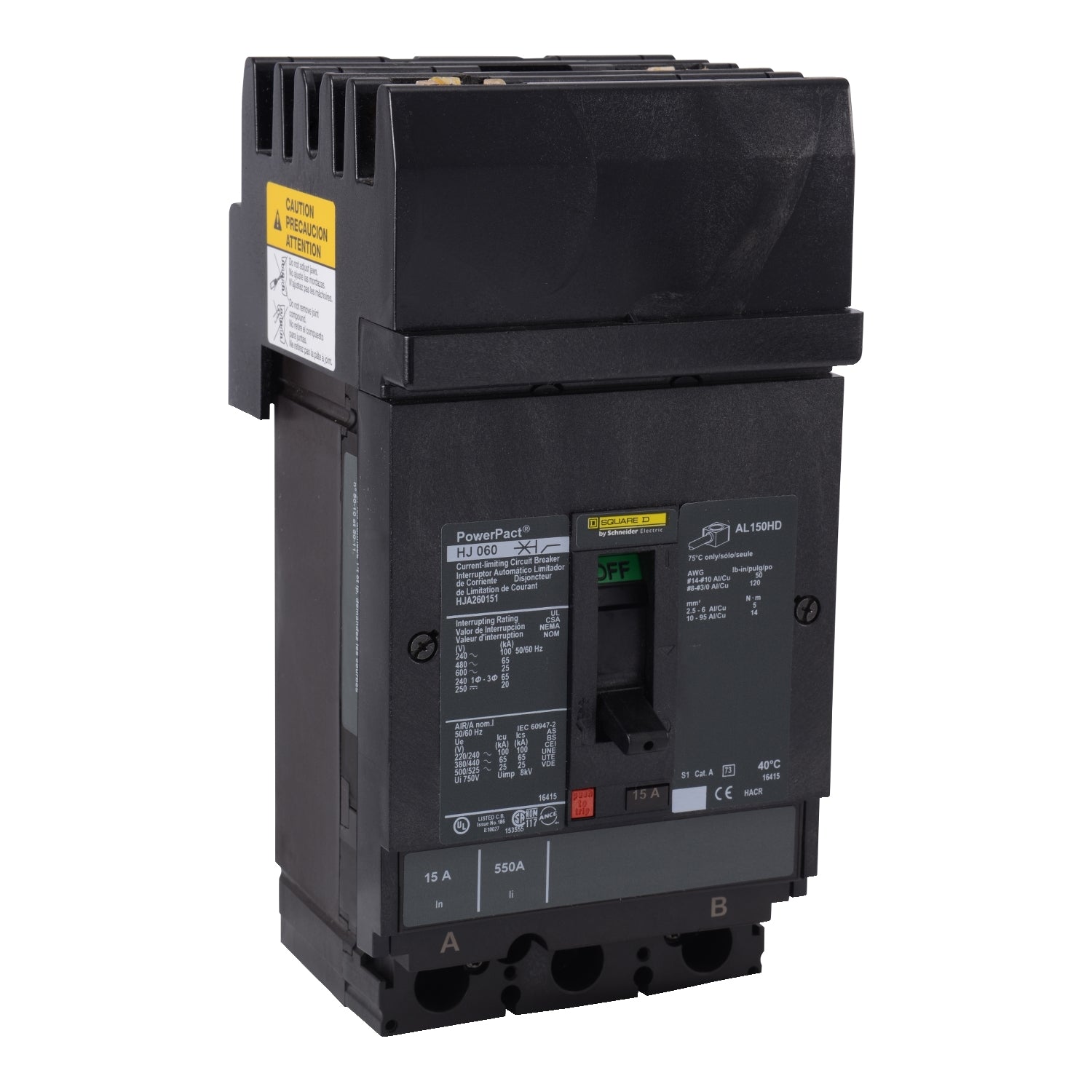

Square D HJA260152 - Molded Case Circuit Breaker 15A 600V 2-Pole
Square D HJA260152 - Molded Case Circuit Breaker 15A 600V 2-Pole

Square D HJA260152 - Molded Case Circuit Breaker 15A 600V 2-Pole

Square D
Price
Save $5,962.93
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HJA260152 is a molded case circuit breaker designed for providing reliable overcurrent protection in industrial and commercial electrical systems. It features a 15A current rating and a 600V voltage rating, utilizing a thermal magnetic trip mechanism for both long-time and instantaneous (LI) protection functions. The breaker is constructed with a compact H-frame design, measuring 163 mm H x 104 mm W x 86 mm D and weighing 5.28 lb, and features an I-Line style plug-in connection for simplified installation. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring suitability for a wide range of single-phase applications requiring a high interrupting capacity of 65kA at 480V AC.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, H-Frame
  • Voltage Rating: 600V AC
  • Current Rating: 15A
  • Dimensions: 6.4 in H (163 mm) x 4.09 in W (104 mm) x 3.4 in D (86 mm)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial and Commercial Electrical Distribution
  • Poles: 2
  • Connection: I-Line Style Plug-In
  • Wire Size: AWG 14 to AWG 3/0 (Aluminium/Copper Terminal)
  • AIC Rating: 65kA @ 480V AC
  • Phase: 1
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Certification: UL, CSA, NOM
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: H Frame
  • Protection: Thermal Magnetic
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901601005
  • GTIN: 00785901601005
