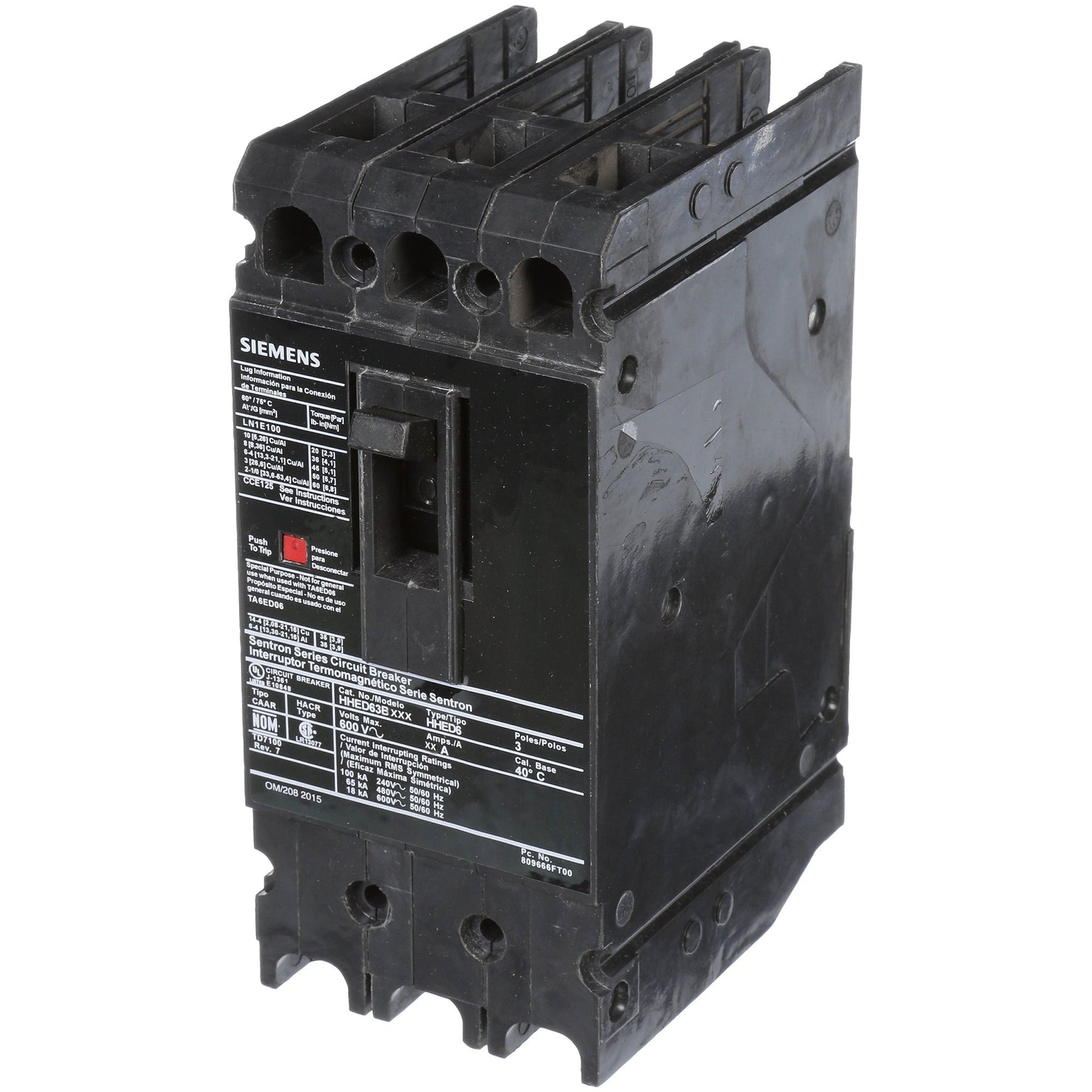

Siemens HHED63B020 - Molded Case Circuit Breaker 20A 600V 3P
Siemens HHED63B020 - Molded Case Circuit Breaker 20A 600V 3P

Siemens HHED63B020 - Molded Case Circuit Breaker 20A 600V 3P

Siemens
Price
Save $3,726.60
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HHED63B020 is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 20A current rating and a 600V voltage rating, housed in a compact, bolt-on configuration with a thermal-magnetic trip unit for combined long-time and instantaneous protection. The breaker is constructed for durability with an operating temperature range of -25 to 70 °C and supports copper wire sizes from AWG 14 to 10 or aluminum from AWG 12 to 10. It complies with industry standards for safety and performance, offering a 65kA interrupting capacity at 480V for effective fault protection. Typical applications include panelboards, switchboards, and motor control centers where robust circuit protection is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Bolt-On Connection
  • Voltage Rating: 600V AC
  • Current Rating: 20A
  • Poles: 3
  • Phase: 3
  • AIC Rating: 65kA @ 480V
  • Protection Functions: Long Time and Instantaneous Trip
  • Connection: Bolt-On
  • Wire Size: AWG 14 to AWG 10 (Copper), AWG 12 to AWG 10 (Aluminum)
  • Operating Temperature: -25 to 70 °C (-13 to 158 °F)
  • Weight: 2 lb
  • Standards: Industry standards for circuit protection devices
  • Applications: Industrial power distribution, panelboards, switchboards, motor control centers
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643308039
  • GTIN: 00783643308039
