Square D
Price
Save $2,425.06
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

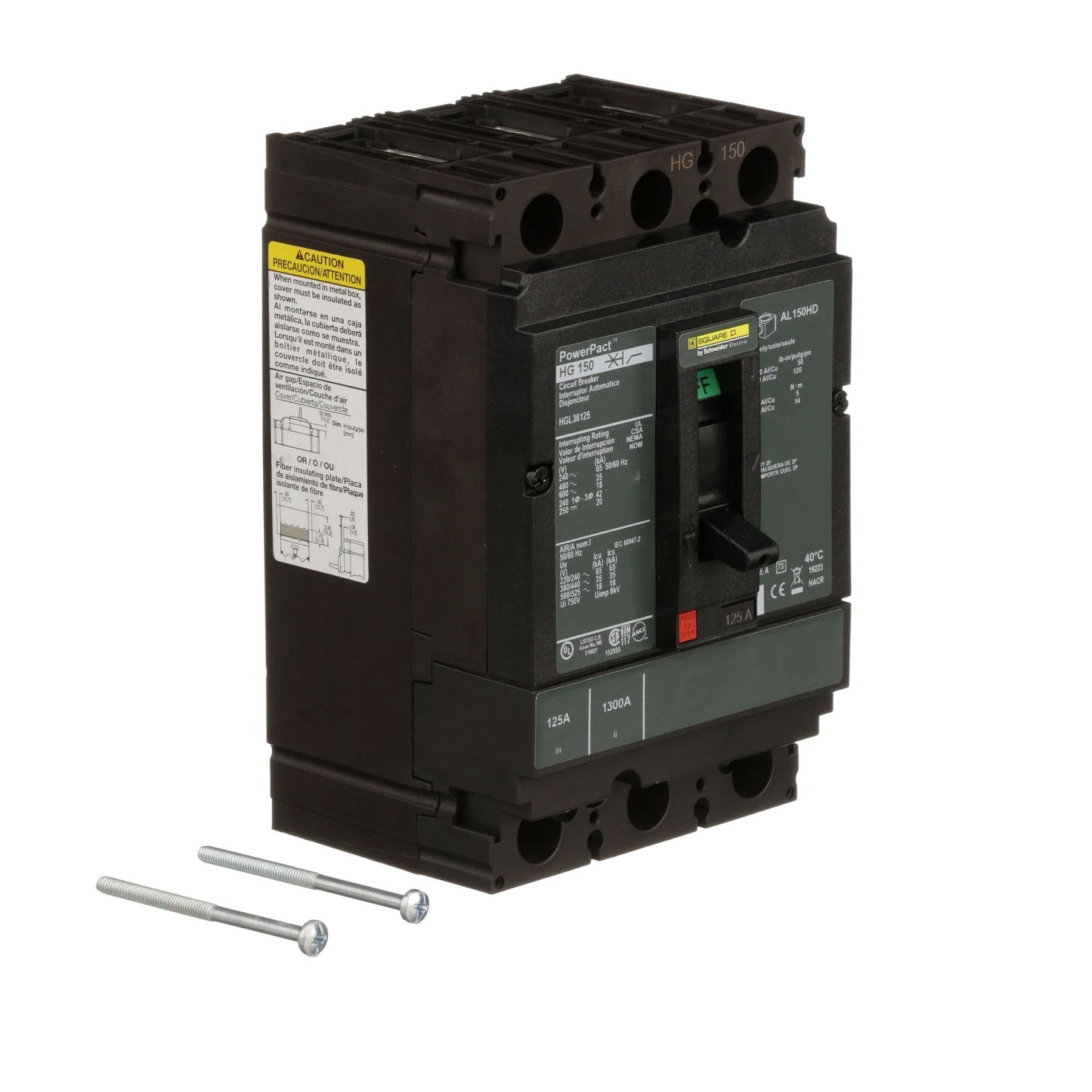

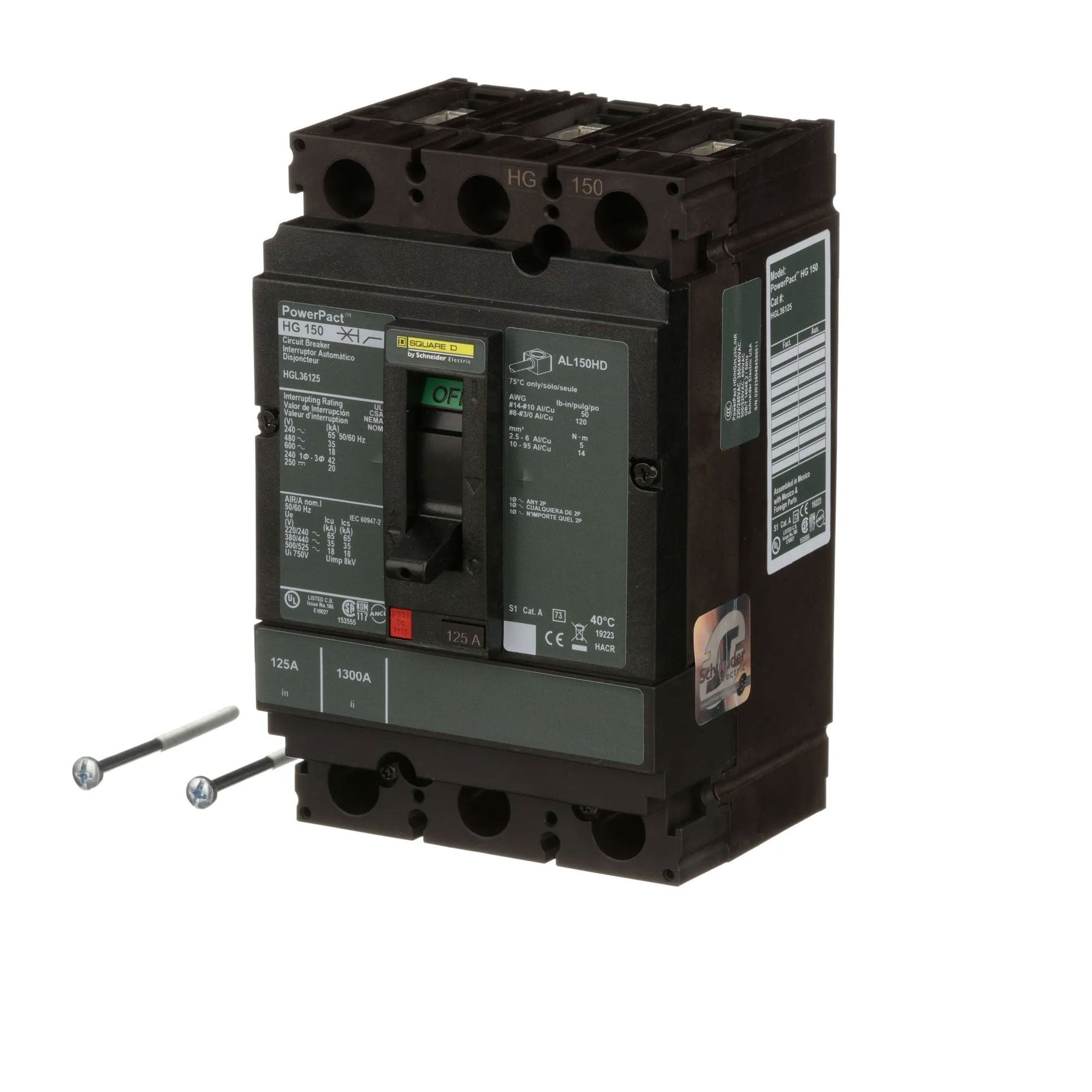

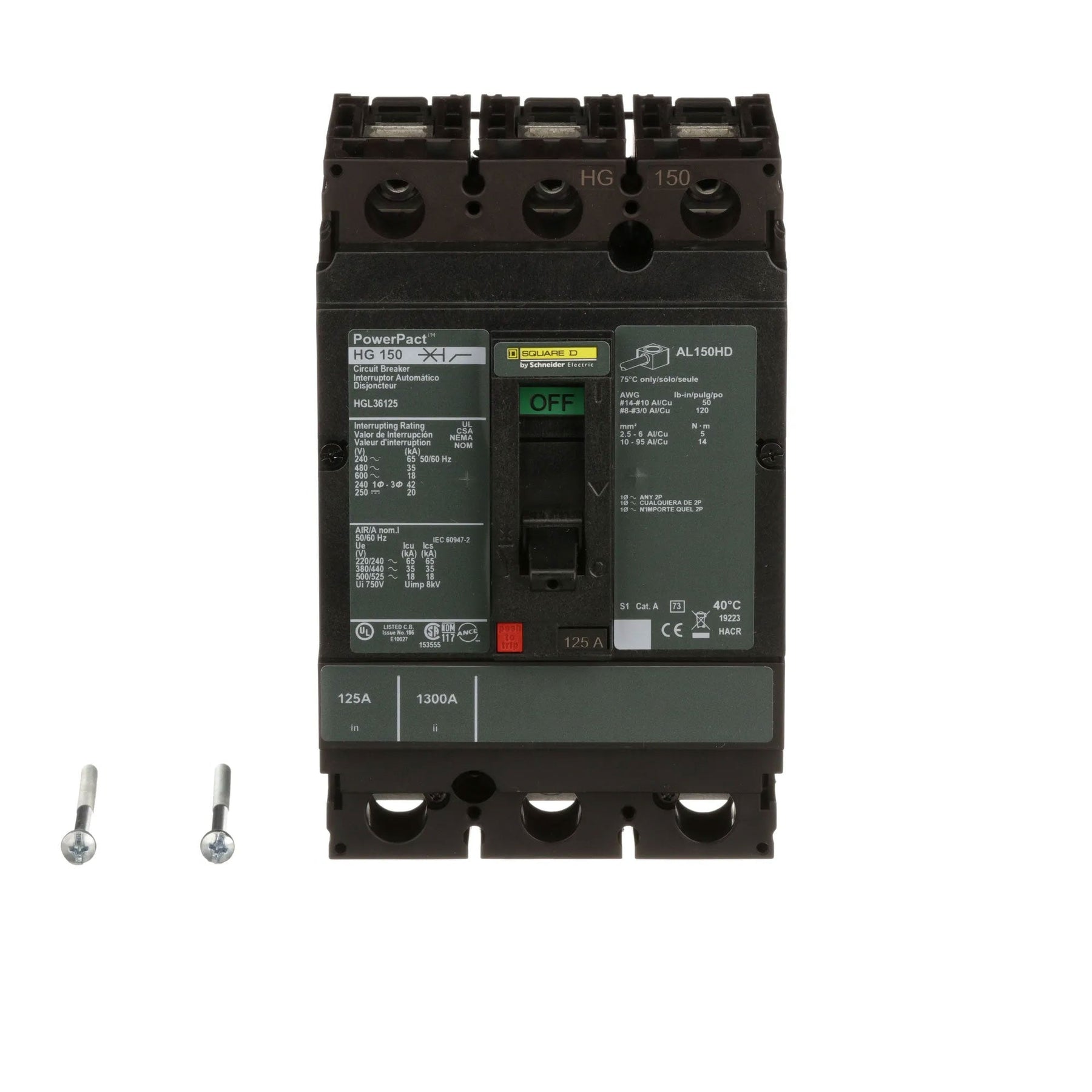

Square D HGL36125 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 125A continuous current rating and a 600V AC voltage rating, housed within a compact 163 mm x 104 mm x 86 mm (HxWxD) frame with a weight of 4.14 lb. The breaker is constructed with thermal-magnetic LI trip protection for both long-time delay and instantaneous tripping, ensuring compliance with UL, CSA, NEMA, and IEC 60947-2 standards. Its 35kA interrupting rating at 480V and feed-thru connection with line/load lugs make it suitable for main feeder and branch circuit protection in commercial and industrial panels, operating reliably in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: HGL Series, Standard, Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Frame Size: 150A/HG
  • Poles: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: Feed-Thru, Line/Load Lug
  • Phase Connection: ABC
  • Protection: LI (Long-Time and Instantaneous Trip)
  • Trip Type: Thermal Magnetic
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)
  • MCM Size: 14 AWG Minimum, 3 AWG Maximum
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM

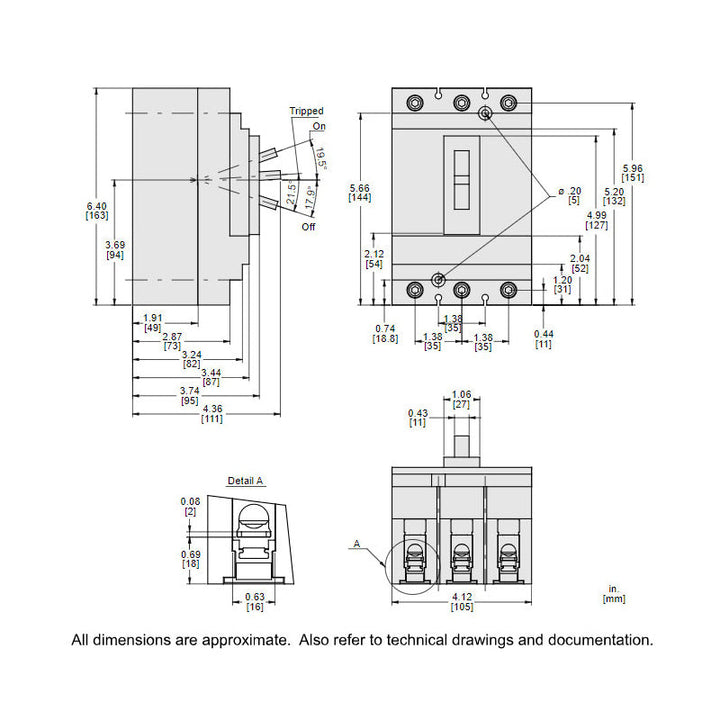

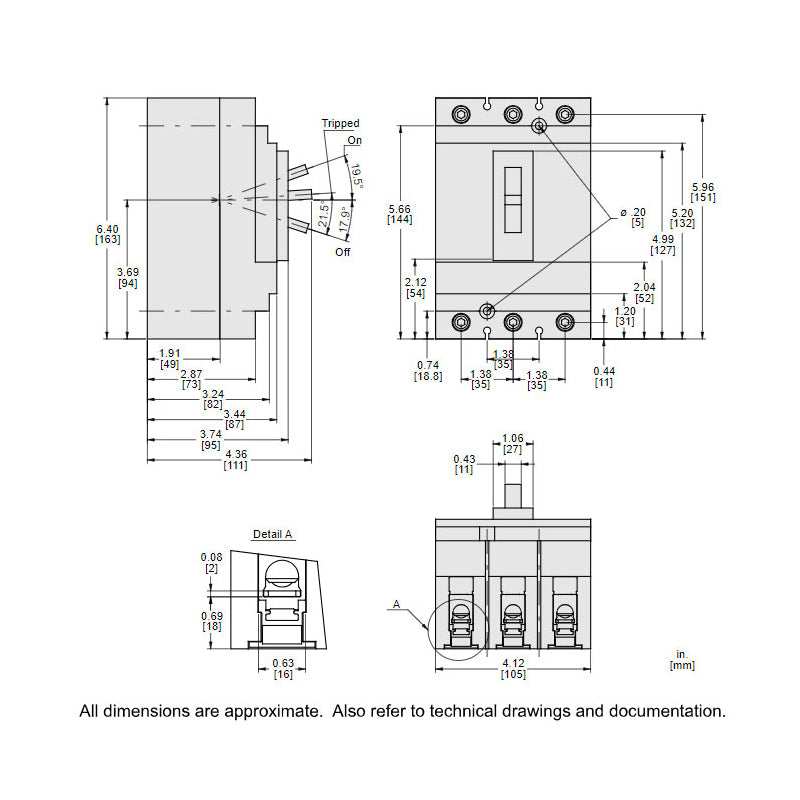

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4.14 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Breaker Type: Standard
  • Manufacturer: Schneider Electric
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901598831
  • GTIN: 00785901598831
