Square D HGL36100U54X - Molded Case 100A 600V 3-Phase Breaker
Square D HGL36100U54X - Molded Case 100A 600V 3-Phase Breaker

Square D HGL36100U54X - Molded Case 100A 600V 3-Phase Breaker

Square D
Price
Save $-385.75
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

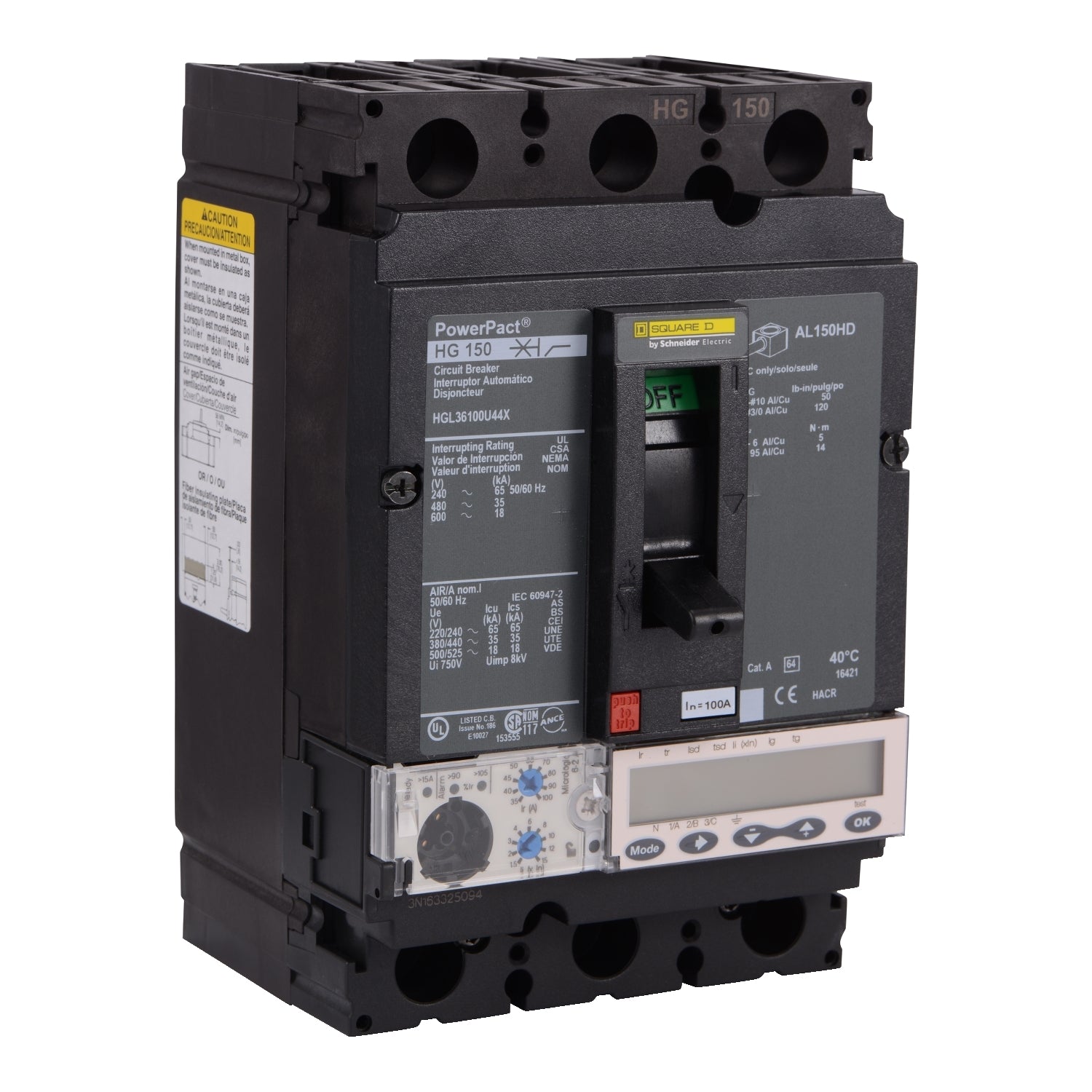

The Square D HGL36100U54X is a 100A, 3-phase molded case circuit breaker from the Powerpact family, designed for solid-state protection in industrial power distribution systems. It operates at 600VAC with a 35kA interrupting capacity at 480V, providing long time, short time, ground fault, and instantaneous trip functions. This feed-thru connection breaker measures 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) and weighs 5 lb, accepting AWG 14 to AWG 3/0 aluminum/copper wire. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, with a temperature rating of -13°F to 158°F (-25°C to 70°C). Typical applications include main or feeder protection in commercial and industrial switchboards, panelboards, and motor control centers.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Powerpact family, solid state trip unit
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, main or feeder protection
  • Switch Type: Molded Case
  • Configuration: 3-Phase
  • Coil Voltage Maximum: Not applicable (solid state)
  • Temp Rating: -13°F to 158°F (-25°C to 70°C)
  • Shipping Dimensions: 6.4 in x 4.09 in x 3.4 in
  • Phase: 3
  • Voltage: 600V
  • Amperage: 100A
  • AIC rating: 35kA@480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Solid State
  • Functions: Long Time, Short Time, Ground Fault, Instantaneous Trip
  • Frame Size: Powerpact
  • Trip Type: Solid State
  • Panel Type: Not specified
  • Breaker Type: Molded Case
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not applicable
  • Metal Type: Not specified
  • Panel Style: Not specified
  • Bus Type: Not specified
  • Fuse Class: Not applicable
  • Insulation Temperature: Not specified
  • Inductance: Not applicable
  • Impedance: Not applicable
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Not specified
  • Hz: 50/60 Hz
  • Coil Material: Not applicable
  • Horse Power: Not specified
  • Aux Contacts: Not specified
  • CPT: Not specified
  • Full Load Amps: Not specified
  • Dist Voltage: Not specified
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: Not specified
  • Full Load Amp Minimum: Not specified
  • Enclosure: Not specified
  • Relay Style: Not applicable
  • Coil Voltage Minimum: Not applicable
  • Wire: AWG 14 to AWG 3/0
  • Amperage Maximum: 100A
  • Amperage Minimum: Not specified
  • Nema Rating: Not specified
  • Switch Style: Molded Case
  • Wire Size: AWG 14 to AWG 3/0
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Not specified
  • Terminal Connection: Feed-Thru
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Compatible Frames: Powerpact
  • Installation Type: Not specified
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: Powerpact
  • Current Rating: 100A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 70°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable


Product Identification
  • UPC: Not provided
  • GTIN: Not provided
