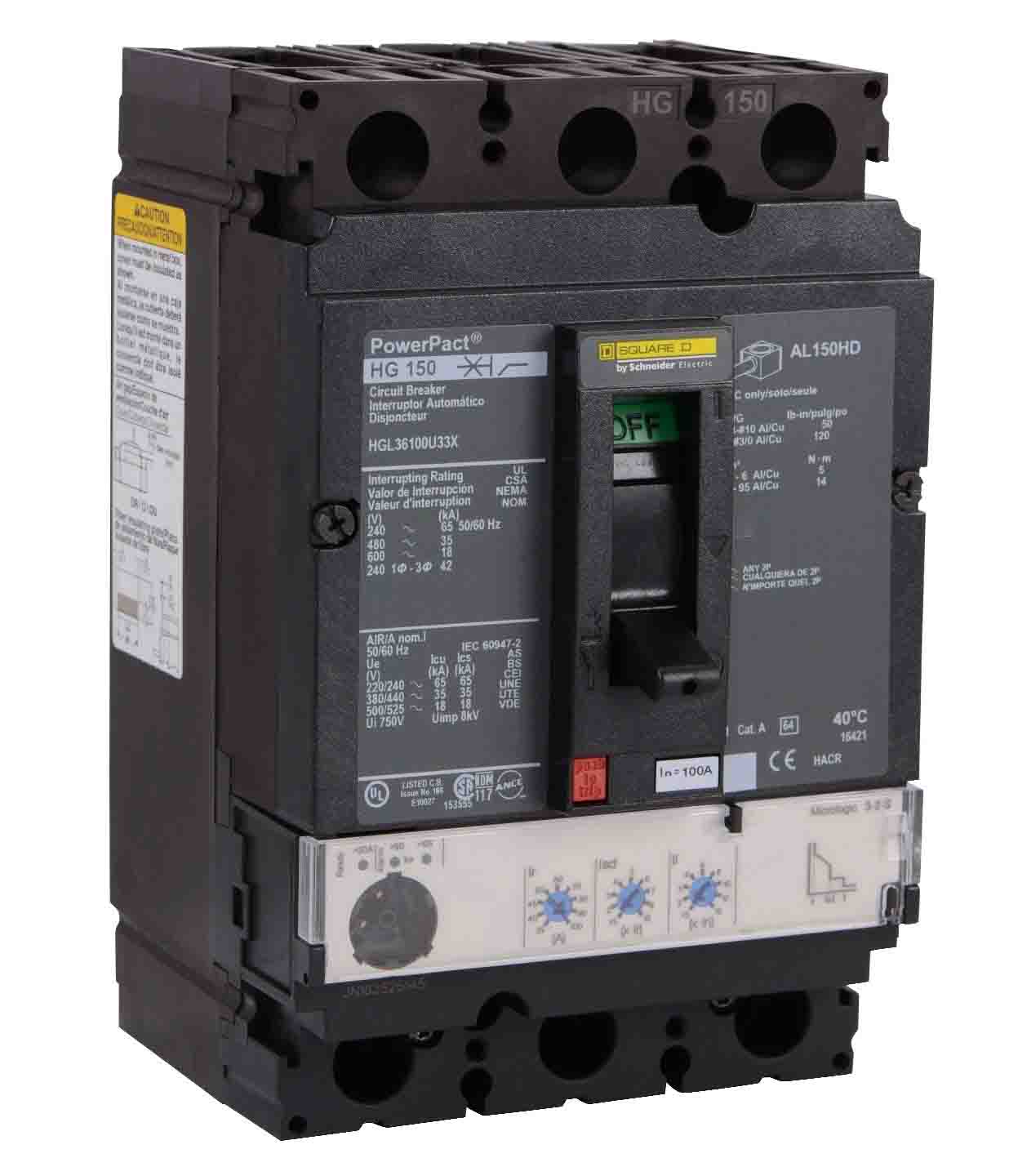

Square D HGL36100U33X - 100A 3P Molded Case Circuit Breaker
Square D HGL36100U33X - 100A 3P Molded Case Circuit Breaker

Square D HGL36100U33X - 100A 3P Molded Case Circuit Breaker

Square D
Price
Save $930.22
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
The Square D HGL36100U33X is a three-pole molded case circuit breaker from the PowerPact HGL family, engineered to provide reliable solid-state protection for three-phase electrical systems with its LSI (Long Time, Short Time, and Instantaneous) trip functionality. It features a 100A current rating and a 600V voltage rating, housed within a compact 150A/HG frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 5 lb. This breaker is constructed with box lug terminals compatible with wire sizes from 14 AWG to 3/0 AWG and is designed for feed-thru connection, operating effectively in temperatures from -25°C to 70°C. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, ensuring suitability for industrial power distribution and panelboard applications where a 35kA interrupting capacity at 480V is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Micrologic Standard with LSI Functionality, Solid State Protection
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V
  • Connection: Box Lug Terminal
  • Poles: 3
  • Protection: Solid State, LSI Trip Functions
  • Frame Size: 150A/HG
  • Breaker Type: Micrologic Standard W LSI Functionality
  • MCM Size: 14 AWG to 3/0 AWG
  • Wire Size: AWG 14 to AWG 3/0 (Aluminium/Copper Terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Weight: 5 lb


Product Identification
  • UPC: 785901402947
  • GTIN: 00785901402947
