Square D HGL36080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions, rated for 80A at 600V AC with an interrupting capacity of 35kA at 480V. The breaker is constructed with a compact 150A/HG frame, measures 163 mm H x 104 mm W x 86 mm D, and utilizes feed-thru line/load lug connections compatible with copper or aluminum conductors from 14 AWG to 3/0 AWG. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is rated for operation in ambient temperatures from -25°C to 70°C, making it suitable for a wide range of commercial and industrial panelboards and switchboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Frame Size: 150A/HG
  • Poles: 3
  • AIC Rating: 35kA @ 480V
  • Connection: Feed-Thru, Line/Load Lug
  • Phase Connection: ABC
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Protection: Thermal Magnetic

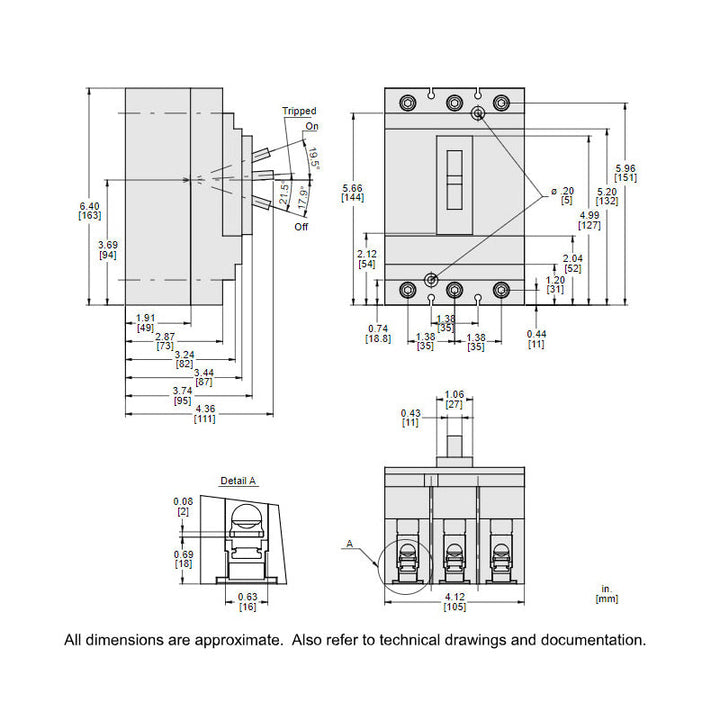

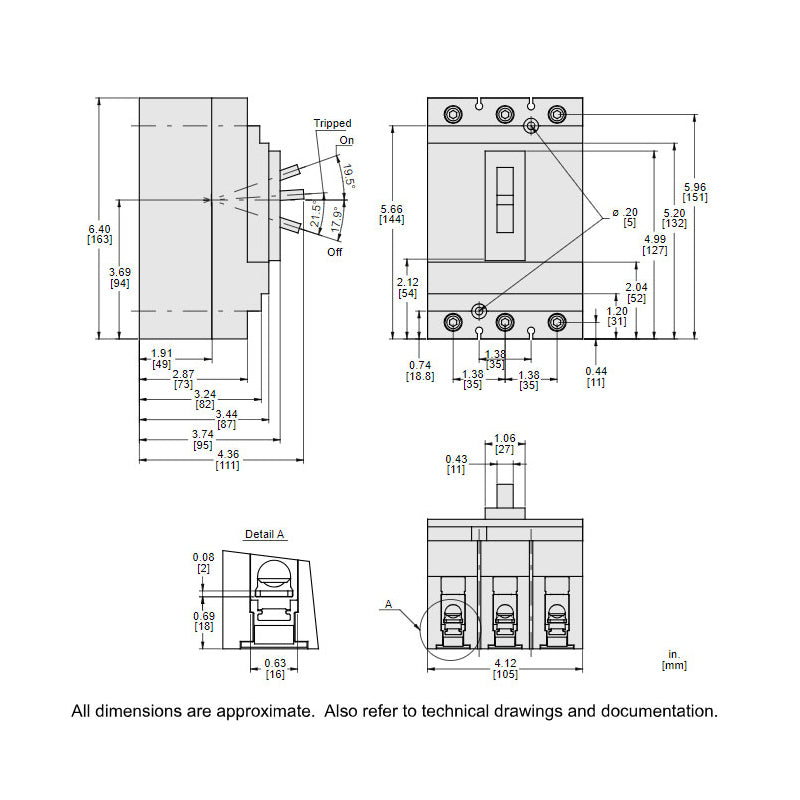

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4.2 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Breaker Type: Standard
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901598794
  • GTIN: 00785901598794
