The Square D HGL36035 is a Powerpact HGL molded case circuit breaker designed to provide reliable thermal-magnetic protection for three-phase electrical systems. It features a 35A current rating and a 600V voltage rating, housed within a compact 150A/HG frame with dimensions of 163 mm H x 104 mm W x 86 mm D and a weight of 4.22 lb. This bolt-on, three-pole breaker is constructed for an operating temperature range of -25 to 70 °C and complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards. It is typically applied in industrial and commercial power distribution for branch circuit protection, offering a 35kA interrupting capacity at 480V with line/load lugs that accept wire sizes from 14 AWG to 3/0.

Key Features & Specifications
  • Type: Powerpact HGL Molded Case Circuit Breaker, Thermal Magnetic Protection, Standard Type
  • Voltage Rating: 600V AC
  • Current Rating: 35A

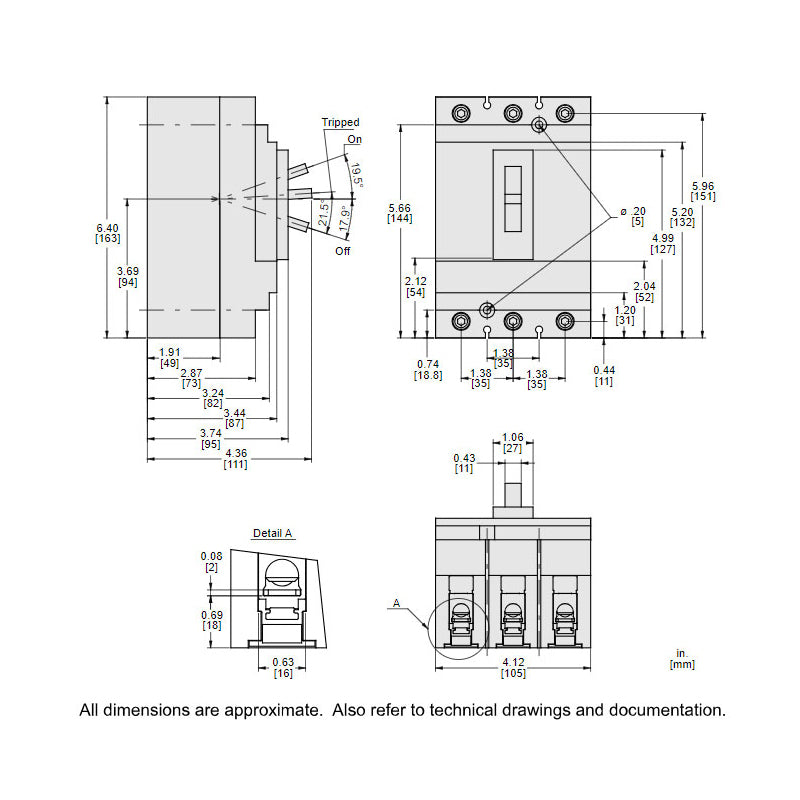

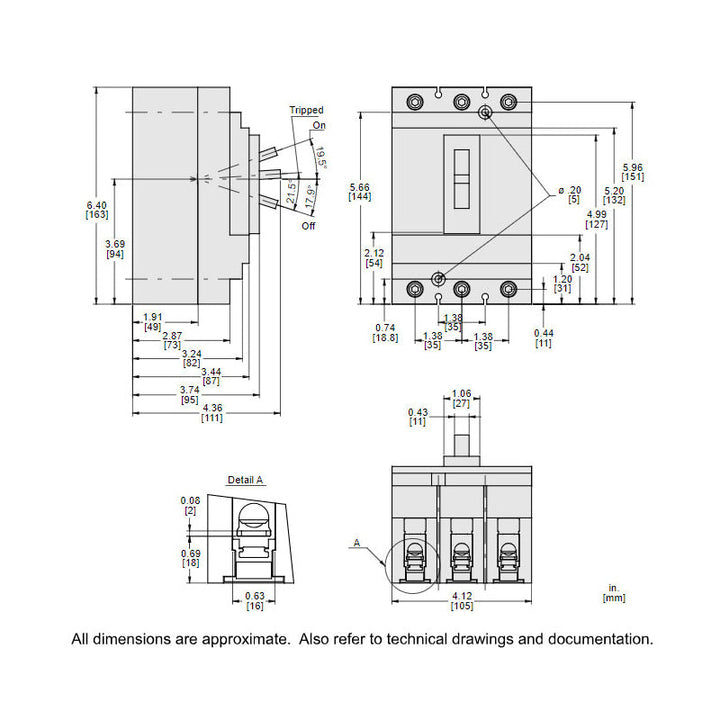

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4.22 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial and Commercial Power Distribution, Branch Circuit Protection
  • Configuration: Bolt-On
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V
  • Connection: Bolt-On, Line/Load Lug
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: 150A/HG
  • Breaker Type: Standard
  • MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 3 AWG
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901598732
  • GTIN: 00785901598732
