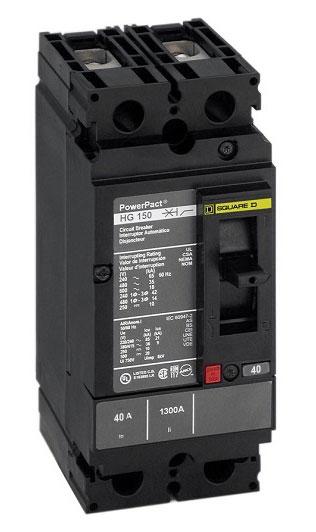

Square D HGL26040 - 40A 2-Pole Thermal Magnetic Circuit Breaker
Square D HGL26040 - 40A 2-Pole Thermal Magnetic Circuit Breaker

Square D HGL26040 - 40A 2-Pole Thermal Magnetic Circuit Breaker

Square D
Price
Save $758.20
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D HGL26040 is a molded case circuit breaker designed for providing reliable thermal-magnetic protection against overloads and short circuits in industrial power distribution systems. It features a 40A current rating and a 600V AC voltage rating, housed within a compact 150A/HG frame with dimensions of 163 mm H x 104 mm W x 86 mm D and a weight of 3.001 lb. The breaker is constructed for bolt-on connection with line/load lugs, accepts wire sizes from 14 AWG to 3/0 AWG, and operates within a temperature range of -25 to 70 °C. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring suitability for a wide range of commercial and industrial panelboard applications where a 35kA interrupting capacity at 480V is required.

Key Features & Specifications
  • Type: Standard thermal-magnetic molded case circuit breaker with long-time and instantaneous trip functions
  • Voltage Rating: 600V AC
  • Current Rating: 40A
  • Frame Size: 150A/HG
  • Poles: 2
  • AIC Rating: 35kA at 480V AC
  • Connection: Bolt-On
  • Terminal Connection: Line/Load Lug
  • Wire Size Range: 14 AWG to 3/0 AWG (aluminium/copper)
  • Phase: 1
  • Phase Connection: Not Applicable
  • Protection: Thermal Magnetic
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 3.001 lb
  • Family: Powerpact
  • Breaker Type: Standard
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901433811
  • GTIN: 00785901433811
