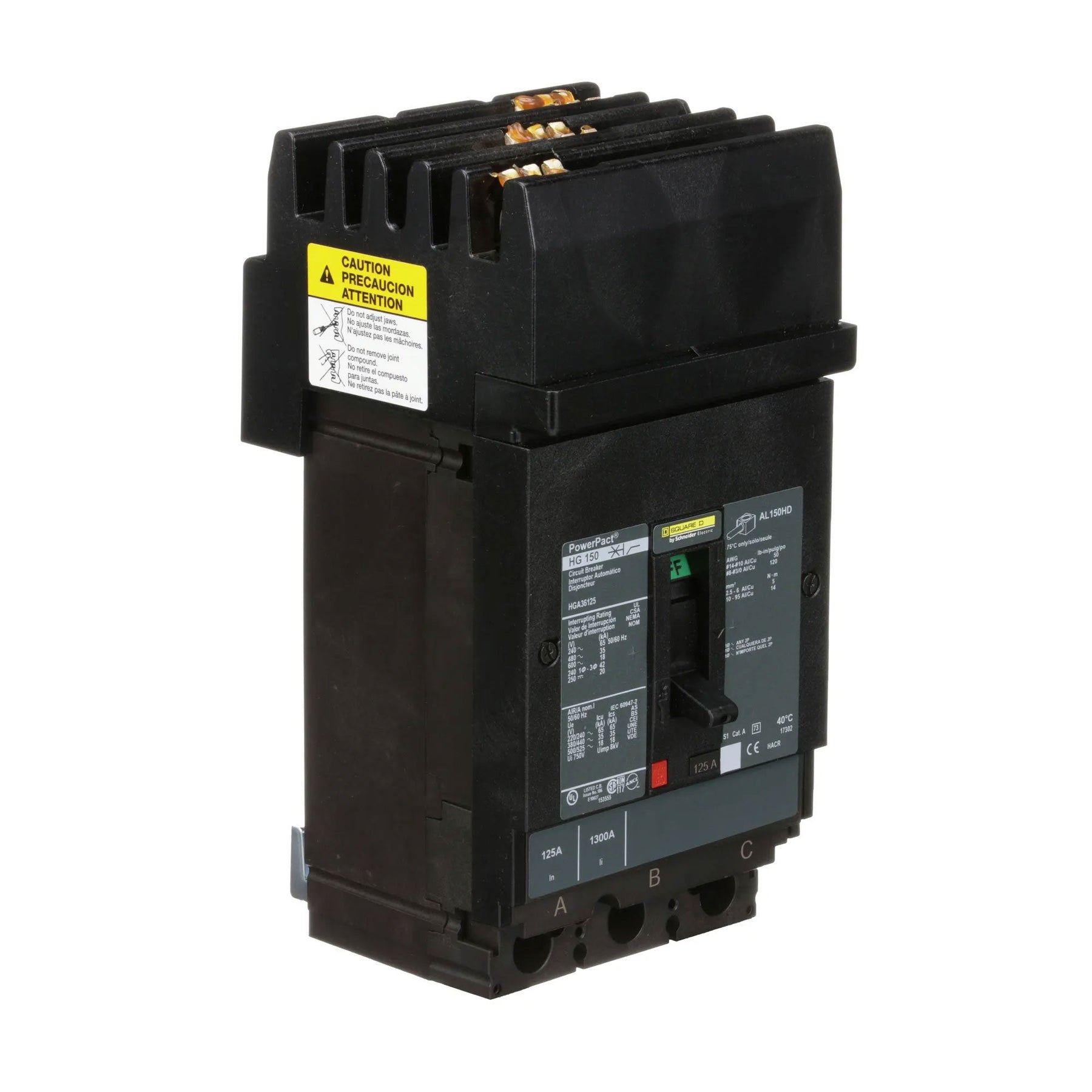

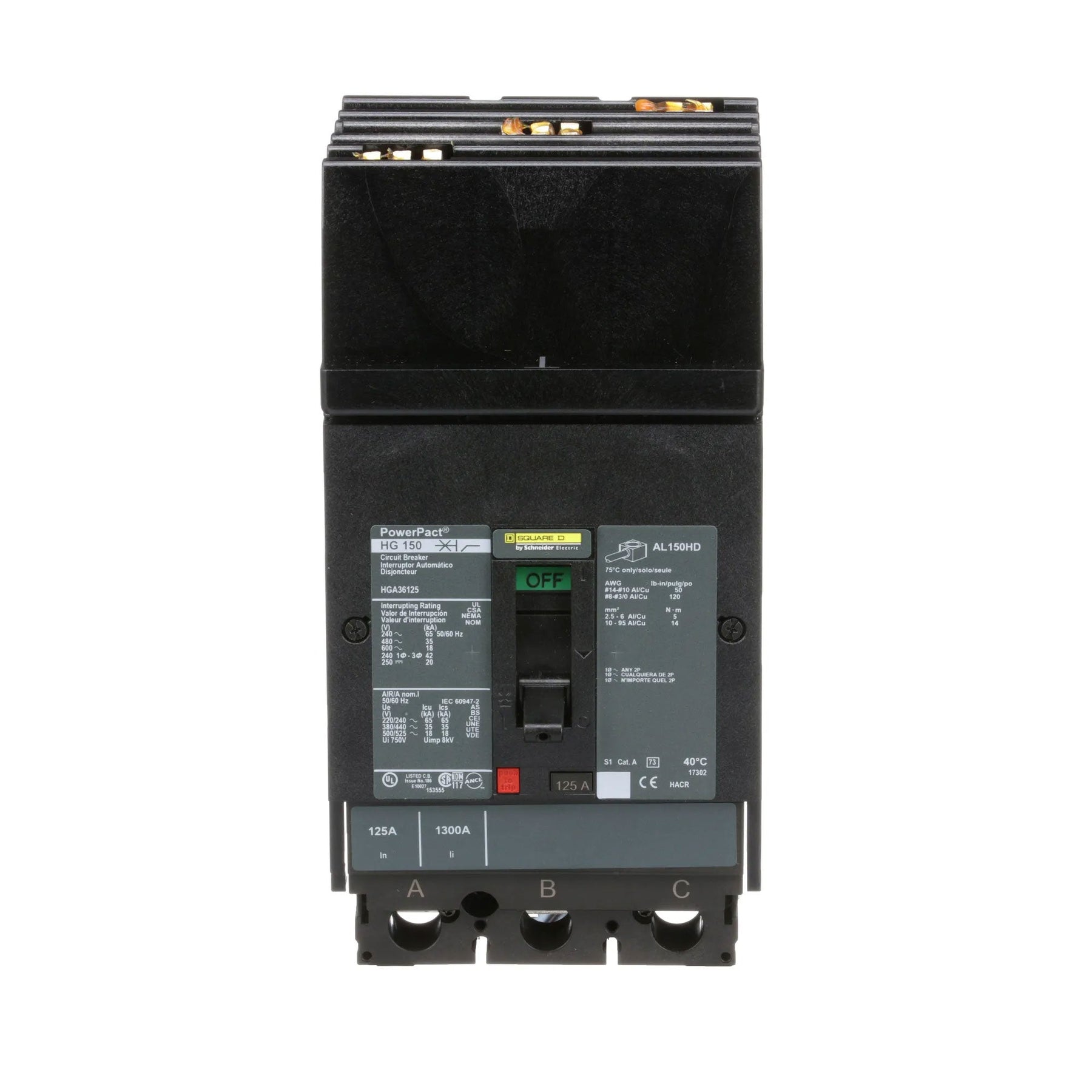

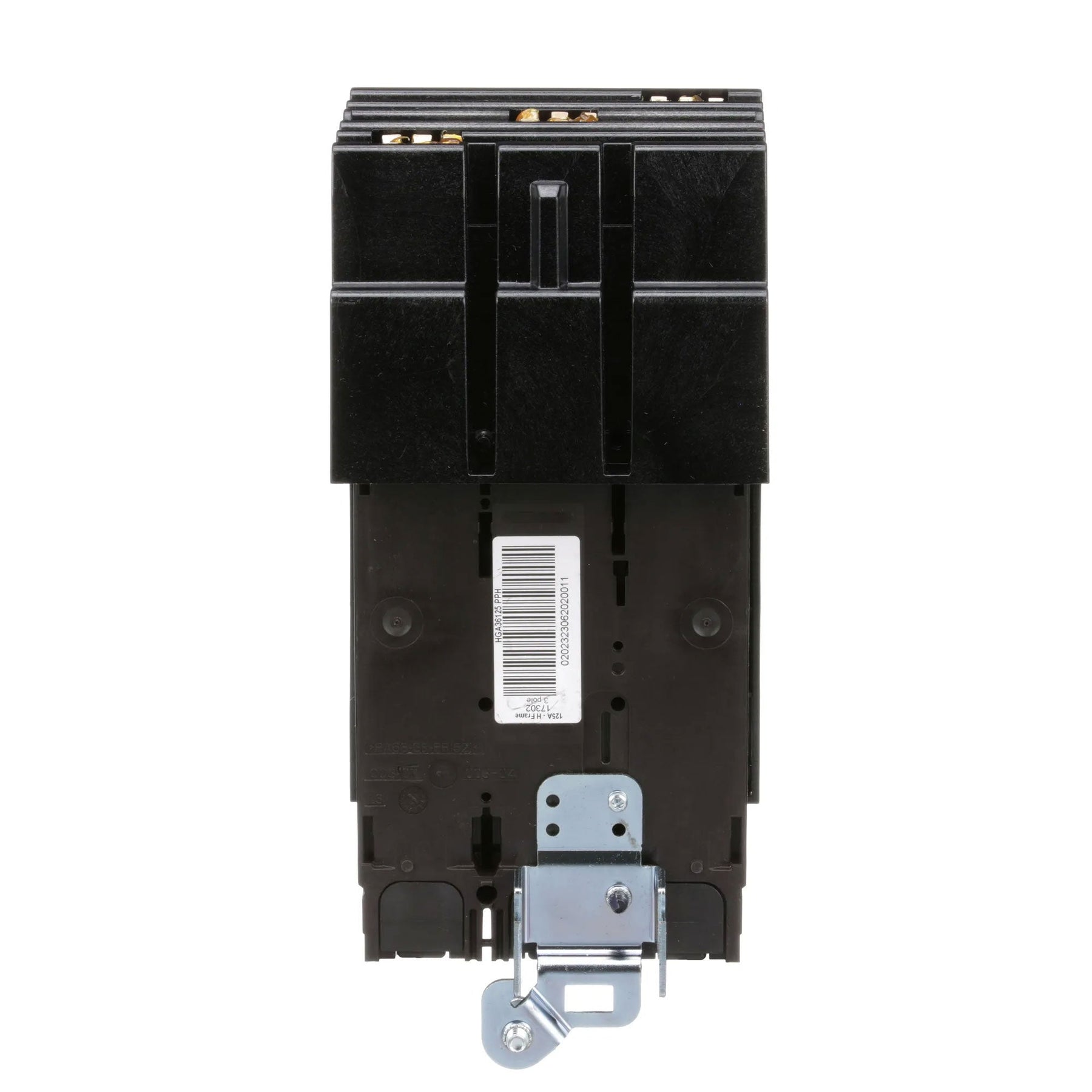

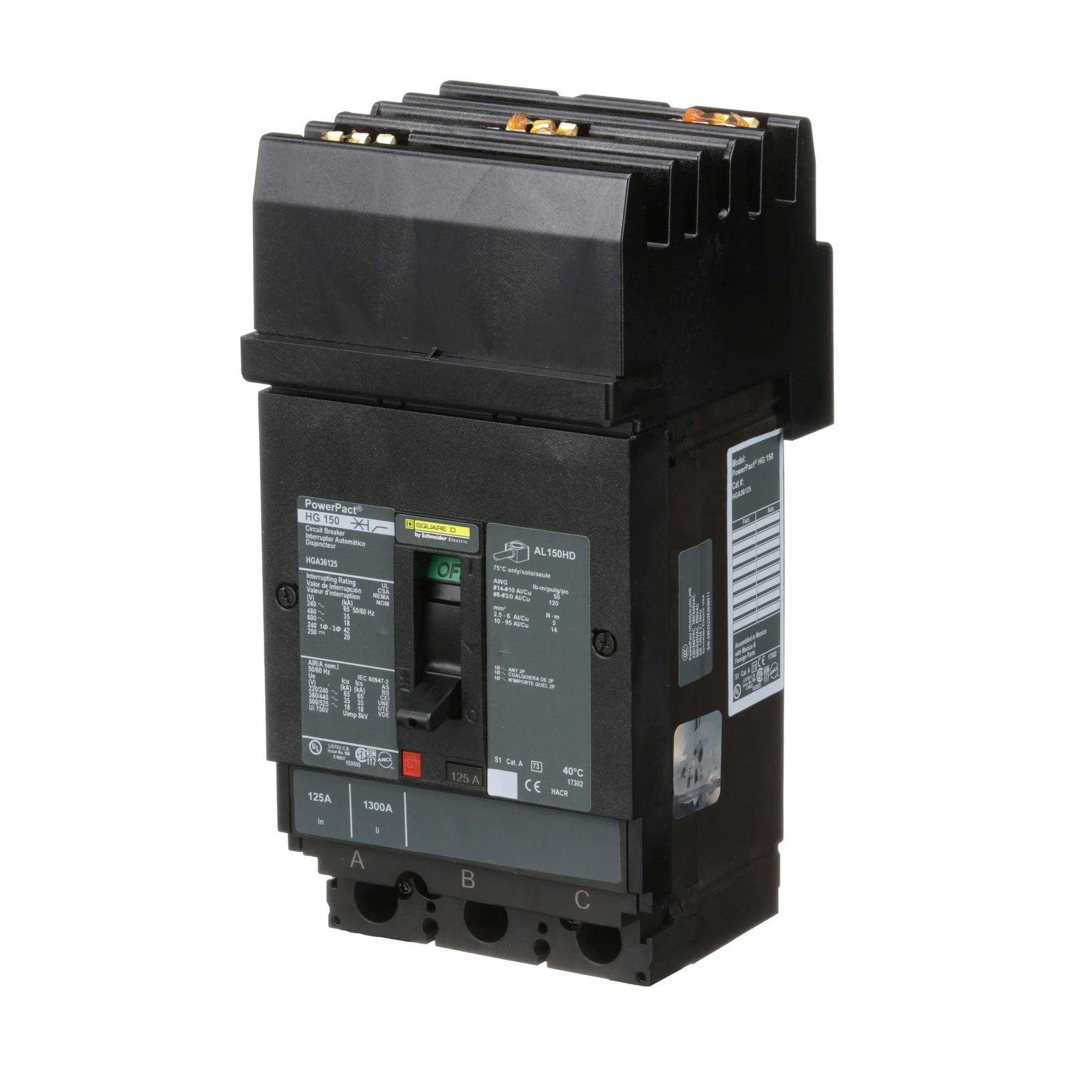

Square D HGA36125 - Molded Case Circuit Breaker 125A 600V 3-Pole

Price
Regular price $922.63
Regular price $3,779.00 Sale price $922.63
Save $2,856.37
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Square D HGA36125 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 125A current rating and a 600V voltage rating, housed within a compact 150A/HG frame measuring 163 mm x 104 mm x 86 mm (H x W x D) and weighing 5.919 lb. This thermal-magnetic breaker with LI (Long-time and Instantaneous) trip functions is engineered to comply with UL, CSA, NEMA, NOM, and IEC 60947-2 standards. It is configured as a 3-pole, plug-in unit for I-Line panelboards, offering a 35kA interrupting capacity at 480V and is suitable for operation in temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Type
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Frame Size: 150A/HG
  • Poles: 3
  • AIC Rating: 35kA @ 480V
  • Connection: Plug-In Panelboard, Lug Terminal
  • Phase: 3, ABC Connection
  • Functions: LI (Long-Time & Instantaneous Trip)
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)

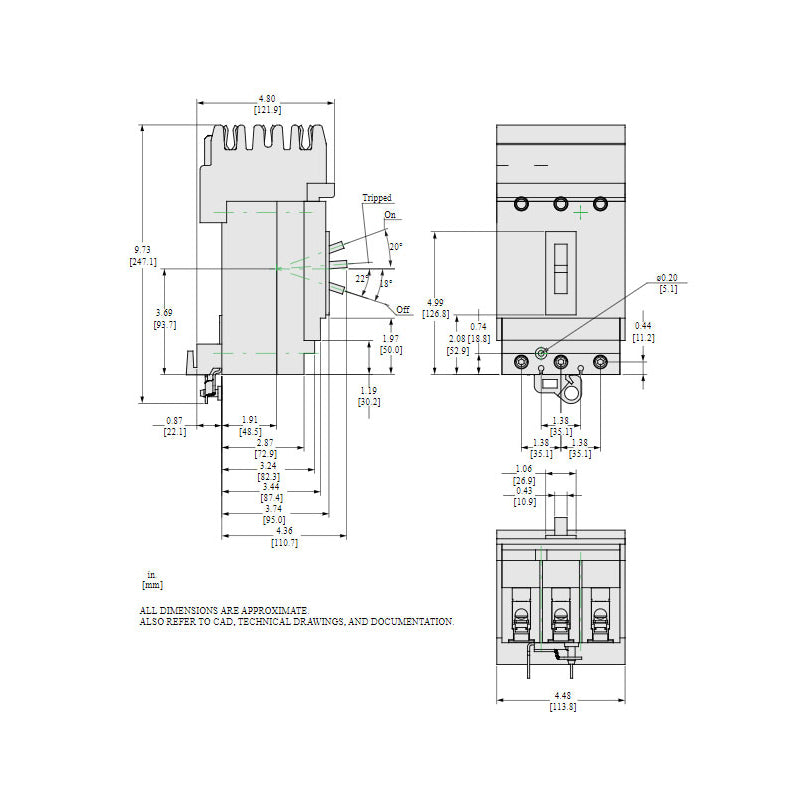

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Weight: 5.919 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Panel Type: I-Line Panelboards
  • Certification: UL, CSA, NOM
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901939238
  • GTIN: 00785901939238
