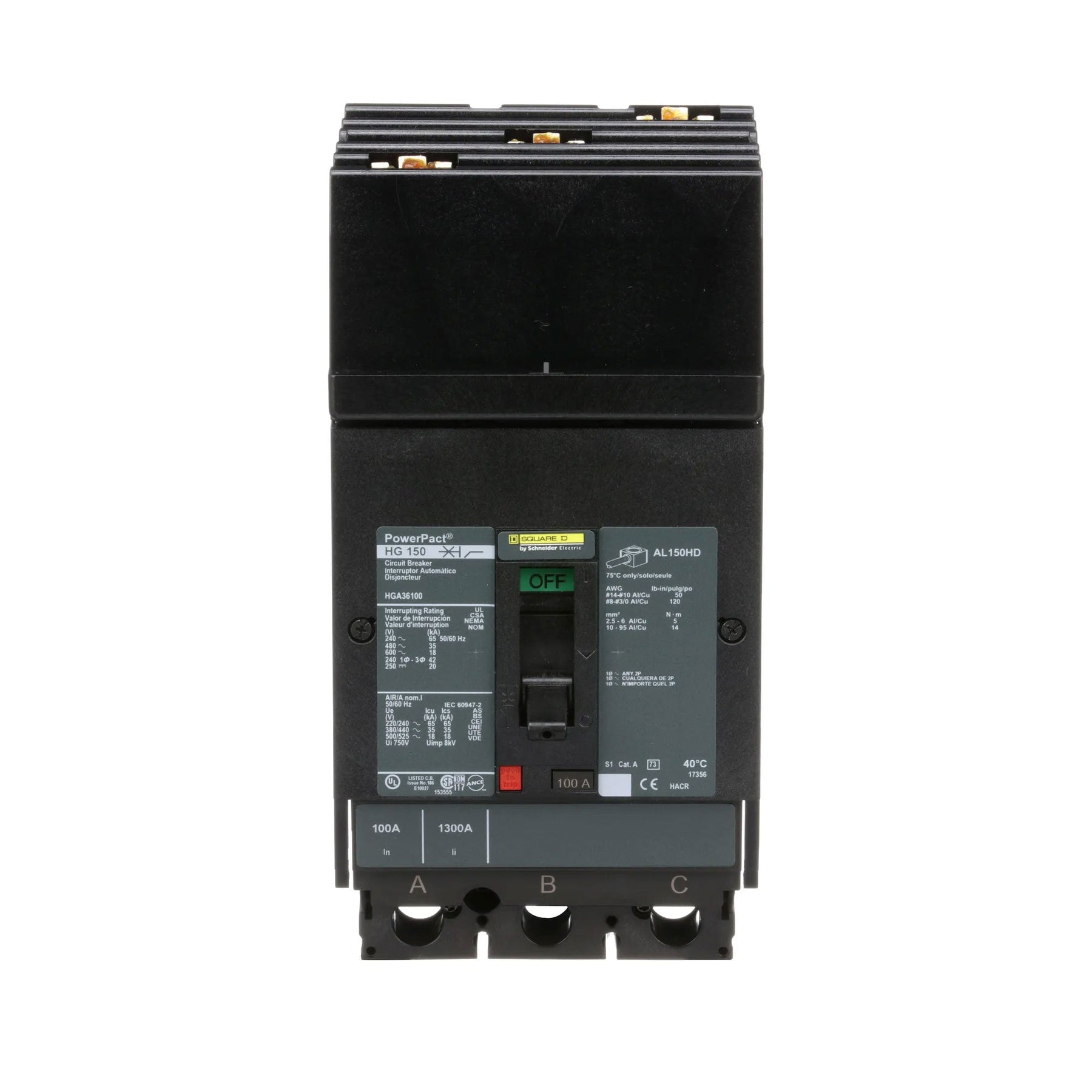

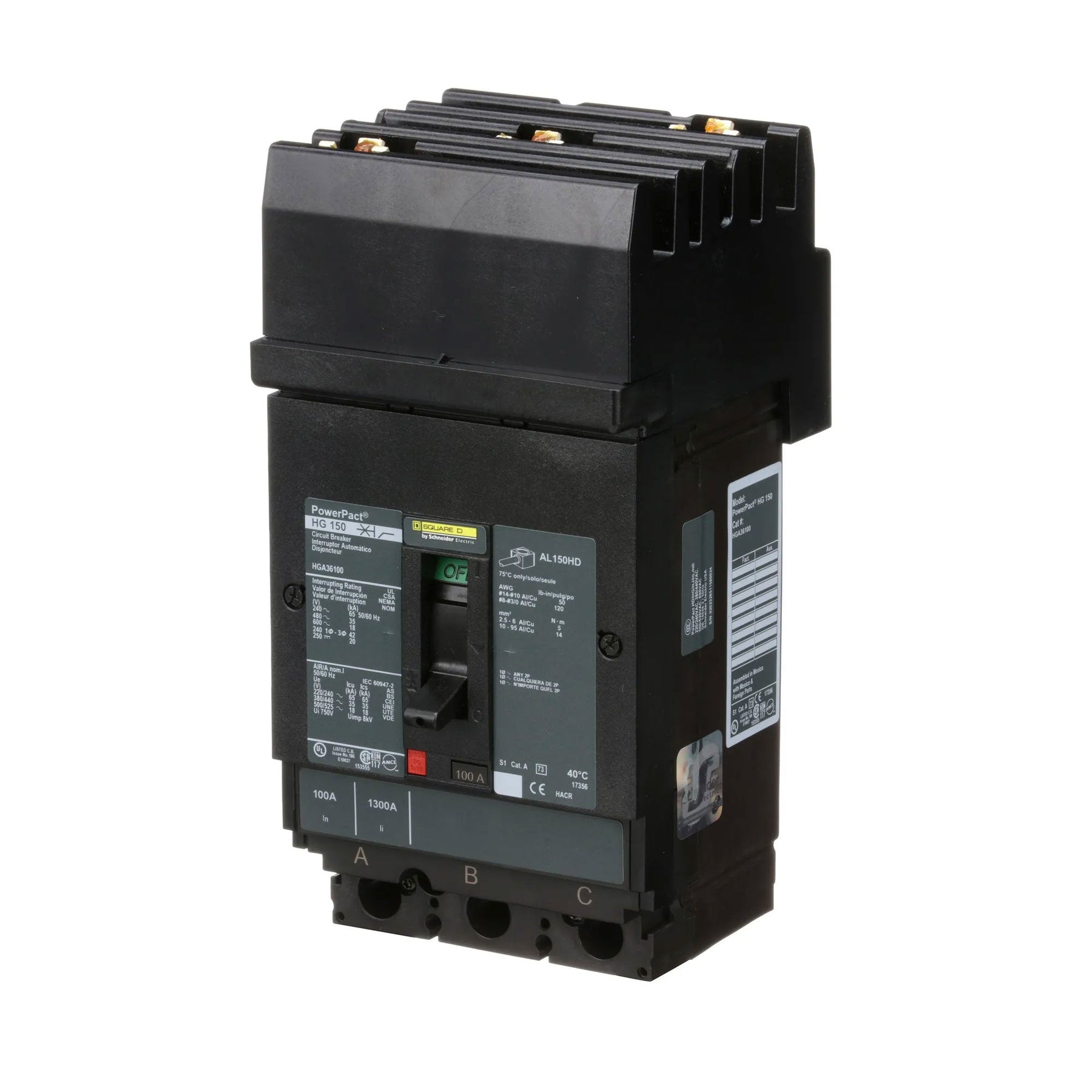

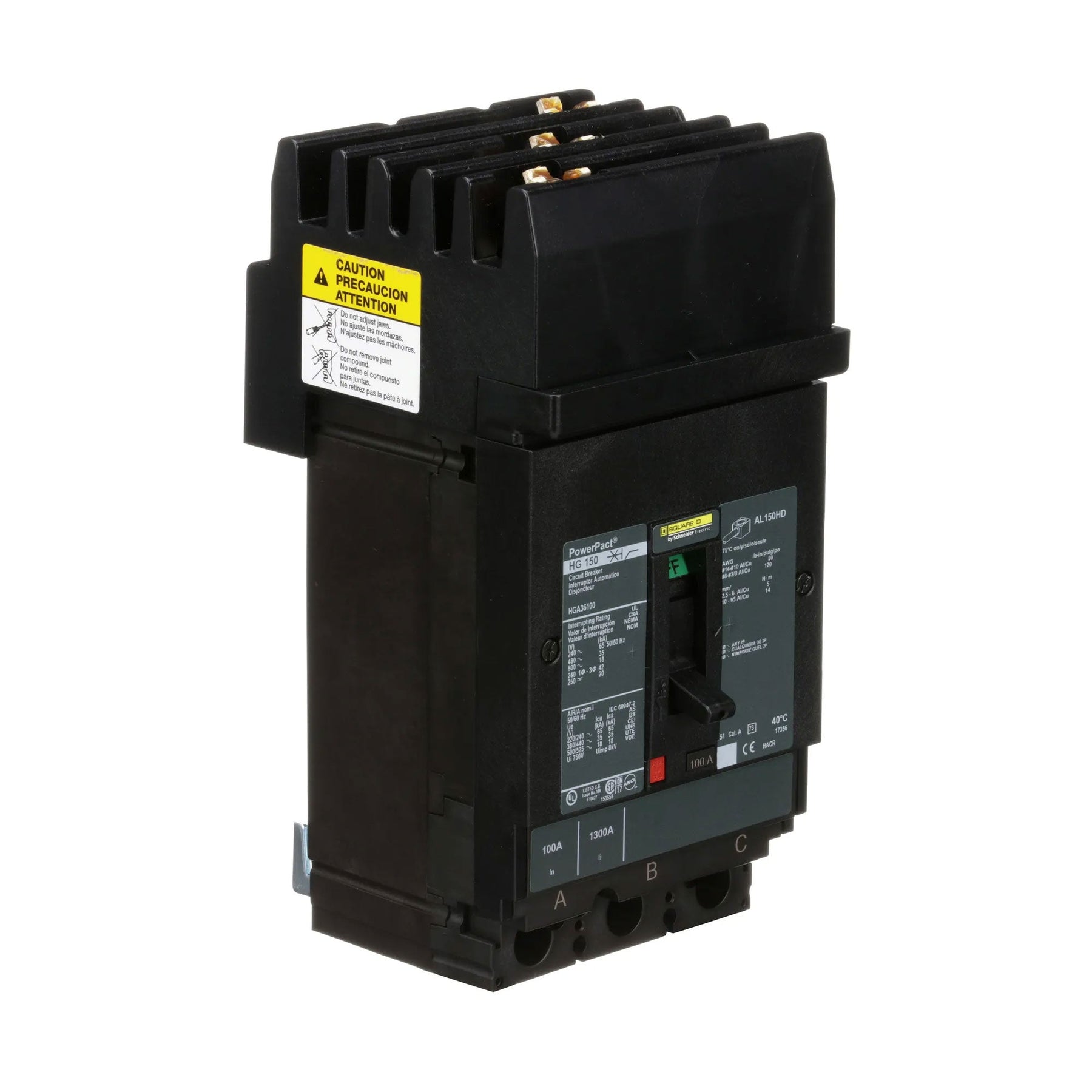

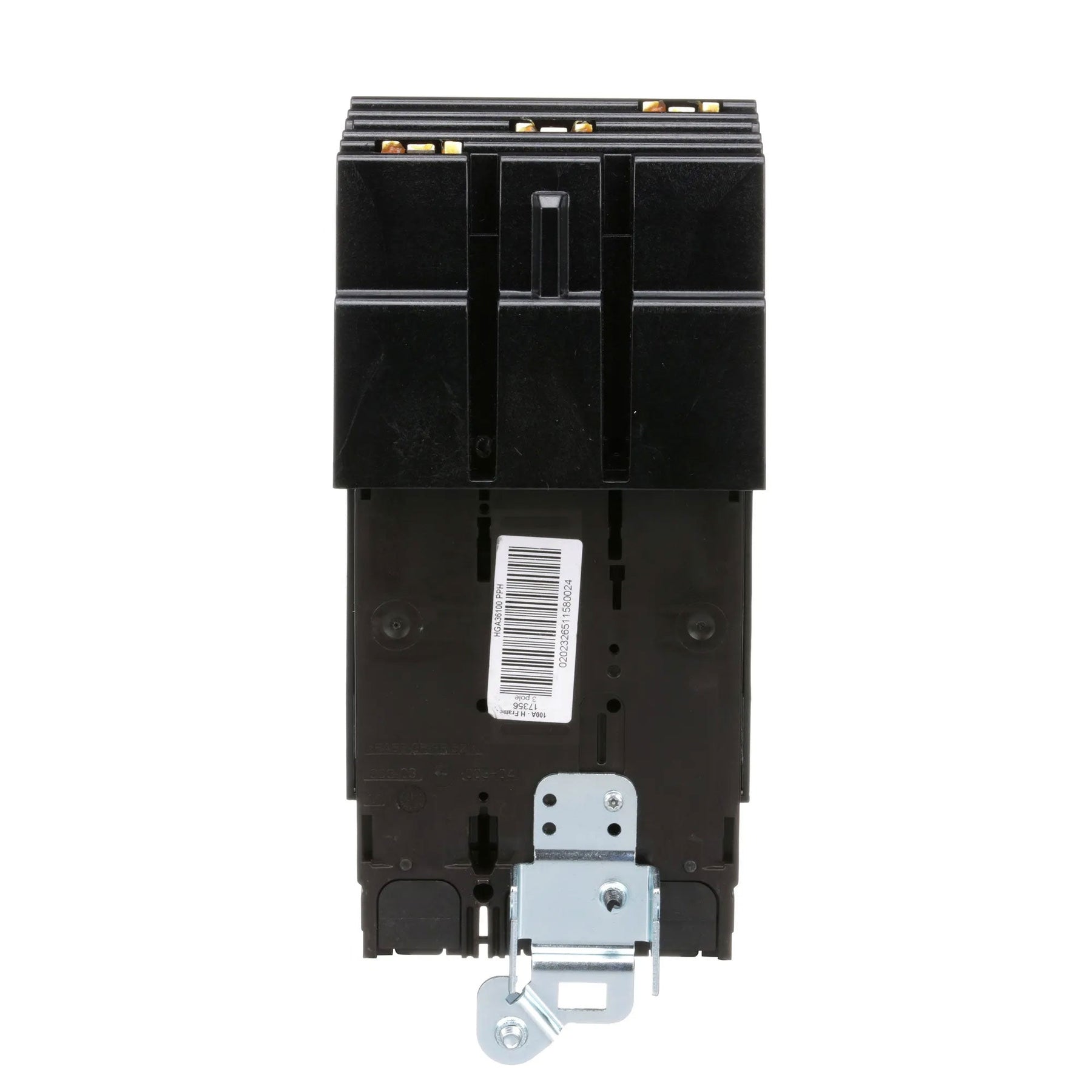

Square D HGA36100 - Molded Case Circuit Breaker 100A 600V 3P

Price
Regular price $737.03
Regular price $1,772.00 Sale price $737.03
Save $1,034.97
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Square D HGA36100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact 163 mm x 104 mm x 86 mm (HxWxD) frame with a lug terminal connection. This thermal-magnetic breaker complies with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring robust performance and safety. Its 35kA interrupting rating at 480V and plug-in design for I-Line panelboards make it suitable for three-phase commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Standard Trip
  • Voltage Rating: 600V AC
  • Current Rating: 100A

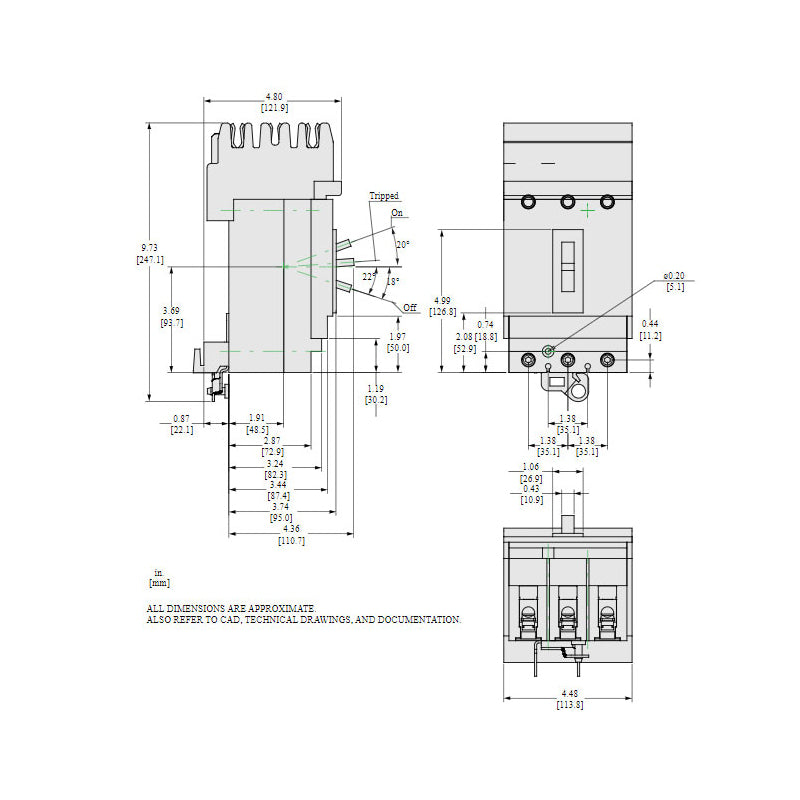

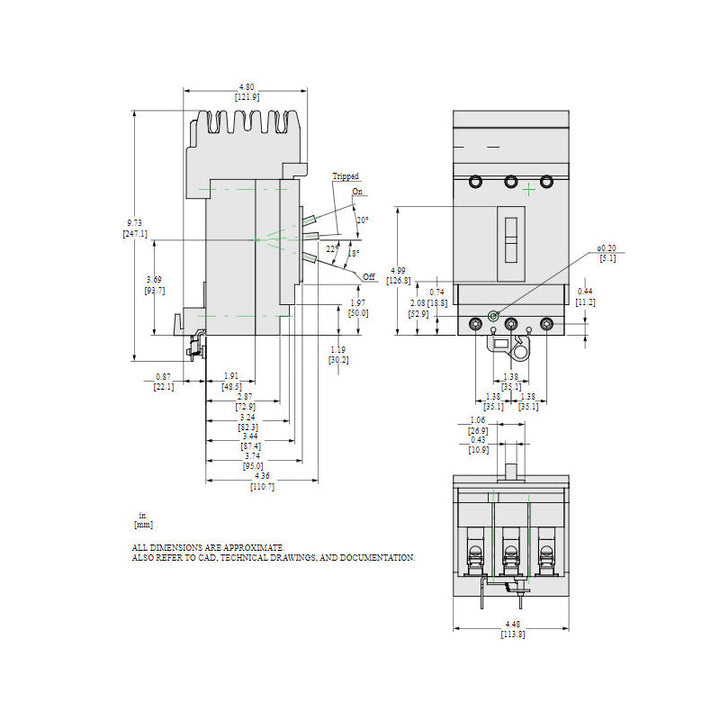

  • Dimensions: 163 mm x 104 mm x 86 mm (H x W x D)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, I-Line Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -2°C to 70°C (28°F to 158°F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V AC
  • Connection: Plug In Panelboard
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: Lug
  • Weight: 5.549 lb
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901795056
  • GTIN: 00785901795056
