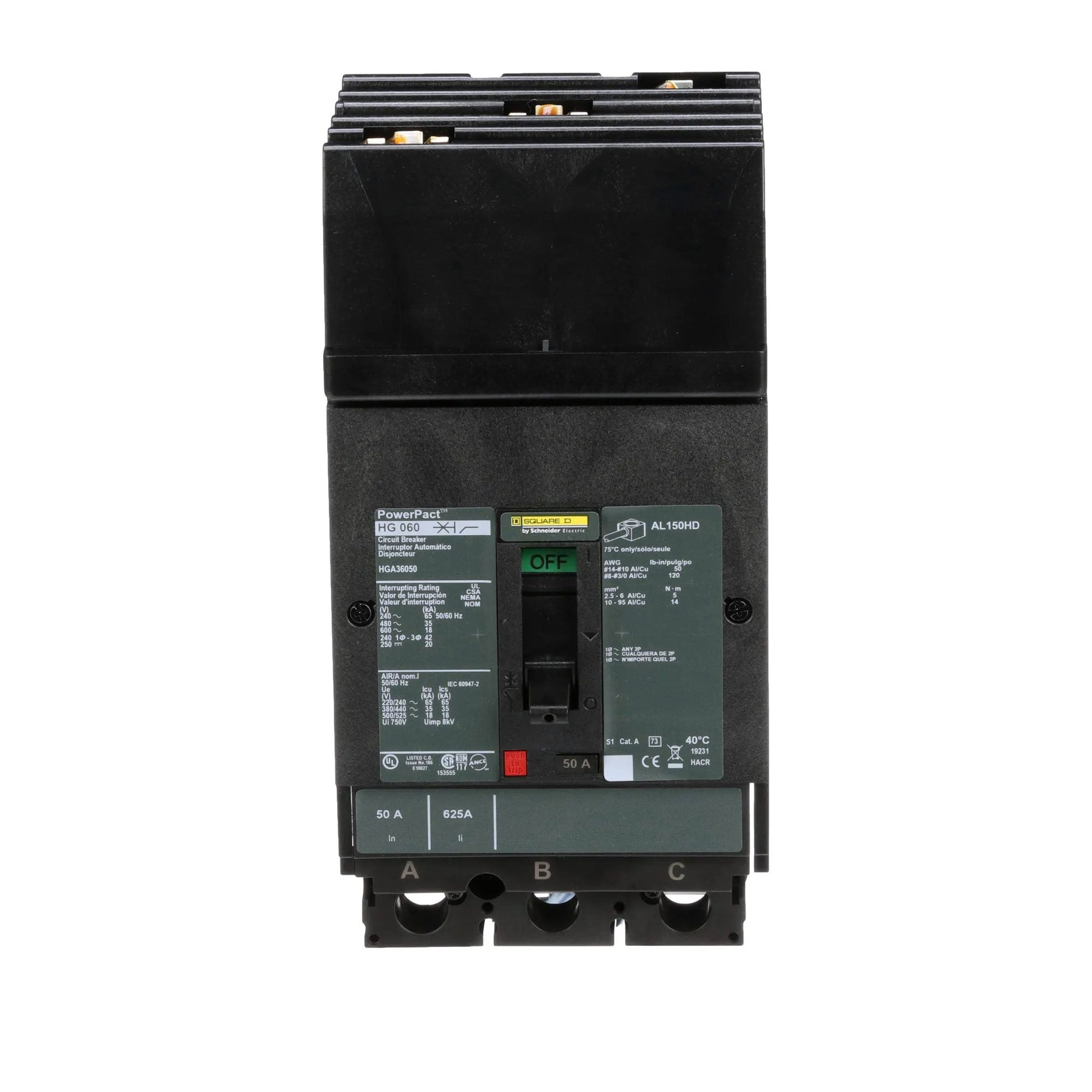

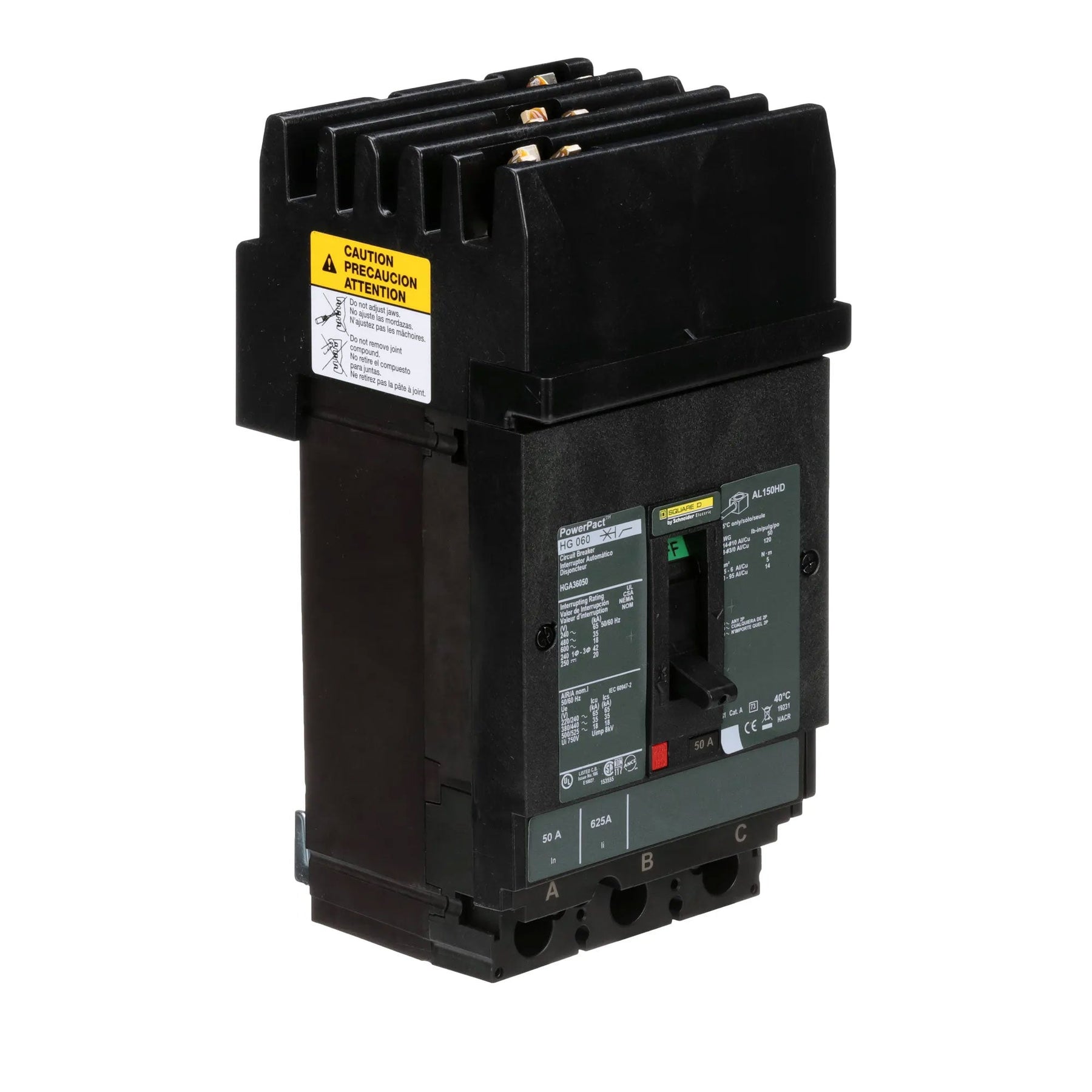

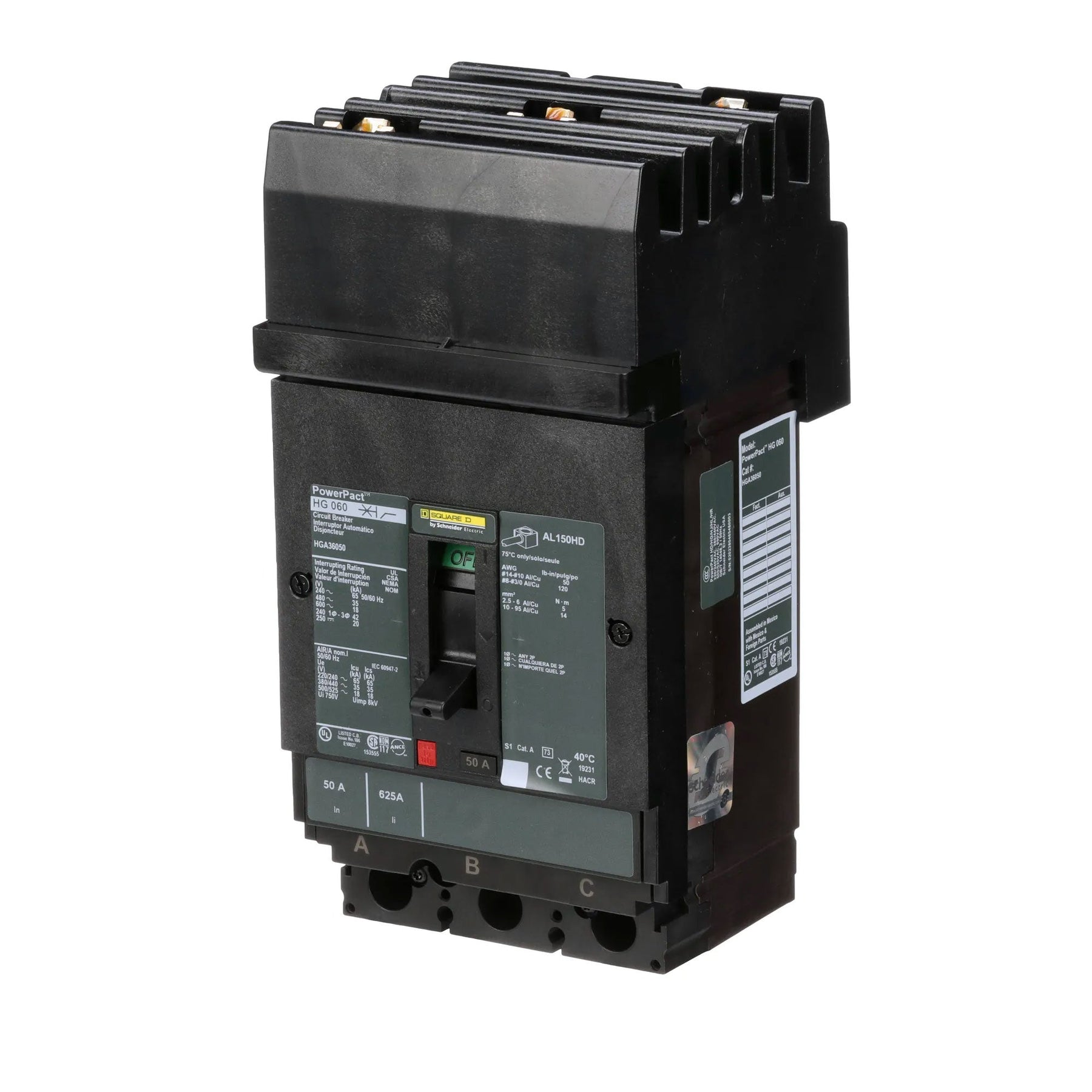

Square D HGA36050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 50A current rating and a 600V voltage rating, housed within a compact 150A/HG frame measuring 163 mm x 104 mm x 86 mm (H x W x D) and weighing 5.3 lb. This thermal magnetic breaker is constructed for I-Line style plug-in connection to compatible panelboards and complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards. Its 35kA interrupting capacity at 480V and operating temperature range of -25 to 70 °C make it suitable for three-phase commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 50A

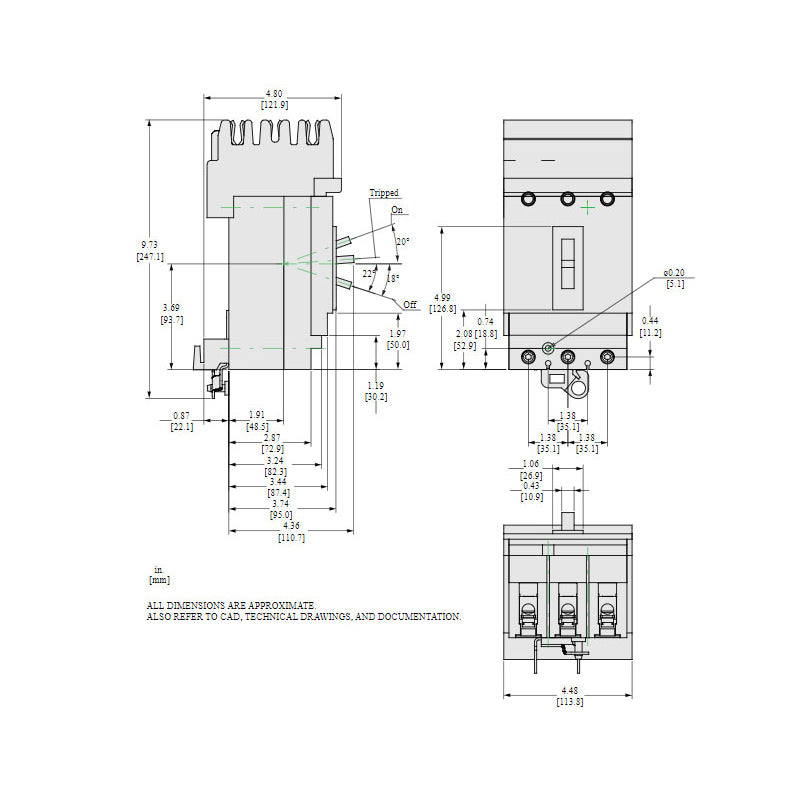

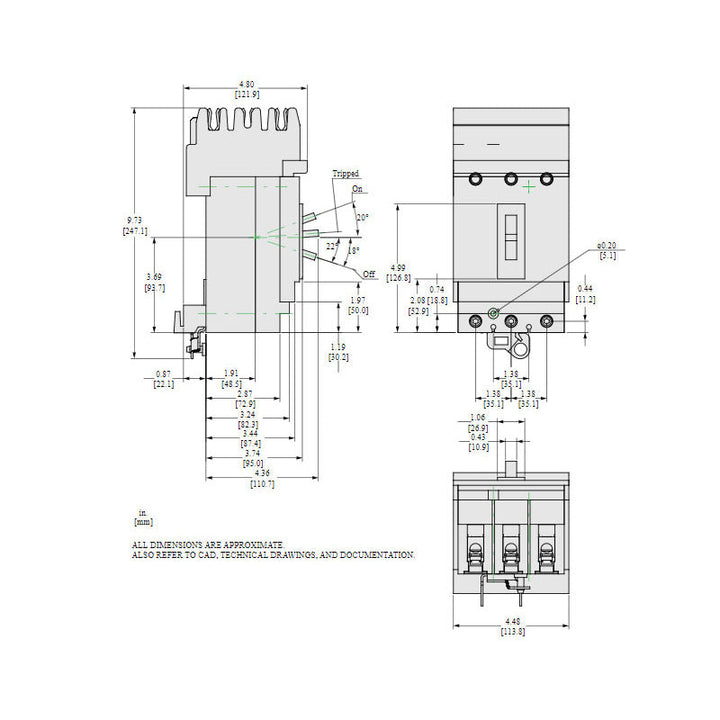

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, I-Line Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 35kA @ 480V

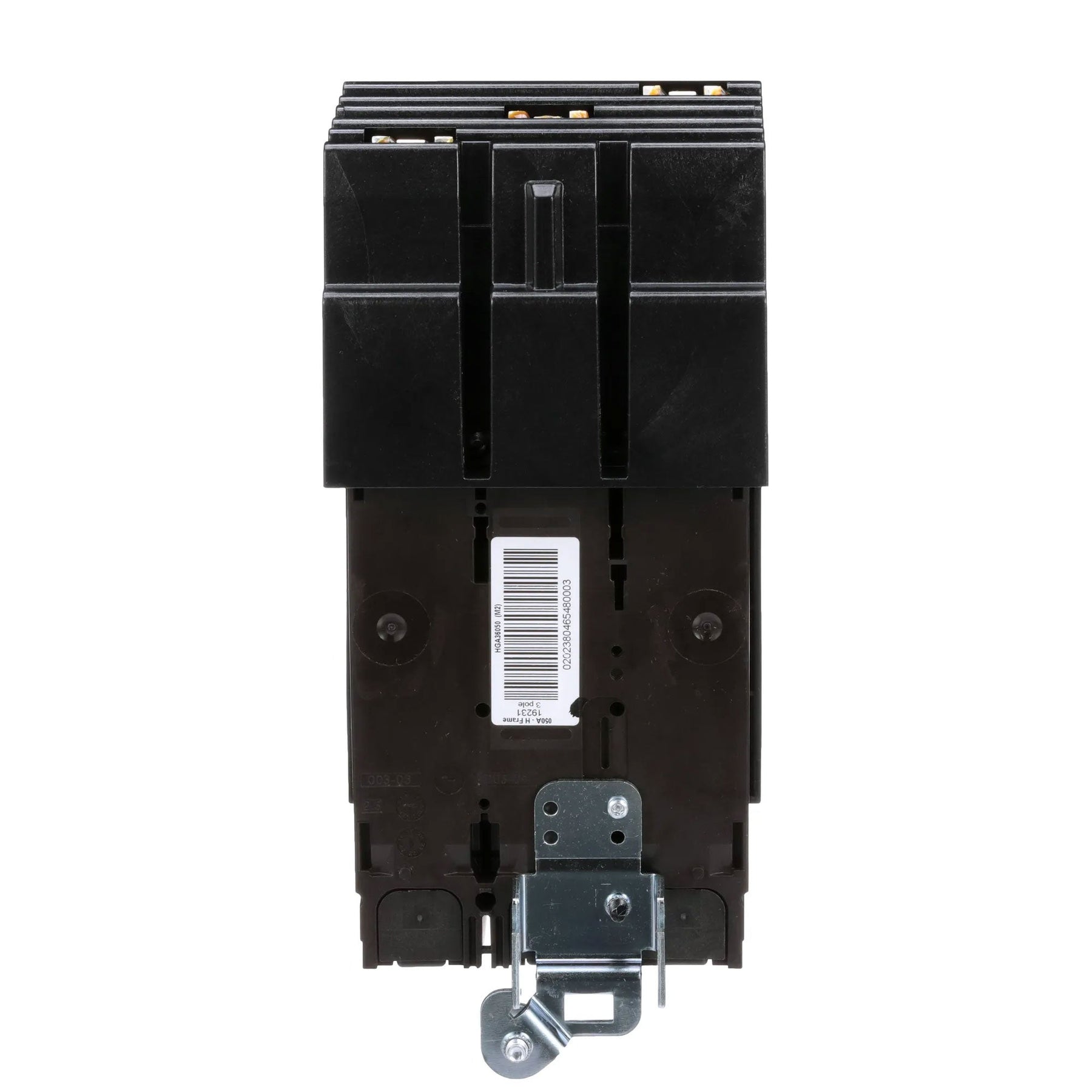

  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Wire Size: AWG 14 to AWG 3/0 (Aluminium/Copper Terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Weight: 5.3 lb


Product Identification
  • UPC: 785901795025
  • GTIN: 00785901795025
