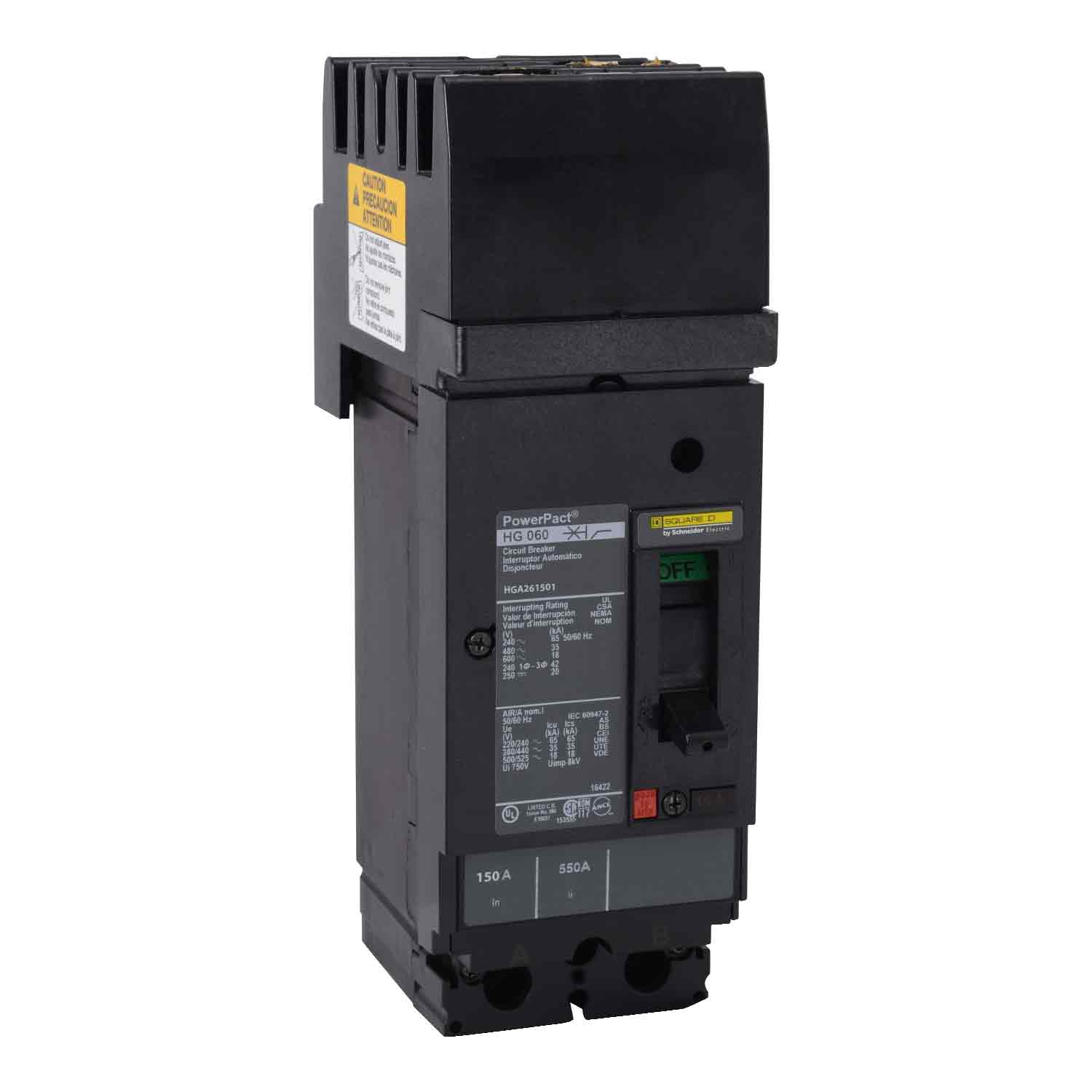

Square D HGA261501 - Molded Case Circuit Breaker 150A 600V
Square D HGA261501 - Molded Case Circuit Breaker 150A 600V

Square D HGA261501 - Molded Case Circuit Breaker 150A 600V

Square D
Price
Save $-340.72
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HGA261501 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 150A current rating and a 600V voltage rating, housed within a compact 150A/HG frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 3.001 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous protection, is rated for 35kA interrupting capacity at 480V, and operates within a temperature range of -25 to 70 °C. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring suitability for global industrial applications. This plug-in, two-pole breaker is typically used in I-Line panelboards, accommodating wire sizes from 14 AWG to 3/0 AWG with its lug terminals for secure copper or aluminum connections.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip Unit
  • Voltage Rating: 600V AC
  • Current Rating: 150A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Weight: 3.001 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, I-Line Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: Plug In Panelboard, Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)
  • Certification: UL, CSA, NOM
  • Phase Connection: AB
  • Country of Origin: United States


Product Identification
  • UPC: 785901539896
  • GTIN: 00785901539896
