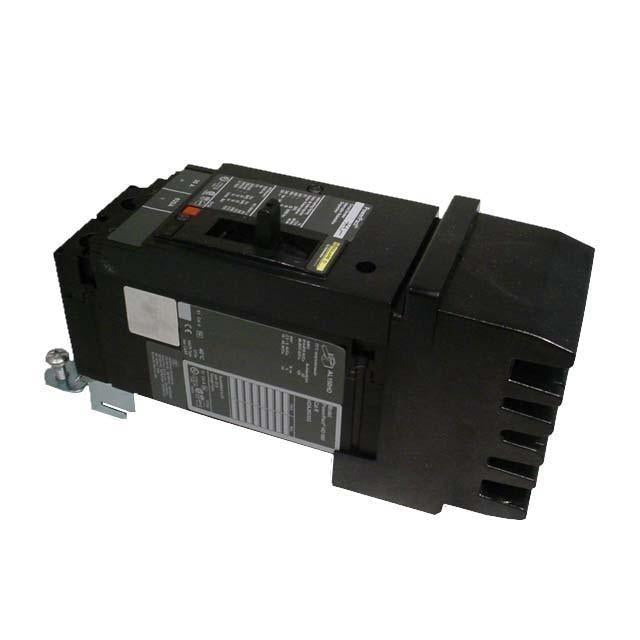

Square D HGA261001 - Molded Case Circuit Breaker 100A 600V 2-Pole
Square D HGA261001 - Molded Case Circuit Breaker 100A 600V 2-Pole

Square D HGA261001 - Molded Case Circuit Breaker 100A 600V 2-Pole

Square D
Price
Save $703.27
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Square D HGA261001 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. It features a 100A current rating and a 600V voltage rating, housed within a compact 163 mm x 104 mm x 86 mm (HxWxD) frame with a 150A/HG frame size and lug terminals. This thermal-magnetic breaker complies with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring safe operation across a temperature range of -25 to 70 °C. Its plug-in design is specifically engineered for integration into I-Line panelboards, offering a 35kA interrupting capacity at 480V for robust system protection.

Key Features & Specifications
  • Type: Molded Case, Thermal-Magnetic Protection, Standard Breaker
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4.2 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: I-Line Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: Plug In Panelboard, Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Phase Connection: AB
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901651529
  • GTIN: 00785901651529
