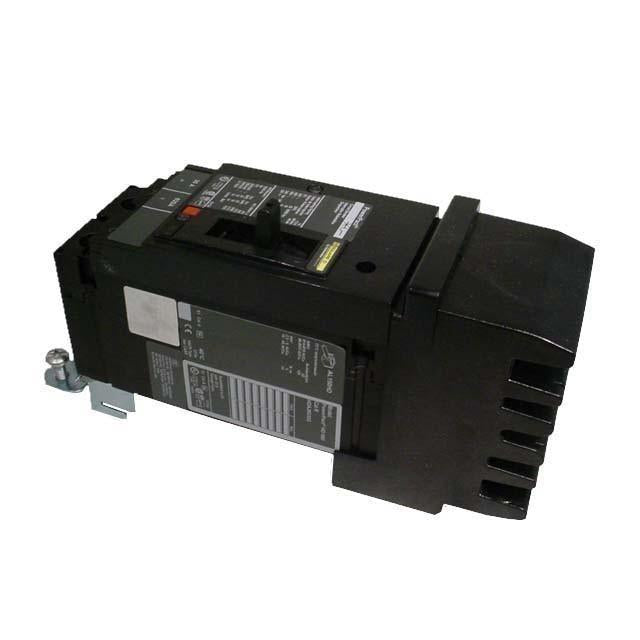

Square D HGA260904 - Molded Case Circuit Breaker 90A 600V 2-Pole
Square D HGA260904 - Molded Case Circuit Breaker 90A 600V 2-Pole

Square D HGA260904 - Molded Case Circuit Breaker 90A 600V 2-Pole

Square D
Price
Save $3,229.44
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D HGA260904 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 90A current rating and a 600V voltage rating for robust electrical performance. The breaker is constructed with a compact H-frame design measuring 163 mm x 104 mm x 86 mm (HxWxD) and utilizes a thermal-magnetic trip unit with long-time and instantaneous functions for coordinated protection. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring suitability for a wide range of industrial and commercial applications requiring a 35kA interrupting capacity at 480V.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, I-Line Style Plug-In Connection
  • Voltage Rating: 600V AC
  • Current Rating: 90A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Weight: 3.001 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V
  • Connection: I-Line Plug-In
  • Poles: 2
  • Protection: Thermal-Magnetic
  • Functions: Long Time, Instantaneous
  • Frame Size: H Frame
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 094705148945
  • GTIN: 00785901542421
