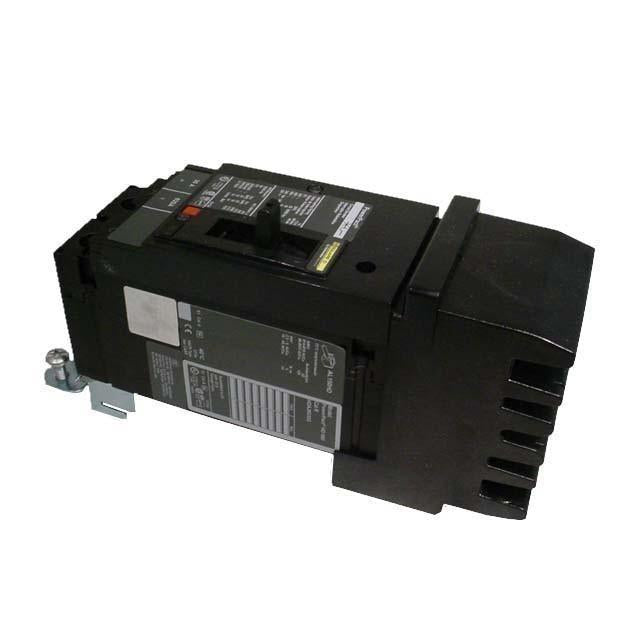

Square D HGA260802 - Molded Case Circuit Breaker 80A 600V 2-Pole
Square D HGA260802 - Molded Case Circuit Breaker 80A 600V 2-Pole

Square D HGA260802 - Molded Case Circuit Breaker 80A 600V 2-Pole

Square D
Price
Save $2,327.66
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HGA260802 is a molded case circuit breaker designed for providing reliable thermal-magnetic protection in industrial power distribution systems. It features an 80A current rating and a 600V AC voltage rating, housed within a compact 150A/HG frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 3.001 lb. The breaker is constructed for plug-in connection to I-Line panelboards, utilizing lug terminals compatible with wire sizes from 14 AWG to 3/0 AWG for aluminum or copper conductors. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring safe operation across a temperature range of -25 to 70 °C. This 2-pole, single-phase breaker is typically applied in commercial and industrial facilities where its 35kA interrupting capacity at 480V AC provides critical protection against overloads and short circuits.

Key Features & Specifications
  • Type: Standard Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 3.001 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, I-Line Panelboards
  • Switch Type: Circuit Breaker
  • Configuration: Plug-In
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 1
  • AIC Rating: 35kA @ 480V AC
  • Connection: Plug In Panelboard, Lug Terminal
  • Poles: 2
  • Protection: Thermal Magnetic
  • Functions: Long Time and Instantaneous Trip
  • Frame Size: 150A/HG
  • Panel Type: I Line Panelboards
  • Breaker Type: Standard
  • Phase Connection: AC
  • MCM Size: Min. 14 AWG, Max. 3 AWG
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper Terminal)
  • Certification: UL, CSA, NOM


Product Identification
  • UPC: 785901491071
  • GTIN: 00785901491071
